The T14 RGBW Touch LED Panel is a premium wall-mounted controller designed for versatile and sophisticated lighting control in both residential and commercial spaces. The T14 can also be used for RGB lighting, making it suitable for both RGB and RGBW LED strips, although we have a dedicated version specifically for RGB control. Featuring dual control options of DMX512 and RF 2.4GHz, it allows users to easily manage RGBW lighting systems with precision.
Key Features:
-
Dual Control Modes: The T14 panel can operate as a DMX512 master or as a 4-zone RF remote, providing unmatched flexibility for different installations. The T14 is specifically designed for RGBW applications, ensuring that users can take full advantage of the RGBW colour mixing capabilities for dynamic lighting effects. You can either use the RF control to wirelessly connect with LED controllers or integrate it into a DMX system for precise lighting management.
-
Versatile Compatibility: The T14 is compatible with DMX decoders from any supplier, complying with the standard DMX512 protocol. The T14 can be used for both RGB and RGBW applications, allowing it to seamlessly integrate into different types of lighting installations. This makes it easy to connect and control your LED strips using a DMX512 decoder. When used as an RF remote, each of the four zones can control multiple RF LED controllers simultaneously.
-

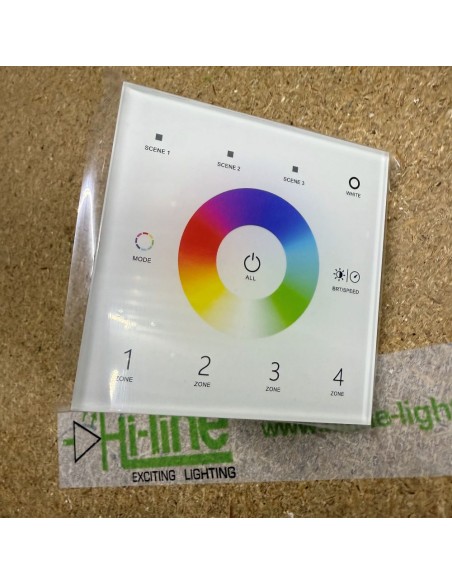

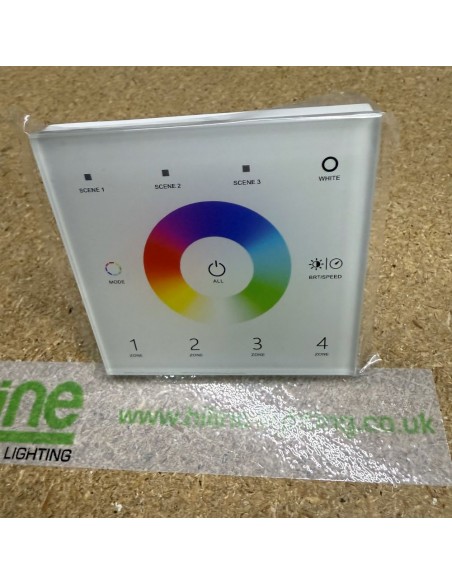

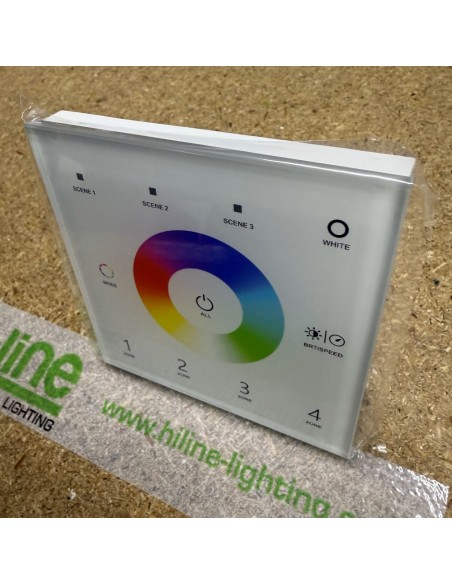

Integrated Touch Interface: The T14 boasts an ultra-sensitive, high-strength glass touch panel. With an intuitive colour wheel in the centre, it ensures smooth and accurate colour adjustments, allowing users to easily pick the perfect lighting tone. The touch keys also feature LED indicators, ensuring easy operation even in dark environments.
-
Multi-Zone Management: The T14 panel can control up to four different lighting zones either independently or synchronously. This allows for enhanced management of lighting across multiple areas – perfect for larger installations or areas with different lighting requirements.
-
Advanced Scene Setting and Dynamic Modes: The T14 offers up to 10 dynamic modes for creative lighting, including RGB smooth fade, colour jump, and fade-in/out sequences. Additionally, it features 4 programmable scene buttons that allow users to recall favourite lighting scenes quickly or save new settings by simply holding the button for 5 seconds.
Technical Specifications:
-
Designed for RGBW Lighting: The T14 panel is made specifically to control RGBW LED systems, offering dedicated features for optimal colour mixing and management.
-
Input Voltage: 100-240V AC, mains-powered for convenience without requiring additional power supplies.
-
Output Signal: DMX512 & RF 2.4GHz.
-
Control Zones: 4 zones, supporting independent or synchronized control.
-

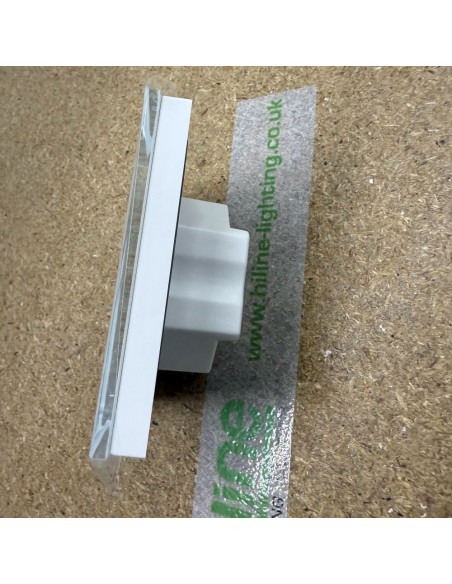

Dimensions: L112mm x W112mm x H50mm (standard EU installation).
-
IP Rating: IP20 (for indoor use only).
-
Dimming Levels: 256 levels with smooth 0-100% dimming range.
-
Certification: CE, EMC, RED, EN 62368-1, and UKCA certified, ensuring safety and reliability.
-
Operating Temperature: -30°C to +55°C.
-
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
Additional Highlights:
-

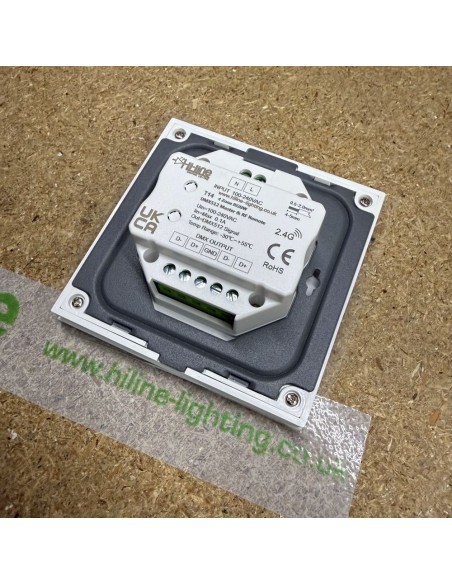

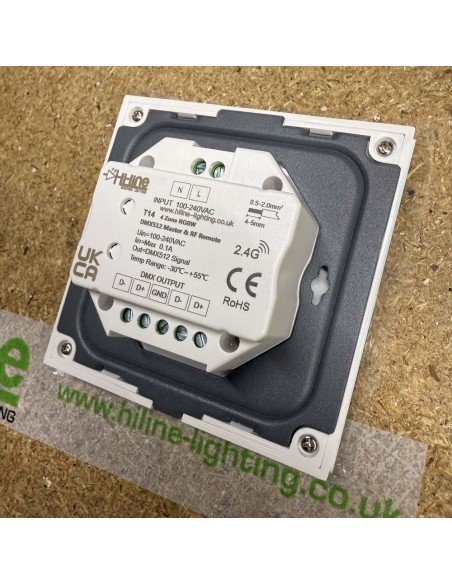

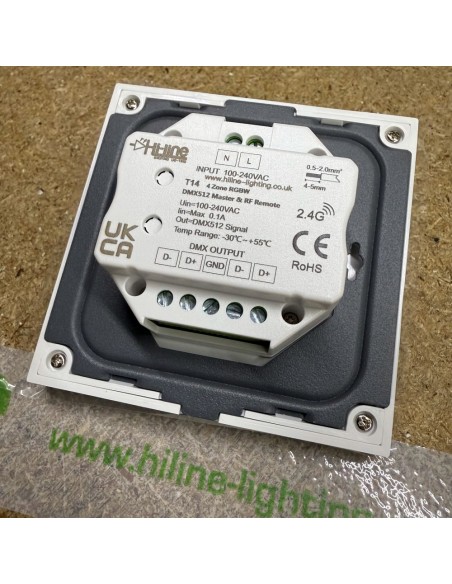

DMX and RF Integration: You can use the T14 as a standalone RF controller or integrate it into an existing DMX lighting system by using the optional DMX output. If using DMX512 as the output, please refer to the datasheet for details regarding the DMX start address configuration. The RF capability allows seamless control of multiple zones, while the DMX functionality offers precision for more professional installations. The RF capability allows seamless control of multiple zones, while the DMX functionality offers precision for more professional installations.
-
Easy Matching Options: The T14 supports easy matching with RF remote devices or DMX decoders. You can use power restart methods or match keys for effortless pairing, offering end users multiple options to suit their preference.
-
Elegant Design: Available in white or black glass finishes, the T14 panel provides an elegant addition to any space, merging style with functionality. This listing is for the white panel. We also offer the black version as a separate listing. You can find it easily by checking the 'Related Products' tab for quick access.
Perfect for Versatile Applications:
The T14 RGBW Touch Panel Controller is ideal for use in residential spaces, commercial establishments, or venues needing intricate lighting control. Whether you want to manage RGBW LED strips through wireless RF or have precise control using DMX protocols, the T14 offers unmatched performance and ease of use.
