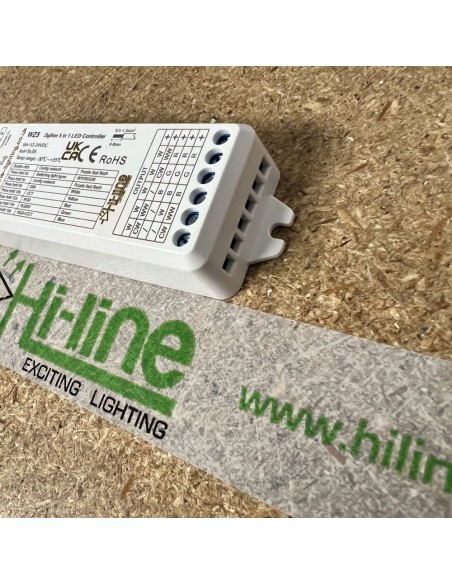

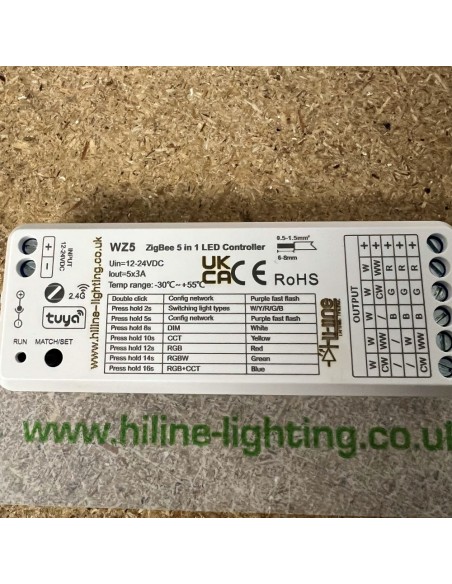

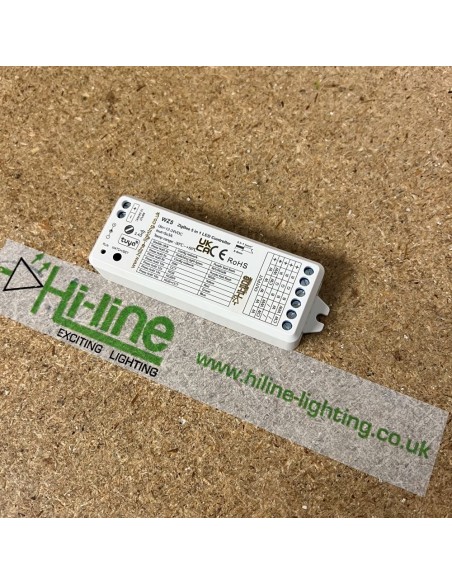

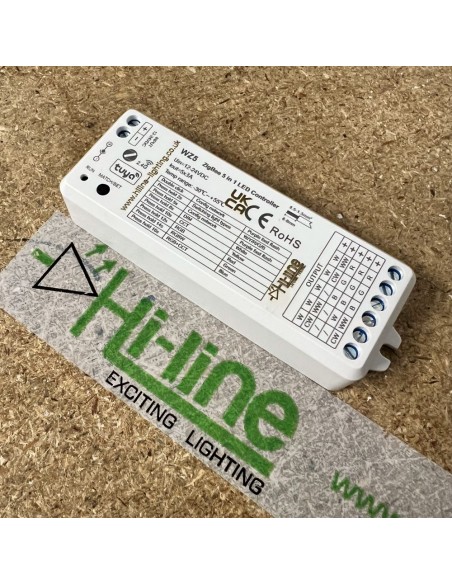

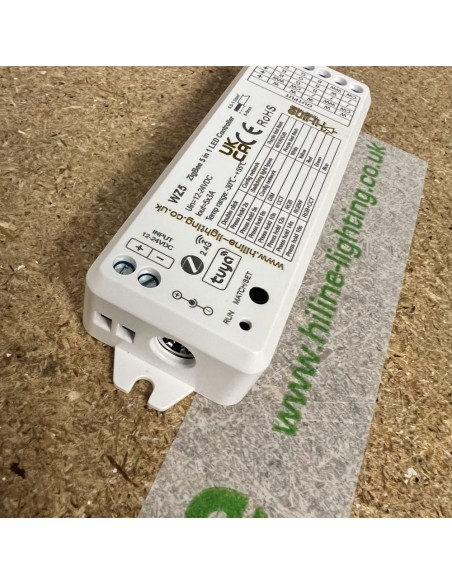

The WZ5 ZigBee & RF 2.4GHz LED Controller from Hi-Line Lighting offers unparalleled versatility, seamlessly bridging the gap between ZigBee-based smart home systems and Hi-Line's RF (Radio Frequency) product range. Designed to simplify LED control and provide maximum flexibility, this controller is ideal for both residential and commercial lighting installations.
Key Features
- 5-in-1 Control Capability: Supports single-colour, dual-colour (CCT), RGB, RGBW, and RGB+CCT LED strips, making it a universal controller for varied lighting installations.
- ZigBee Integration: Fully compatible with ZigBee 3.0, seamlessly connecting to hubs like Philips Hue Bridge, Tuya ZigBee Gateway, and Amazon Echo devices with ZigBee.
- RF Functionality (Hi-Line Only): Pairs with Hi-Line’s 2.4GHz RF remotes, touch panels, and dimmers for additional manual control. Only Hi-Line’s RF 2.4GHz products are supported; third-party RF accessories are not compatible.
- Tuya App Control: Pair with the Tuya ZigBee Gateway for full control via the Tuya Smart app, enabling lighting adjustments and integration with other smart devices for a complete smart home ecosystem.
- ZigBee-to-RF Conversion: Acts as a ZigBee-to-RF converter, allowing one ZigBee controller to synchronise multiple RF devices through the Tuya Smart app, extending control range and scalability.
Technical Specifications
- Input Voltage: 12–24VDC
- Output Channels: 5CH, 3A per channel (Constant Voltage)
- Control Distance: ZigBee up to 15m; RF 2.4GHz up to 30m (obstacle-free)
- Dimming: Smooth 4096-level dimming with logarithmic curve
- PWM Frequency: 1000Hz default
- Certifications: CE, UKCA, EMC
- Protection Features: Reverse polarity, over-heat, and short-circuit protection
- Operating Temperature: -30°C to +55°C
- Weight & Dimensions: 0.055kg; 120 x 43 x 27mm
- Warranty: 3 years standard, extendable to 5 years with our extended warranty option
Additional Information
- Matching Accessories: Find compatible accessories, such as Hi-Line 2.4GHz RF remotes, wall touch panels, and dimmers, in the ‘Related Products’ tab. These accessories are specifically designed to work seamlessly with the WZ5.
- Attachments Tab: Visit the ‘Attachments’ tab for detailed datasheets, user manuals, and other technical documents to ensure a smooth installation process.
Why Choose WZ5 over WZS5 or WT5?
- ZigBee with RF Support: Unlike the WZS5 (ZigBee-only) or WT5 (RF and WiFi only), the WZ5 combines the two, offering maximum compatibility and functionality in one device.
- Hi-Line RF Integration: For installations requiring RF remotes or wall panels alongside ZigBee integration, the WZ5 is the perfect choice.
- Versatility for Upgrades: Designed to accommodate lighting upgrades and dual-system installations, reducing the need for additional devices.
Who Should Buy This Controller?
- Installers: Perfect for installations requiring both ZigBee smart home integration and RF remote control for local operation.
- Smart Home Enthusiasts: Ideal for users with Philips Hue or Tuya systems looking for added RF functionality with Hi-Line accessories.
- Large-Scale Projects: Excellent for multi-zone or wide-range installations where ZigBee-RF conversion and RF range extend usability.
Notes
- Ensure all connected RF accessories are Hi-Line’s 2.4GHz range.
- ZigBee functionality works universally with certified ZigBee devices, while RF compatibility is proprietary to Hi-Line products.
The WZ5 bridges ZigBee's industry-standard protocol with Hi-Line’s advanced RF 2.4GHz capabilities, offering a powerful solution for versatile lighting installations. This makes it a standout option for both smart home enthusiasts and professional installers. For advice or assistance, our team is ready to help.
