DMX512 4-Channel DIN Rail Decoder with RDM | 12-24V Constant Voltage

A high-performance DMX512 DIN rail decoder with 4-channel output, supporting RGBW and dimmable LED strips. Features RDM support, adjustable PWM frequency, and built-in protections. UKCA certified.

Important Product Details

  • optional 250 char. max
HL-D4
PRE-ORDER
£33.00
39.60
with VAT)

Quantity Unit price You Save
5 £29.70 £16.50
10 £28.05 £49.50
50 £26.40 £330.00


DMX512 4-Channel DIN Rail Decoder with RDM | 12-24V Constant Voltage

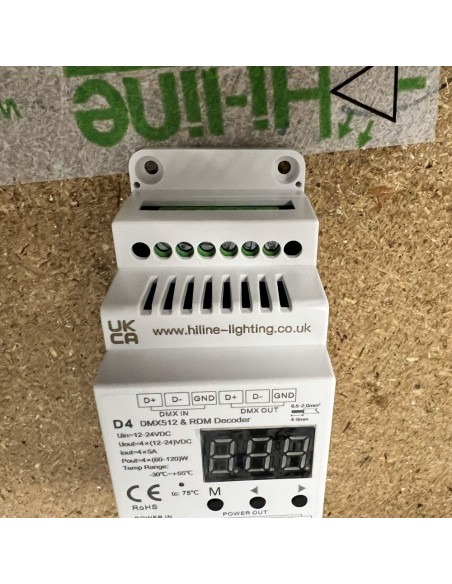

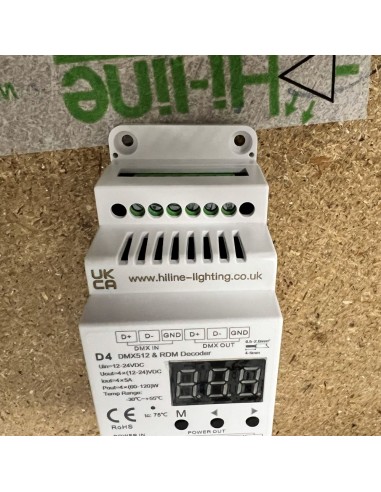

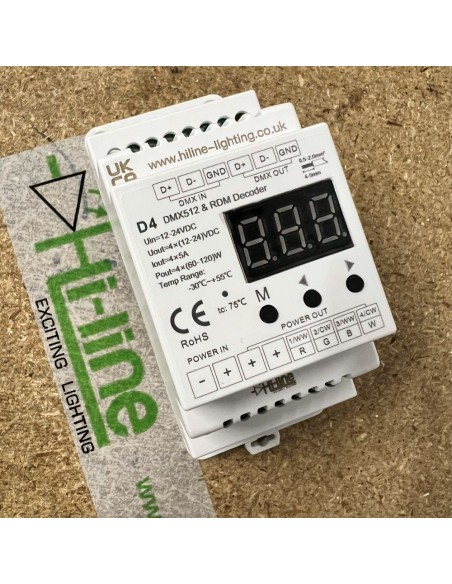

The DMX512 DIN Rail D4 is a high-performance constant voltage decoder designed to comply with DMX512 protocols, offering seamless control of LED lighting systems. With a versatile 4-channel output, it supports both RGBW and dimmable LED strip installations. This decoder is ideal for architectural lighting projects requiring precise control and integration with DMX systems.

Key Features:

  • Supports DMX512 and RDM protocols for real-time communication between the DMX master and decoder.
  • Digital numeric display for easy DMX address setup.
  • Selectable DMX channels: 1, 2, or 4-channel output modes.
  • Adjustable grey levels: 8-bit or 16-bit (65536 levels), ensuring smooth dimming transitions.
  • PWM frequency adjustable from 250Hz to 16,000Hz, suitable for various applications, including flicker-free performance for video.
  • Supports both logarithmic and linear dimming curves.
  • Standalone RGB/RGBW modes with built-in programs and 4-channel dimming mode, operational without DMX signal.
  • Equipped with overheat, overload, and short circuit protection with automatic recovery.
  • Available in white or black finishes.

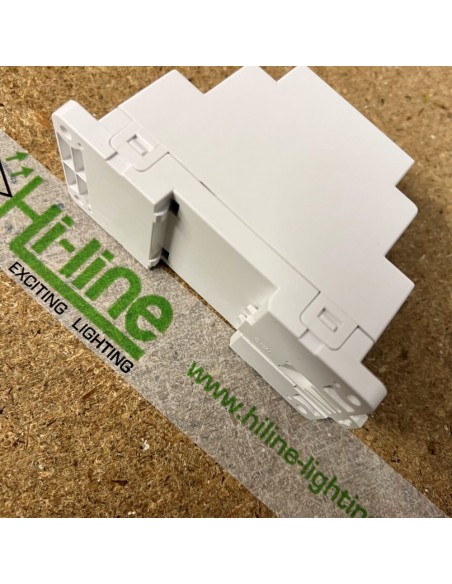

  • DIN rail mounting for easy integration into control panels.

Technical Specifications:

  • Output Power: 4 x (60-120)W
  • Output Voltage: 4 x (12-24)VDC
  • Output Current: 4 channels, 5A per channel
  • Input Voltage: 12-24VDC
  • Dimensions: L120 x W78 x H55mm
  • UKCA, CE, EMC, and LVD certified for safety and compliance.
  • Warranty: 3 years standard, extendable to 5 years with our extended warranty option.

Looking for Related Products or Accessories? Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description. If you need technical data or installation guides, the 'Attachments' tab is located in the same area.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Resolution
16-Bit
Type
RGB/RGBW controller
Voltage
12-36V DC
Voltage Type
Constant Voltage
Type of control
DMX512
