WiFi & RF DMX512 LED Strip Controller | 5-in-1 Multi-Zone Lighting Control
WiFi & RF DMX512 LED Strip Controller WT-DMX-S with 5-in-1 multi-zone control for DIM, CCT, RGB, RGBW, and RGB+CCT lighting. Compatible with Tuya Smart, Alexa, and Google Assistant. Supports 12-36V input and seamless integration with smart home systems.
Important Product Details

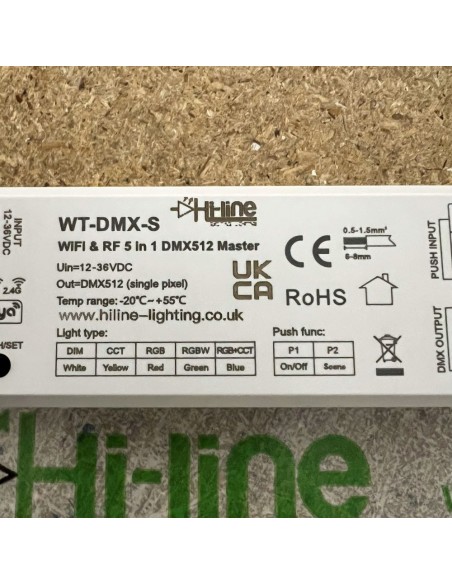

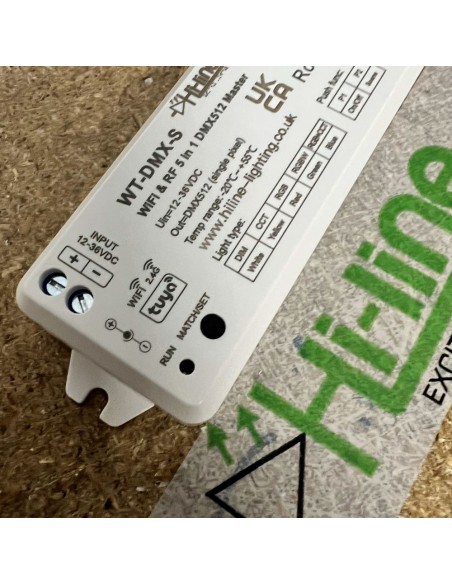

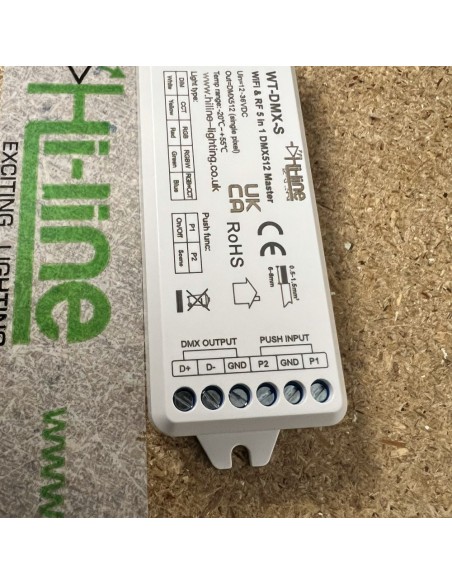

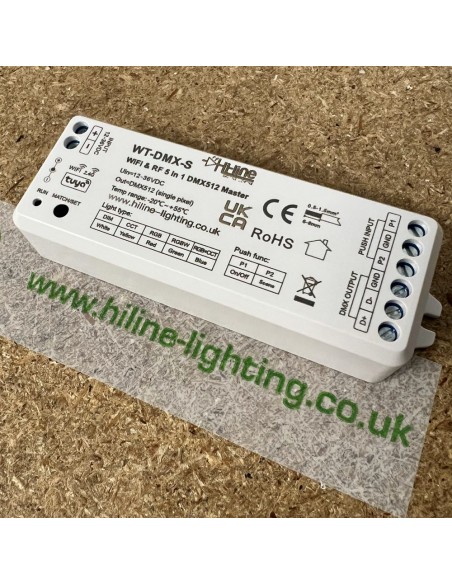

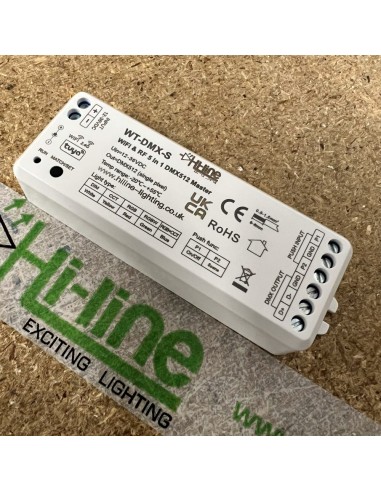

Hi-Line WT-DMX-S 12-36V WiFi & RF DMX512 LED Strip Controller | 5-in-1 Multi-Zone Control for DIM, CCT, RGB, RGBW, and RGB+CCT Lighting
The Hi-Line Wireless DMX RF LED Strip Controller WT-DMX-S is a sophisticated and versatile control solution for synchronising LED strips via DMX512, offering both WiFi and RF (radio frequency) connectivity. This controller is ideal for a wide range of lighting installations, from home automation to large-scale commercial environments. Its compatibility with the Tuya Smart platform allows convenient control via smartphone, voice assistants, and optional RF remotes or touch panels.
Capable of controlling up to five channels, this controller supports a variety of light types, including DIM, CCT (tunable white), RGB, RGBW, and RGB+CCT, allowing for precise adjustment of brightness, colour, and temperature. It also supports scene creation, music synchronisation, and timers, offering a customisable and intelligent lighting experience.
Key Features:
- Wireless & WiFi Control: Manage your lighting using the Tuya Smart app, RF remotes, or voice assistants such as Amazon Alexa and Google Assistant.
- Multiple Light Types: Supports DIM, CCT, RGB, RGBW, and RGB+CCT strips, with 8-bit (256 levels) or 16-bit (65536 levels) grey scales.
- External Push Switches: Two push switches can be connected for manual control of on/off, brightness, and scene switching.
- RF 2.4G Remote Compatibility: Optional RF remote and wall touch panels for enhanced control over distances up to 30 metres (barrier-free).
- Easy Setup: Seamlessly integrates with the Tuya app and can synchronise multiple DMX512 decoders for long-distance lighting control.
- Scene & Timer Functions: Create custom lighting scenes, use music play features, and set timers for automated control.
General Use & Applications: This product is perfect for both residential and commercial settings, including:
- Home Automation: Easily control your lighting through the Tuya app, with voice control available via Alexa or Google Assistant.
- Commercial Spaces: Excellent for managing multiple zones in larger installations, such as event venues, offices, or architectural projects.
- Architectural Lighting: Ensures synchronised control across multiple RGBW or other LED strips, ideal for professional lighting designs.
For precise installations, this controller works with multiple DMX512 decoders, powered separately, allowing the synchronisation of constant voltage RGBW LED strips across larger distances. It supports both wired and wireless connections, making it flexible for various project requirements.
Technical Specifications:
- Input Voltage: 12-36V DC
- Output: DMX512 (1-5 channels)
- Control Range: 30m (barrier-free space)
- RF Frequency of operation: 2.4Ghz
- Certifications: CE, UKCA, EMC, RED
- Operation Temperature: -20°C to +55°C
- Dimensions: 120mm x 43mm x 27mm
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
How to Use RF Accessories: The WT-DMX-S can be paired with a range of RF wall touch panels, RF remotes, and other compatible accessories, available in the Related Products tab. These devices allow users to control their lighting remotely or via wall-mounted panels, offering features such as brightness adjustment, colour selection, and scene control. The RF remotes can function up to 30 metres in a barrier-free space, making them ideal for larger installations.
Explore the Related Products tab to find the full range of compatible RF accessories for enhanced control and flexibility.
Note:
- The WiFi connection must be made on the 2.4GHz band, as 5GHz is not supported.
- Ensure that the WiFi router is positioned close to the WT-DMX-S device for optimal signal strength.
- For larger installations, signal amplifiers and resistors may be required to maintain reliable control, particularly when long signal lines are involved.
Looking for Related Products or Accessories? Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description. If you need technical data or installation guides, the 'Attachments' tab is located in the same area.
