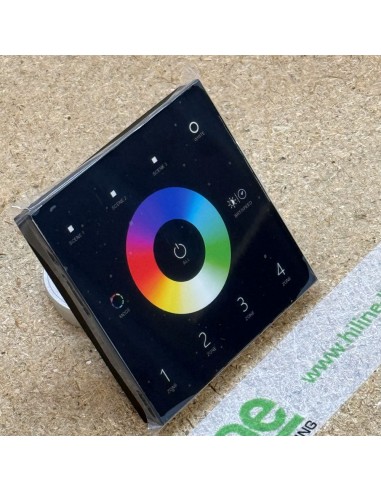

The T14 black glass version of our touch-sensitive RGBW wall-mounted controller offers a sleek, modern design for precise control of your LED lighting installations. This touch panel is ideal for a wide range of environments, including residential, retail, and commercial settings. Its elegant black colour allows it to seamlessly blend into contemporary interior styles, adding a touch of sophistication.
The wall plate utilises DMX512 protocols for wired control and also operates with RF wireless communication, enabling flexible control options. Users can choose between a direct DMX512 wired connection to control their DMX decoders or use the RF wireless feature to connect with additional Hi-Line controllers. This flexibility allows users to connect directly from the panel to DMX decoders without wireless if desired, or opt for wireless control via pairing with Hi-Line RF devices, such as the WT-DMX-S. The WT-DMX-S can receive RF signals from the panel and convert them to DMX512 signals to be distributed via wired connections, making it a perfect solution for bridging wireless and wired control in more extensive setups. Users can pair the touch panel with a 2.4GHz remote, other compatible RF controllers, or even the Hi-Line WT-DMX-S wireless controller. This RF communication can be especially useful if you need wireless control over shorter distances, such as 10 metres, providing reliable functionality without the need for wiring. Additionally, you can use the WT-DMX-S controller to receive wireless signals from the panel and then distribute them via DMX512 wired connections for more extensive installations. Users can easily switch between DMX wired and RF wireless modes as needed, providing adaptability for different installations. The RF control works seamlessly with all Hi-Line devices operating on the 2.4GHz frequency, ensuring smooth integration into existing setups. It's an excellent choice for those looking to manage both RGB and white channel LED strips through one elegant interface. The system is designed with ease of use in mind, offering quick adjustments of colours, brightness, and saturation, making it ideal for creating the desired ambience with minimal effort.
Product Highlights:
-
Elegant Black Finish: The black wall plate with a tempered glass finish offers a contemporary look, perfectly matching modern decor.
-
Dual Control System: Supports both DMX512 wired control and RF wireless communication, allowing you to choose the most convenient method. You can pair the panel with 2.4GHz remotes, additional RF controllers such as V5-L(WT), Zigbee V5-L(WZ), WZ5, WT5, or integrate it with the WT-DMX-S wireless controller for extended flexibility. The WT-DMX-S can act as a bridge by receiving wireless RF signals from the panel and outputting DMX512 wired signals to control your DMX decoders. Alternatively, you can skip the WT-DMX-S entirely and connect the panel directly via DMX512 wiring to your decoders for a fully wired setup. If desired, the RF wireless option can be used exclusively with Hi-Line RF controllers to create a completely wireless control environment. The RF feature is compatible with all other Hi-Line products operating on the 2.4GHz frequency, making it perfect for a cohesive and flexible lighting system.
-
RGBW Compatibility: Effortlessly adjust a wide spectrum of colours along with white tones to achieve the perfect lighting balance.
-
Intuitive Touch Interface: Features a glass touch panel for precise and easy selection of colours, brightness, and saturation, delivering total control at your fingertips.
-
Flexible Lighting Management: Designed to work seamlessly with a variety of LED installations, from residential accent lighting to commercial colour-changing setups.
Technical Specifications:
-
Control Mode: DMX512 & RF
-
Input Voltage: 12-36V DC (wide voltage range for compatibility with various LED setups)
-
Output Signal: DMX512, RF (2.4GHz frequency for wireless control)
-
Control Channels: RGB + White Channel
-
Materials: Black tempered glass for durability and an aesthetically pleasing finish
-
Operating Temperature: -10°C to 45°C, designed for reliable use in diverse environmental conditions
-
Dimensions: 86mm x 86mm x 29mm, slim and suitable for standard wall boxes
-
Mounting Method: Fits standard UK & EU back boxes for easy installation
Additional Features:
-
Memory Function: Remembers the previous settings after power is turned off, ideal for ensuring your preferred lighting is restored automatically.
-
Smooth Dimmer Control: Allows gradual adjustment of light levels, helping you create the perfect atmosphere, from vibrant colours to subtle tones.
-
Pairing Options: Compatible with Hi-Line RF receivers and any DMX512-controlled lighting system for easy integration.
Whether you're looking to upgrade an existing lighting system or install a new one, the T14 black glass RGBW DMX512 touch panel controller provides a stylish and functional way to control your LED lights. The same functionality is also available in a white version, which you can find by checking the 'Related Products' tab or by searching for HL-T14-W. Its dual control capability makes it highly versatile, while the intuitive touch panel makes it simple for anyone to use.
Certifications: UKCA, CE, and EMC compliant, ensuring safety and quality in every installation.
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
