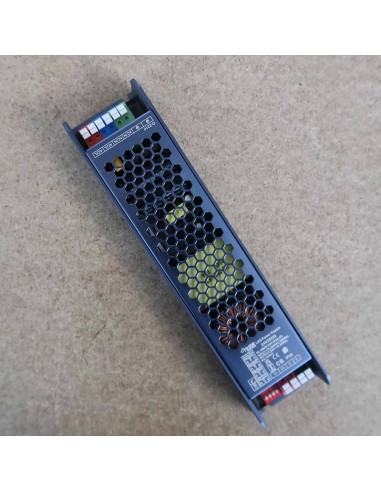

LED Driver | 200W | 24V | IP20 | constant voltage (EC Series-Adjustable)

The HL-200W-24V-IP20-EC Adjustable LED Driver is your go-to solution for reliable and efficient indoor lighting. With programmable 24V output functions via DIP switch, this 200W, 24V unit is as versatile as it is robust. Experience smooth soft-start lighting with 4 preset brightness levels, all wrapped up in a silicone-potted casing for extended durability. Compliant with global safety standards and offering a 3-year warranty, this LED driver sets the bar for performance and reliability.

Important Product Details

  • optional 250 char. max
HL-200W-24V-IP20-EC
42 Items In stock
Next working day delivery
£27.00
32.40
with VAT)
VAT excluded

Tags:


Meet the HL-200W-24V-IP20-EC Adjustable LED Driver, a premium 200W, 24V constant voltage power supply specifically designed for indoor applications and rated IP20 for safety.

Key Features:

Adjustable Flexibility: Fanless and fully adjustable, this LED driver offers 24V output functions programmable via a DIP switch. It can also function as a simple on/off LED driver if no adjustments are needed.

Soft Start & Preset Levels: Benefit from a gradual soft start to full brightness and customise your experience with 4 preset brightness levels (40%, 60%, 80%, 100%) settable via DIP switch.

Durability: For longevity and reliability, the driver is silicone-potted, providing added protection against harsh conditions.

High Efficiency: This is part of our economy series, offering high efficiency with a typical rating of 88%.

Technical Specifications:

Input: 175~264V AC (50/60 Hz)

Output: 24V / 8.33 Amps

Start-up Time (Typ): 400ms/230-240VAC

Inrush Current: Cold start 70A at 240Vac (Reduced if Soft Start DIP switch is ON). To learn more about In-rush current, visit our support page HERE.

Power Factor: PF>0.55

Efficiency (Typ): 88%

Leakage Current: Max. 0.5mA

Protection: Short circuit, overload, over voltage, over temperature

Dimensions: 2154824mm (LxWxH)

Weight: 300g

Warranty: 3-year warranty included

Note: To cover circuit losses and power supply efficiency, it's recommended to calculate 20% more than the tape power consumption. If higher power factors are needed, consider our premium series.

IMPORTANT NOTICE: This device should be installed by a qualified electrician, in accordance with IEE Wiring Regulations and any applicable Building Regulations.

Looking for Related Products or Accessories?

Click the 'Related Products' tab below the product description to find compatible LED strips, drivers, and accessories. For technical data or installation guides, check out the 'Attachment' tab for available PDFs. To refine your search further, use our "REFINE BY" filter system available when browsing any product category.

Brand
Hi-Line
Power
200 W
IP Rating
IP20 (Non-waterproof)
Type
non-dimmable
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
