Key Features:

  • EC Series
  • Warranty: 3 Year Warranty
  • Output: 24V / 4.16 Amps
  • IP Rating: IP20
  • LED Driver
HL-100W-24V-IP20-EC
Out of Stock
£16.45
19.74
with VAT)




Fanless constant voltage 100W 24V LED driver IP20 - 3 years Warranty

Non-Dimmable LED Driver suitable for LED Strips of total power consumption up to 100W.

It is recommended to calculate 20% more than the tape power consumption to cover losses of the circuit and efficiency of the power supply.

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE

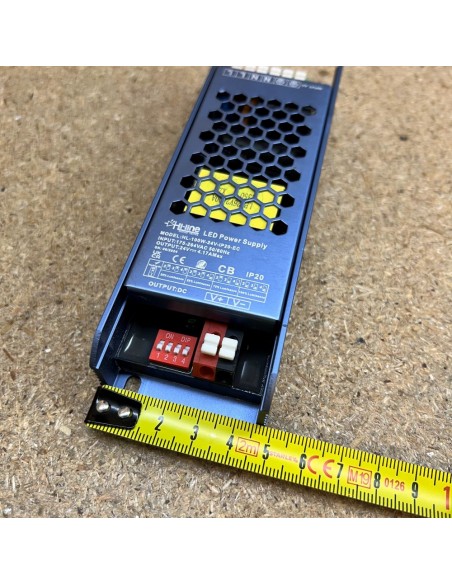

LED Driver 100W/24V Suitable for LED Strips

Input: 175~264V AC (50 Hz)

Output: 24V / 4.16 Amps

Rating: IP20 (Non-Waterproof)

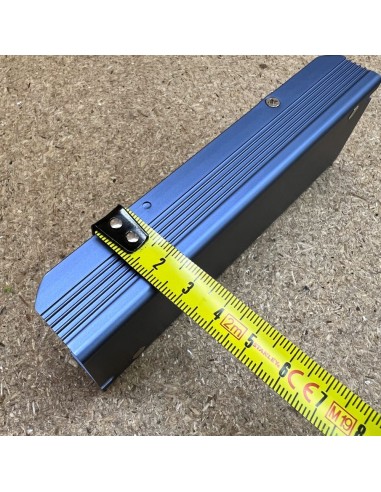

Dimensions:  145x43x29mm

Weight: 208g

Warranty offered for the LED driver is 3 years

___________________________

Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

For more information about the installation of LED Strips, you can download the above PDF file: “Installation of LED Strips”.

Brand
Hi-Line
Power
100 W
IP Rating
IP20 (Non-waterproof)
Type
non-dimmable
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
