Optic Lens adjustable profile extrusion 2m length (10°/30°/60°/90°)

This versatile LED profile allows adjustable beam angles (10°, 30°, 60°, 90°) by repositioning the mounting bar or removing it entirely. Designed for LED strips up to 12mm wide, it’s perfect for customised lighting solutions. Includes a PMMA Semi Clear Cover, aluminium mounting bar, and end caps. For additional accessories, check the 'Related Products' tab.

HL-ALU-002S-2M
53 Items In stock
Next working day delivery
£32.50
39.00
with VAT)

(£16.25 metre)

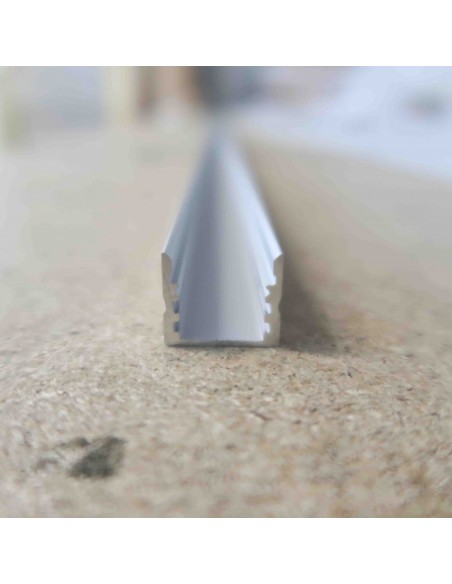

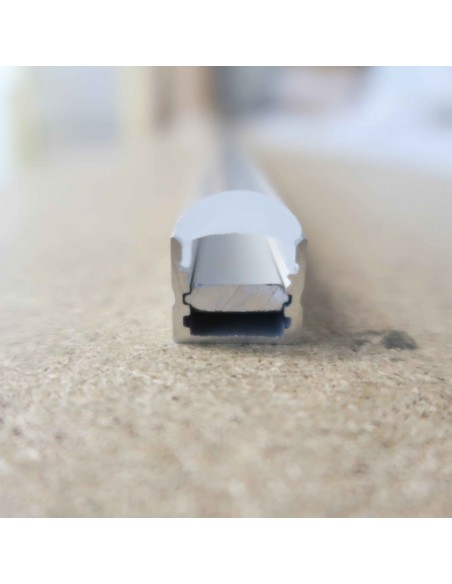

This 2m LED profile extrusion features an innovative PMMA optic lens cover, allowing you to adjust the beam angle to 10°, 30°, 60°, or 90° by repositioning the aluminium components within pre-set slots. This design offers flexibility for various lighting applications, whether you need a focused beam or a broader light spread.

The profile accommodates LED strips up to 12mm in width, with overall dimensions of L2000 × W17 × H19.9 mm. The kit also includes two end caps for a clean finish. Please ensure to slide the lens diffuser into place carefully, or handle it with caution during installation to avoid potential damage.

Included in the Kit:

1 x 2m LED strip profile extrusion

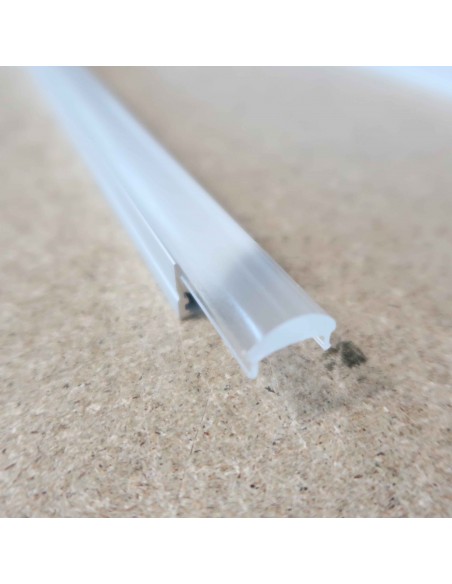

1 x PMMA Semi Clear Cover

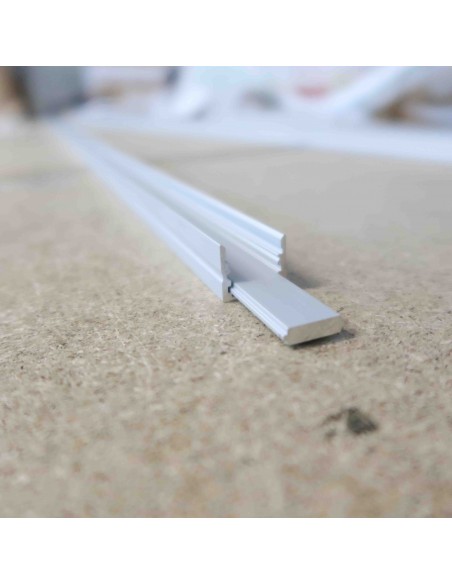

1 x 2m adjustable aluminium mounting bar (LED strip installation surface)

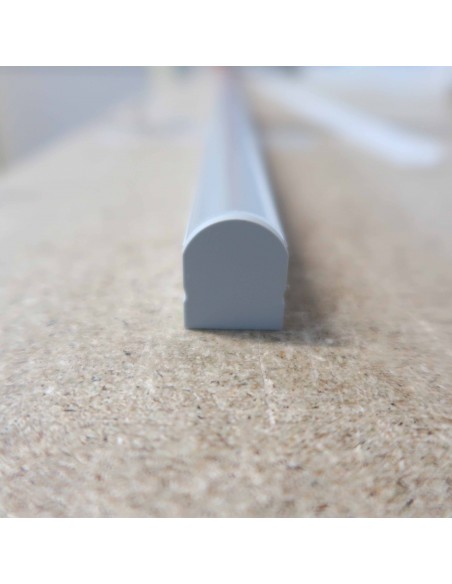

2 x end caps (both without holes)
For additional accessories, please refer to the 'Related Products' tab.

Product Specifications:

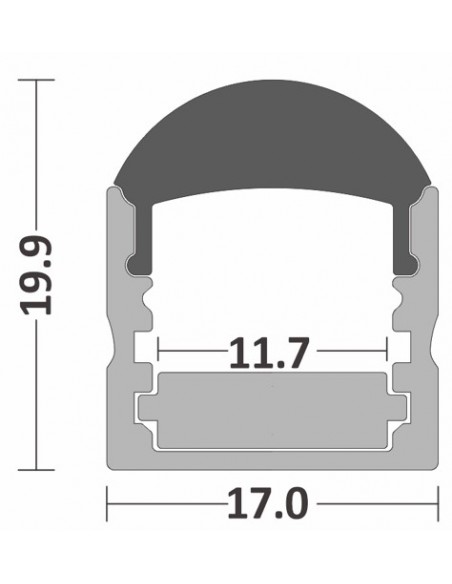

Size: L2000 × W17 × H19.9 mm

LED Strip Compatibility: Fits up to 12mm wide LED strips

Installation Method: Wall surface mounting

Beam Angle: 10° / 30° / 60° / 90° (adjustable)

IP Rating: IP20

Cuttable: Using a hacksaw

Optional Accessories: Mounting clips (for surface mounting)
For additional accessories, please refer to the 'Related Products' tab.

Material: Aluminium with PMMA diffuser optics

Warranty: 3 years

Installation Tips and Beam Adjustment

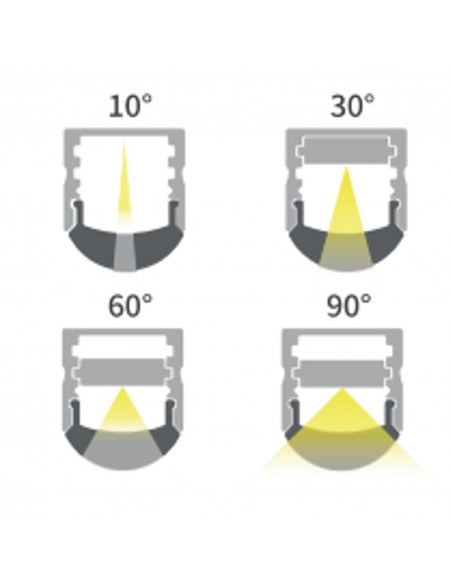

To achieve different beam angles, follow these steps:

10° Beam Angle: Remove the aluminium mounting bar entirely and install the LED strip directly at the bottom of the profile.

30° Beam Angle: Insert the aluminium bar into the lowest slot and mount the LED strip on it.

60° Beam Angle: Move the aluminium bar to the next higher slot.

60° to 90° Beam Angle: Use the same highest slot but adjust the LED strip position within the profile. Place it closer to one end for a narrower beam (closer to 60°), and move it towards the centre for a wider beam (closer to 90°).

This method allows for fine-tuning of the beam angle based on your specific needs.

Understanding Beam Adjustments

To fully grasp how this profile can achieve the different beam angles, we recommend checking the product photos. These images provide a visual guide on how the adjustable features work and how you can set up the profile to create the desired lighting effect.

Looking for Related Products or Accessories?

Explore compatible products and accessories by clicking on the 'Related Products' tab. For more detailed specifications, visit the 'Product Specification' tab, where you can also find technical data and installation guides under the 'Attachments' tab. To refine your product search, use the "REFINE BY" filter system available on the left side of the screen on desktops or at the top of the page on mobile devices for a seamless browsing experience.

Brand
Hi-Line
LED Profile Type
Optic Lens
LED Profile Length
2m
Max. Width of LED Tape
Up to 12mm
Warranty
3 Years
