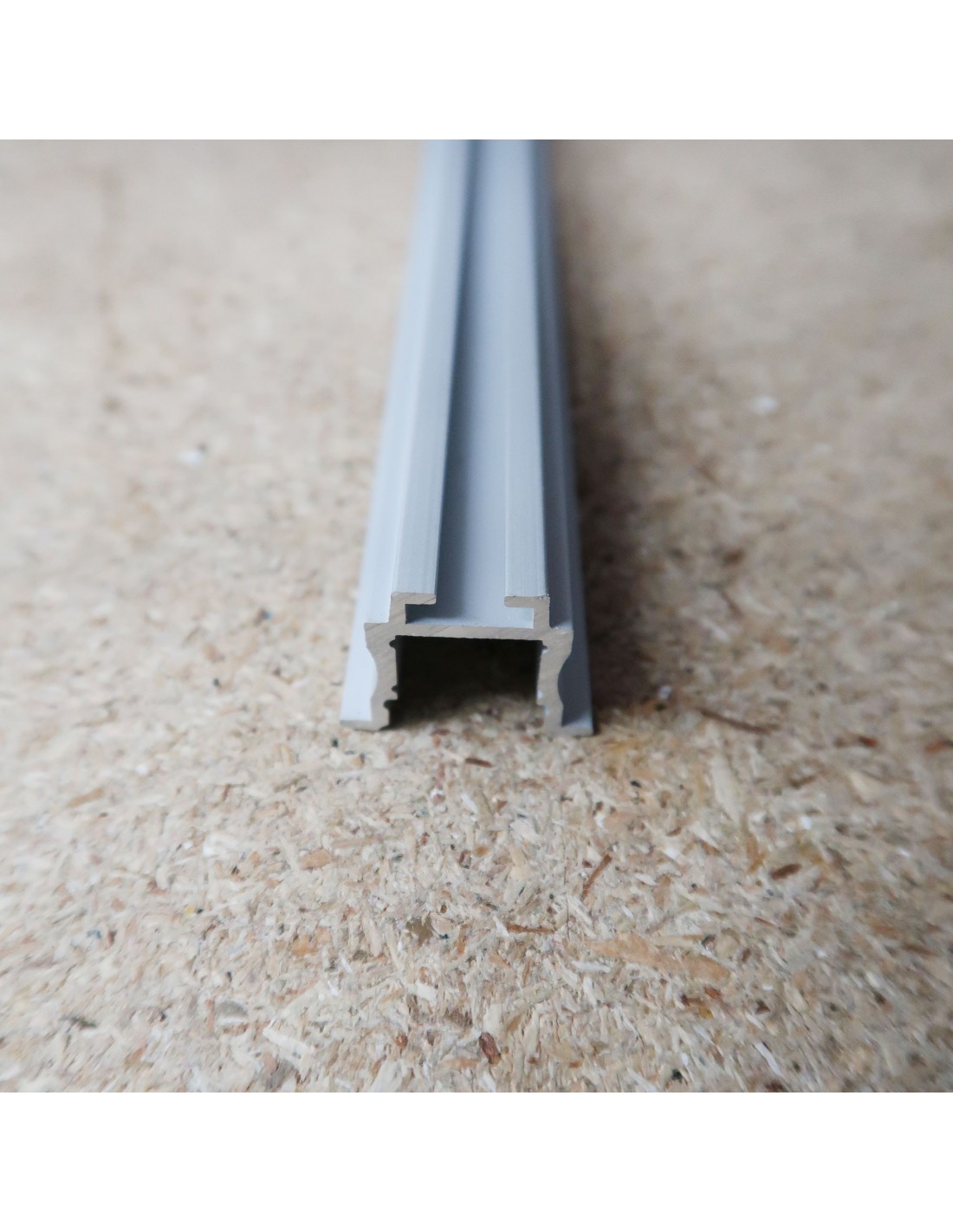

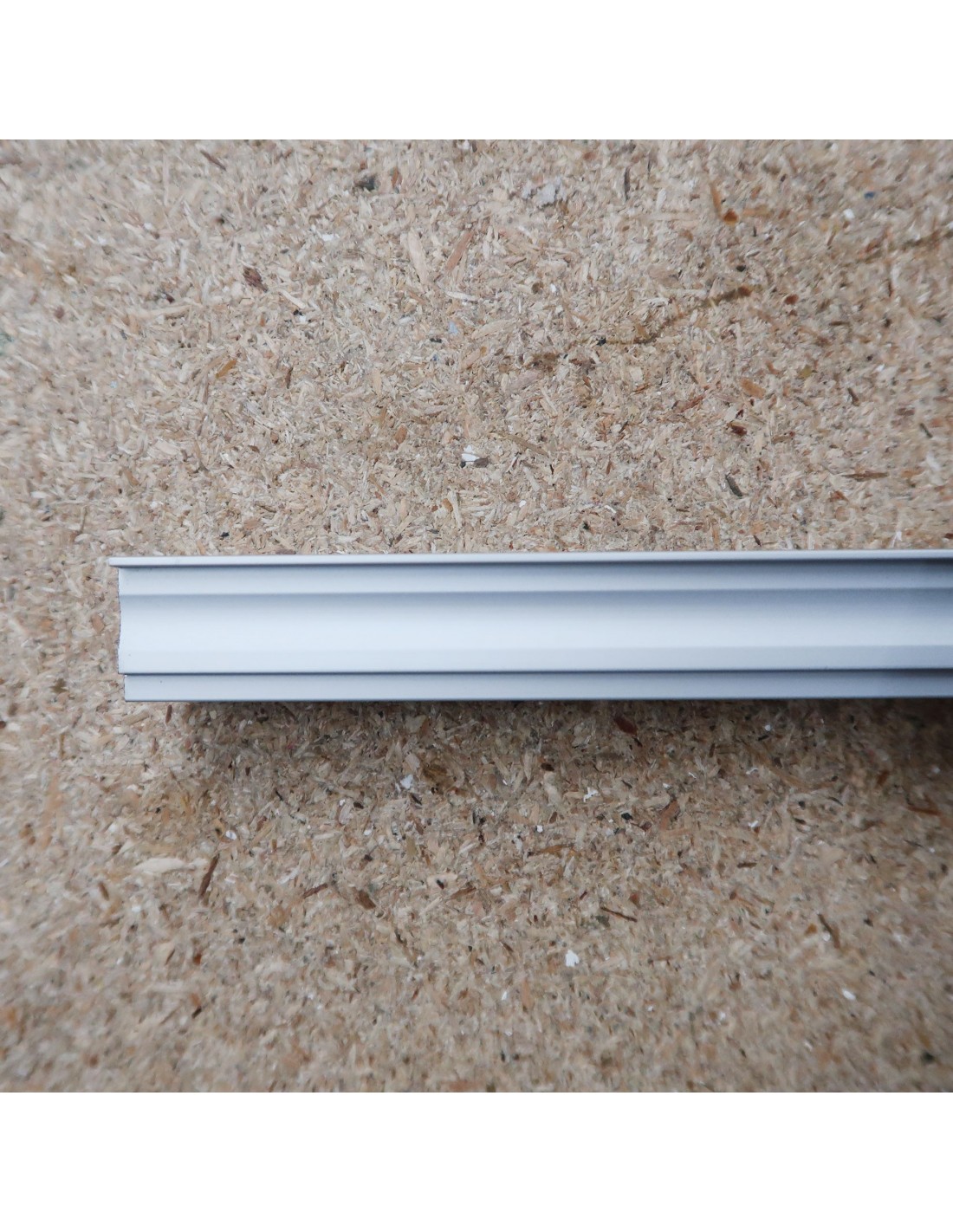

Ceiling Recessed LED Profile L2000mm | W23mm | H18.6mm

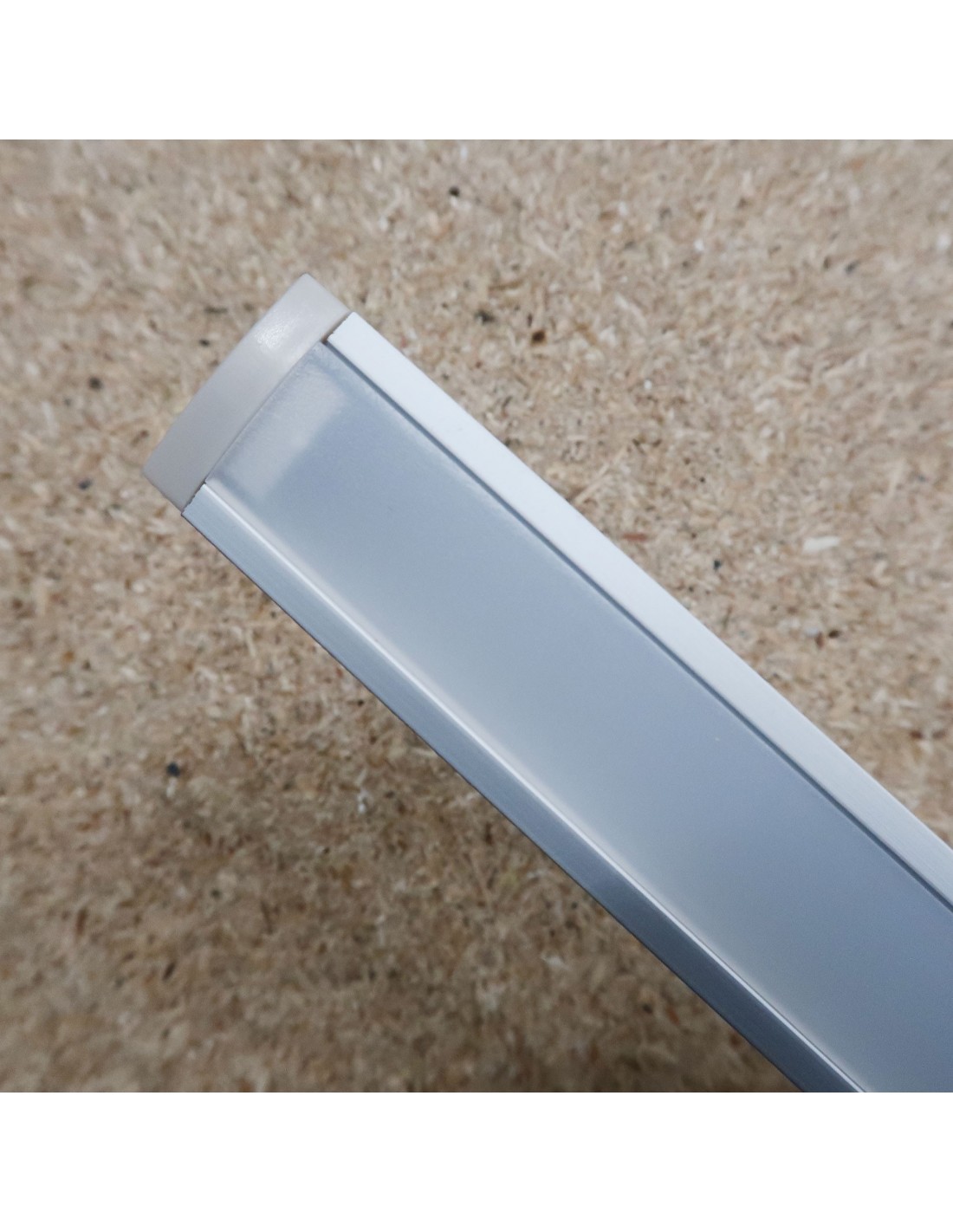

Silver anodized ceiling Recessed or surface wall mounting LED Profile 2m length, with Milky PMMA cover and 2 end caps. Can fit up to 12mm wide LED strips.

Stock in silver (black or white matt / glossy powder coding RAL 9003 or RAL 9010 possible if pre-ordered).

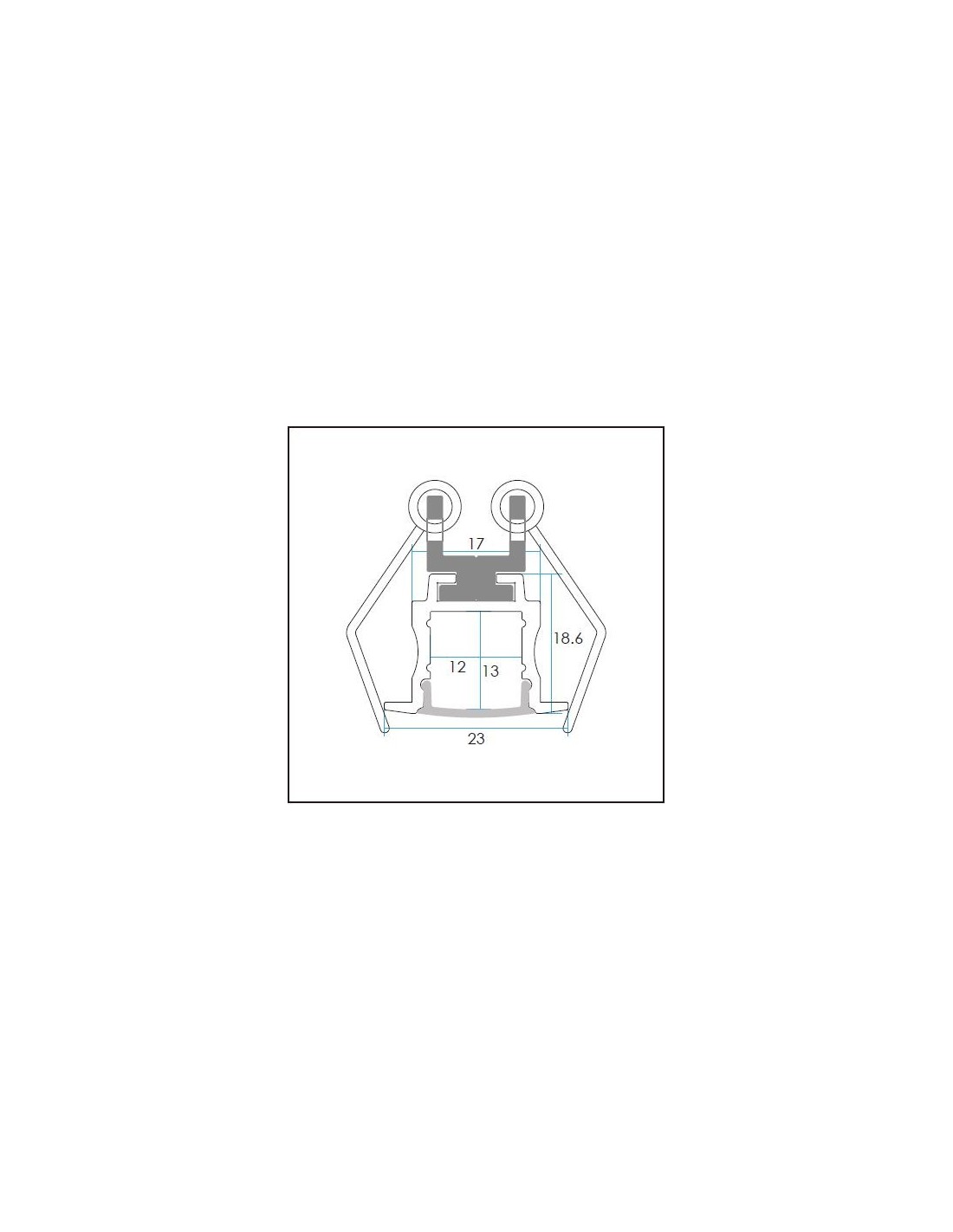

Standard Product dimensions: L2000mm*W23mm*H18.6mm

We offer complete range of accessories to help create different angles or other shapes, please download installation manual from the attachments tab for more details.

Included in the Price:

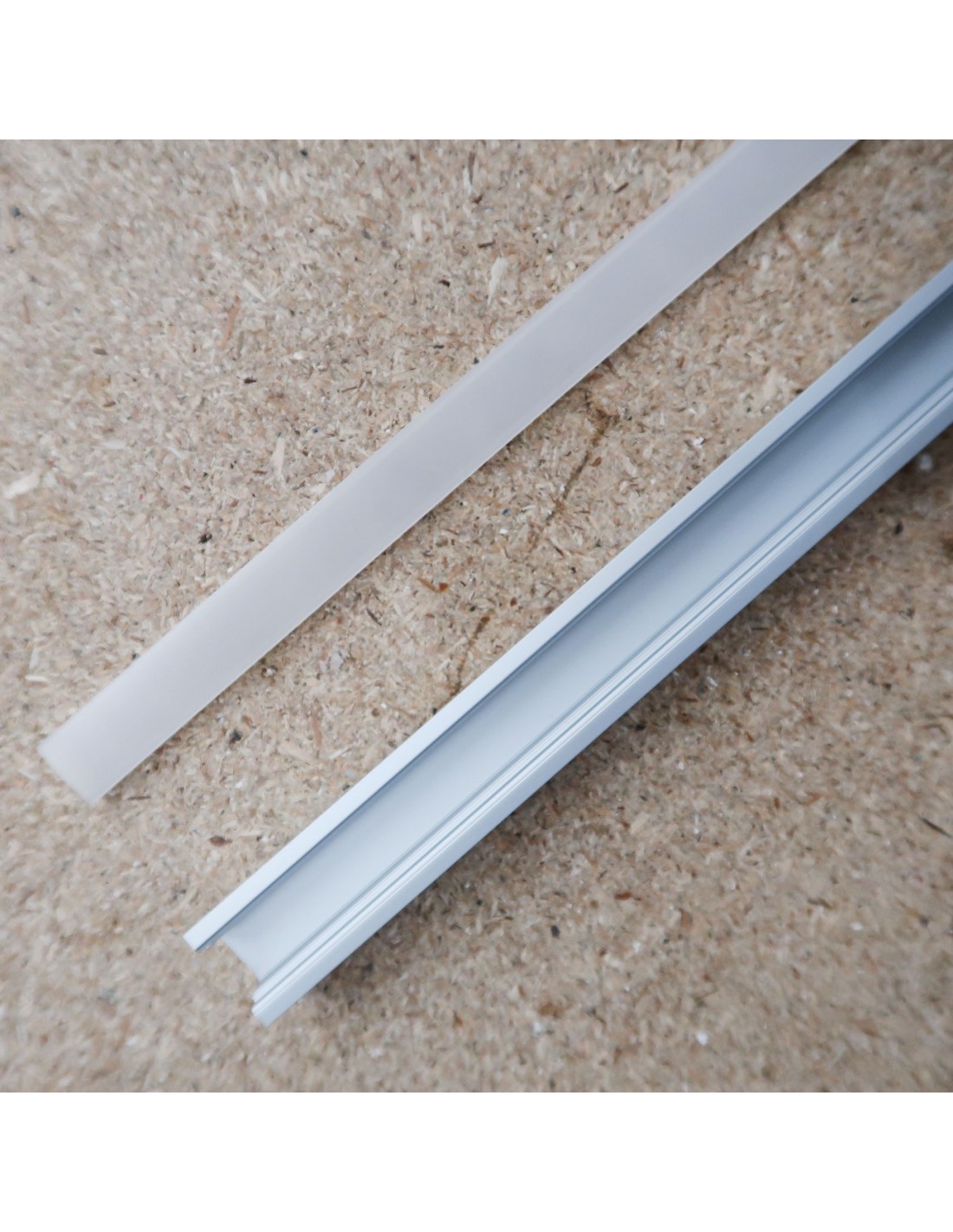

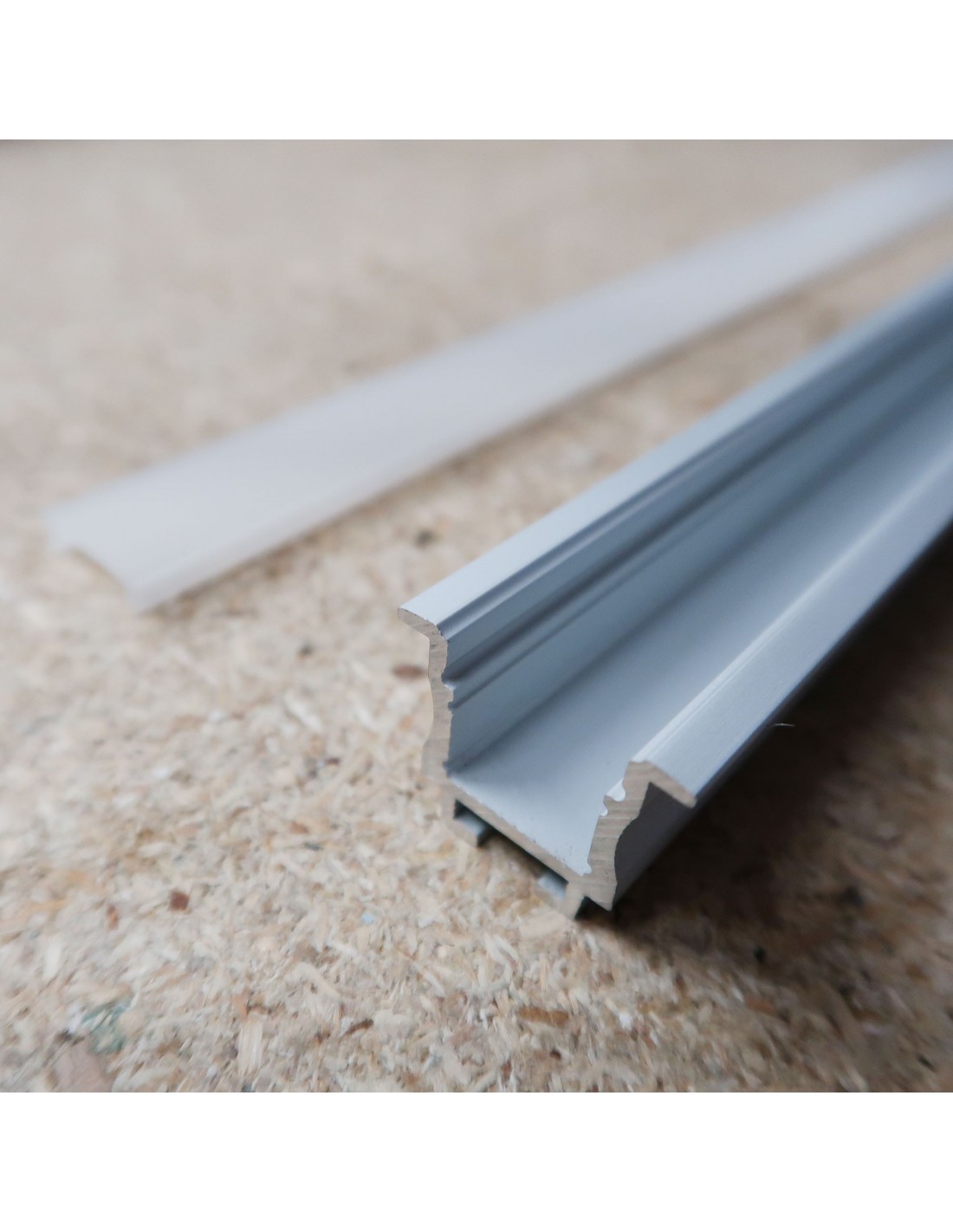

1 x 2m aluminium LED Profile

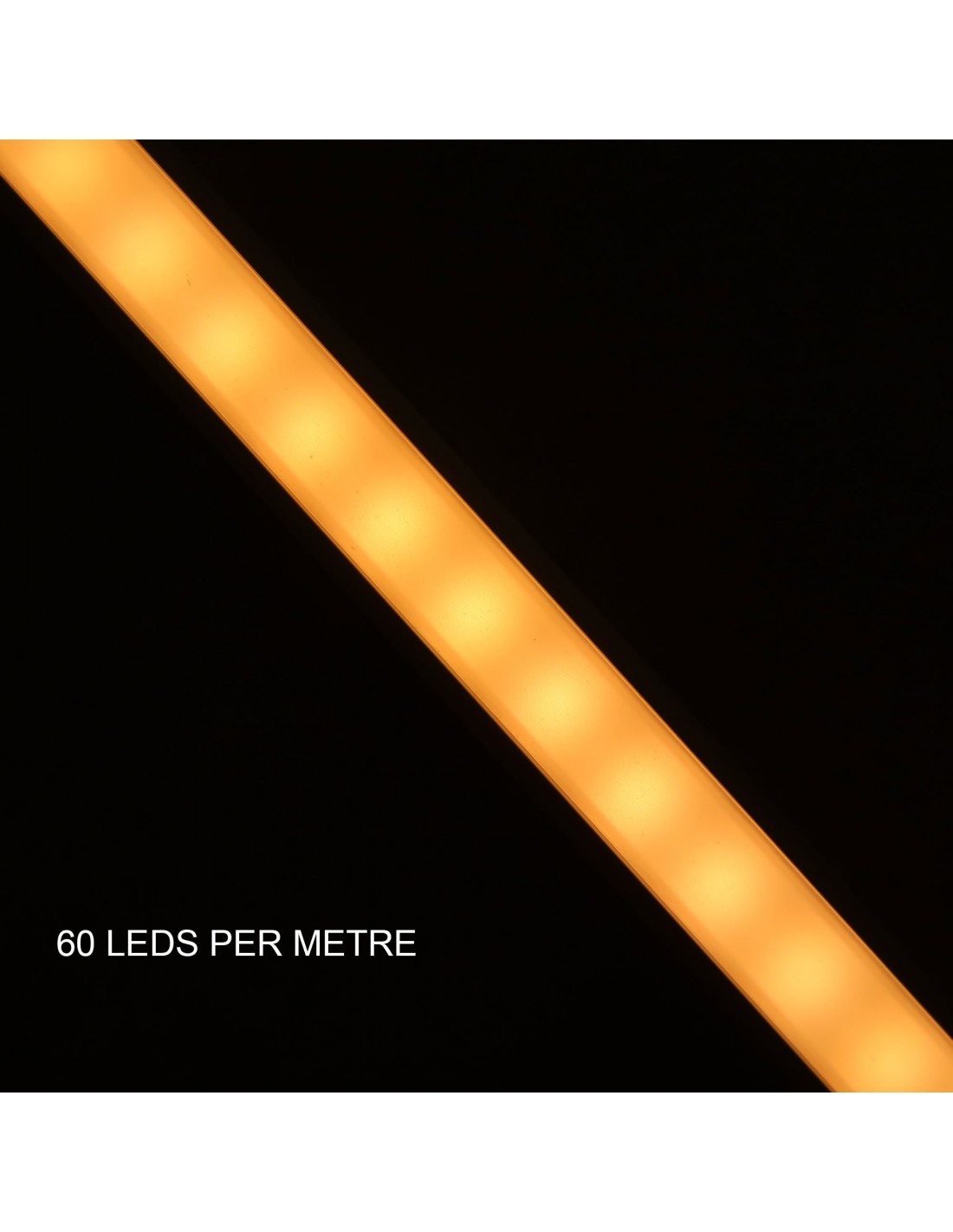

1 x 2m diffuser (PMMA - Milky)

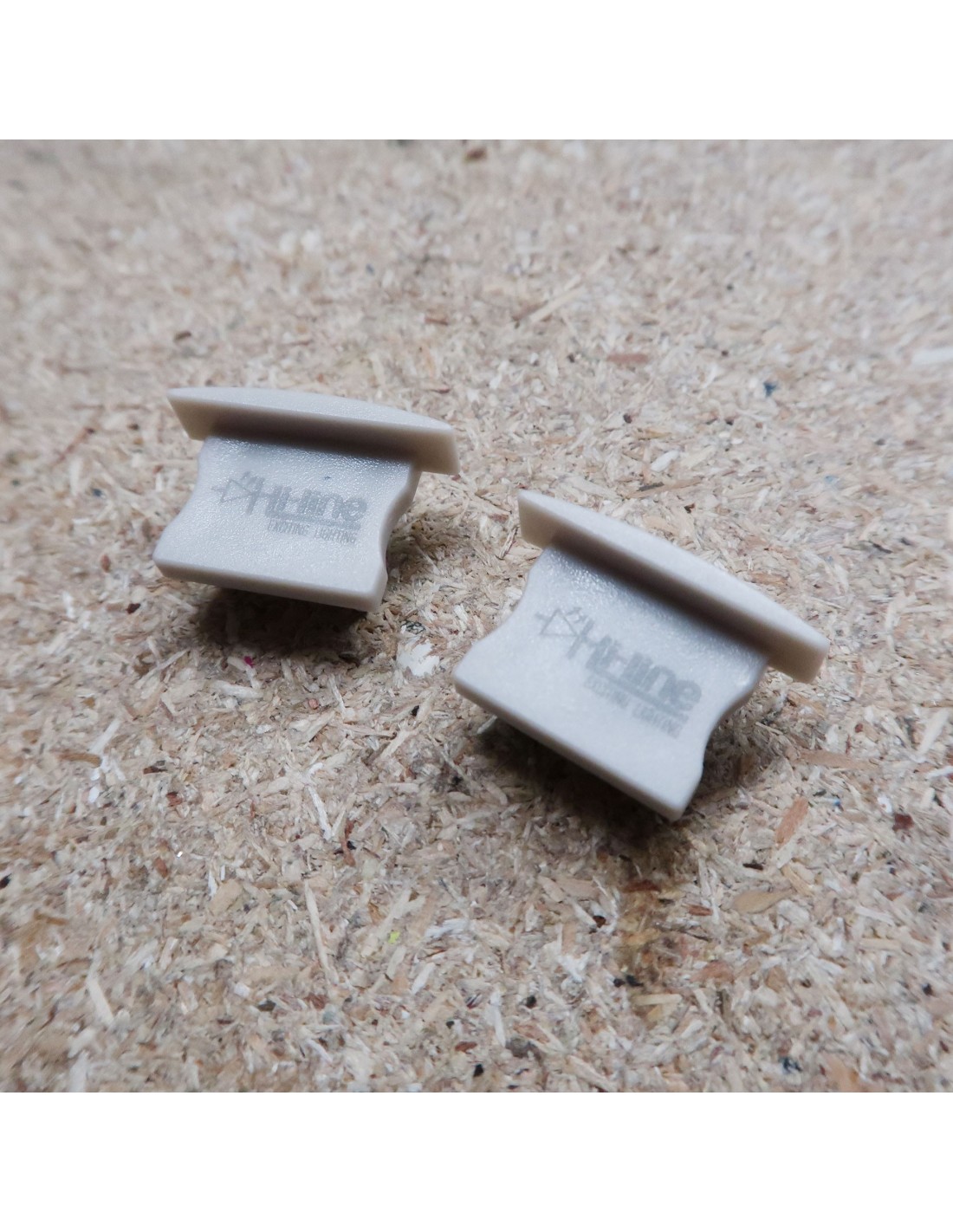

2 x End caps (without hole)

Optional Accessories, see links:

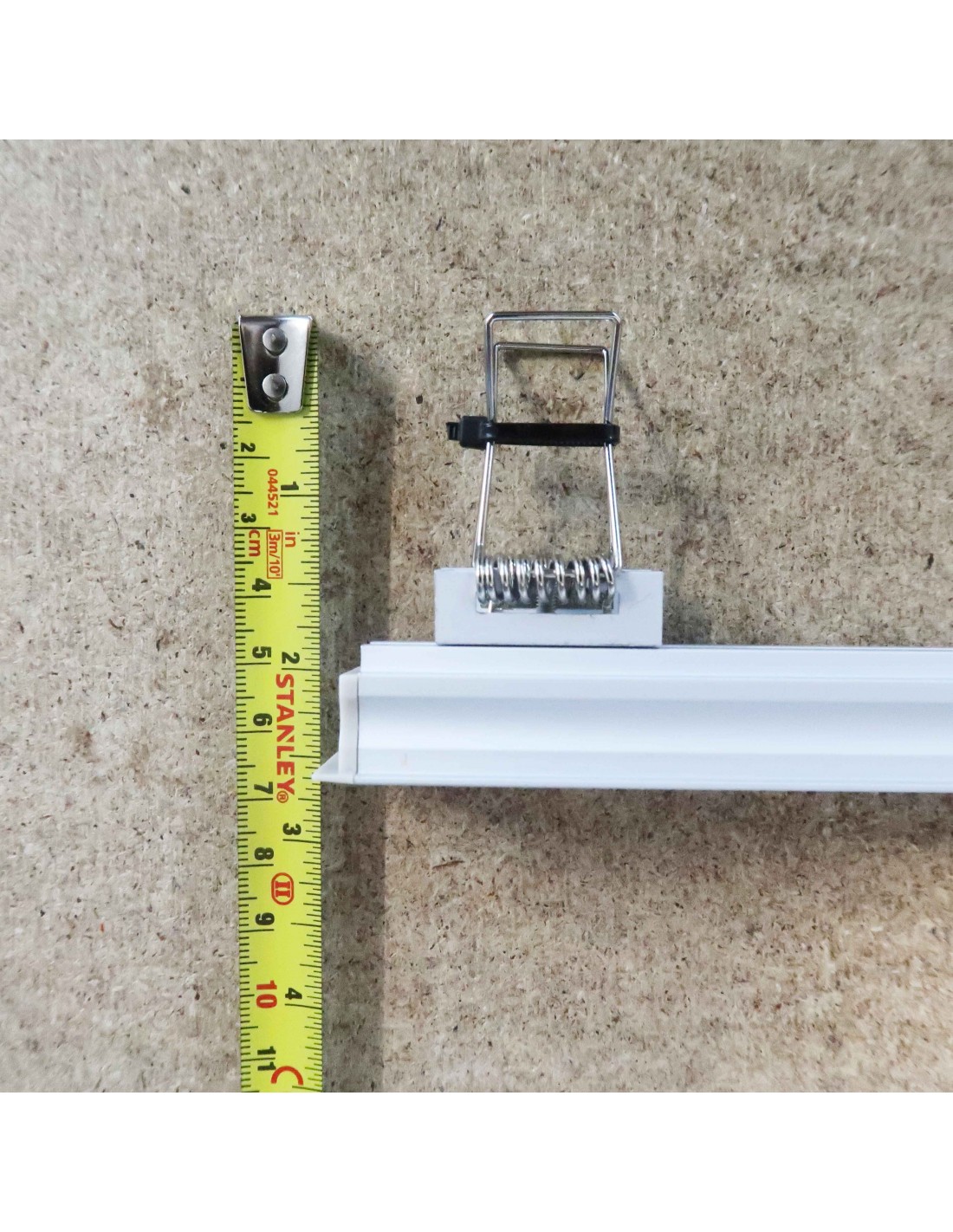

HL-2319WR2-S (Mounting Spring Clip)

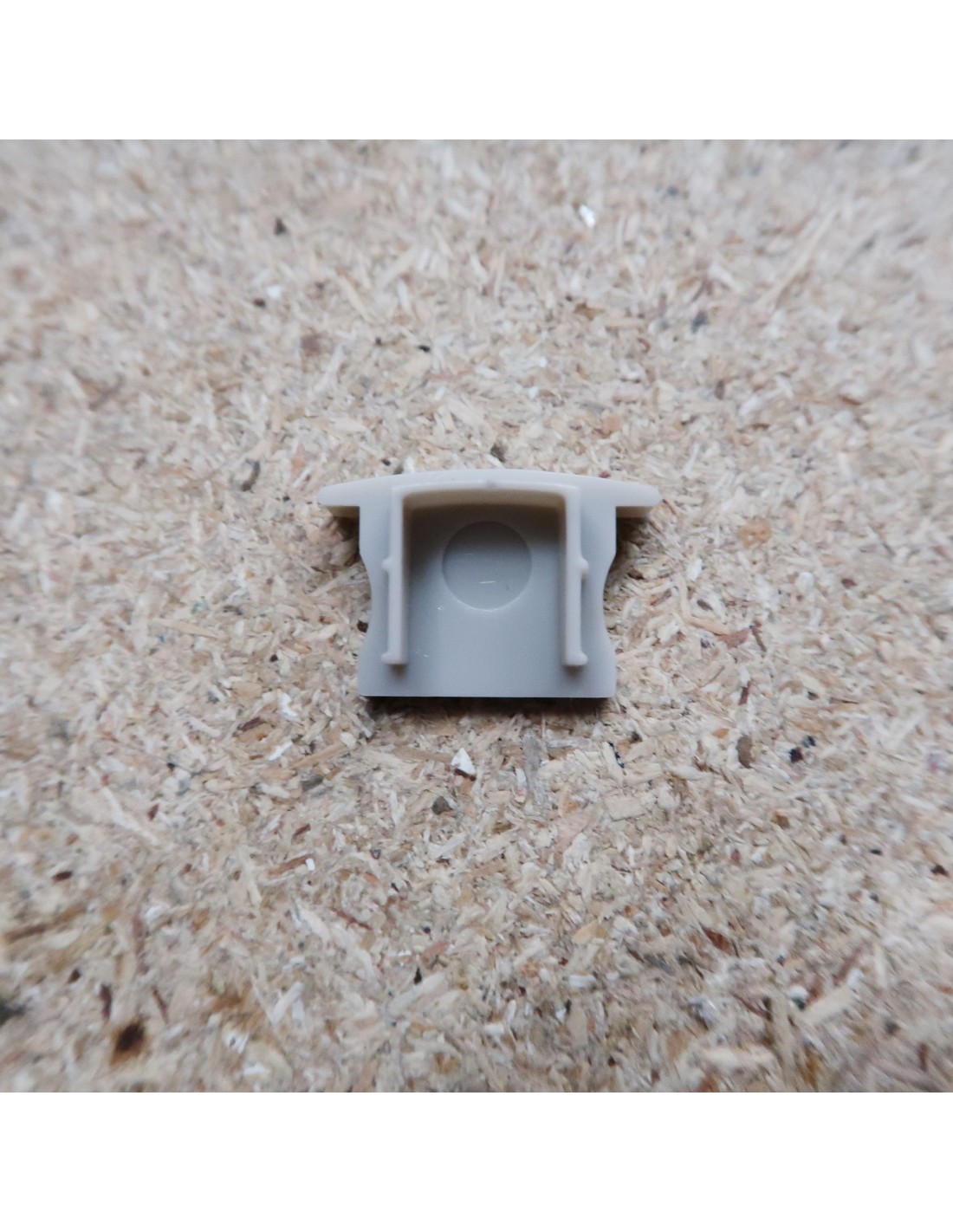

HL-2319WR2-EC (End cap without hole)

HL-2319WR2-MC-2M (Extra 2 meters PMMA diffuser/cover) - Contact us for details

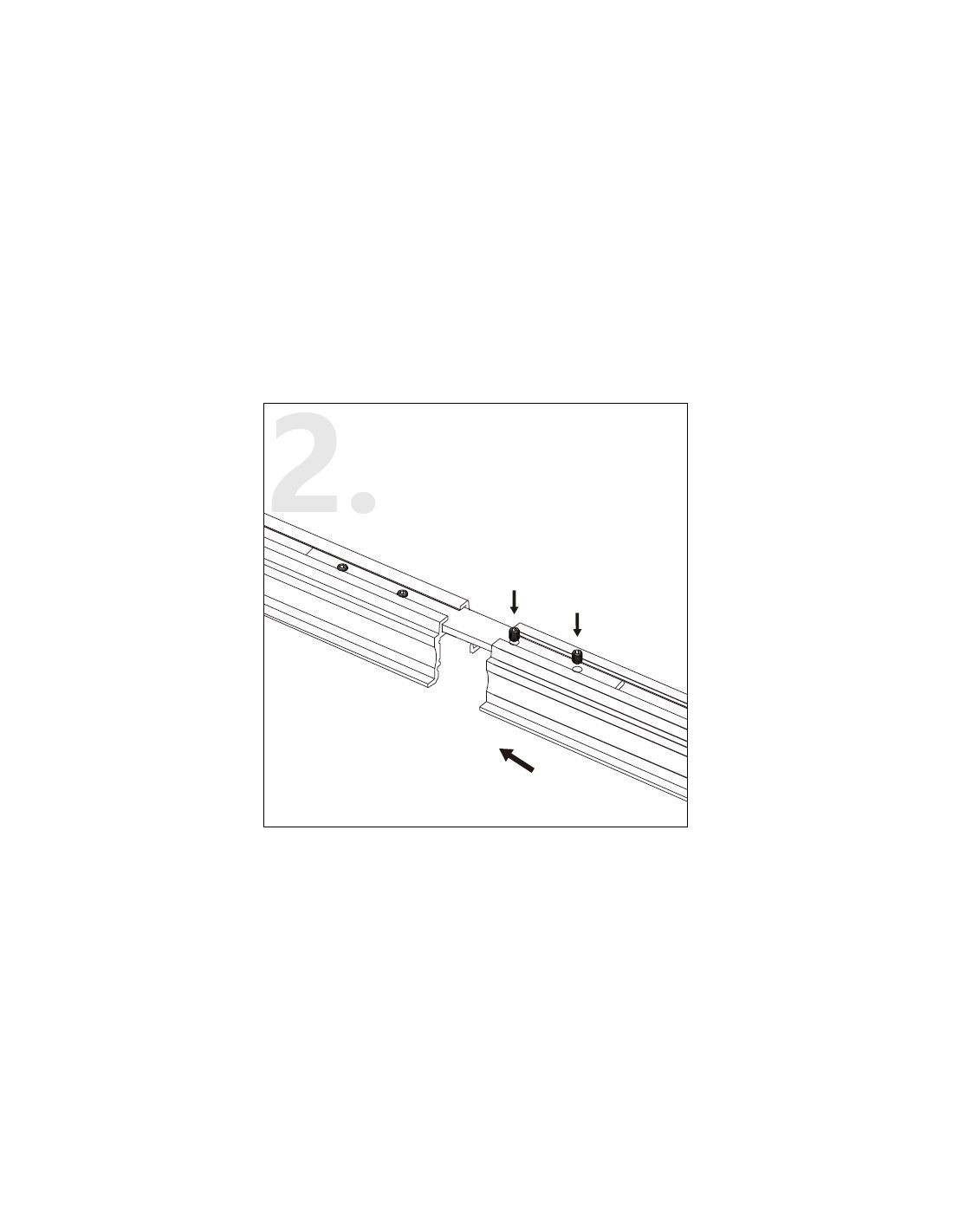

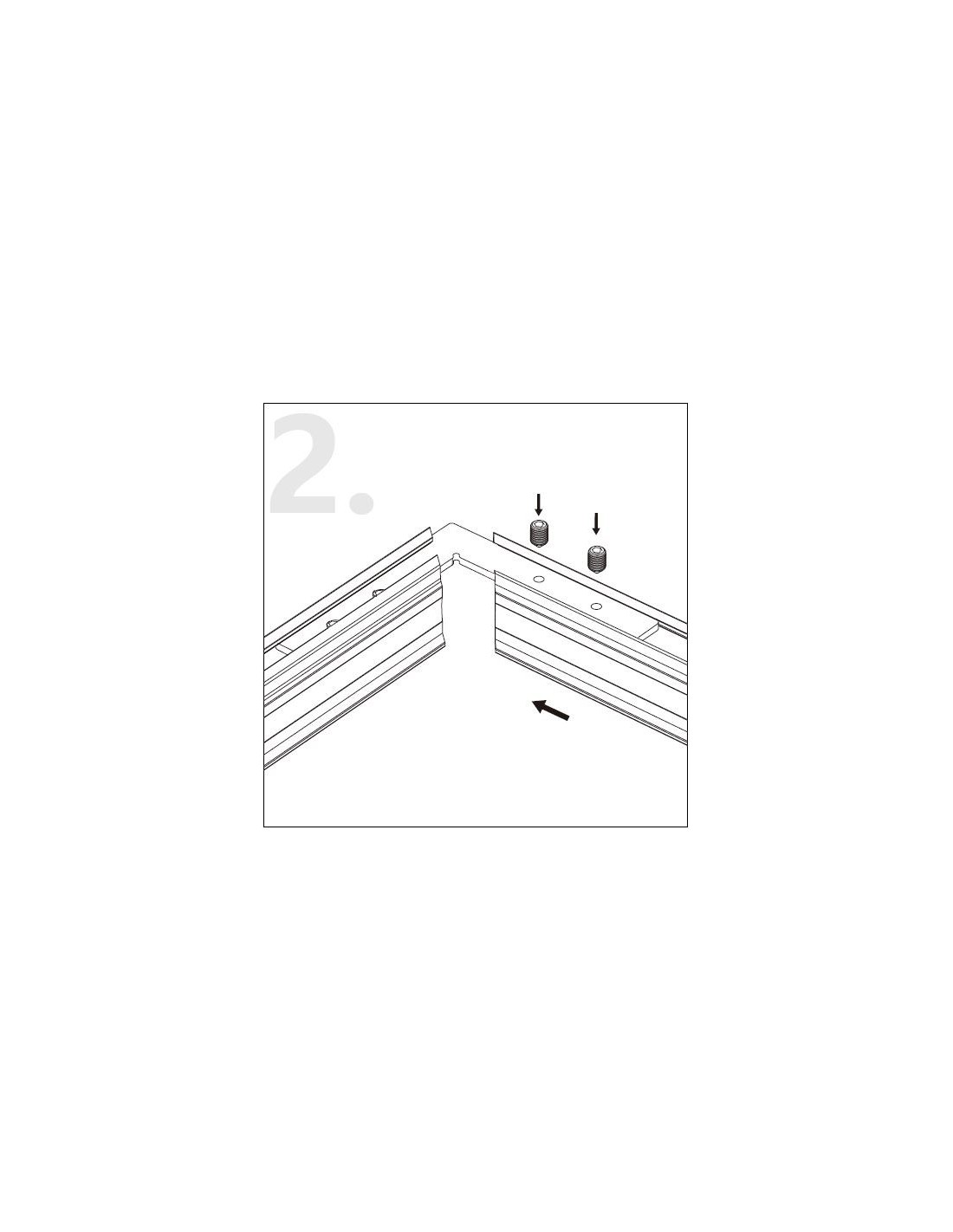

Optional Joiner Kits (To form 90˚/120˚corners or 180˚linear connections)

HL-2319WR2-J90A

HL-2319WR2-J90B

HL-2319WR2-J120

HL-2319WR2-J180

Features:

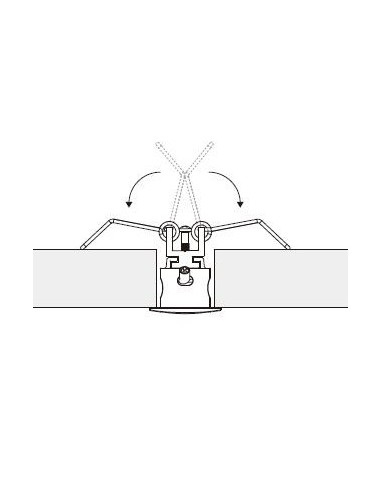

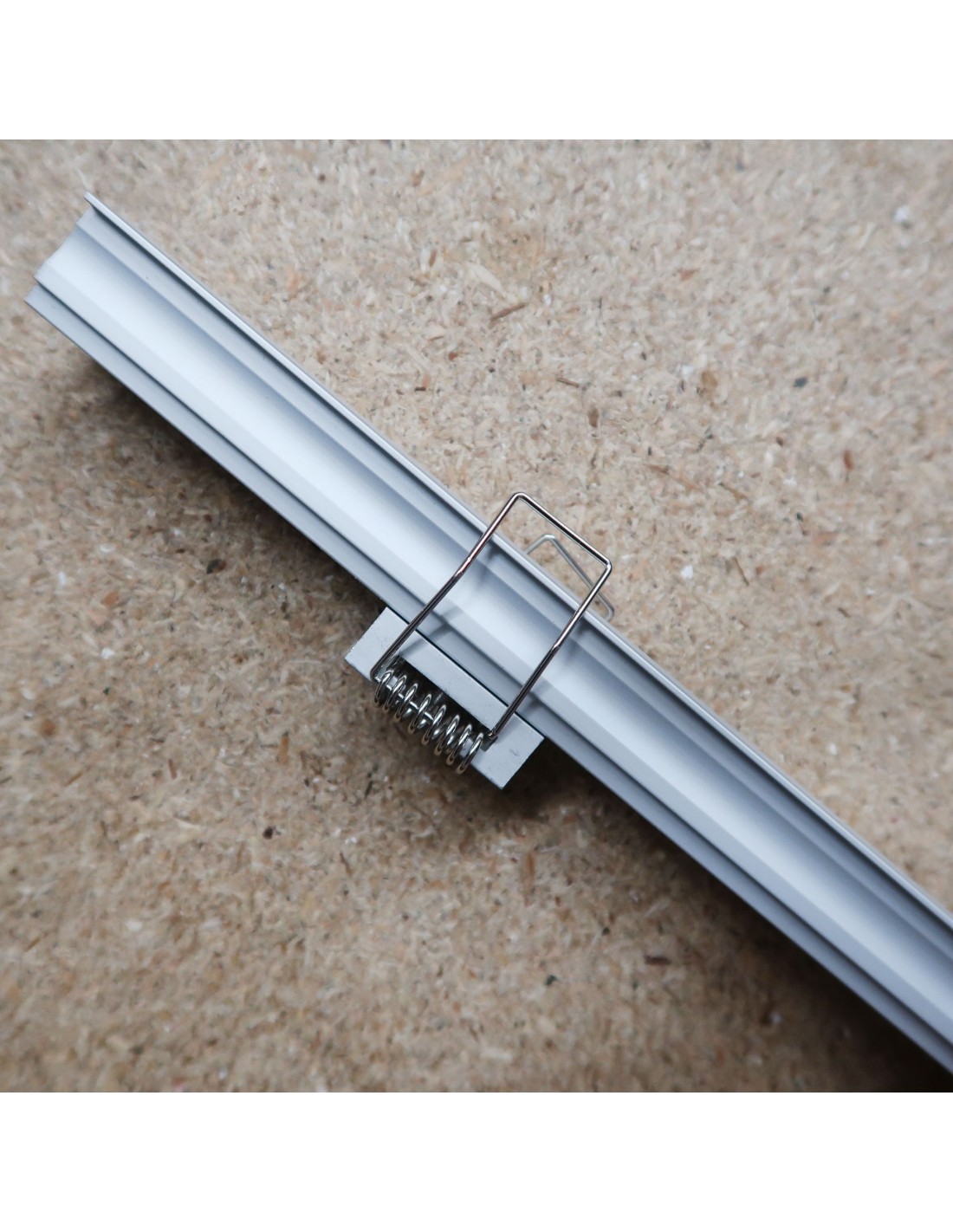

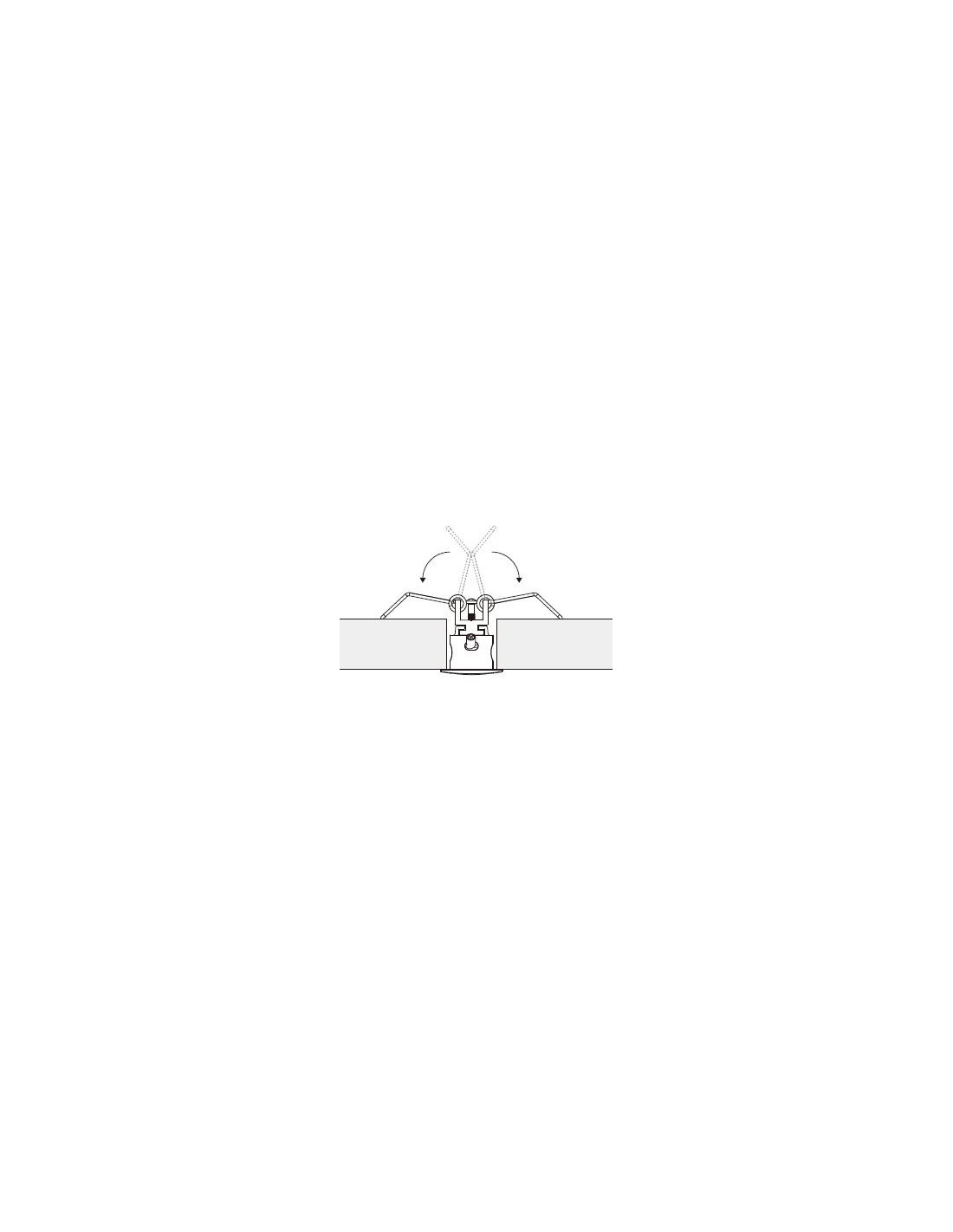

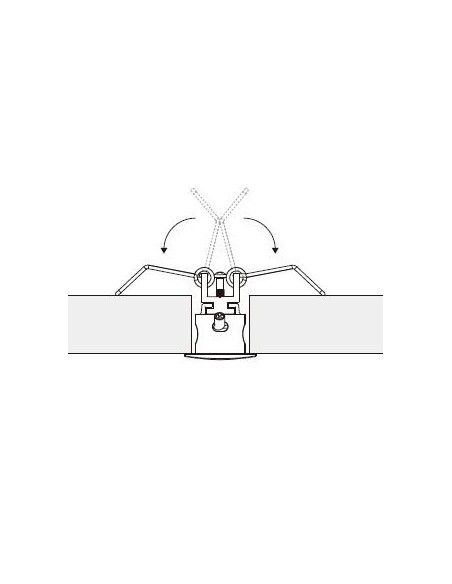

Extrusion can be mounted to the surface with the use of Spring mounting springs

Made from heat absorbing anodized aluminium and is dedicated to professional LED strips with width up to 12mm

Extra components open up unlimited possibilities of applications, giving the architects an open space for creation

Size: L2000*W23mm*H18.6mm

Strips: Fits up to 12mm wide LED strip

Installation method: Recessed or wall mount

Beam Angle: 60 Degrees

IP Rating: IP20

Cuttable: Hacksaw

Colour: Customised Anodized/Powder Coated/Spray Painted

Material: 6063-T5 Silver anodized Aluminium

Warranty: 3 years
