Set of 5 – 12mm COB RGB + Tunable White 6-Pin Strip-to-Wire Connector, IP00/IP20
Set of 5 connectors for 12mm COB RGB + Tunable White LED strips with 6-pin connection. Supplied without wire. Must be used with 22AWG 6-core flat ribbon cable (Ref: HL-RGBCCT-AWG22-10M). Recommended for Hi-Line COB strips only.

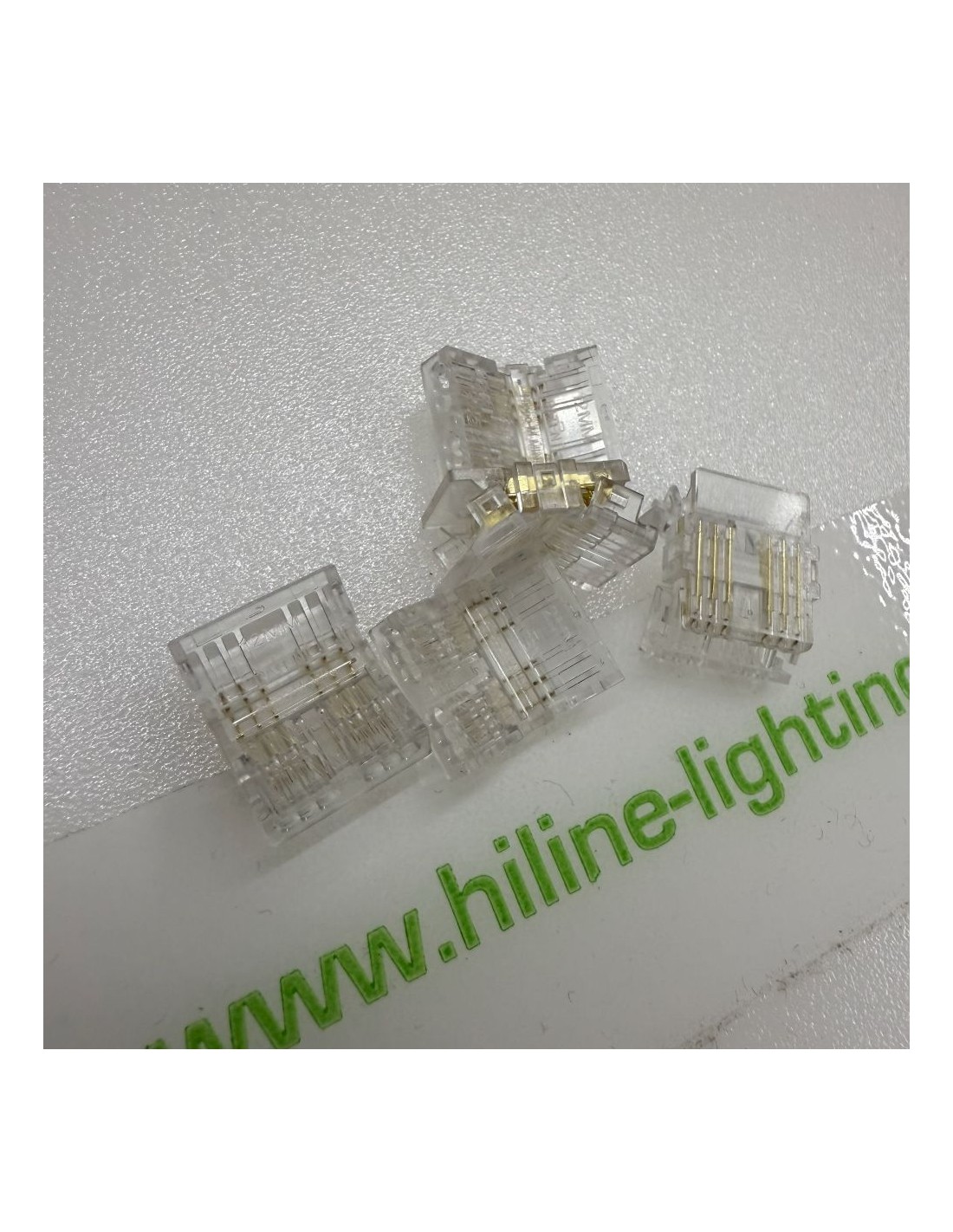

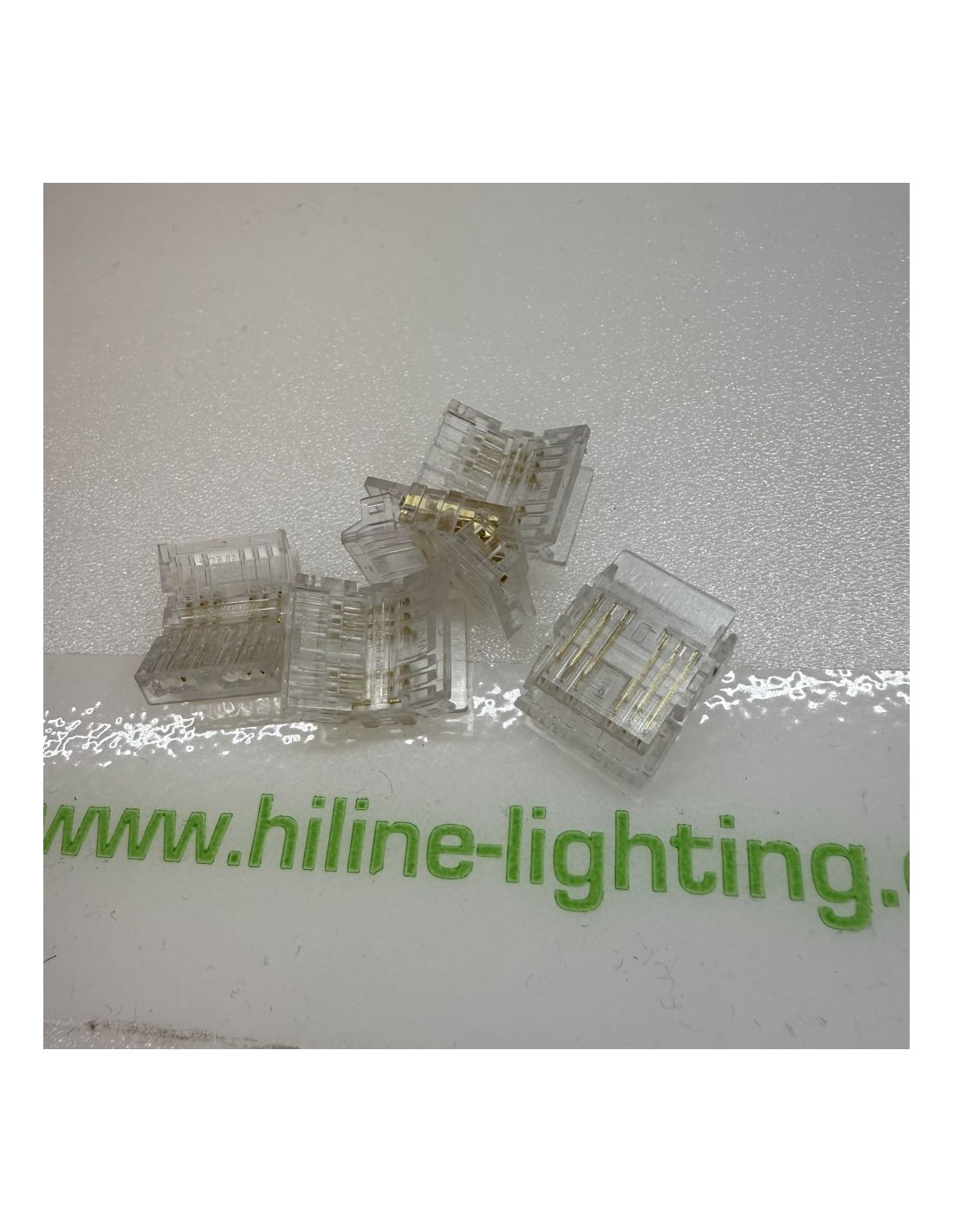

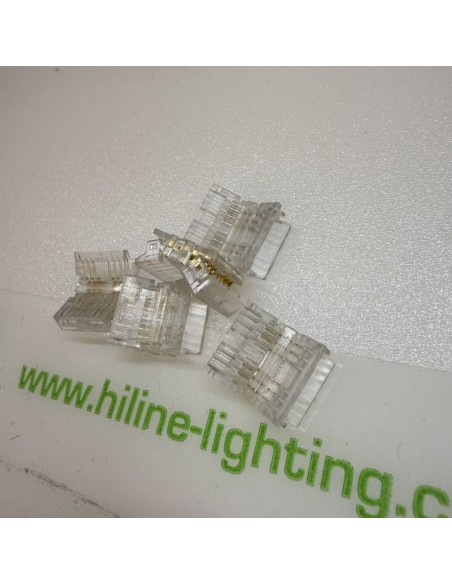

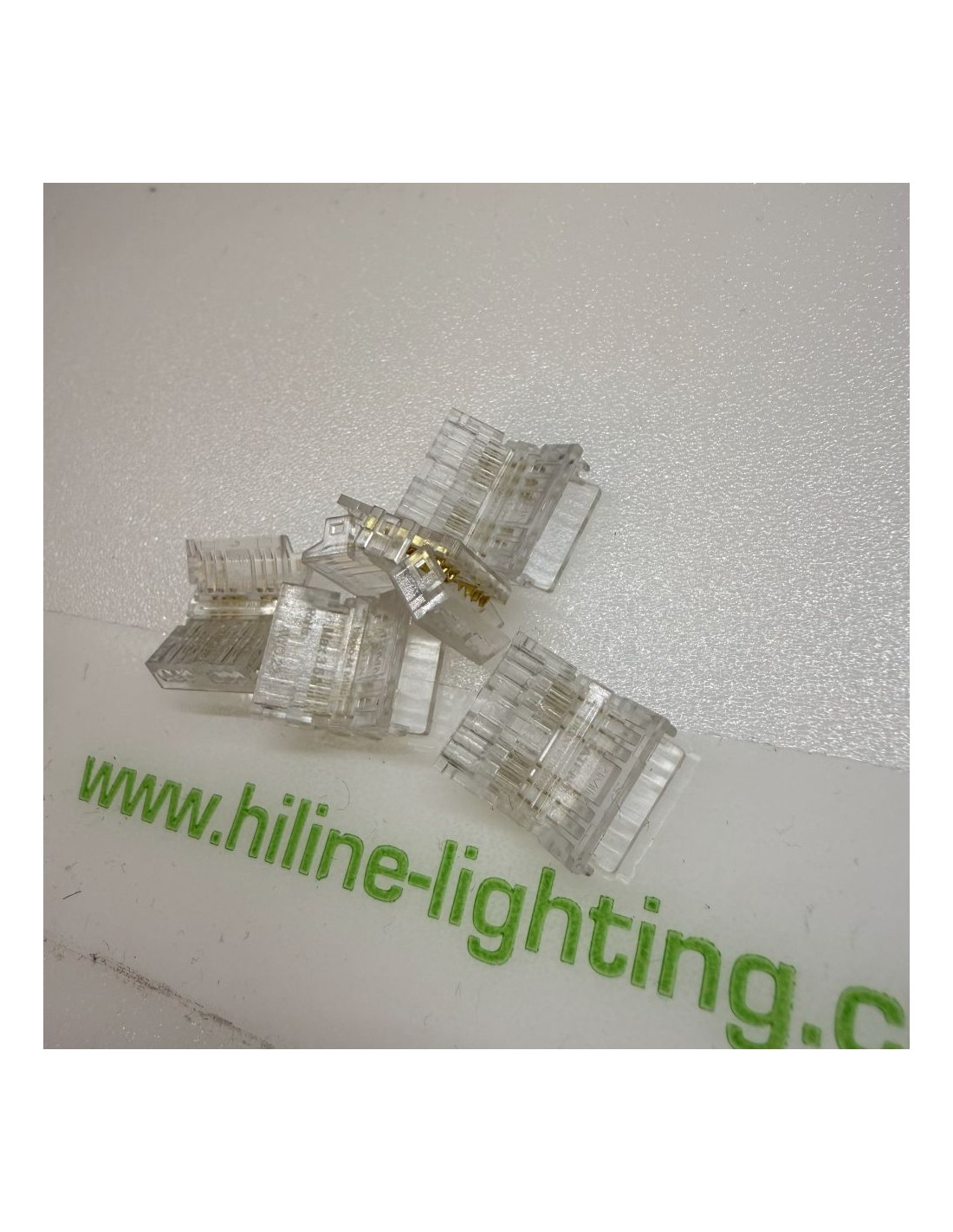

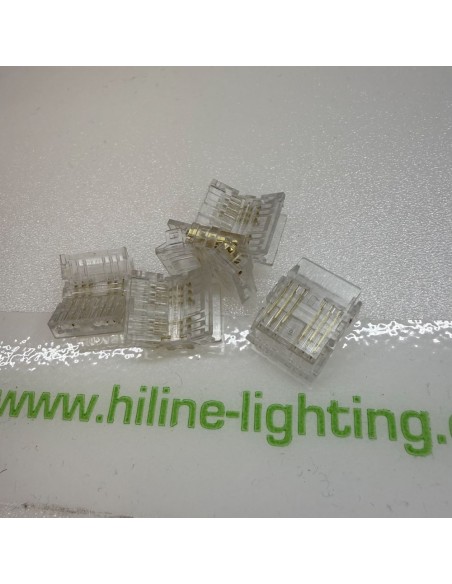

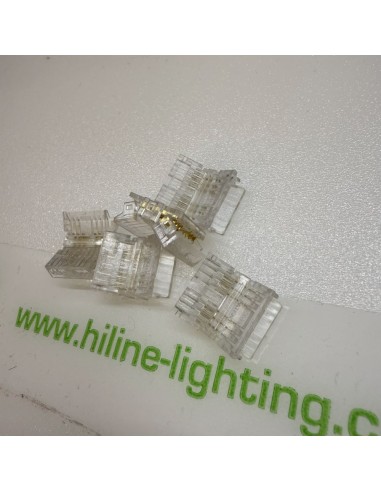

Pack of five connectors supplied without wire. Designed for installers who need to create their own cable lengths for 12mm COB RGB + Tunable White LED strips using a 6-pin connection. These are intended for Hi-Line branded strips and are confirmed to work with HL-COB840RGBTW-R90-IP00-24V. While they may fit other brands, compatibility is not guaranteed and we only recommend them for Hi-Line products.

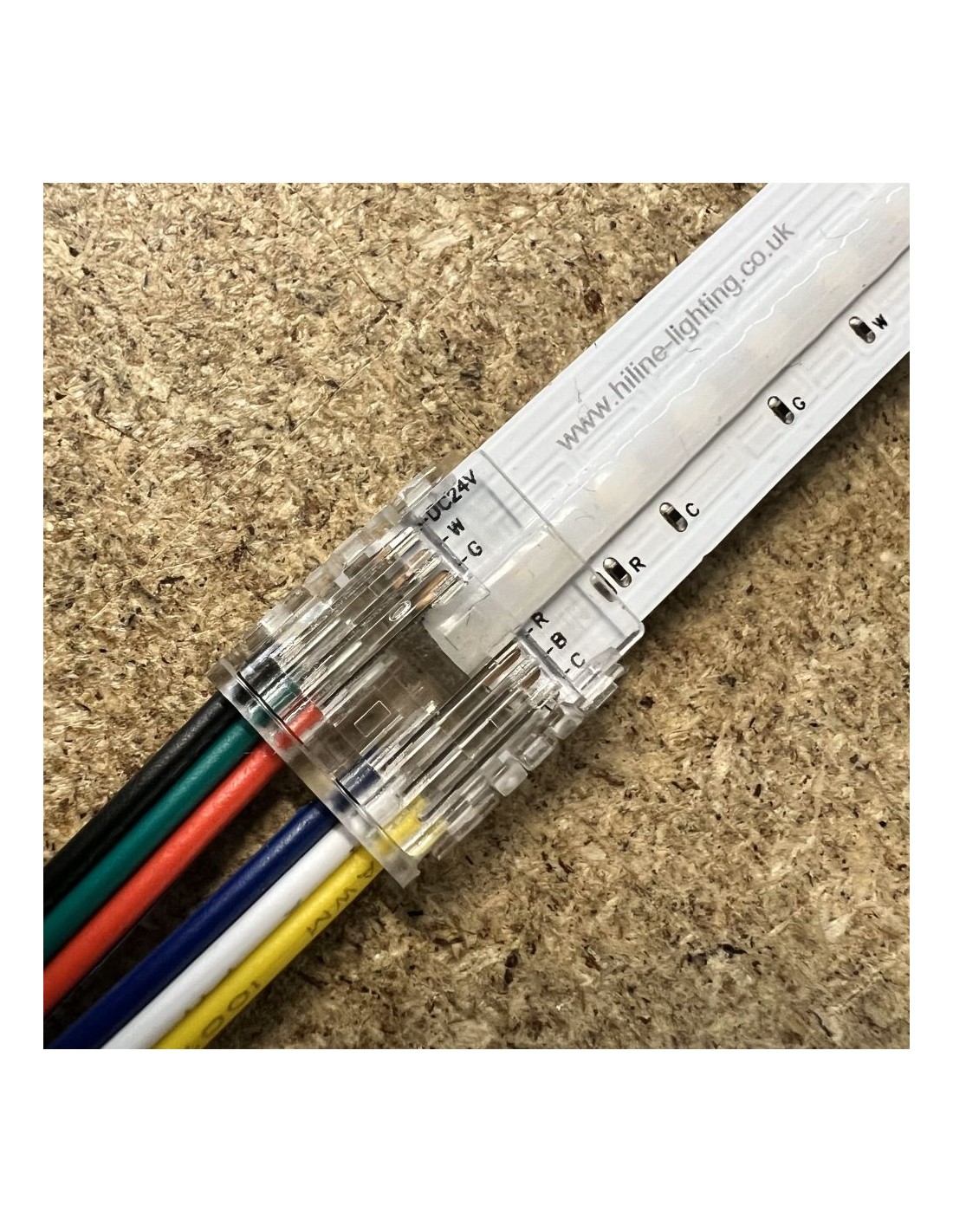

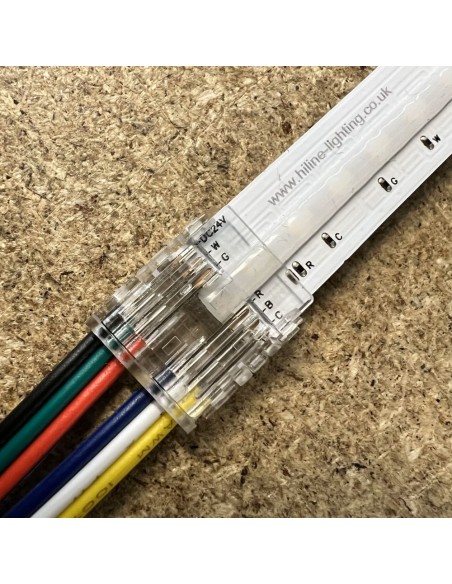

Each connector must be used with 22 AWG 6-core flat ribbon cable. Other cable sizes or constructions will not work. The correct matching cable is reference HL-RGBCCT-AWG22-10M, available under Related Products.
Technical Specifications Pack Size: 5 connectors Connector Type: 6-pin strip-to-wire, supplied without wire Compatible Strip Width: 12mm COB RGB + Tunable White IP Rating: IP00 / IP20 Required Cable: 22 AWG, 6-core flat ribbon only (Ref: HL-RGBCCT-AWG22-10M) Current Capacity (per pin): Up to 3.5A Total Current Capacity: Limited to 3.5A by the common anode contact (max 84W at 24V) Intended Use: Hi-Line COB RGB + Tunable White 12mm 6-pin LED strips Confirmed Compatibility: HL-COB840RGBTW-R90-IP00-24V
Important Usage Note Each pin of this connector supports up to 3.5A, but because of the common anode design, the total current through the connector is also limited to 3.5A. At 24V, this equals a maximum load of 84W.
With a 16W/m COB RGB + Tunable White strip, this means the connector is suitable for up to 5 metres of strip.It can be used at the end of a 5m strip to add another 5m section.
It can also be used between two 5m sections to join them in the middle.
It must not be used at the beginning of a 10m strip to power the entire length, because the shared anode cannot safely carry the current of more than 5m. For safety and long-term reliability, avoid running the connector continuously at its maximum rated capacity.
