12mm 6-Pin COB RGB+TW Strip to Wire Connector | Sold Individually | Clip Only | IP00

12mm 6-Pin COB RGB+TW Strip to Wire Connector | Sold Individually | Clip Only | IP00

Sold individually — 1 connector. This is the clip only — no wire is included. Use it when you need a custom cable length: insert the 12 mm strip into the lock side and your own 24 AWG wire into the other side, then push the lock down.

Needs 24 AWG (about 0.20 mm²) 6-core wire, solid or stranded. Heavier gauges such as 22 AWG will not lock reliably.

Fits 6-pin 12 mm RGB+tunable white COB LED strip. Same family as our other 12 mm COB clips. Not for SMD tape or a different pin count.

• Sold individually — 1 connector
• Clip / lock housing only — no wire
• For custom cable lengths
• Needs 24 AWG 6-core wire (about 0.20 mm²)

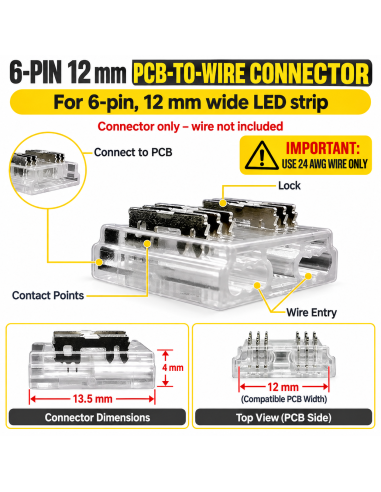

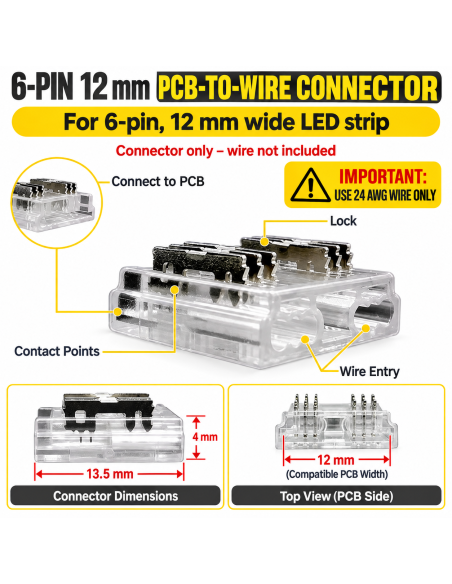

• PCB slot 12 mm
• Housing about 13.5 × 14 × 4 mm
• IP00 indoor, not waterproof
• Typical 3–24 V DC LED strip

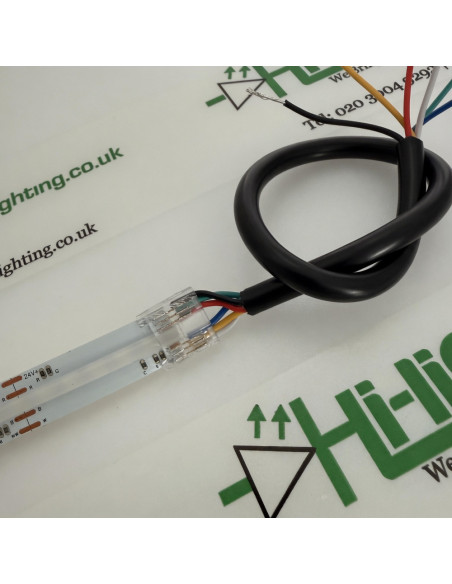

Push the strip fully onto the contacts, insert the wires, then lock. Test colours before installing in a profile.
