Strip to wire connector for 10mm IP65 single colour LED strip (pack of 5)

2 pin LED strip to power (wire) connector

Supports high current LED strips

For 10mm IP65 single colour LED strips

Workable Wire Gauge: 22 ~18 AWG

HL-SC-B10-IP65
14 Items In stock
Same Day Dispatch
£8.20

(£1.64 each)

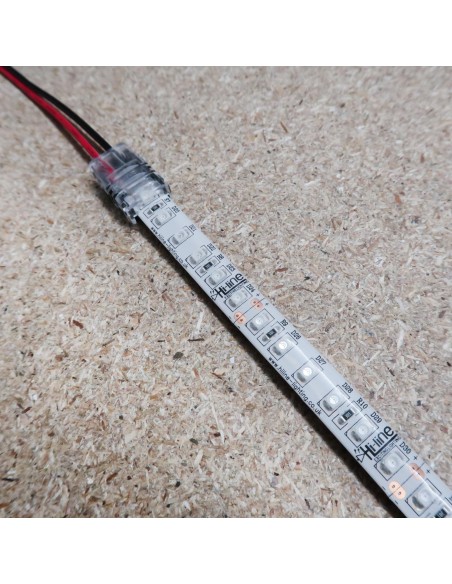

A LED strip connector (strip to power) designed for 10mm wide IP65 splashproof single colour LED strips

Connect IP65 splashproof / waterproof single colour LED strip without removing surface coating gel.

Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!

With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.

This is a very high quality strip to wire connector suitable only for IP65 single colour 10mm wide LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).

­­­______________________________

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L27mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Pin distance between them: 5mm

Cross Sectional Area for wire (not included): 0.33 - 0.82mm²

Wire type AWG: 22 to 18#

Applicable wire type: Solid wire / Stranded wire

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Standard Package: 5pcs/bag

Voltage
12-24V DC
Rating
IP65 (Splashproof)
Connector type
strip to power connector
Connector width
For 10mm LED strips
Number of terminals
2 pin (for single colour strips)
Brand
Hi-Line
