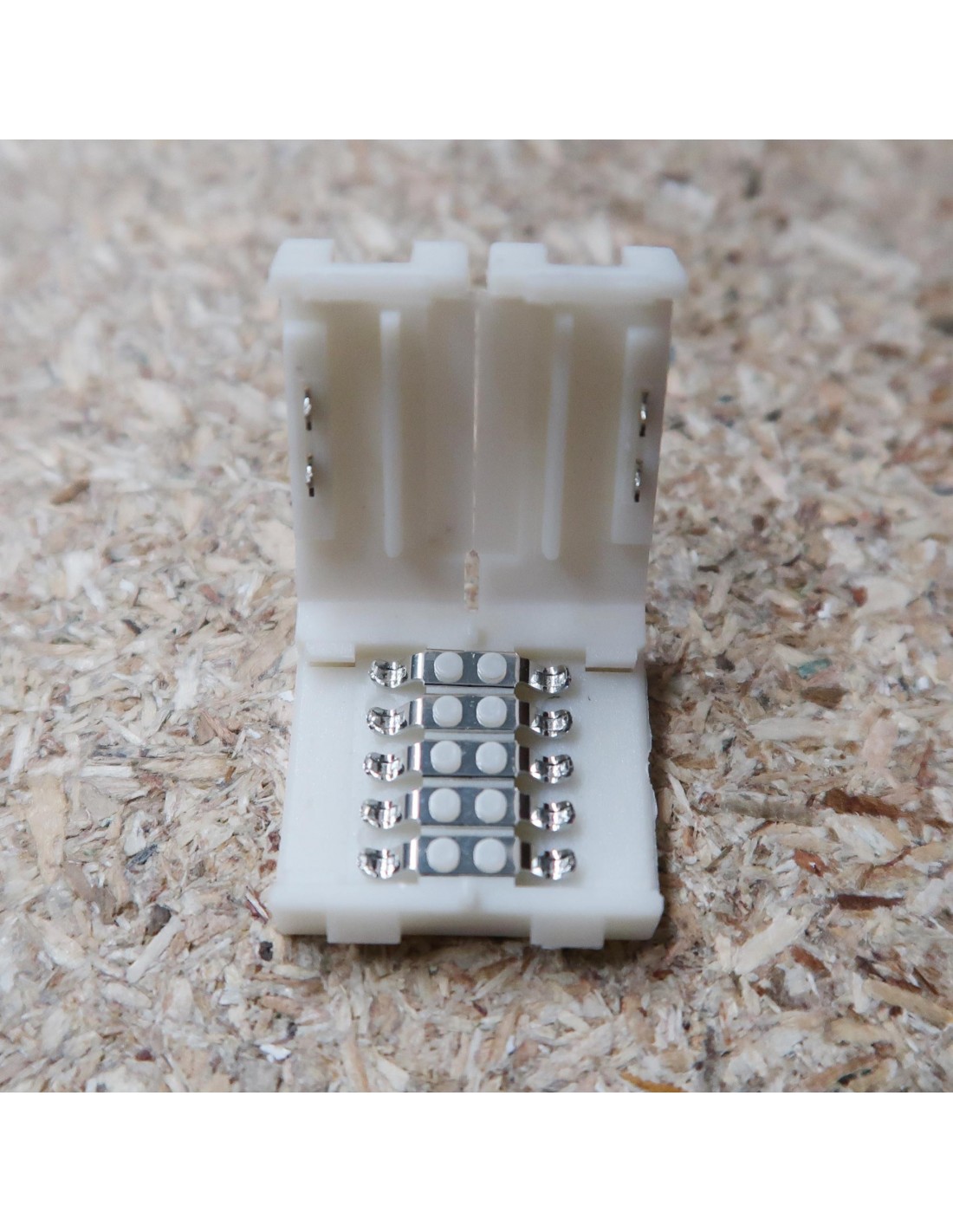

RGBW Strip to strip connector
12mm / solderless / 5 Pin

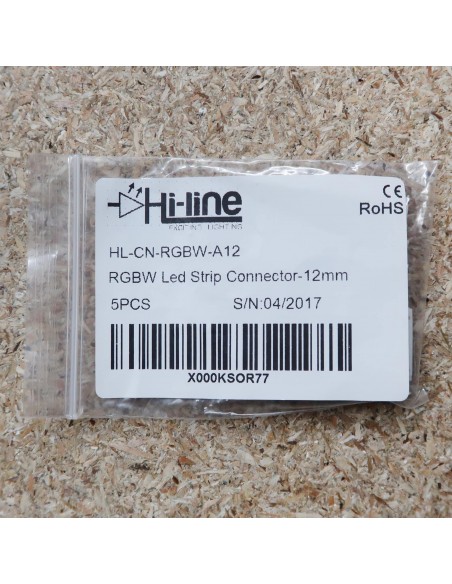

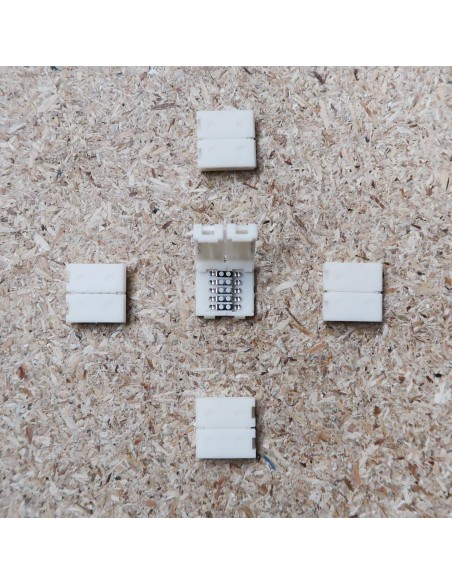

Pack of 5
39 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 30/06/16
|Connector type||strip to strip connector|
|Connector width||For 12mm LED strips|
|Number of terminals||5 pin (for RGBW strips)|
This connector is used to connect two lengths RGBW LED strip together without any soldering to be required.
The LED strip must be 12mm wide in order to use this connector (RGBW LED strip 12mm width).
In order to use that with IP rated LED strips, waterproof coating (resin) must be removed from the end of both LED strips. You can use on the top of the connection heat shrinkable tubing to maintain IP rating.
Please ensure connector clips are aligned with the copper contacts of the LED Strip and notice the polarity. If connecting IP rated strips remove any gel coating from copper contacts completely. In some cases might be required to move the LED forward or backwards in order for connector contacts to be aligned properly. Then insert strip in the slot and before closing the connector cover ensure the teeth clamps will hold the circuit board of LED strip in place. If an LED chip is located near by the copper connection contacts of the strip the cover might not be able to close and you may try in such a case to use the other end of your LED strip and install the connector upside down in order to match the polarity.
We do suggest using this connector for powering up to 5m of LED strip. To power longer runs a soldered connection is suggested.
We still suggest soldering but those connectors are best available in the market today. After lots of testing they are the only ones that are approved to be used but still not the perfect solution.
