RGB 4 pin strip to strip connector for IP68 LED tape

Supports high current LED strips

For 12mm IP68 RGB LED strips

HL-RGB-4A12-IP68
46 Items In stock
Same Day Dispatch
£3.50

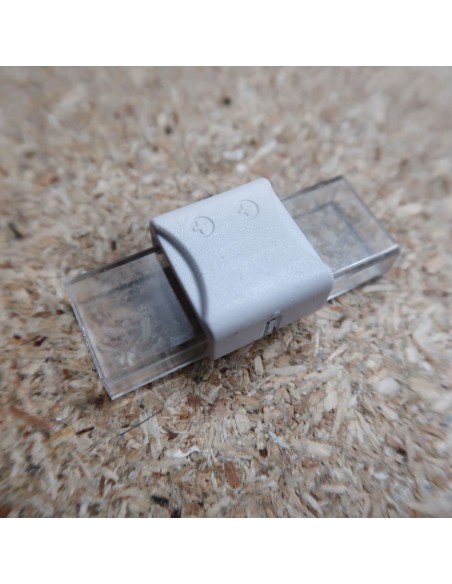

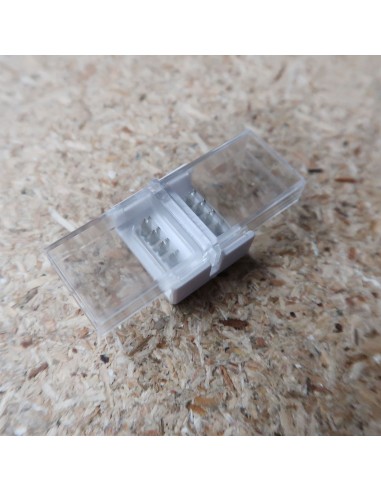

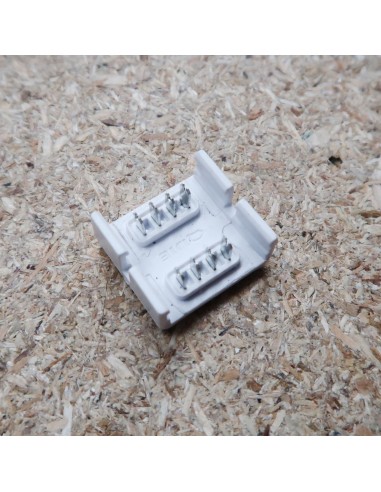

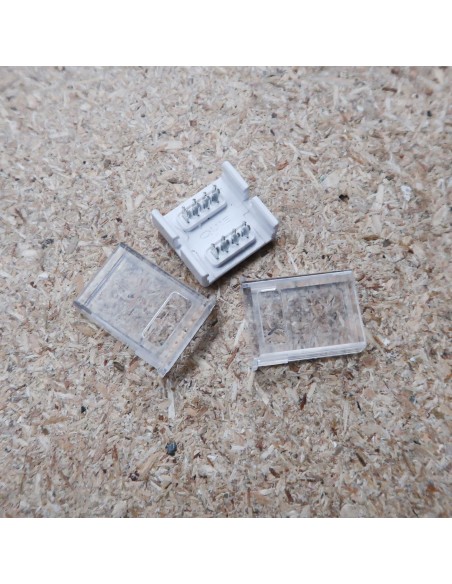

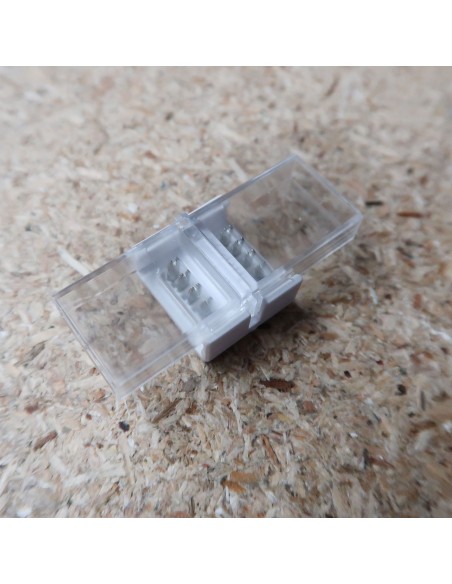

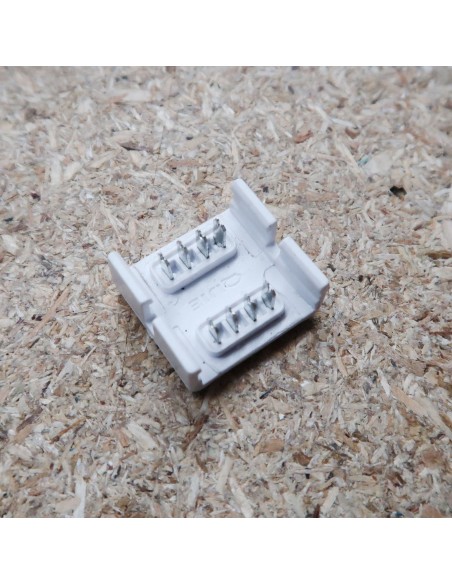

RGB 4 pin strip to strip seamless connector designed for 12mm wide IP68 RGB strip lighting

Connect IP68 waterproof LED strip without removing surface coating gel

This is a very high quality 4 pin strip to strip connector suitable only for RGB IP68 12mm wide LED tape.

Compatible with 30-60 LEDs/m IP68 RGB colour changing LED strips (4 pin 10mm pcb strip width / 12mm total width).

This connector is made of flame retardant material and supports high current LED strips!

The IP68 connectors are suitable for use with the gel coated (PU) IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).

Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.

To find out more, please see our article HERE and refer to the video also included on this page.

_____________________________

Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!

______________________________



Technical Data

Size: L16mm X W18mm X H8mm

Colour: Transparent with white base

Number of Pin: 4

Suitable for Hi-Line's IP68 12mm RGB strips

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Package: 1pcs

Voltage
12-24V DC
Rating
IP68 (Underwater waterproof)
Width of PCB
10mm
Connector type
strip to strip connector
Connector width
For 12mm LED strips
Number of terminals
4 pin (for RGB strips)
Brand
Hi-Line
