3 pin LED strip to strip connector

Supports high current LED strips

For 10mm IP00/IP20 tunable white or pixel LED strips

HL-CN-A310-IP00
157 Items In stock
Same Day Dispatch
£1.80

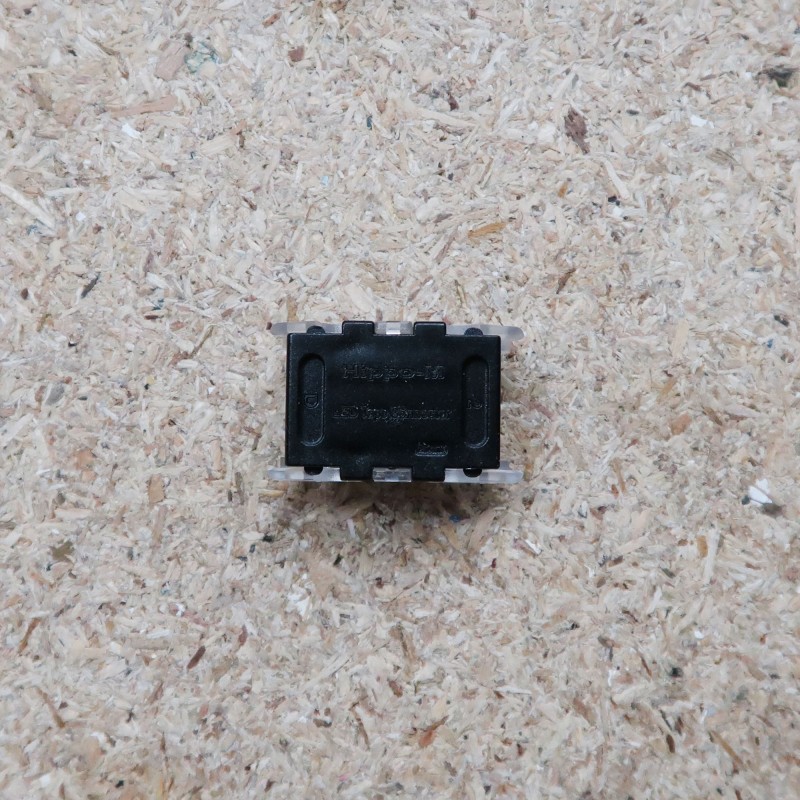

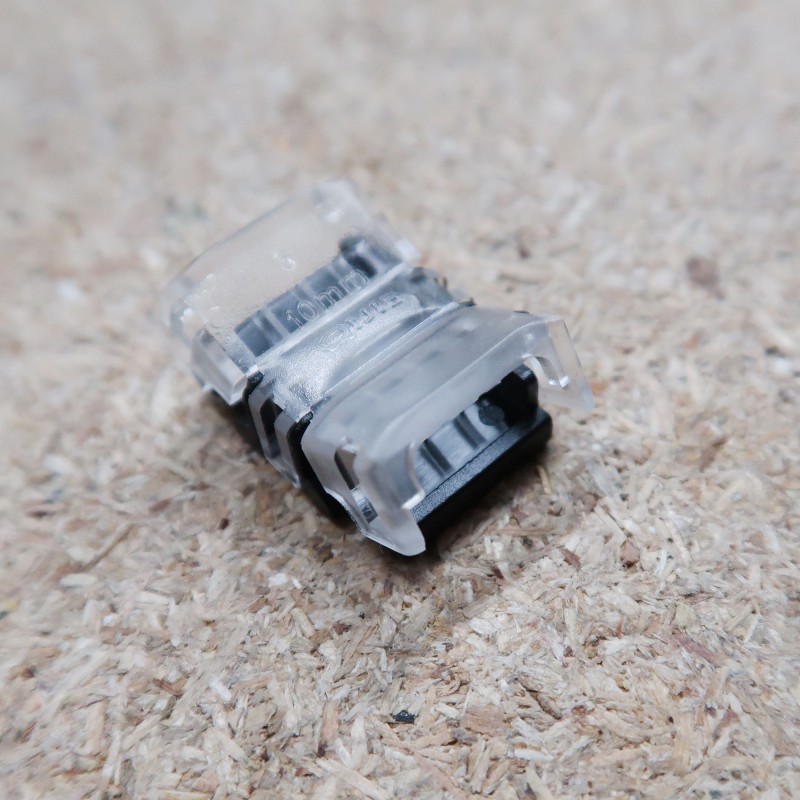

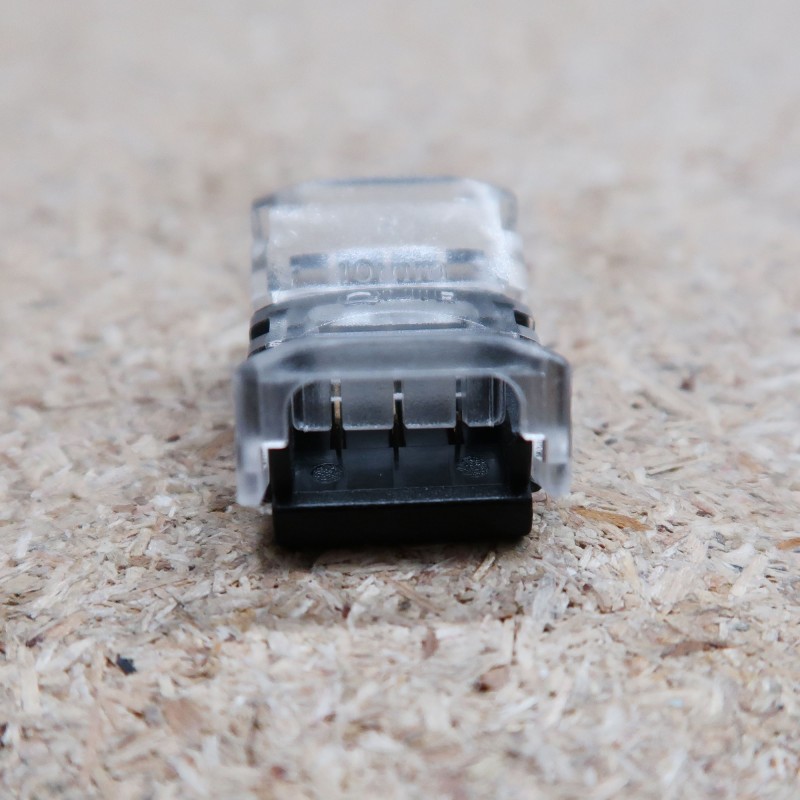

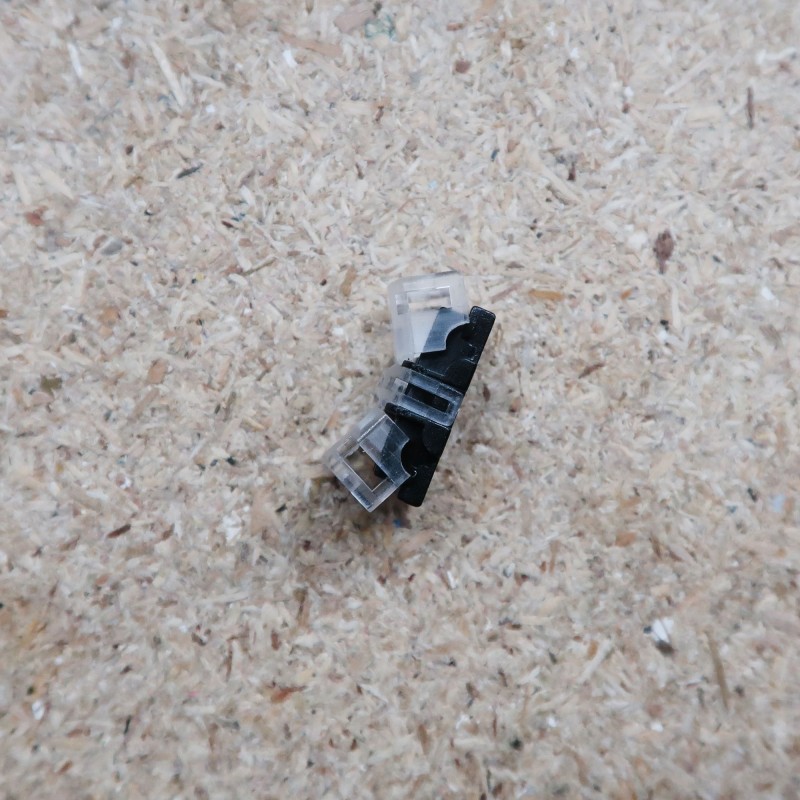

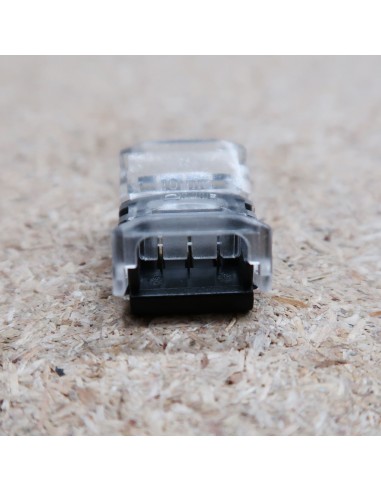

A LED strip connector (strip to strip) designed for 10mm wide IP00/IP20 non-waterproof tunable white or pixel digital LED strips

This is a very high quality strip to strip connector suitable only for IP00/IP20 10mm wide dynamic white or pixel individually addressable digital LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm wide 3 pin). This connector is made of flame retardant material.

Supports high current LED strips!

Please note that this connector is not compatible with the gel coated (PU) IP54/65/67/68 LED strips.

­­­______________________________

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L20mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 3

Pin Pitch: 2.9mm

Connection hardware: High precision brass(Cu)

Voltage range: 3-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Voltage
3-24V DC
Rating
IP00 (Non-waterproof)
Connector type
strip to strip connector
Connector width
For 10mm LED strips
Number of terminals
3 pin (for tunable white or pixel strips)
Brand
Hi-Line
