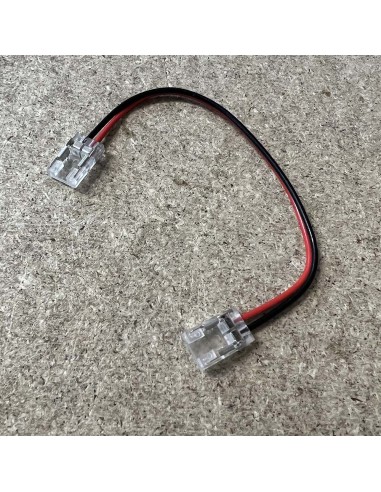

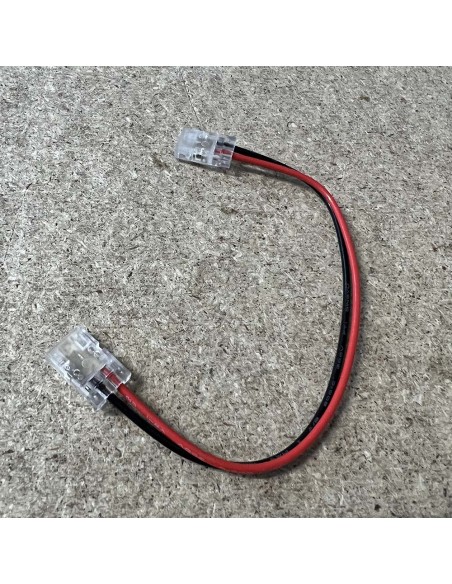

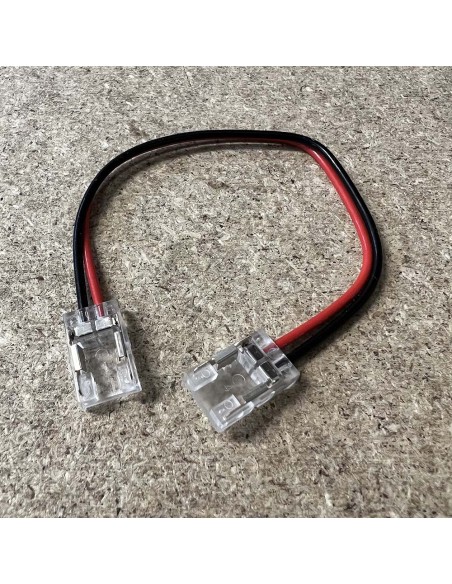

The COB LED strip connector is a plug-and-play solution for connecting 2-pin LED strips to strips using a 150mm 2-core wire. It comes pre-wired and ready for immediate use and features an invisible (topless style) design for discreet installation that integrates seamlessly with your lighting setup without detracting from its aesthetic appeal.
This connector is made of flame-retardant material to ensure safe and reliable operation. It is also compatible with both IP00 and IP20 single colour conventional LED strips that feature 180 LEDs/m and 240 LEDs/m.
However, it is important to note that this connector is not compatible with any gel-coated (PU) IP65 LED strips. Using this connector with such strips could result in damage or failure to your lighting system.
Moreover, it can handle a maximum current of 4.5A, which is sufficient for most LED strip applications. This makes it a convenient and reliable solution for connecting LED strips and achieving the lighting effects you desire.
Overall, the COB LED strip connector is an excellent choice for those looking for a simple and effective way to connect LED strips while maintaining a clean and professional look.
Technical Data
Size: L15mm X W9mm X H4mm
Colour: Transparent
Number of Pin: 2
Connection hardware: High precision brass(Cu)
Voltage range: DC 3-24V
Maximum current: 4.5A
Min. LED Strip Thickness: >0.2mm
Workable wire gauge: 18 AWG / 0.75 mm²
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating
Packaging: 1 set
