Strip to strip 200mm extension bridge for 12mm LED tape single colour | IP68

Key Features:

  • 2 pin strip to strip 200mm extension for IP68 LED tape
  • Supports high current LED strips
  • For 12mm IP68 single colour LED strips
HL-SC-C12-IP68-200C
359 Items In stock
Next working day delivery
£3.70
4.44
with VAT)

(£3.70 each)

VAT excluded

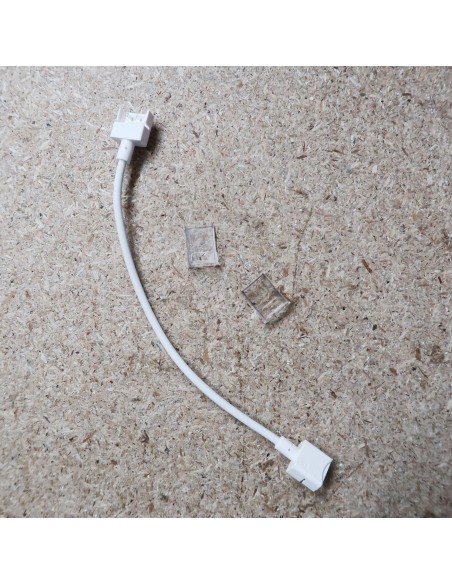

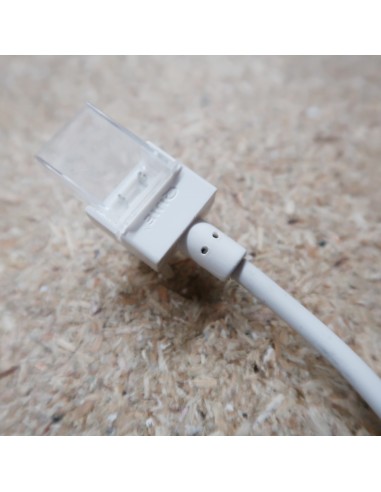

A strip to strip 200mm wire extension bridge designed for 12mm wide IP68 single colour LED strips

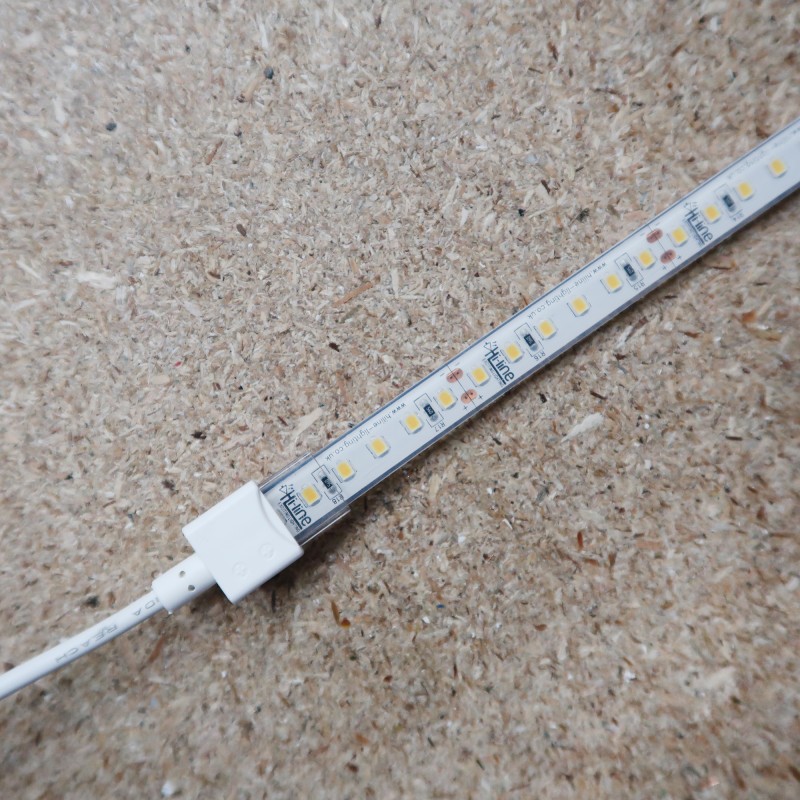

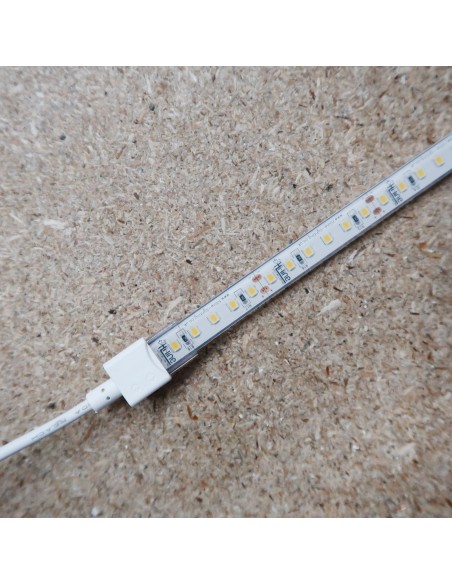

Cut and bridge IP68 waterproof LED strip without removing surface coating gel in seconds

This is a very high quality strip to strip 200mm wire bridge suitable only for IP68 single colour 12mm LED strips.

Compatible with 30-120 LEDs/m IP68 single colour LED strips (10mm pcb strip width / 12mm total width).

Connectors made of flame retardant material and supports high current LED strips!

The IP68 connectors are suitable for use with the gel coated (PU) 12mm IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).


Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.

To find out more, please see our article HERE and refer to the video also included on this page.

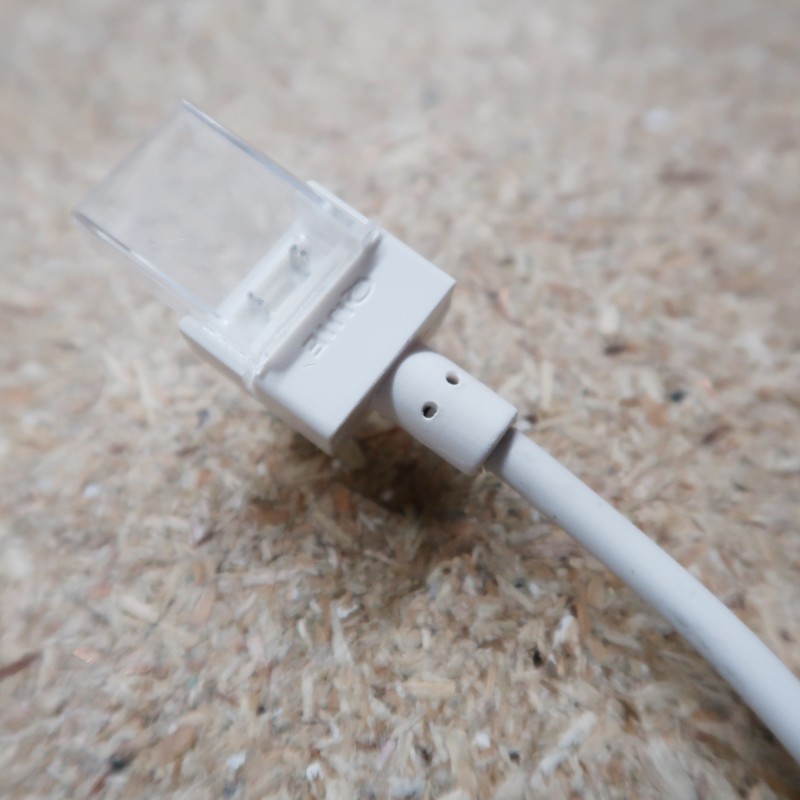

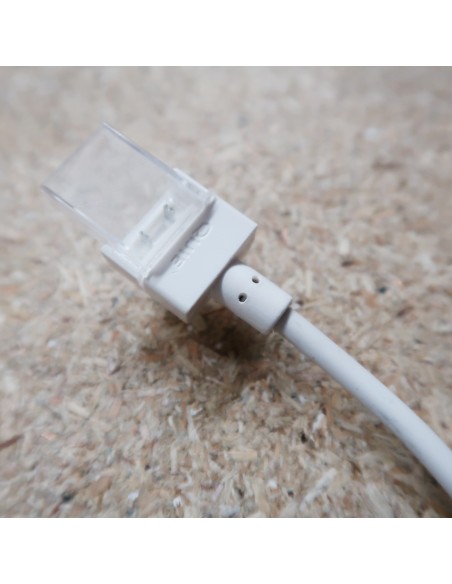

Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!


Technical Data

Size: L16mm X W18mm X H6mm

Extension wire lead length: 200mm bridge (2*20AWG/0.52mm2)

Colour: Transparent with white base

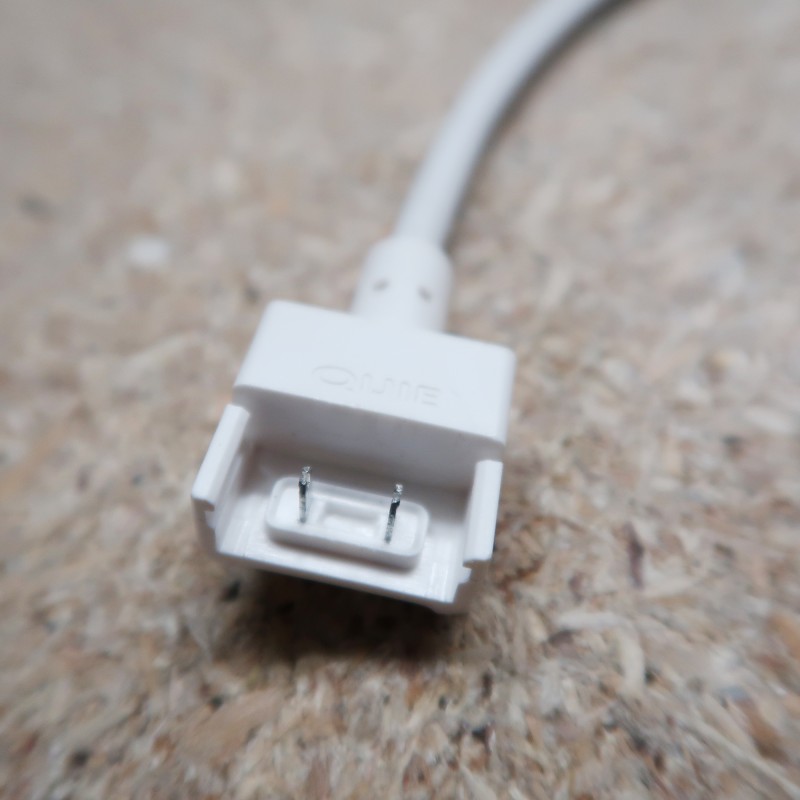

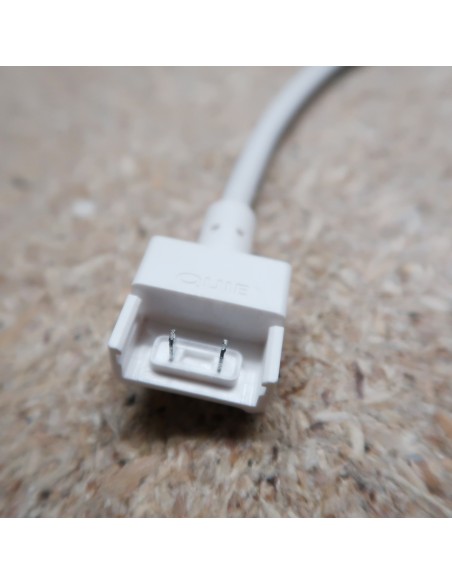

Number of Pin: 2

Suitable for Hi-Line's IP68 12mm single colour strips

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Package: 1pcs

Brand
Hi-Line
Connector type
strip to strip extension
Connector width
For 12mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP68 (Underwater waterproof)
Voltage
3-24V DC
Width of PCB
10mm
Width of strip
12mm
