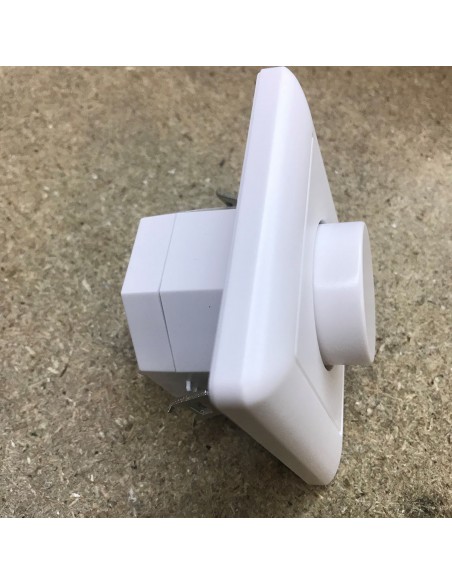

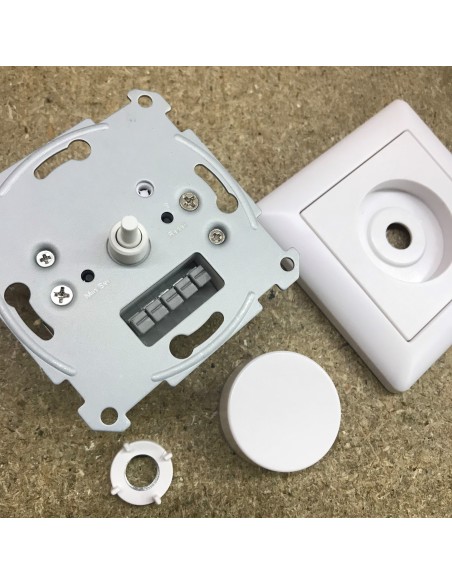

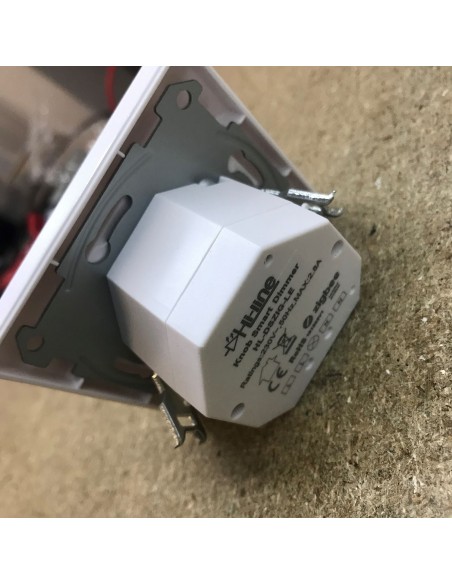

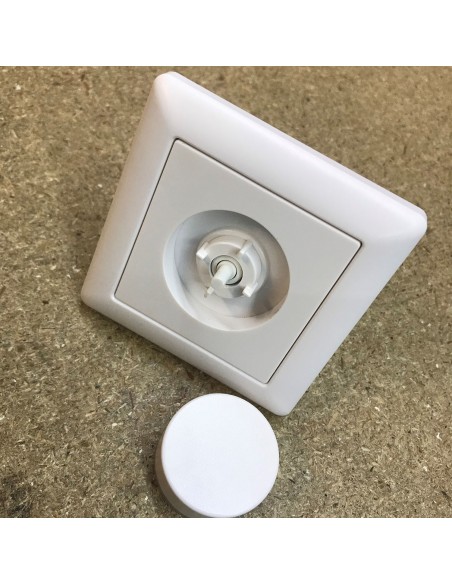

ZigBee Smart Dimmer Switch 100 - 240 Volts AC

-30%

ZigBee Smart Dimmer Switch (Trailing Edge)

Key Features:

ZigBee Knob Smart Dimmer
100-240V / AC
Dimming type: Trailing Edge
Max. 300W for mains dimmable LED drivers and lamps

Reference HL-DSZIG-LE

27 Items In stock

Next working day delivery

£33.88

40.66

with VAT)

£48.40 -30%

VAT excluded

Tags:

Free standard delivery when you spend over £100

ZigBee rotary Smart Dimmer Switch 100 - 240 Volts AC - Trailing Edge

Main Features:

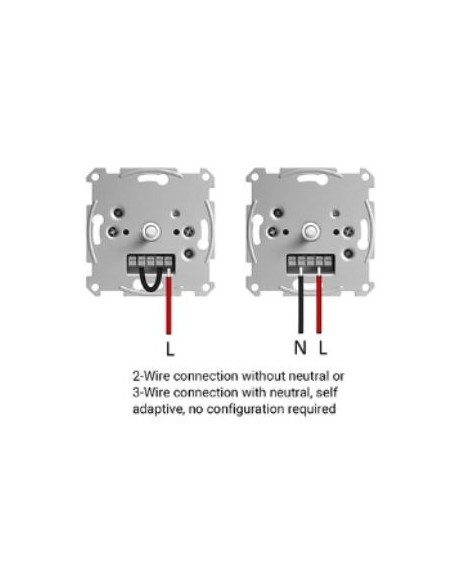

Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead

works with Philips Hue Bridge V2, Samsung SmartThings and Amazon Alexa Echo plus

Adjustable minimum dimming level and startup brightness setting functions

Advanced microprocessor control - algorithm of smart light source detection

Designed to operate only with Trailing Edge mains dimmable LED drivers or loads.

Not Suitable for MLV halogen lamps (with ferromagnetic transformers)

Brand: Hi-Line
Type of control: ZigBee Light Link
Warranty: 5 Years

HL-DSZIG-LE

Datasheet and manual

Download (4.88MB)
