Hi-Line Lighting DT6 LED Driver (100W) – Compact, Durable, and Efficient
Introducing the Hi-Line Lighting DT6 series, featuring our advanced 100W DALI LED Driver. This constant voltage driver is designed for optimal performance, making it an excellent choice for a wide range of lighting applications where reliability and efficiency are paramount.
Key Features:
Consistent Voltage Output: Provides a stable 24V DC output, ensuring consistent performance for connected LED systems.
IP67 Protection: Fully sealed against dust and water immersion, making it suitable for both indoor and outdoor use.

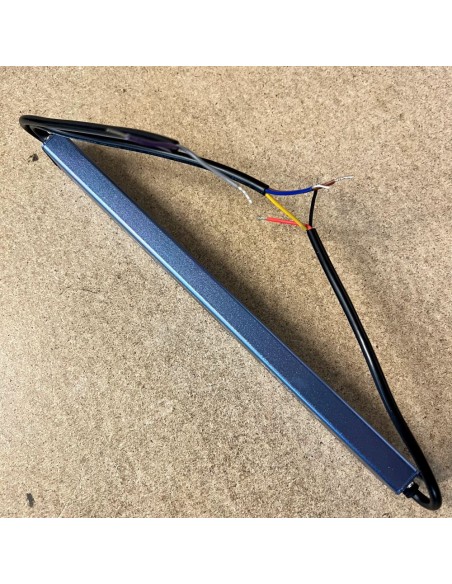

Slim Design: With a compact profile (343 x 35 x 18 mm), the driver is easy to install in tight spaces, ensuring a clean and efficient setup.
Dual Dimming Options: Supports both DALI-2 (DT6) and Push DIM control, giving you flexibility in managing your lighting—whether through advanced systems or simple manual dimming.
Warranty: 3 years standard, extendable to 7 years with our extended warranty option.
Push DIM Functionality:
The Push DIM feature allows control via a standard press switch. A quick press toggles the light on or off, while holding the switch enables smooth, stepless dimming. The system retains the last brightness setting, returning to it when the lights are switched back on, ensuring consistent lighting levels.

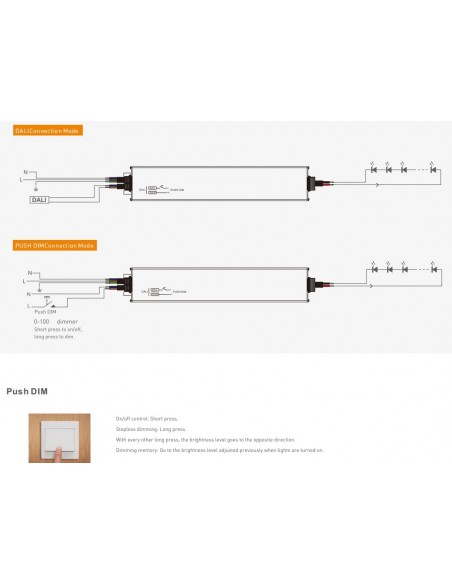

Push DIM Connection Guide:
Setting up Push DIM functionality is straightforward. Connect the live (L) and neutral (N) wires from your mains power supply to the corresponding L and N terminals on the driver, ensuring the earth (ground) wire is securely connected for safety.
For both DALI and Push DIM input, use the same live and neutral wires. Connect a standard press switch between the live (L) terminal and the Push DIM input on the driver to control the on/off and dimming functions. Finally, connect the positive (+) and negative (-) terminals on the driver to the corresponding terminals on your LED strip or load.
This setup is designed to integrate seamlessly into existing lighting systems, offering easy installation without complex wiring. Refer to the provided diagram for visual guidance.

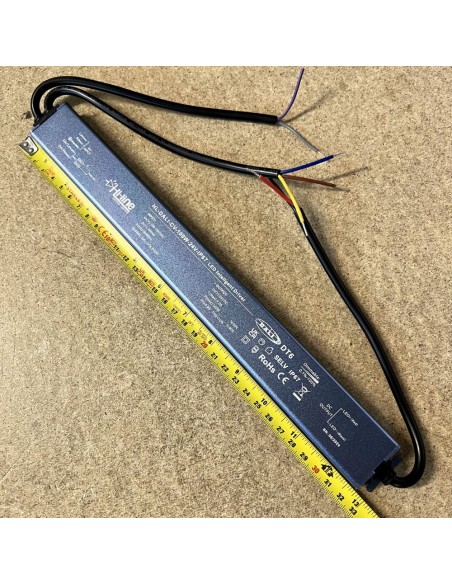

Dimensions:
- Length: 343 mm
- Width: 35 mm
- Height: 18 mm
Technical Specifications:
- Input Voltage: 100-264V AC
- Output Voltage: 24V DC
- Maximum Power: 100W
- Power Factor: >0.96 at full load
- Total Harmonic Distortion (THD): ≤10%
- Operating Frequency: 3500Hz for flicker-free performance
- Protection: Overload, over-temperature, short circuit, and over-voltage protections with automatic recovery
- Surge Protection: 2KV for enhanced reliability
- Leakage Current: ≤0.5mA for safe operation
Applications:
Ideal for residential, commercial, and industrial applications, the 100W DT6 LED Driver is perfect for environments requiring durable and reliable power, such as outdoor landscapes, architectural lighting, and signage.
High-Frequency PWM Operation:
Operating at 3500Hz, this driver ensures smooth dimming without flicker, adhering to IEEE 1789 standards. This makes it suitable for sensitive environments like offices, schools, and homes.
IMPORTANT NOTICE:
This driver should be installed by a qualified electrician in accordance with the latest IEE Wiring Regulations and any relevant Building Regulations.
