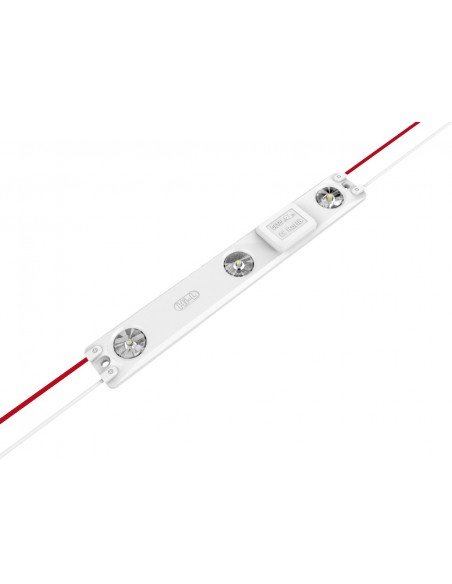

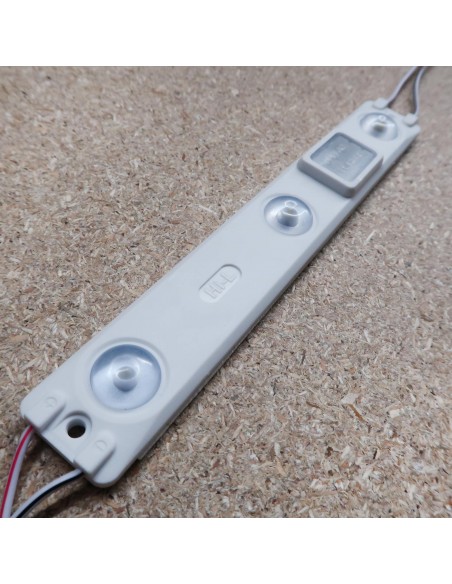

LG LED backlight module 24V 4W 500Lm white 6500-7000K 170° IP65

HL-S2004

New product

Ideal for light box 10-20cm

12V 4W 7000K
Beam angle 170°
Rating: IP65

More details

10 Items

Same Day Dispatch

£ 180,60 excl. VAT

£ 7,53 per module

Add to wishlist

Data sheet

LED Chip LG LED Chip
Colour Pure White
Voltage 12V DC
Rating IP65 (Splashproof)
Colour Temperature (CCT) 7000K
Colour rendering (CRI in ra) 80
Best for lightbox/letter Depth 10-20cm
Module Power Consumption 4 Watt
Module Luminous Flux / Efficacy 500lm (125 Lm/W)
LED Module Beam Angle 170°
Module built-in driving method Constant Current
LED Module Controllability Constant Voltage driver
Max. No. of Modules in series 12 modules

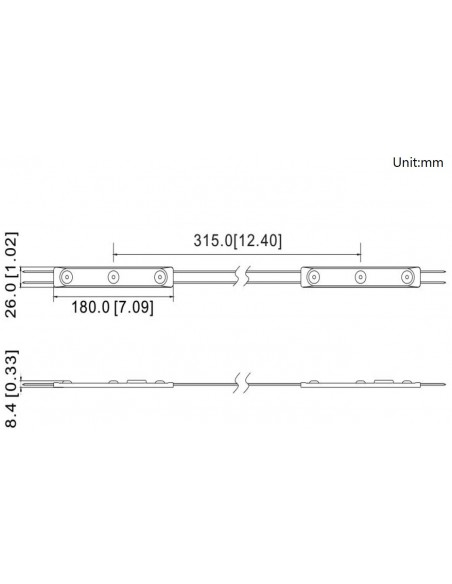

Module Dimension (mm) 180*26*8.4
Modules in pack qty 24
Warranty 5 Years
Brand Hi-Line

More info

LG powered high efficiency (125Lm/W) backlighting LED light module, can only be used into single sided light boxes (led backlight) 10-20cm deep.

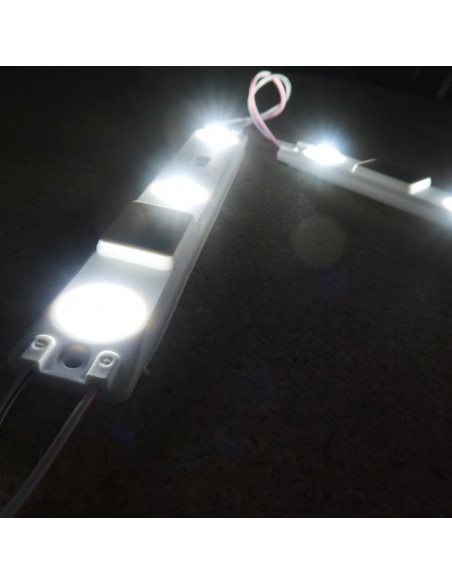

Each module is powered by high output LG LED chip, optical PC lens design for 170 degrees beam angle offers excellent colour uniformity and no hot spots.

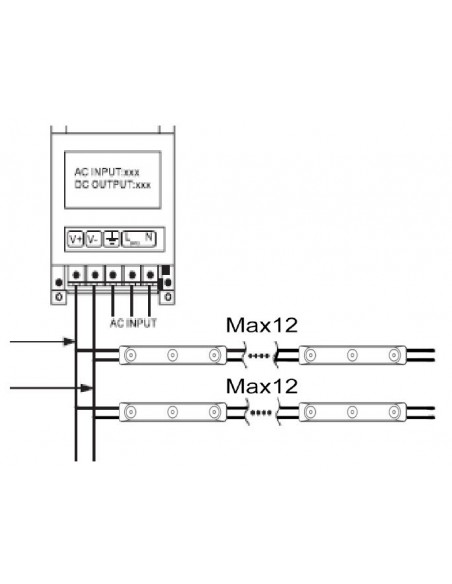

Maximum series connection is 12 modules

12 modules chain measures approximately 4.045m

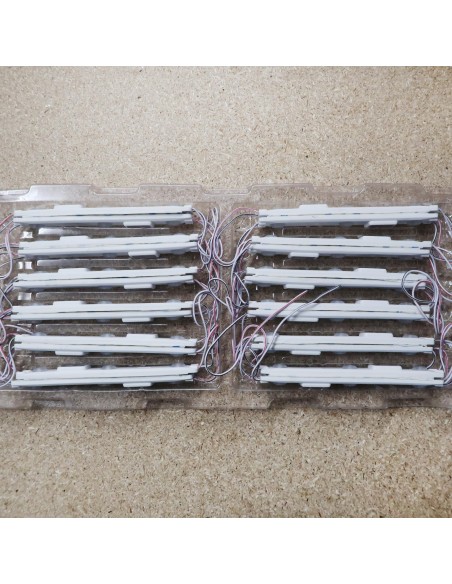

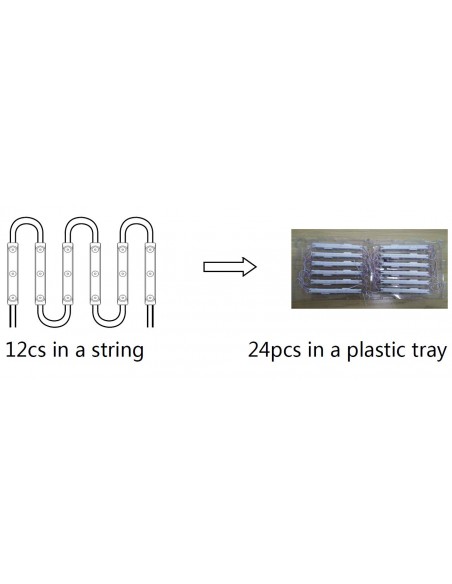

Packing: 12pcs per string, 24 per box

Price is for 24 x IP65 modules (4W / 500lm each)

Features:

Internally illuminated sign boxes from 100 to 200mm deep

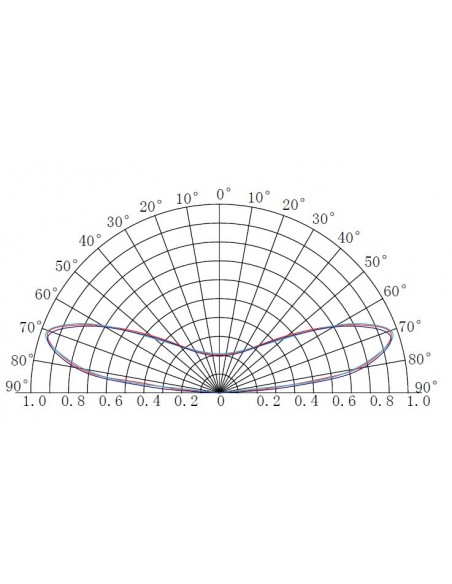

Special lens design for extra wide 170 degrees beam angle with even light distribution

Powered by high efficiency LG LED chip

Chips are 99.99% gold threaded, pure copper bracket coated with silver

SDCM less than 3 (BIN)

IP65 mould: anti-dust, anti-moisture, waterproof, anti-shock

Self-adhesive 3M backing for fast installation

Certification: CE, RoHS, UL

5 Years Warranty
