Blue Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)

HL-B-24V-IP65-360NF

New product

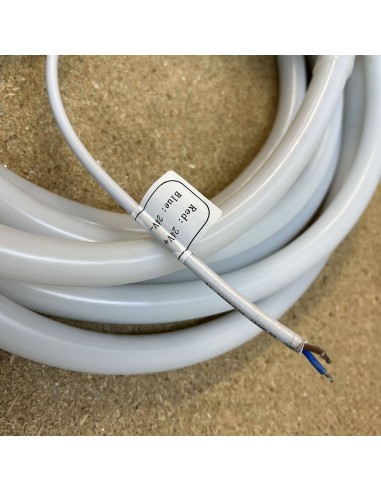

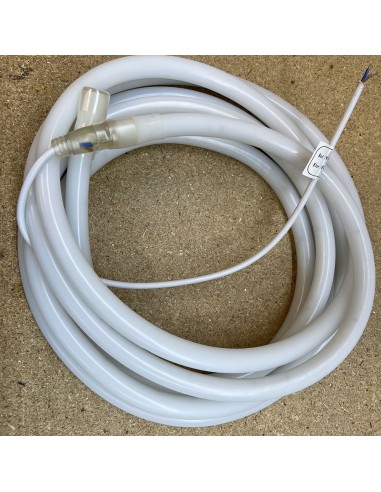

Blue Circular 360° LED neon flex tube

144 LEDs/m – 10 w/m

Diameter: 18mm

3 year warranty

More details

100 Items

Same Day Dispatch

£ 15,00

£ 15,00 per meter

Add to wishlist

Data sheet

LED Chip SMD 2835
Voltage 24V DC
Colour Blue
Power 10 w/m

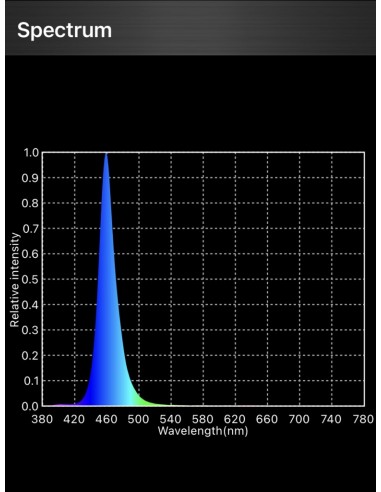

Wavelength 456nm
Brightness 45 lm/w
Number of LEDs per meter 144
Rating IP65 (Splashproof)
Cutting length Every 8.33 cm
Minimum Bend Diameter (Horizontal) 80mm
Voltage Type Constant Voltage
LED Neon Flex Type Circular (dia:18mm)
LED Neon Flex Beam Angle 360°
Warranty 3 Years
Brand Hi-Line

More info

Blue Circular 360° LED Neon Flex tube 24V 10 w/m IP65 18mm (Sold Per Metre)


LED Neon flex tube powered by green colour SMD2835 LED chips

10 w/m – 24V DC – 144 LEDs/m – splash-proof IP65 – 2 wire

Wavelength 456nm, light output 45 lm/m

LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.

If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.

3 year warranty

______________________________



The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.

_____________________________


All Hi-Line LED neon flex are PWM dimmable.
Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.

LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.

______________________________

The stated price is for 1m Circular 360° LED Flex in Blue powered by 144 x SMD2835 LEDs – IP65/IP68, 24V DC. (no accessories included)

______________________________



Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length

To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.

Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.

For further assistance, please visit out support page or contact us.
