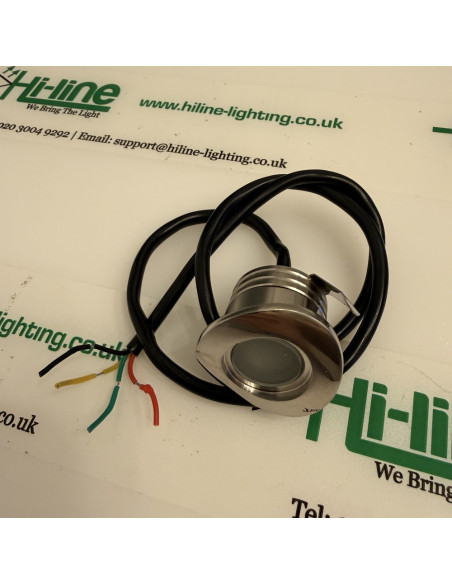

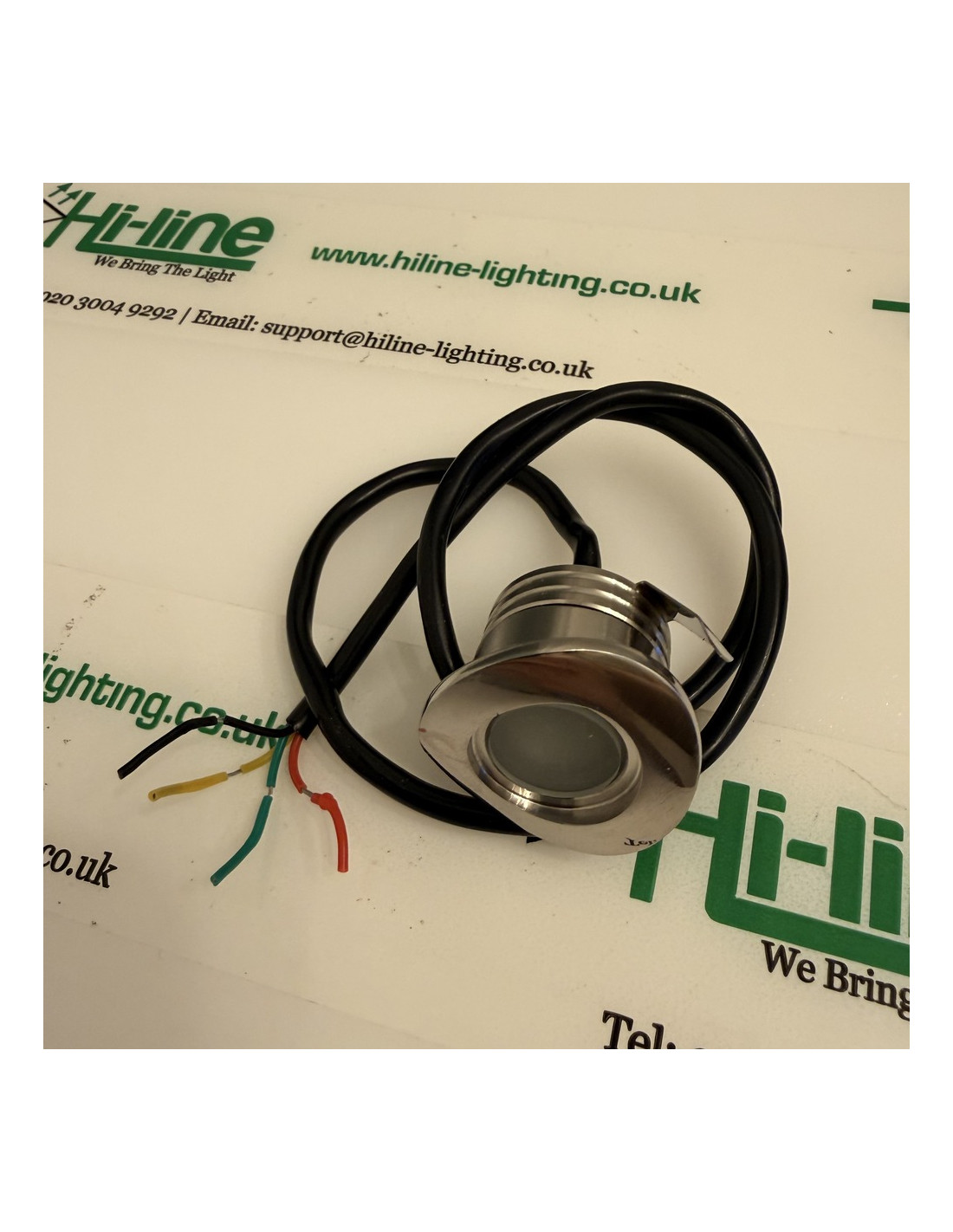

26mm Curved Handrail RGB LED Spot 24V Four-Core Lead IP67

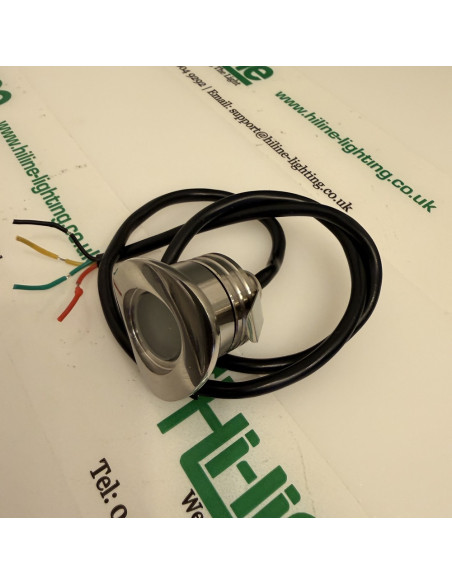

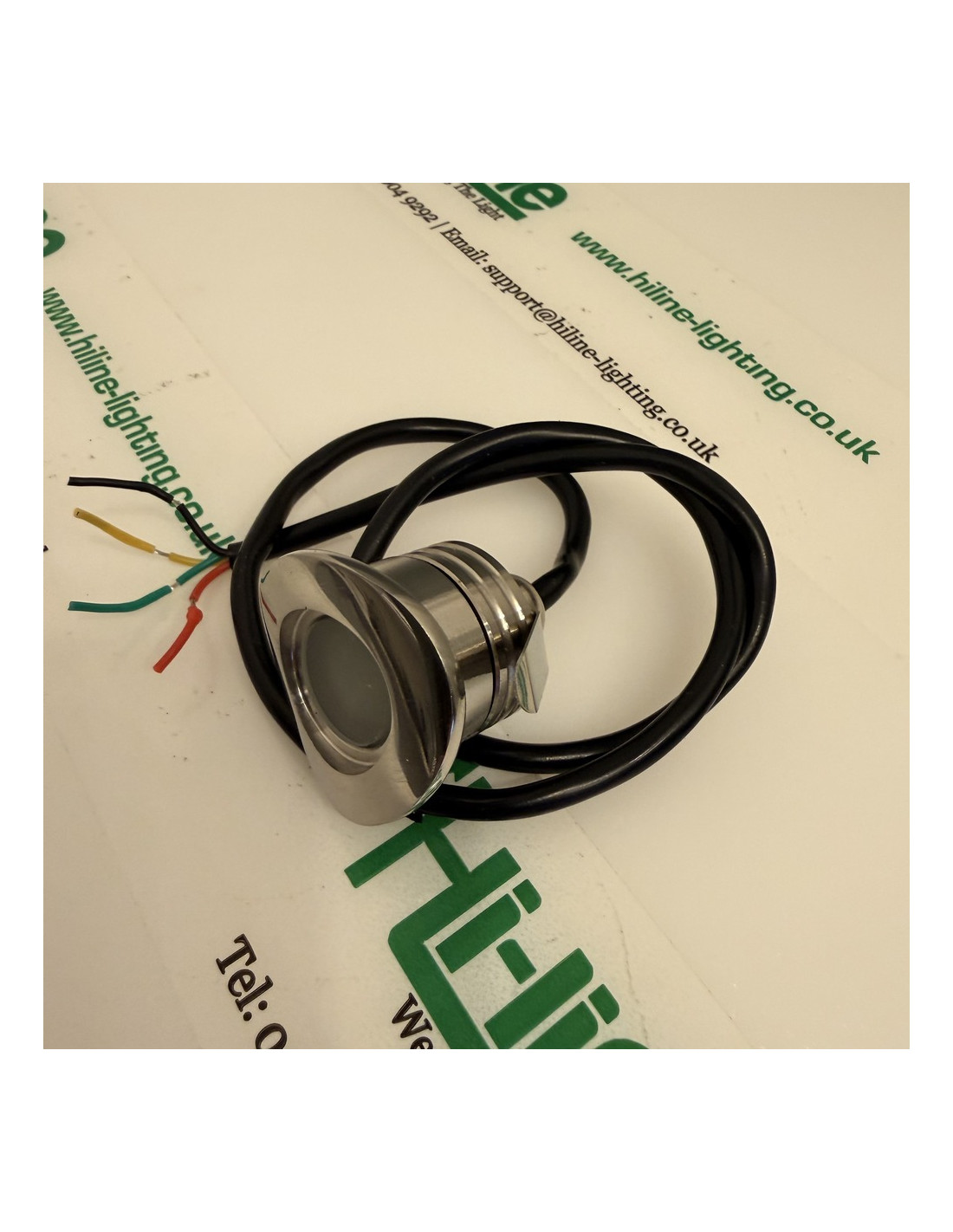

Curved Stainless Face 26mm RGB Handrail Spot 24V IP67

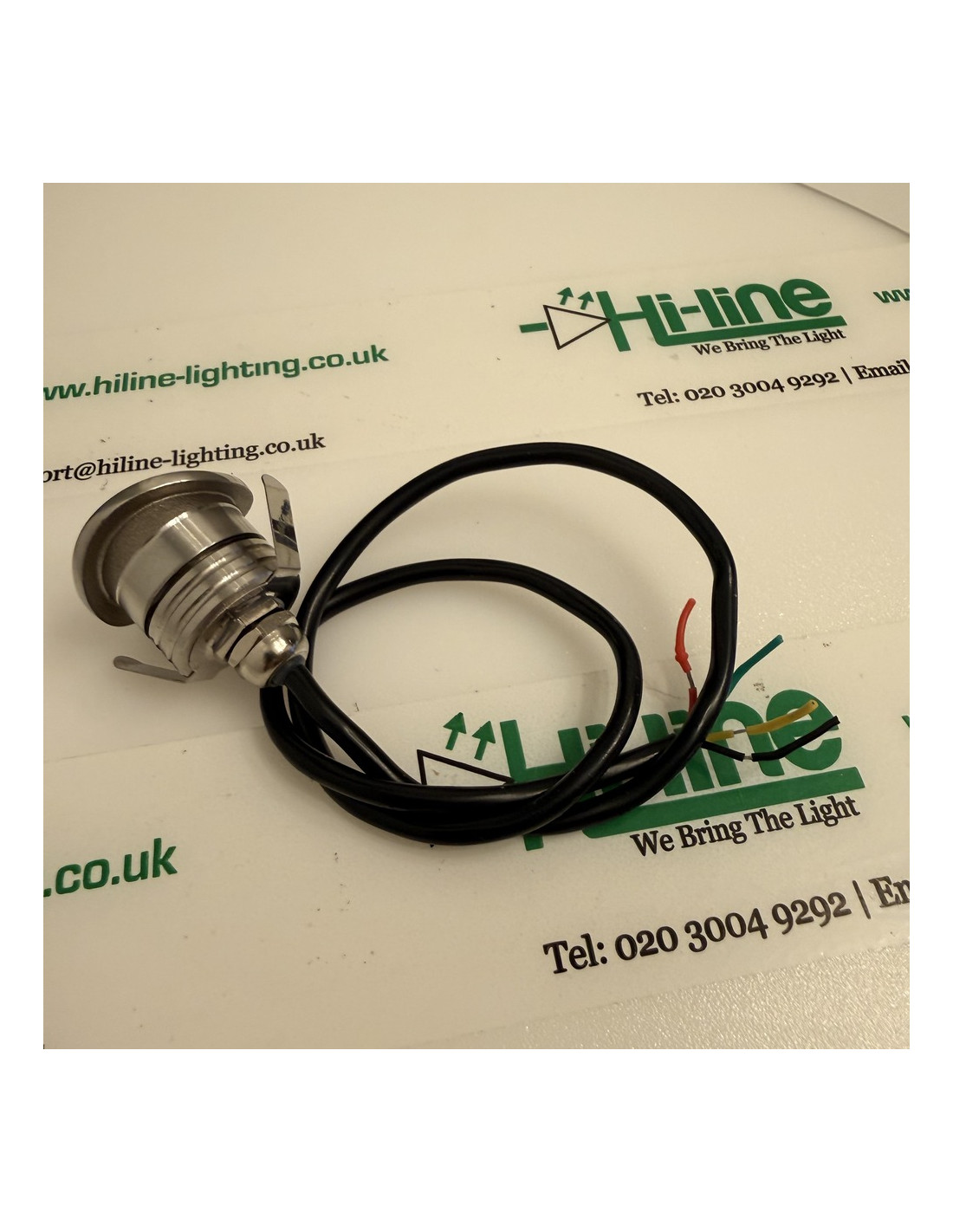

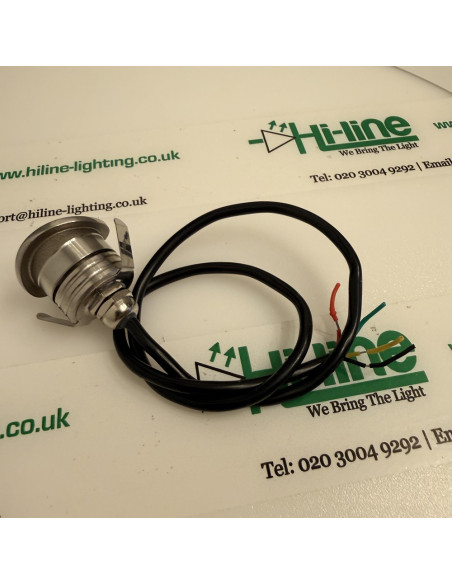

Back Spring Clips 26mm RGB Handrail LED Spot 24V IP67
  • New
26mm Curved Handrail RGB LED Spot 24V Four-Core Lead IP67
Curved Stainless Face 26mm RGB Handrail Spot 24V IP67
Back Spring Clips 26mm RGB Handrail LED Spot 24V IP67

26mm Curved Handrail LED Spot 24V RGB IP67

The stainless face is curved so the fitting sits flush on a round handrail. 26 mm cut-out, 24 V analogue RGB, IP67, 1 W. Use a 24 V 3-channel PWM RGB controller. Sold as a single fitting.

HL-HR26-24V-RGB-IP67

Need more than we have in stock?

We have 10 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
10 Items In stock
Next working day delivery
£26.00
(£
31.20
with VAT)
VAT excluded

Tags:


HL-HR26-24V-RGB-IP67 — 26 mm curved handrail LED spot, 24 V analogue RGB, IP67

The face is curved to match a round handrail or balustrade tube. A flat-face spot would sit proud of the rail and leave a gap; this shape is made so the fitting sits flush on the tube.

Stainless recessed spot. 32 mm face, about 30 mm deep, 26–27 mm hole. 1 W, 24 V DC, analogue RGB. IP67 when installed correctly. Four-core flying lead, about 480 mm.

Constant-voltage 24 V. Drive it from a 24 V 3-channel PWM RGB controller (common-anode). Not 230 V. Not a pixel / SPI fitting — there is no data wire. Not for continuous underwater use — IP67 is rain and short immersion.

  • Curved face for a flush fit on round handrail tube
  • Face 32 mm, depth about 30 mm, hole 26–27 mm
  • 1 W, 24 V DC, analogue RGB, 45° beam
  • IP67, 304 stainless, spring clips
  • Four-core lead
  • Warranty: 5 years

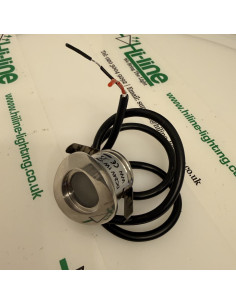

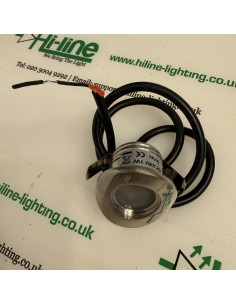

Must be installed by a qualified electrician. Confirm the four-core colours against your controller before first power-up. The warm-white 3000K sister of this fitting is listed separately.

Brand
Hi-Line
Colour
RGB
IP Rating
IP67 (Waterproof)
Voltage
24V DC
Voltage Type
Constant Voltage (PWM)
Warranty
5 Years
