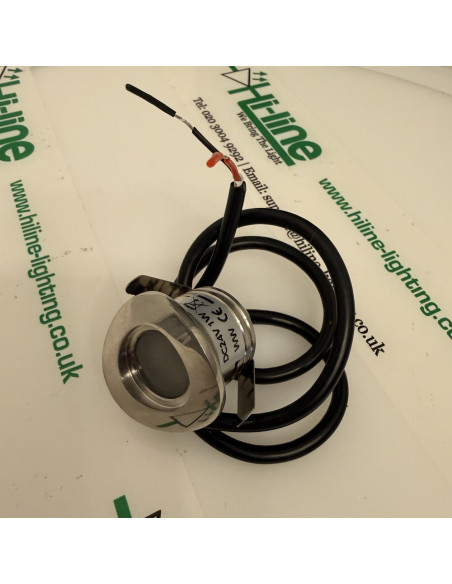

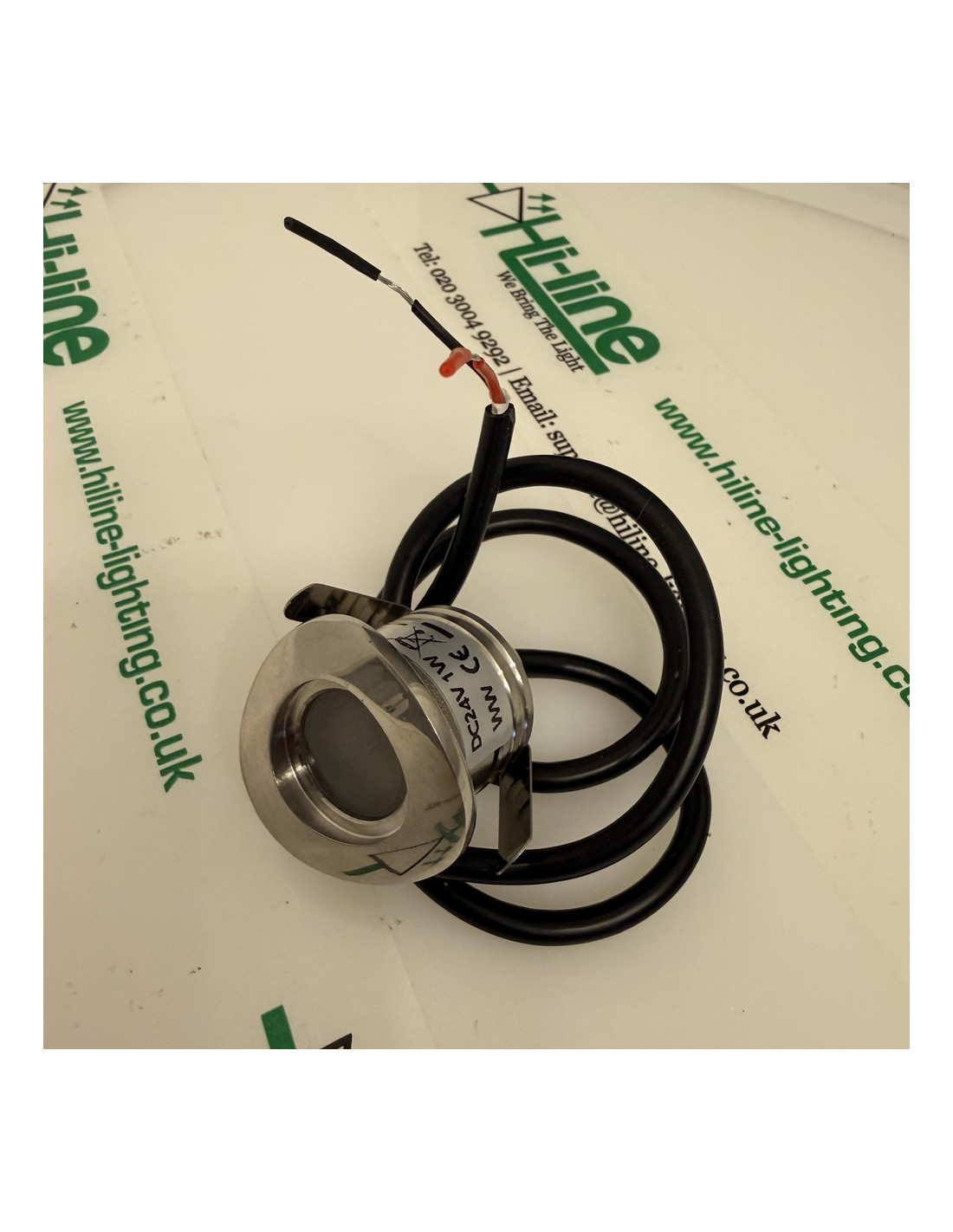

26mm Curved Handrail LED Spot 24V Warm White 3000K IP67

The stainless face is curved so the fitting sits flush on a round handrail. 26 mm cut-out, 24 V warm white 3000K, IP67, 1 W. Sold as a single fitting.

HL-HR26-24V-WW-IP67

Need more than we have in stock?

We have 10 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
10 Items In stock
Next working day delivery
£23.00
(£
27.60
with VAT)
VAT excluded

Tags:


HL-HR26-24V-WW-IP67 — 26 mm curved handrail LED spot, 24 V warm white 3000K, IP67

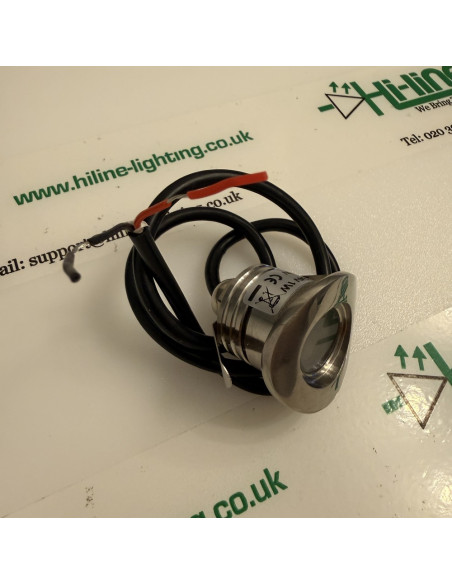

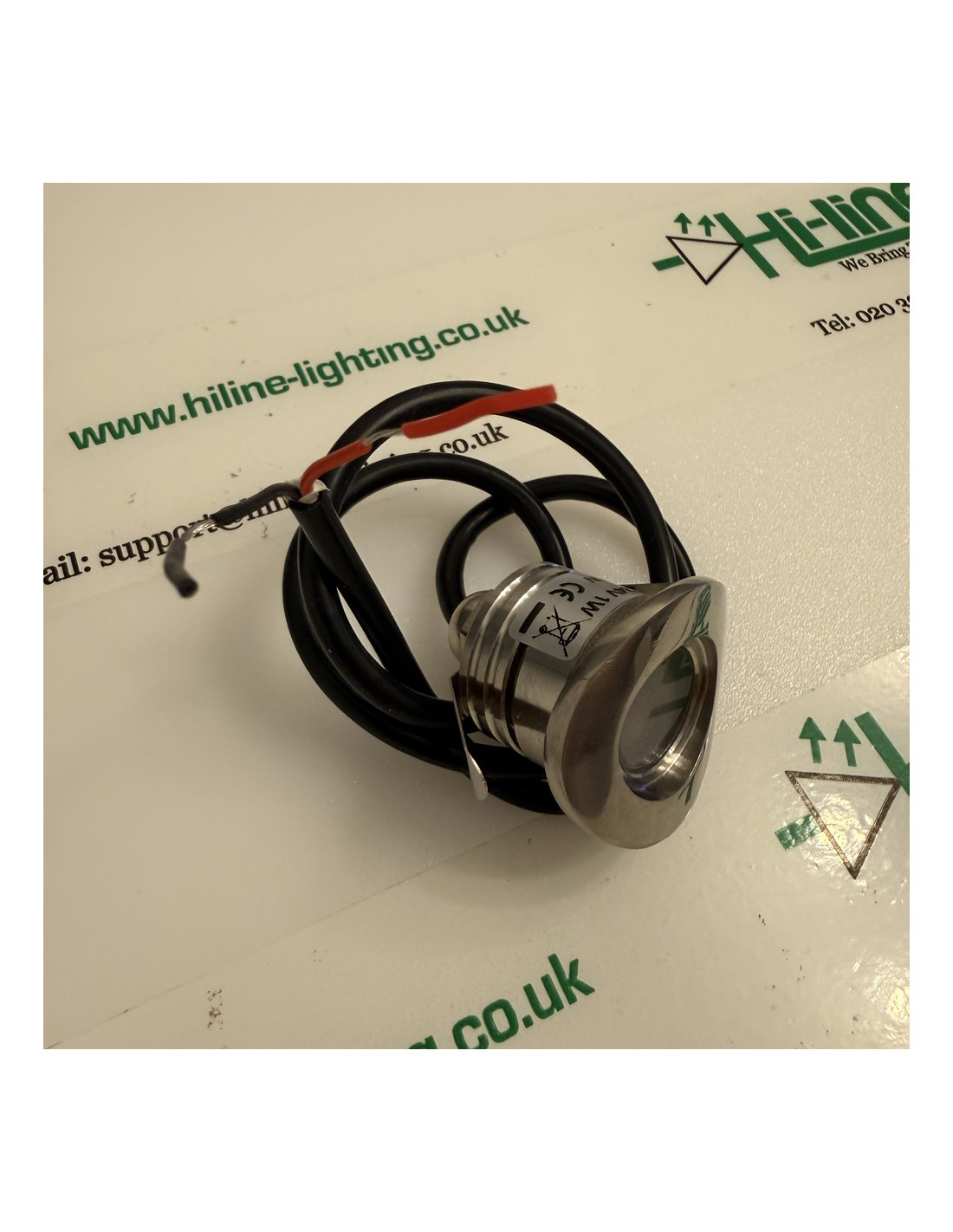

The face is curved to match a round handrail or balustrade tube. A flat-face spot would sit proud of the rail and leave a gap; this shape is made so the fitting sits flush on the tube.

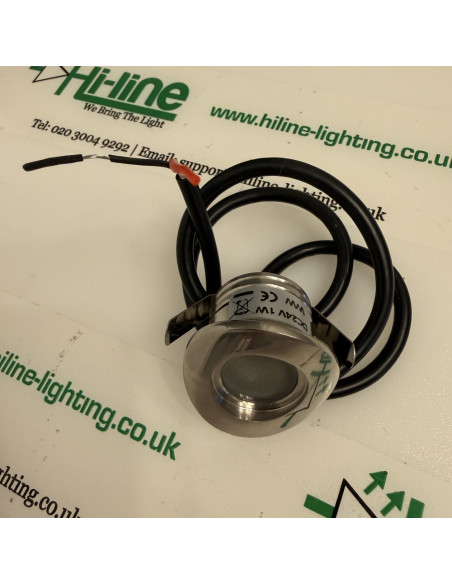

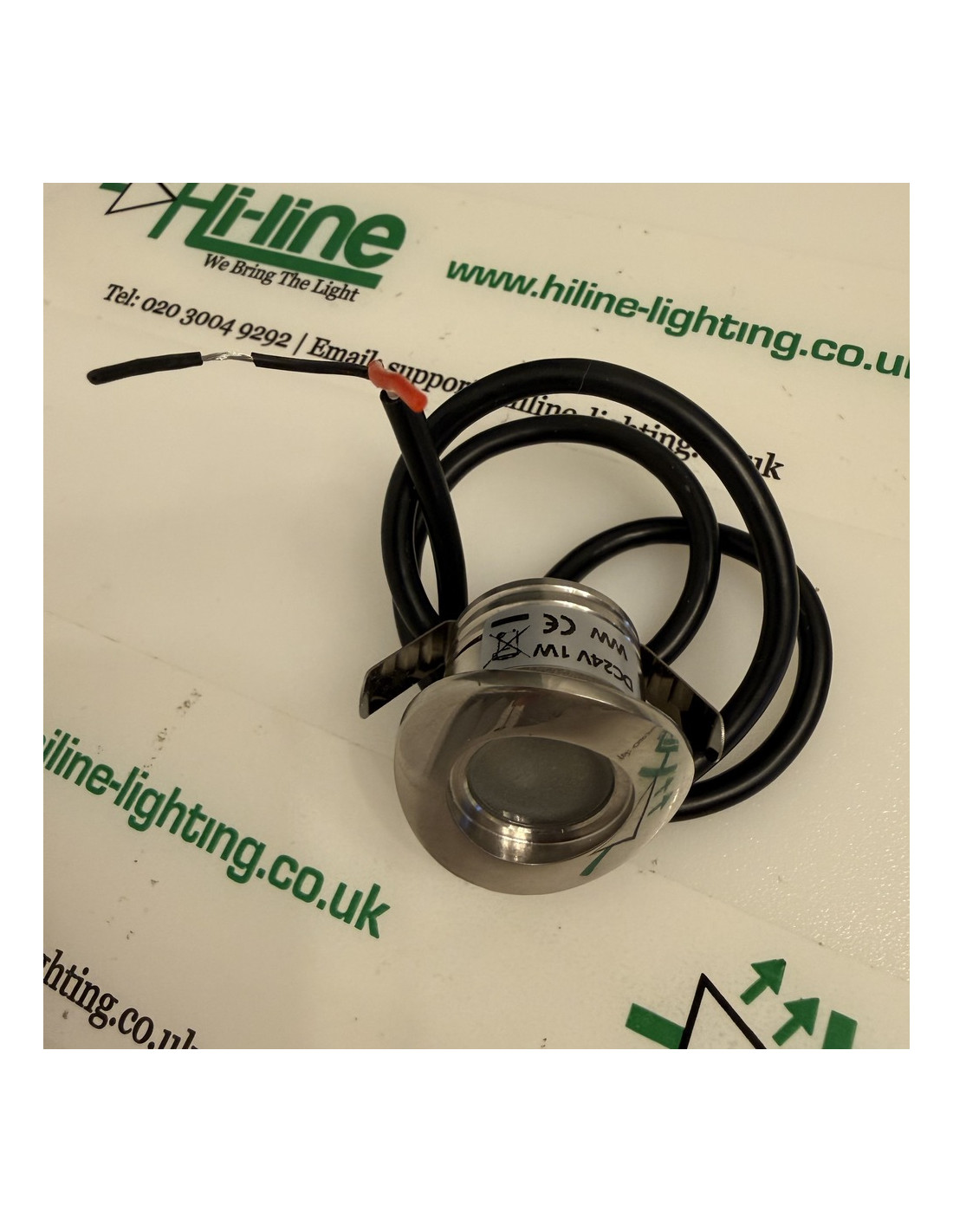

Stainless recessed spot. 32 mm face, about 30 mm deep, 26–27 mm hole. 1 W, 24 V DC, warm white 3000K. IP67 when installed correctly. Two-core flying lead, about 480 mm.

Constant-voltage 24 V. Use a suitable 24 V LED supply. PWM dimmable on a single-colour 24 V dimmer. Not 230 V. Not a pixel / SPI fitting. Not for continuous underwater use — IP67 is rain and short immersion.

  • Curved face for a flush fit on round handrail tube
  • Face 32 mm, depth about 30 mm, hole 26–27 mm
  • 1 W, 24 V DC, warm white 3000K, 45° beam

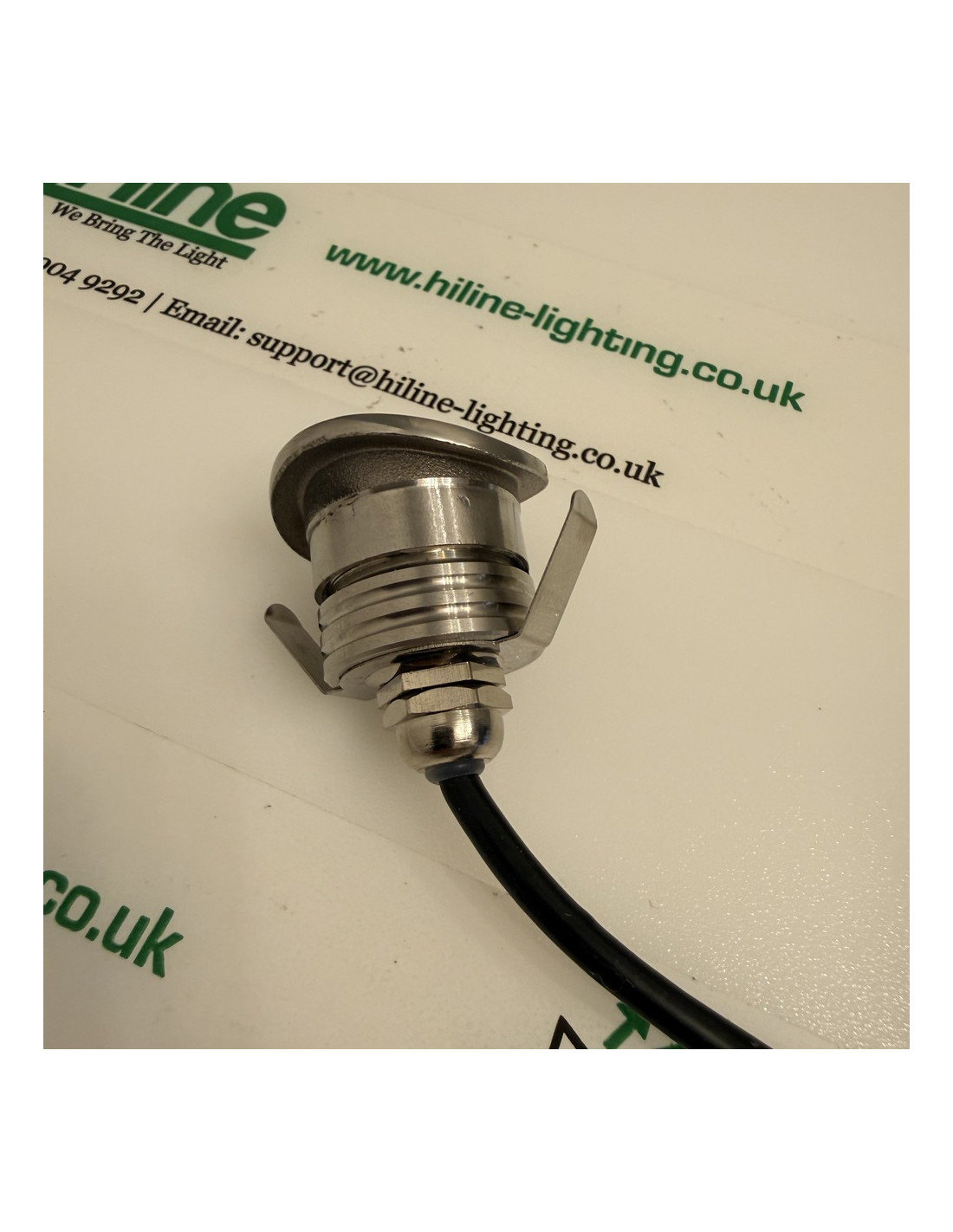

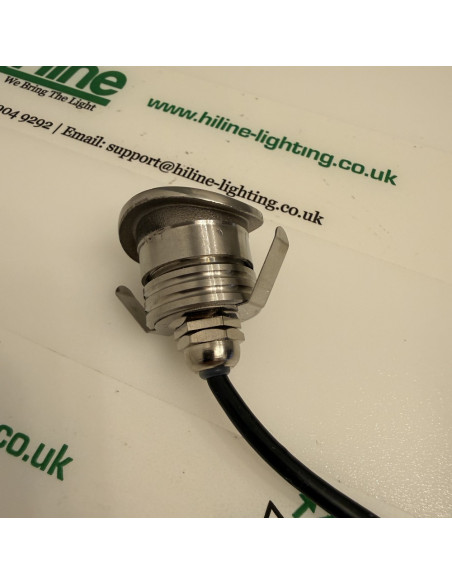

  • IP67, 304 stainless, spring clips
  • Two-core lead
  • Warranty: 5 years

Must be installed by a qualified electrician. Check polarity and 24 V before first power-up. The RGB sister of this fitting is listed separately.

Brand
Hi-Line
Colour
Warm White
Colour Temperature (CCT)
3000K
IP Rating
IP67 (Waterproof)
Voltage
24V DC
Voltage Type
Constant Voltage (PWM)
Warranty
5 Years
