Ultra-Compact 12V Mini LED Spotlight – 3000K Warm White (Silver) – HL-MS05-3K120-S

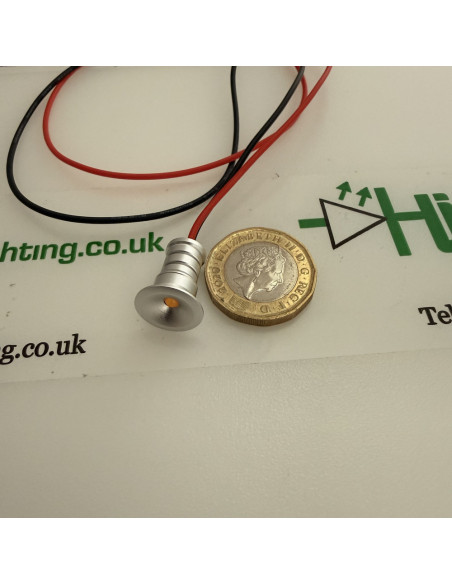

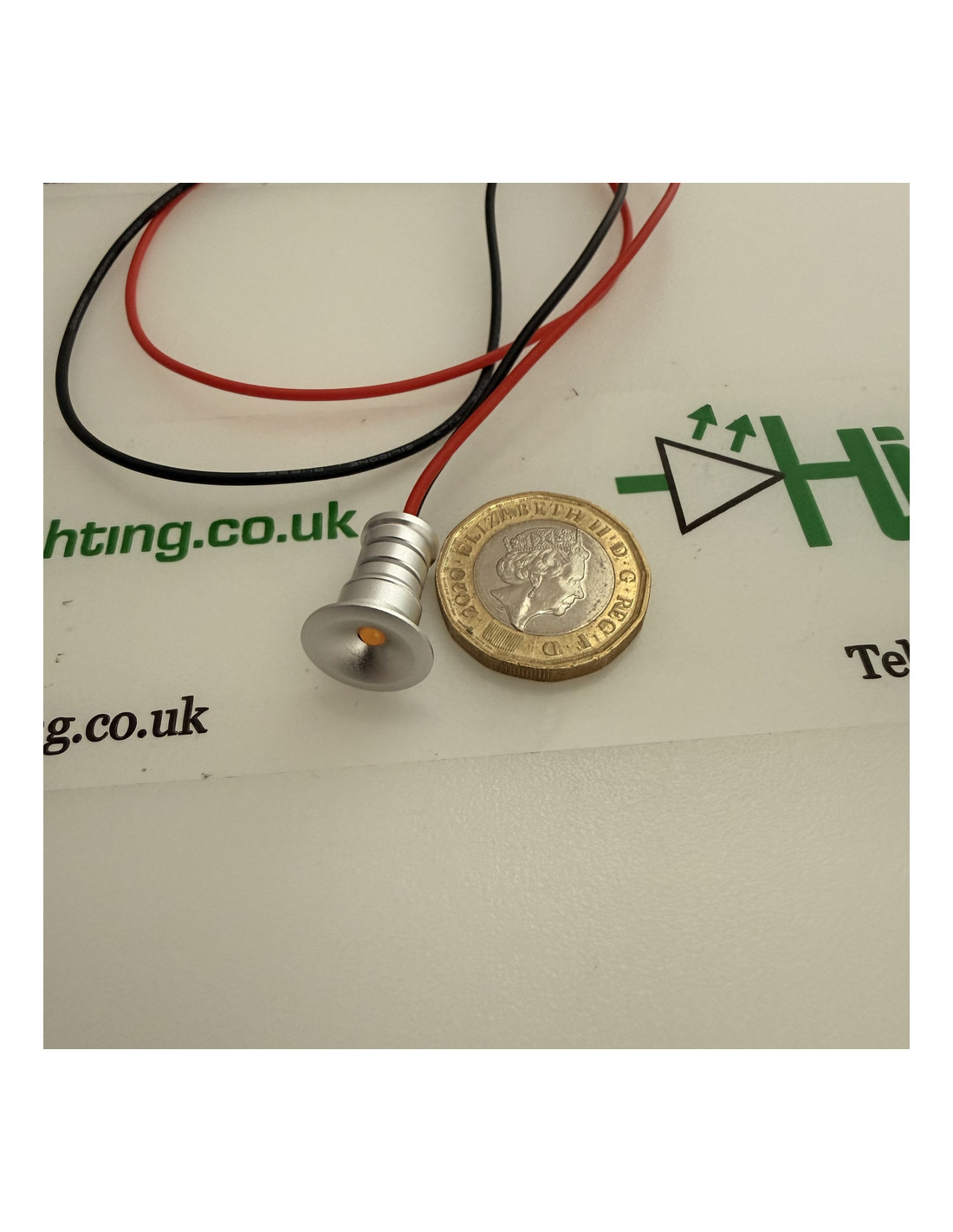

Enhance your interiors with this discreet, high-quality mini LED spotlight. Featuring an incredibly small 10mm cut-out and overall dimensions of just Ø13mm × 16mm, it delivers beautiful warm white lighting while remaining almost invisible once installed.
Power & Installation Requirements This is a 12V constant voltage product, fully compatible with our LED strip range. It requires a separate 12V LED driver (not included).
You can safely run up to 40 units on a single HL-30W-12V-IP67-EC 30W 12V power supply (with proper ventilation and correct wiring).

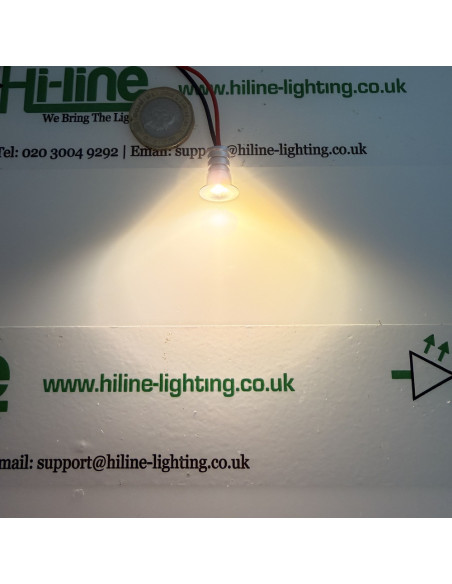

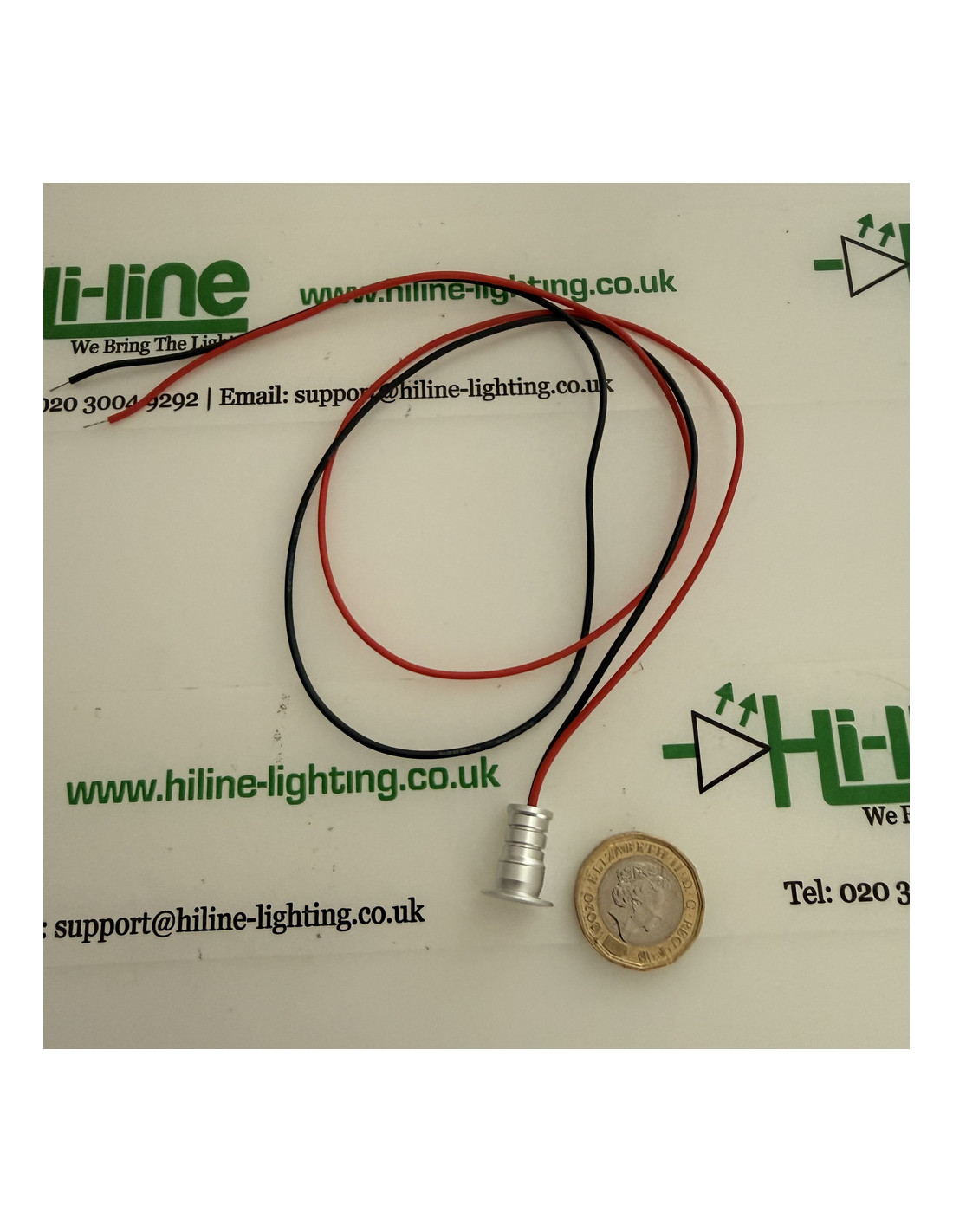

Key Features & Benefits This spotlight provides a cosy 3000K warm white light with a wide 120° beam angle for excellent, even light distribution. It is fully dimmable and works seamlessly with all standard 12V LED dimmers and controllers. The premium silver aluminium body offers a sleek modern finish, while the extremely low 0.5W power consumption makes it highly energy efficient. Installation is quick and secure thanks to the spring clip system, and the long silicone cable (approximately 470mm) gives you flexibility during wiring.
Technical Specifications
Product Code: HL-MS05-3K120-S
Power: 0.5W
Voltage: DC 12V (12V Constant Voltage driver required)
Colour Temperature: 3000K Warm White

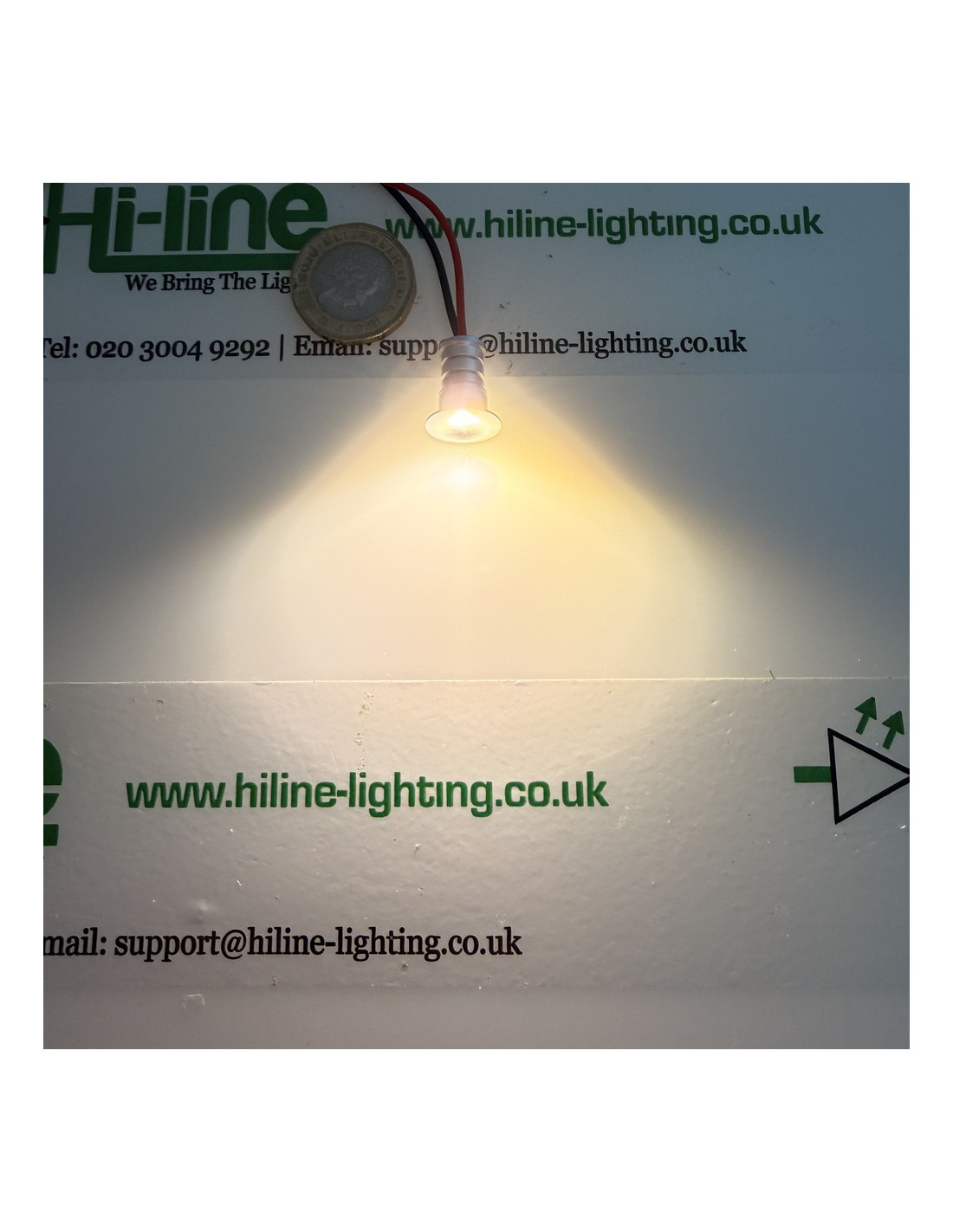

Beam Angle: 120°

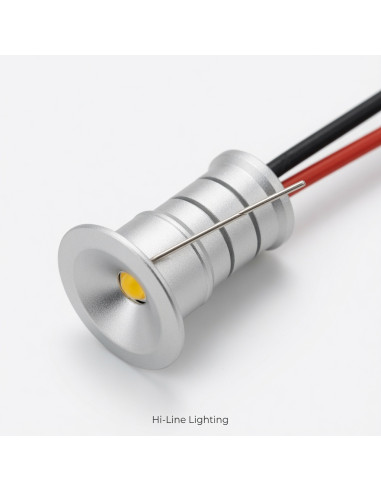

Material: Aluminium with silver finish
Cut-out Diameter: 10mm

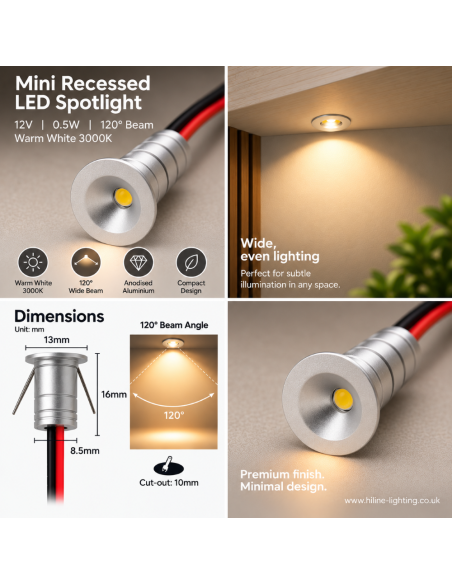

Overall Dimensions: Ø13mm × 16mm (Depth)

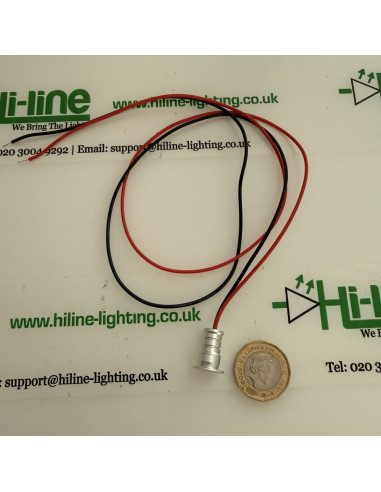

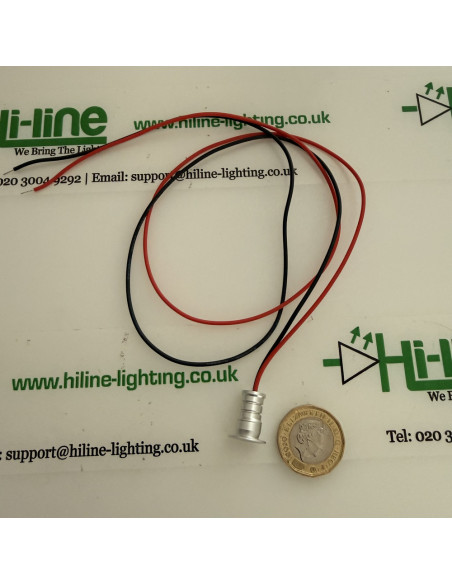

Cable Length: ≈470mm
Dimmable: Yes
Rating: IP65 Splash proof

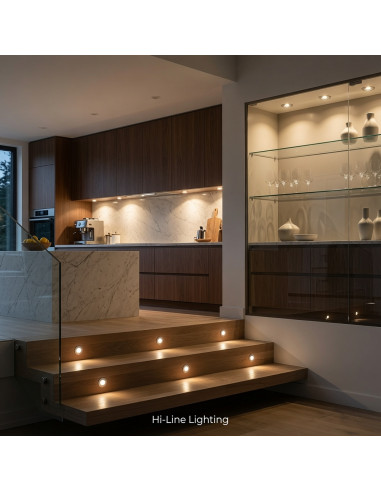

Ideal Applications These mini spotlights are perfect for under-cabinet and shelf lighting, recessed ceiling accent lights, showcase and display cabinet illumination, stair, step and furniture lighting, as well as retail displays and exhibition setups.
Complete Lighting Solutions This mini spotlight works perfectly with our full 12V range. You can find matching 12V LED drivers (including the recommended HL-30W-12V-IP67-EC), dimmer switches, controllers, connectors, profiles and other accessories in the Related Products section at the bottom of this page.
Whether you are creating subtle mood lighting or functional task lighting, these compact spots offer professional results at an affordable price.
Note: Driver and dimmer sold separately. Always use a quality 12V constant voltage power supply and follow safe installation practices.
