LED Driver | 12V | 60 Watt | IP67
Key Features:
- Power: 60W
- Voltage: 12V DC
- IP Rating: IP67
- Input: 170-265V AC
- Output: 12V / 5A
- IP Rating: IP67
- Warranty: 2 Year Warranty
Important Product Details

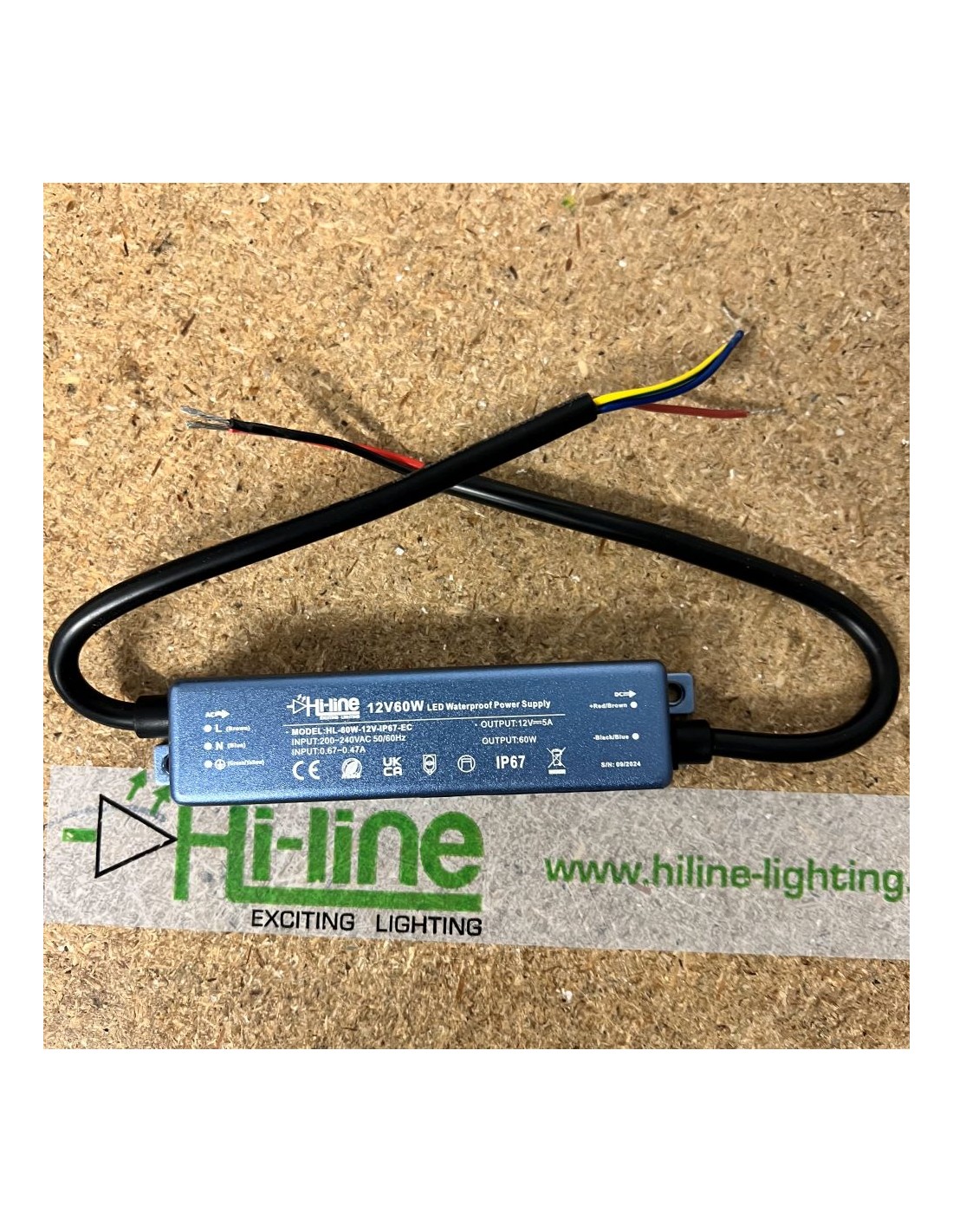

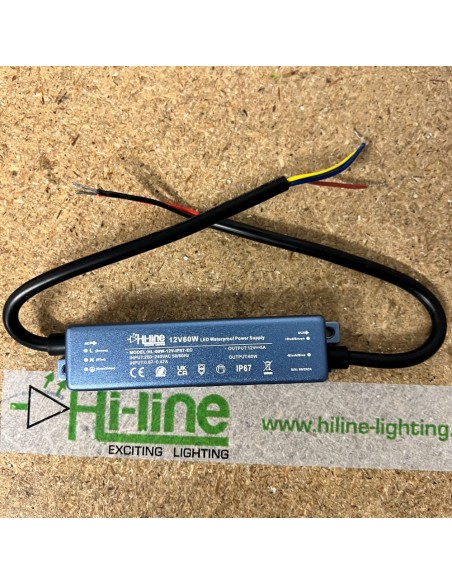

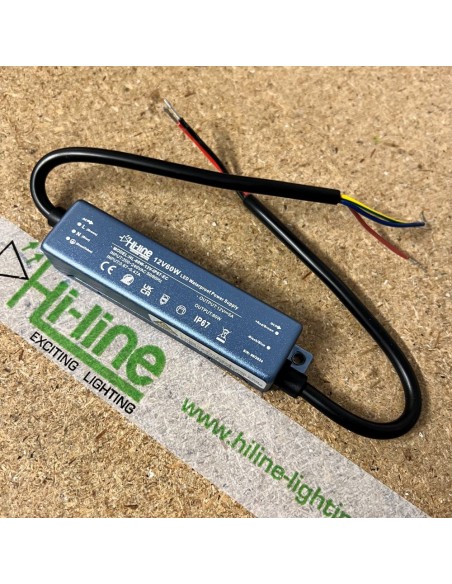

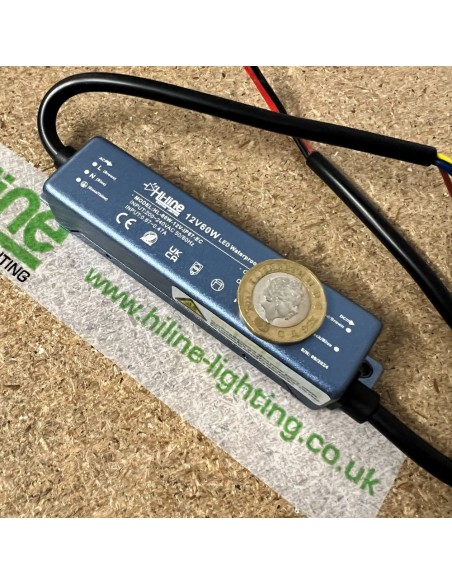

LED Driver 60 Watt 12 Volts IP67
Non-dimmable 12 Volts LED Driver suitable for LED Strips or LED light box modules of total power consumption up to 60W.
It is recommended to calculate 20% more than the tape power consumption for better performance of the power supply.
LED Driver 60W/12V
Input: 170~265V AC (50/60Hz)
Output: 12V / 5 Amps
Rating: IP67 (Waterproof)
Efficiency: > 88%

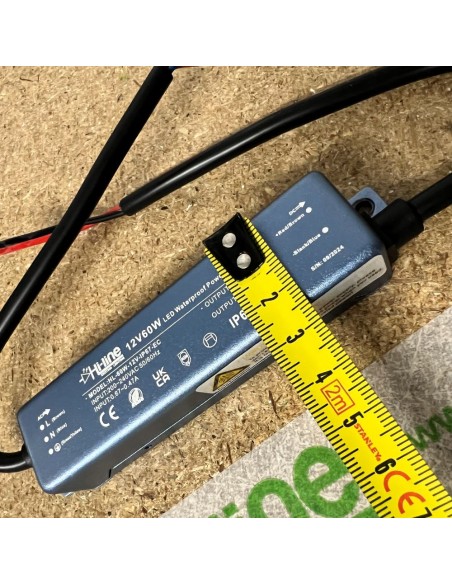

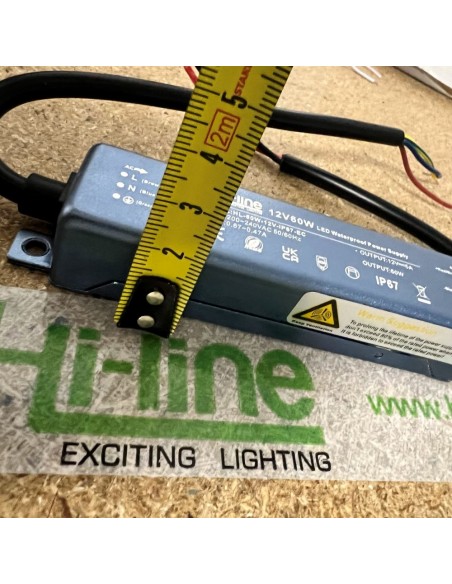

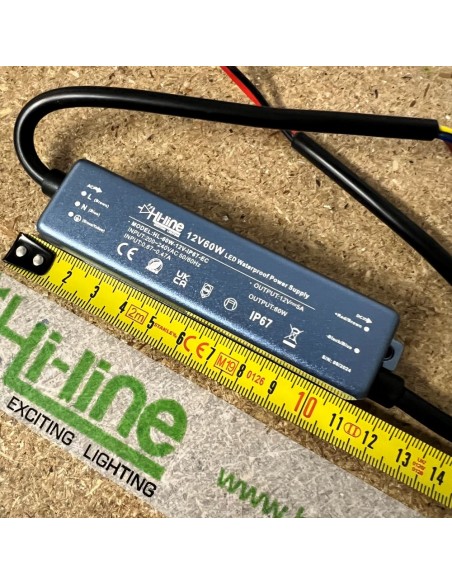

Dimensions: L165 x W57 x H35mm
Weight: 496g
Warranty offered for the LED driver is 2 years
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
- Brand
- Hi-Line
- Power
- 60 W
- IP Rating
- IP67 (Waterproof)
- Type
- non-dimmable
- Voltage
- 12V DC
- Voltage Type
- Constant Voltage
- Warranty
- 2 Years
