12V 30W LED Driver IP67 constant voltage
Standard Series LED Driver 30W/12V IP67
Input: 170-265V AC
Output: 12V / 2.5A
Constant Voltage Type – IP67
2 years Warranty
LED Driver 30 Watt 12 Volts rated @ IP67
Non-dimmable 12 Volts LED Driver suitable for LED Strips or LED light box modules of total power consumption up to 30W.
It is recommended to calculate 20% more than the tape power consumption for better performance of the power supply.
LED Driver 30W/12V
Input: 170~265V AC (50/60Hz)
Output: 12V / 2.5 Amps
Rating: IP67 (Waterproof)
Efficiency: > 88%

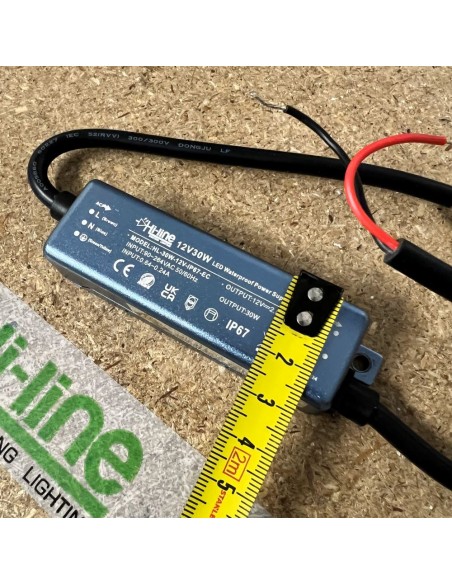

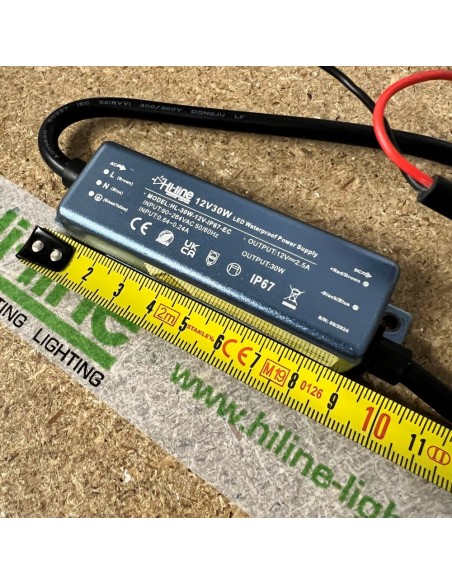

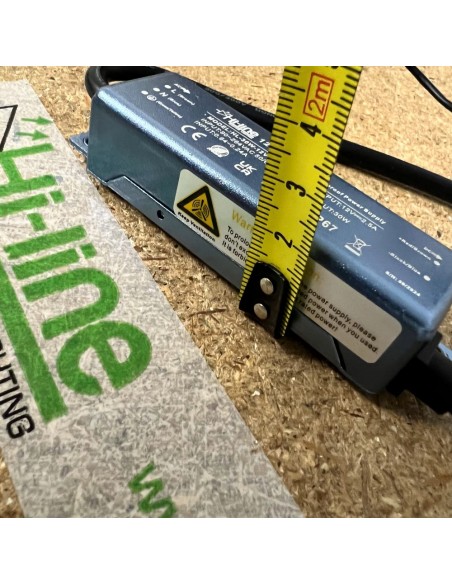

Dimensions: L180 x W30 x H21mm
Weight: 192g
Warranty offered for the LED driver is 2 years
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.
___________________________
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
