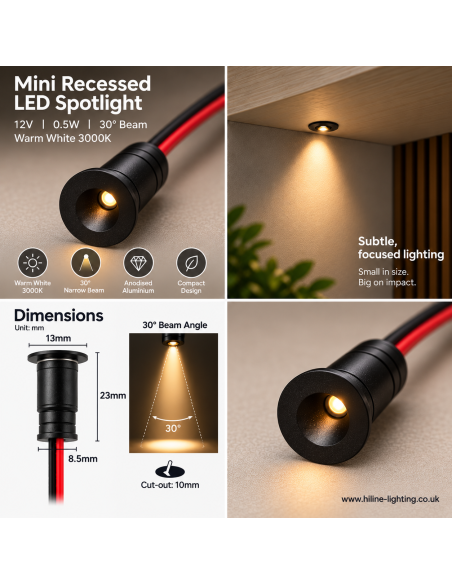

Black 30 Degree Mini LED Spot 12V 3000K Warm White 23mm

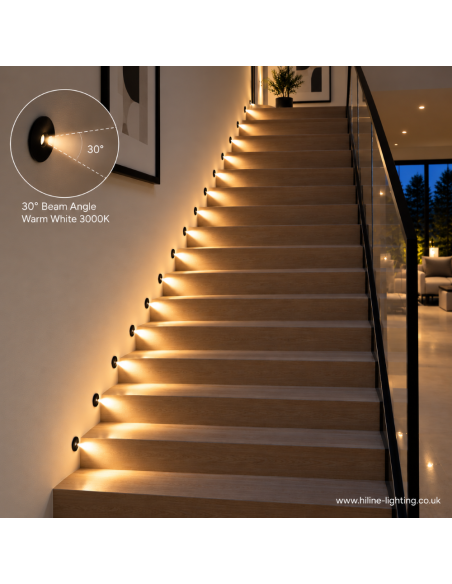

staircase mini led 30 degrees 3000k

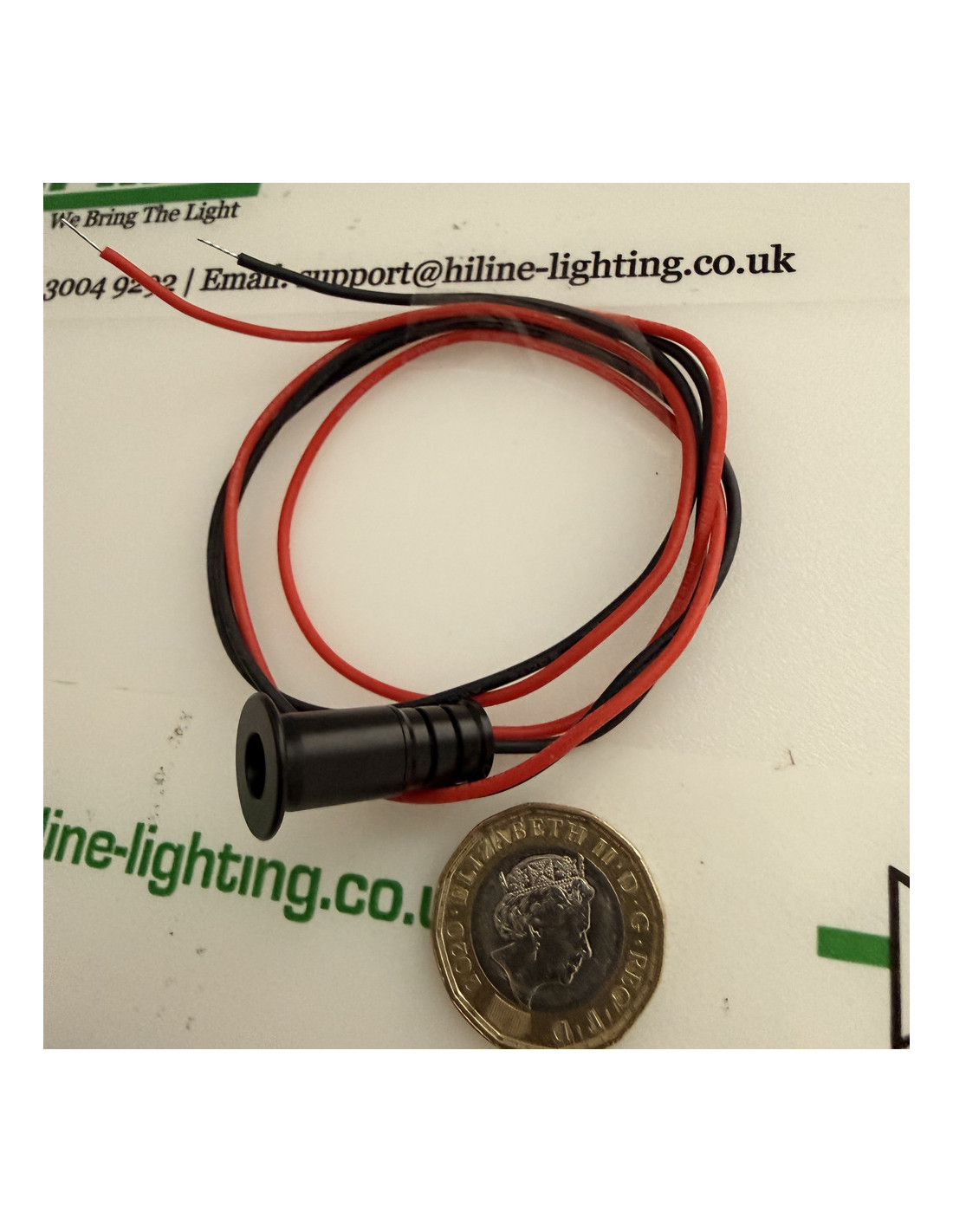

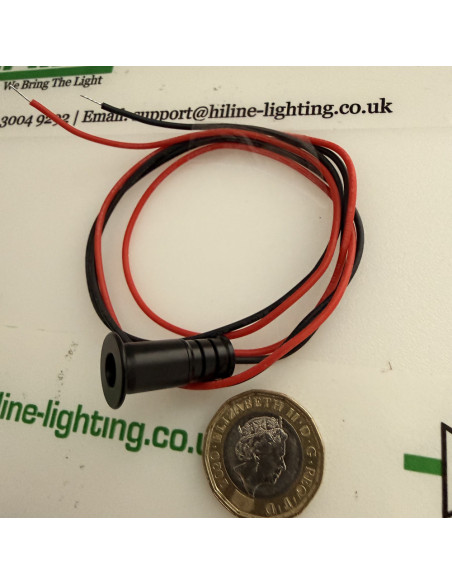

Black 30 Degree Mini LED Spot 12V with Pound Coin Scale

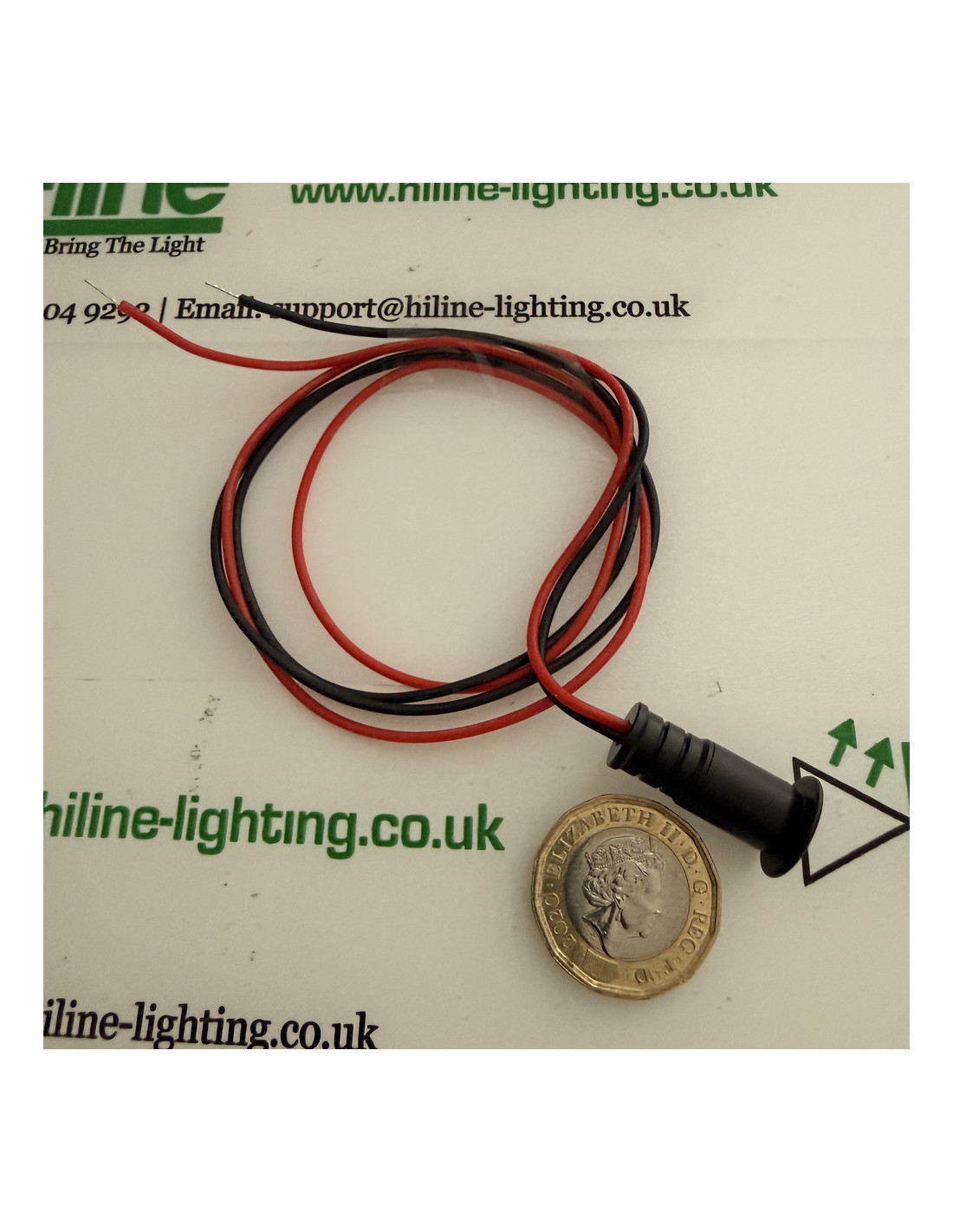

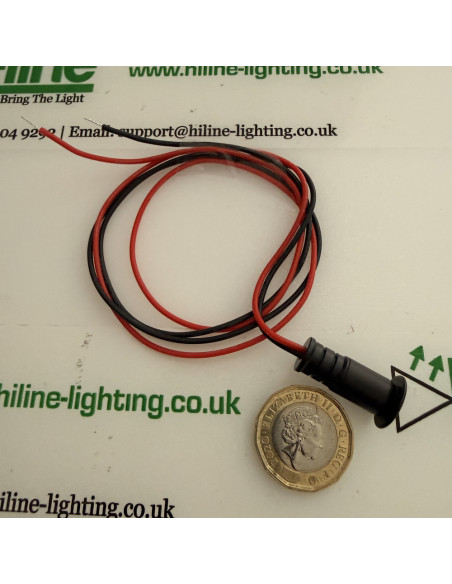

Black 30 Degree Mini Recessed Spot Side Profile 23mm 12V
Black 30 Degree 10mm Mini Recessed LED Spot Face View

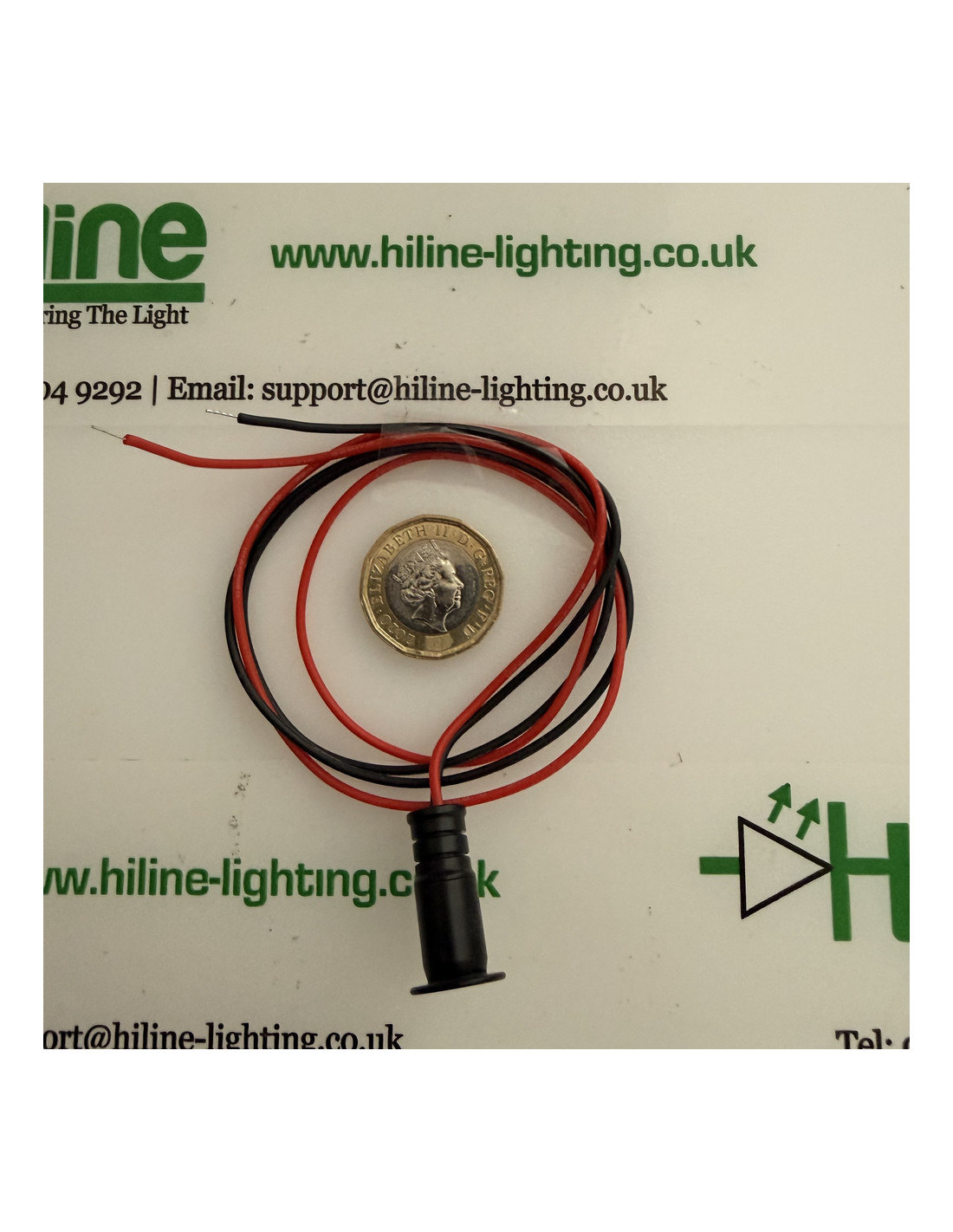

Black 30 Degree Mini LED Spotlight Overhead with Coin

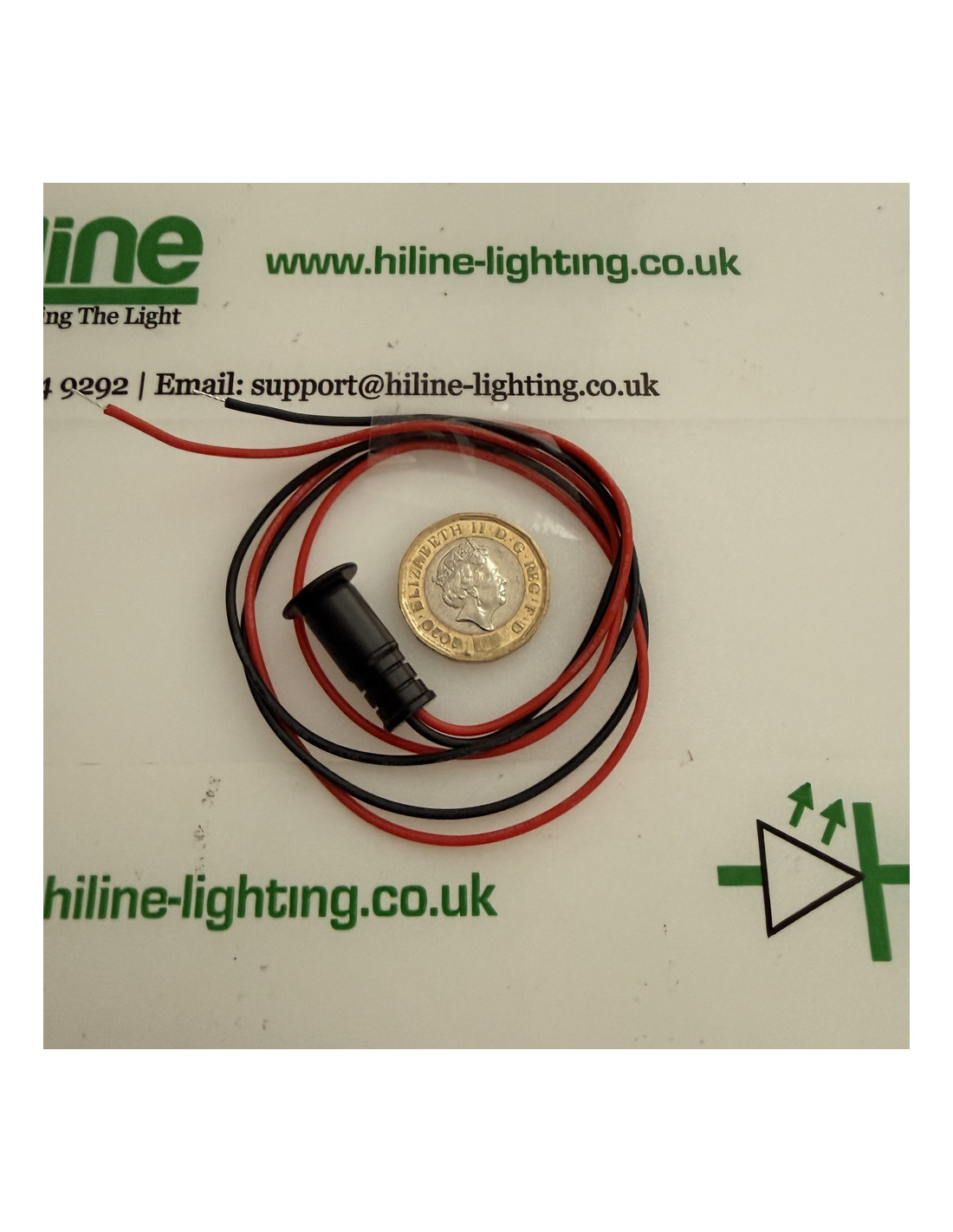

Black 30 Degree Mini Spot 12V Red Black Leads Top View

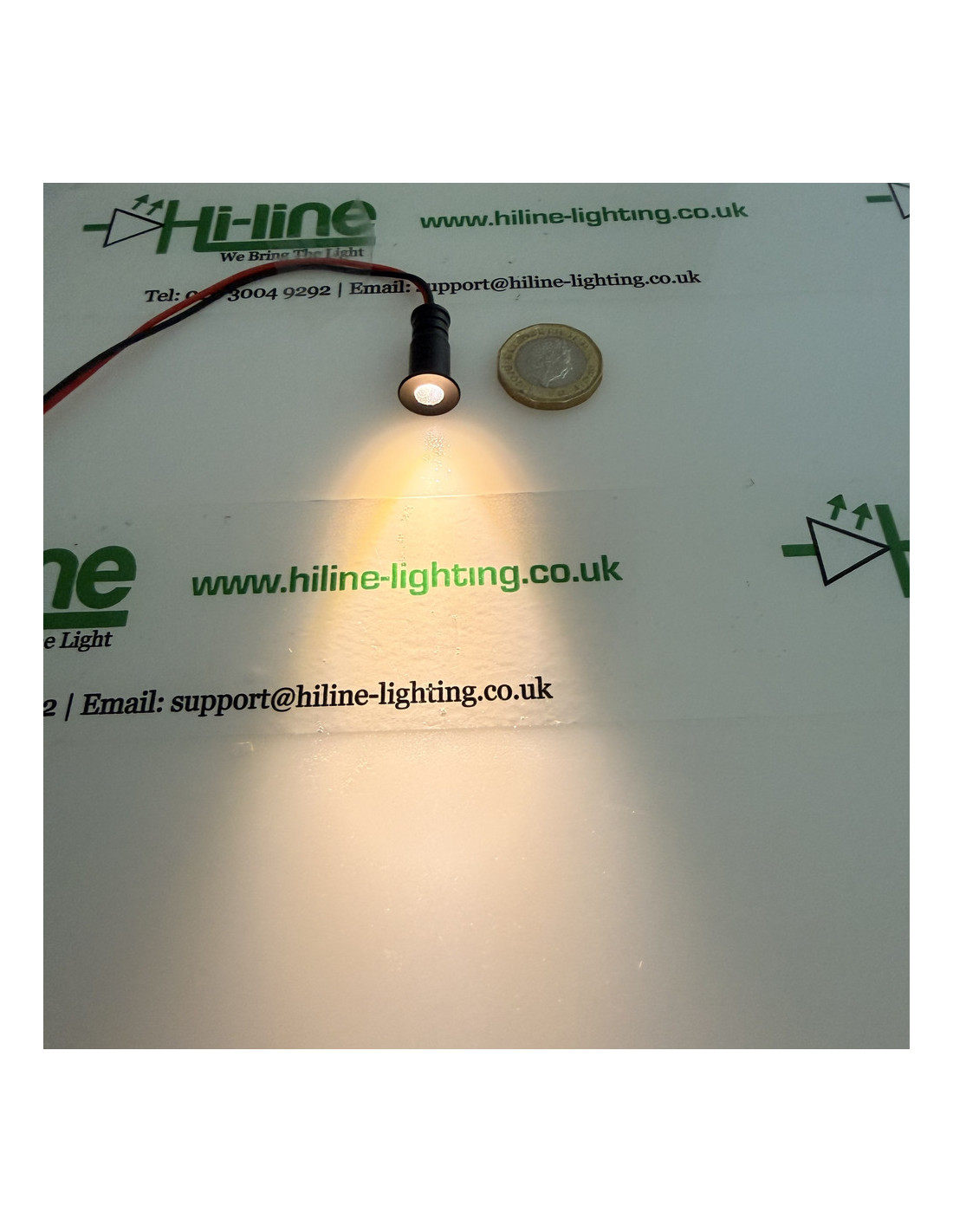

Black 30 Degree Mini Spot 3000K Warm White Narrow Beam Lit

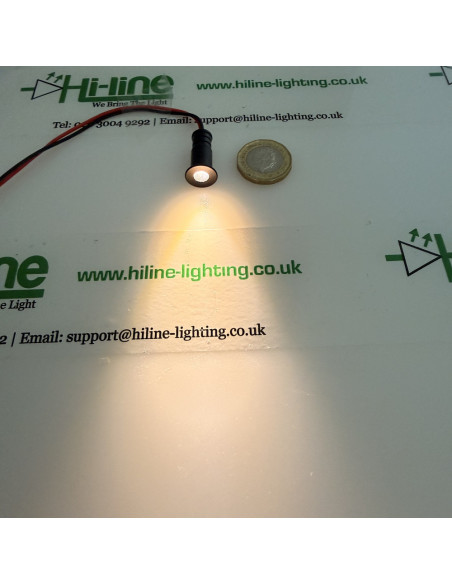

Black 30 Degree Mini LED Accent Spot 3000K Beam on Paper
  • New
Black 30 Degree Mini LED Spot 12V 3000K Warm White 23mm
staircase mini led 30 degrees 3000k

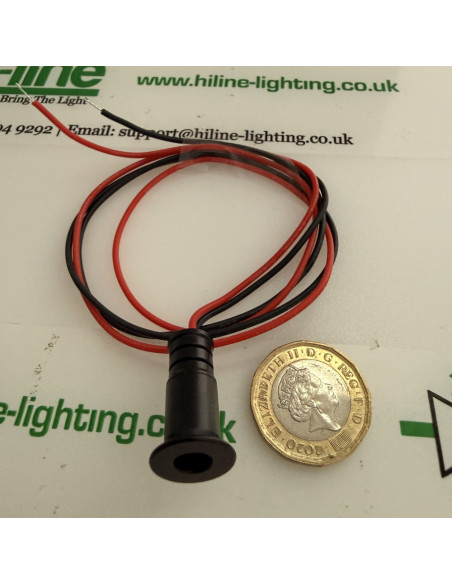

Black 30 Degree Mini LED Spot 12V with Pound Coin Scale

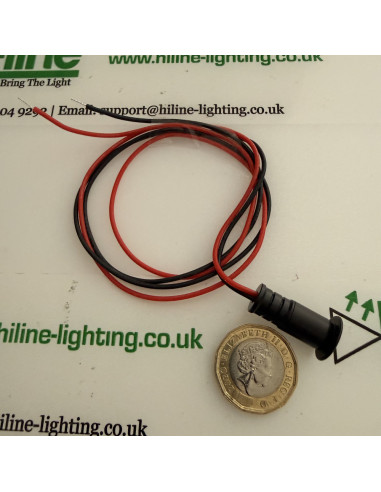

Black 30 Degree Mini Recessed Spot Side Profile 23mm 12V
Black 30 Degree 10mm Mini Recessed LED Spot Face View

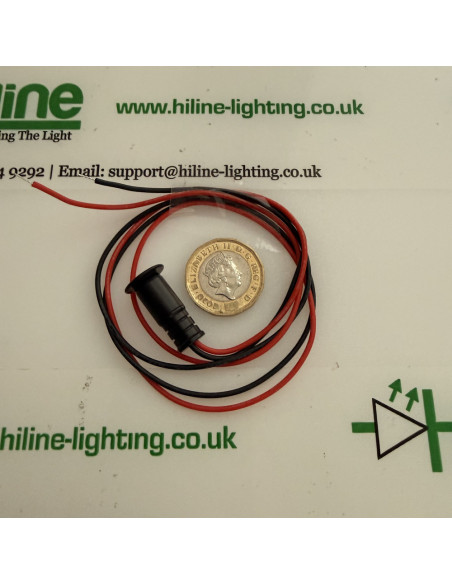

Black 30 Degree Mini LED Spotlight Overhead with Coin

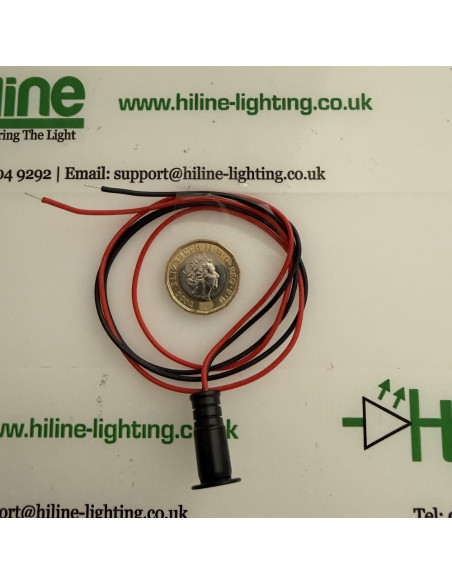

Black 30 Degree Mini Spot 12V Red Black Leads Top View

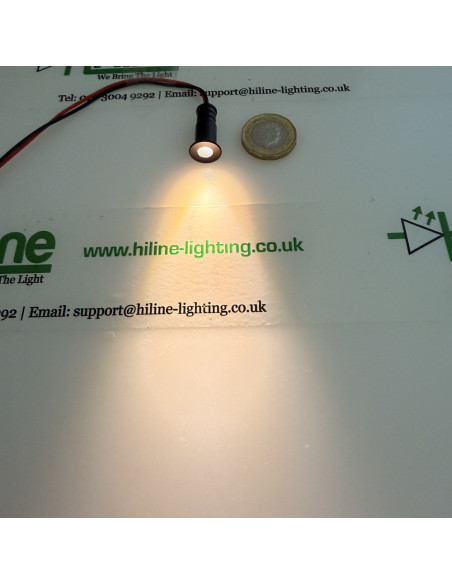

Black 30 Degree Mini Spot 3000K Warm White Narrow Beam Lit

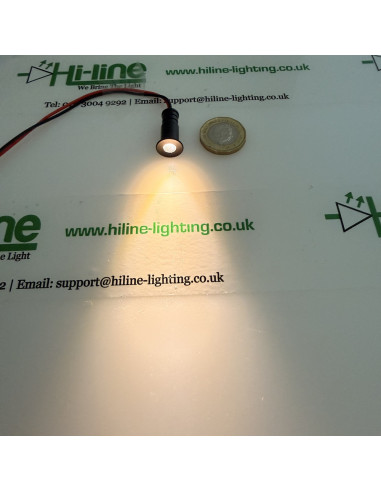

Black 30 Degree Mini LED Accent Spot 3000K Beam on Paper

Black Mini Recessed LED Spotlight – 12V 0.5W 3000K 30° Narrow Beam

12 V black mini recessed spotlight, 3000K warm white, 30° narrow beam. 0.5 W, 10 mm cut-out. A tight accent, not a flood. Constant-voltage driver required.

HL-MS05-3K30-B

Need more than we have in stock?

We have 15 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
15 Items In stock
Next working day delivery
£9.00
(£
10.80
with VAT)
VAT excluded

Tags:


Black mini recessed LED spotlight — 12 V, 0.5 W, 3000K, 30° narrow — HL-MS05-3K30-B

This is the narrow-beam black lamp in the HL-MS05 10 mm family. Same 12 V 0.5 W body as the 120° wide spots, but the optic is 30° — a tighter cone for jewellery, a picture, a shelf object or a stair nosing, rather than washing a whole cabinet.

Housing is black anodised aluminium so the bezel recedes in dark timber and painted ceilings. Light is 3000K warm white. Cut-out 10 mm, body Ø13 mm × 23 mm, stainless spring clips, ~470 mm silicone tail (red +, black −).

Electrical

12 V DC constant voltage only. PWM-dimmable with our single-colour 12 V dimmers. One HL-30W-12V-IP67-EC can run up to 40 spots with correct wiring and ventilation. Driver and dimmer sold separately.

The 120° wash in the same black 3000K finish is HL-MS05-3K120-B. Silver 120° warm white is HL-MS05-3K120-S.

Specification

  • Reference: HL-MS05-3K30-B
  • Power: 0.5 W
  • Voltage: 12 V DC constant voltage
  • Light: 3000K warm white, 30° narrow beam
  • Housing: black anodised aluminium
  • Cut-out: 10 mm
  • Body: Ø13 mm × 23 mm
  • Cable: approx. 470 mm silicone
  • Mounting: recessed, stainless spring clips
  • Dimmable: yes, with 12 V LED dimmers
  • Rating: IP65 splashproof

Typical uses

Accent on objects in a dark cabinet, picture lighting, stair edges, display highlights. Related 12 V drivers and dimmers are listed below.

Note: Always use a regulated 12 V constant-voltage supply.

Brand
Hi-Line
Colour
Warm White
Colour Temperature (CCT)
3000K
LED Chip
SMD 5050
LED Module Beam Angle
30°
Power
0.5 Watt
IP Rating
IP65 (Splashproof)
Voltage
12V DC
Voltage Type
Constant Voltage (PWM)
Warranty
3 Years
