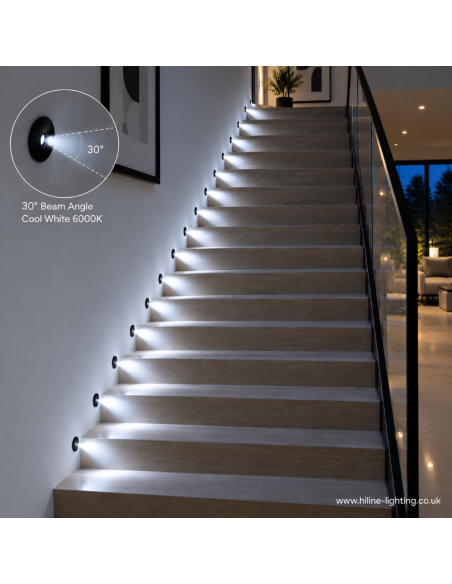

stairs mini Recessed LED Spotlight cool white 30 degrees beam
Black 30 Degree Mini LED Spot 12V 6000K Cool White 23mm

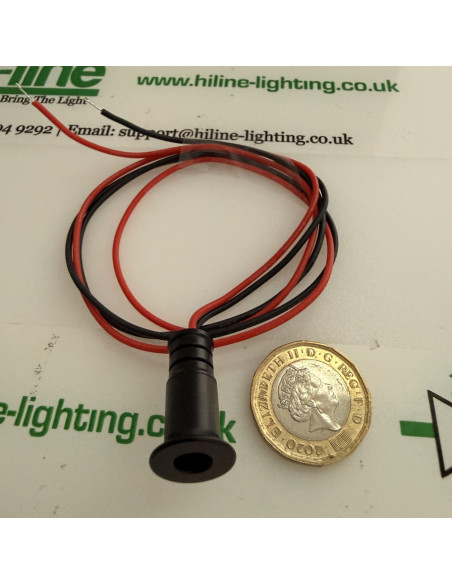

Black 30 Degree 6000K Mini LED Spot 12V with Pound Coin

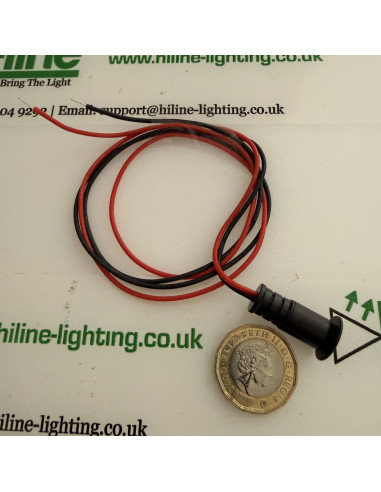

Black 30 Degree Mini Recessed Spot 6000K Side Profile 12V

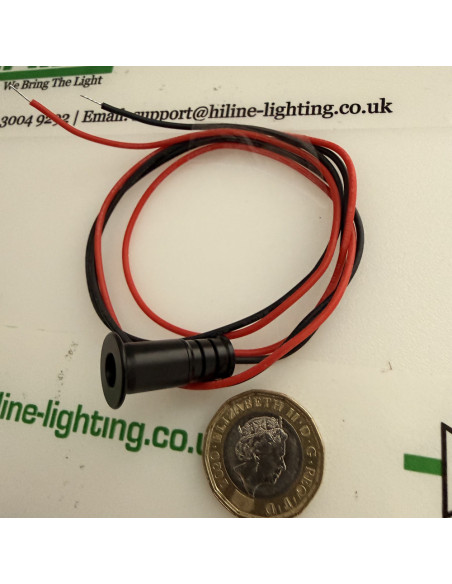

Black 30 Degree 10mm Mini Spot 6000K Cool White Housing

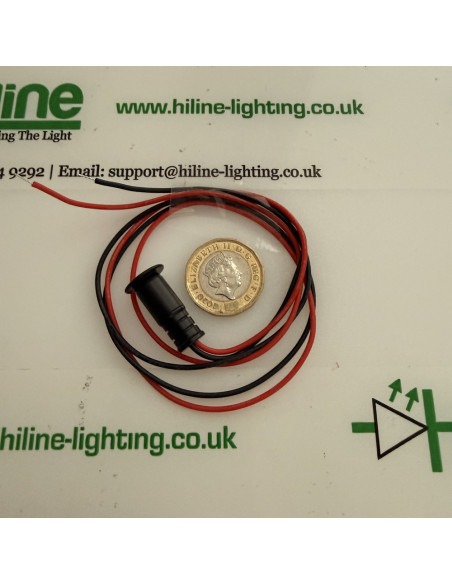

Black 30 Degree Mini LED Spotlight 6000K Overhead Scale
Black 30 Degree Mini Spot 6000K 12V Leads Top View
  • New
stairs mini Recessed LED Spotlight cool white 30 degrees beam
Black 30 Degree Mini LED Spot 12V 6000K Cool White 23mm
Black 30 Degree 6000K Mini LED Spot 12V with Pound Coin

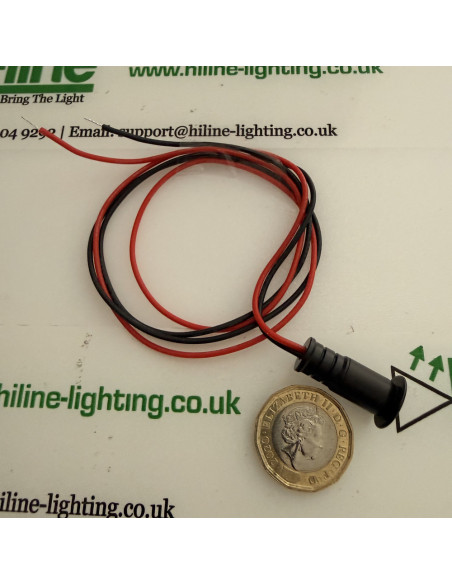

Black 30 Degree Mini Recessed Spot 6000K Side Profile 12V
Black 30 Degree 10mm Mini Spot 6000K Cool White Housing
Black 30 Degree Mini LED Spotlight 6000K Overhead Scale

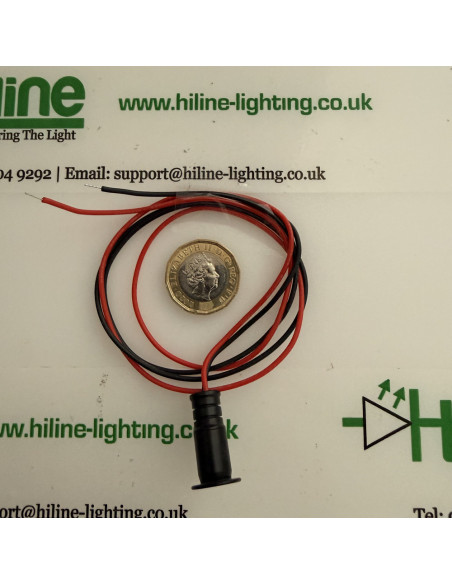

Black 30 Degree Mini Spot 6000K 12V Leads Top View

Black Mini Recessed LED Spotlight – 12V 0.5W 6000K Cool White 30°

12 V black mini recessed spotlight, 6000K cool white, 30° narrow beam. 0.5 W, 10 mm cut-out. Tight daylight accent for displays and task points. Driver required.

HL-MS05-6K30-B

Need more than we have in stock?

We have 37 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
37 Items In stock
Next working day delivery
£9.00
(£
10.80
with VAT)
VAT excluded

Tags:


Black mini recessed LED spotlight — 12 V, 0.5 W, 6000K cool white, 30° — HL-MS05-6K30-B

Narrow-beam, black-bodied, daylight 6000K. Same 10 mm HL-MS05 mechanics as the 120° cool-white lamps, with a 30° optic in a black bezel — a focused highlight on glass, jewellery or a work point.

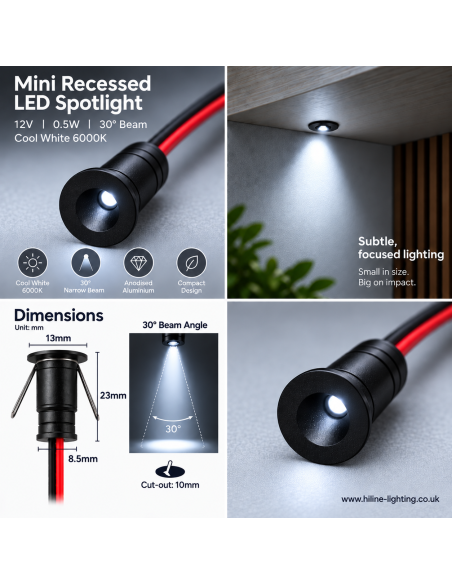

Cut-out 10 mm, Ø13 mm × 23 mm, stainless spring clips, ~470 mm silicone tail. 12 V DC constant voltage, 0.5 W, PWM-dimmable. One HL-30W-12V-IP67-EC can run up to 40 spots. Driver and dimmer sold separately.

Wide 120° cool white in silver is HL-MS05-6K120-S. Warm white 30° black is HL-MS05-3K30-B.

Specification

  • Reference: HL-MS05-6K30-B
  • Power: 0.5 W
  • Voltage: 12 V DC constant voltage
  • Light: 6000K cool white / daylight, 30° narrow beam
  • Housing: black anodised aluminium
  • Cut-out: 10 mm
  • Body: Ø13 mm × 23 mm
  • Cable: approx. 470 mm silicone
  • Mounting: recessed, stainless spring clips
  • Dimmable: yes, with 12 V LED dimmers
  • Rating: IP65 splashproof

Typical uses

Retail glass, jewellery cases, white kitchens, inspection points, stair details where a cooler, tighter beam is wanted. Related 12 V drivers and dimmers below.

Note: Always use a regulated 12 V constant-voltage supply.

Brand
Hi-Line
Colour
Cool White
Colour Temperature (CCT)
6000K
LED Chip
SMD 5050
LED Module Beam Angle
30°
Power
0.5 Watt
IP Rating
IP65 (Splashproof)
Voltage
12V DC
Voltage Type
Constant Voltage (PWM)
Warranty
3 Years
