Black anodised mini recessed LED spotlight — 12 V, 0.5 W, 3000K — HL-MS05-3K120-B

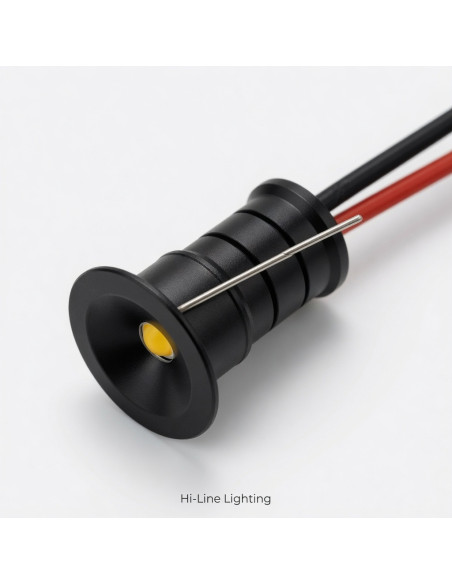

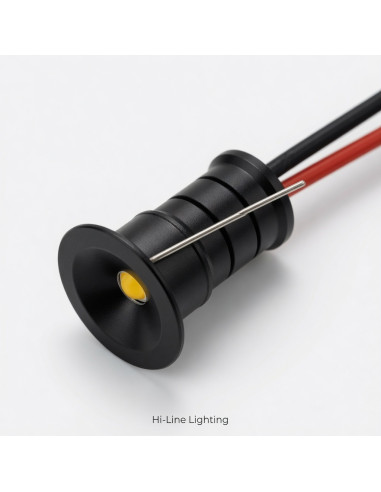

This is the black-bodied version of our 10 mm mini recessed spotlight. The lamp, beam and wiring are the same class as the silver finish; the housing is black anodised aluminium so the fitting disappears in dark timber, black cabinets, display cases and painted ceilings.
Cut a 10 mm hole, push the body through from the front and the stainless spring clips hold it. Overall size is only Ø13 mm × 16 mm deep, so it sits almost flush once in. A ~470 mm silicone tail (red +, black −) is already fitted.
Electrical
12 V DC constant voltage only — not 24 V and not mains. Use a regulated 12 V LED driver; the fitting is PWM-dimmable with our single-colour 12 V dimmers and controllers. One HL-30W-12V-IP67-EC can run up to 40 spots if the wiring and ventilation are correct. Driver and dimmer are sold separately.
The silver finish of the same lamp is listed separately as HL-MS05-3K120-S. Choose black where the housing should recede; choose silver where a bright metal ring is wanted.

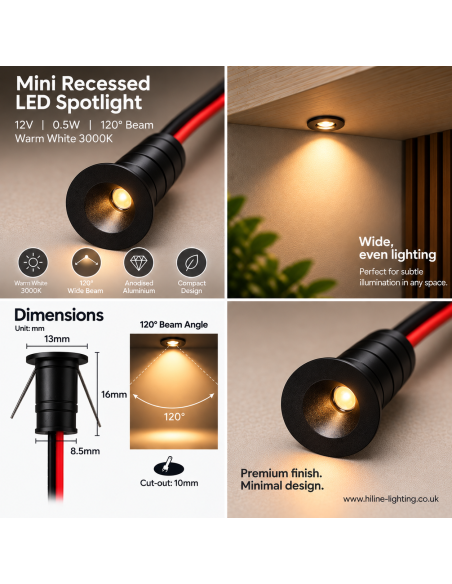

Specification
- Reference: HL-MS05-3K120-B
- Power: 0.5 W
- Voltage: 12 V DC constant voltage
- Light: 3000K warm white, 120° beam
- Housing: black anodised aluminium
- Cut-out: 10 mm
- Body: Ø13 mm × 16 mm
- Cable: approx. 470 mm silicone
- Mounting: recessed, stainless spring clips
- Dimmable: yes, with 12 V LED dimmers
- Rating: IP65 splashproof
Typical uses

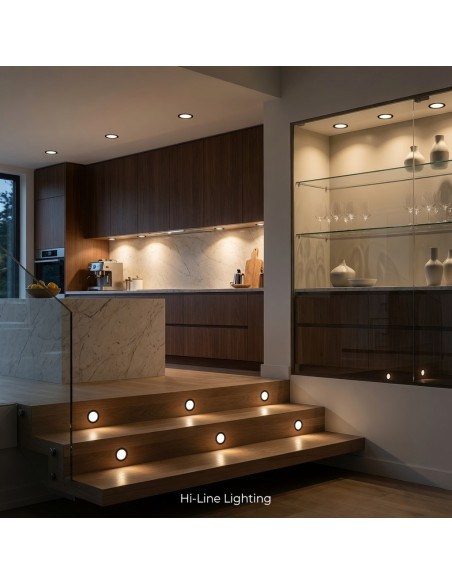

Under-cabinet and shelf lighting on dark kitchens, black or walnut furniture, recessed ceiling accents, showcase and retail displays, stair and step details, exhibition stands. Related 12 V drivers, dimmers and controllers are listed below.
Note: Always use a quality 12 V constant-voltage supply. Allow ventilation when many units share a small void.
