LED Driver | 24V | 30W | IP67 | Constant Voltage | EC Series

Constant Voltage LED Driver 30 Watt 24 Volts rated @ IP67

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE

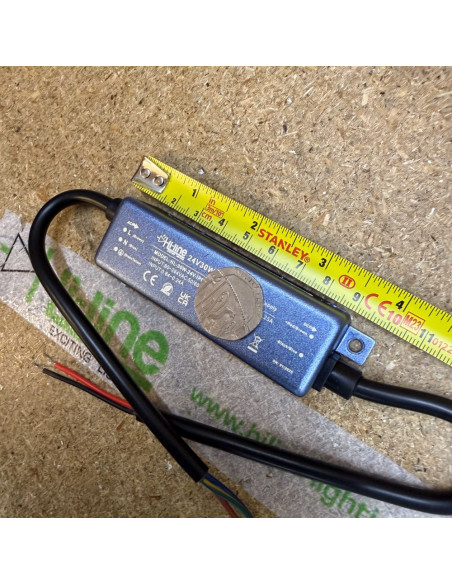

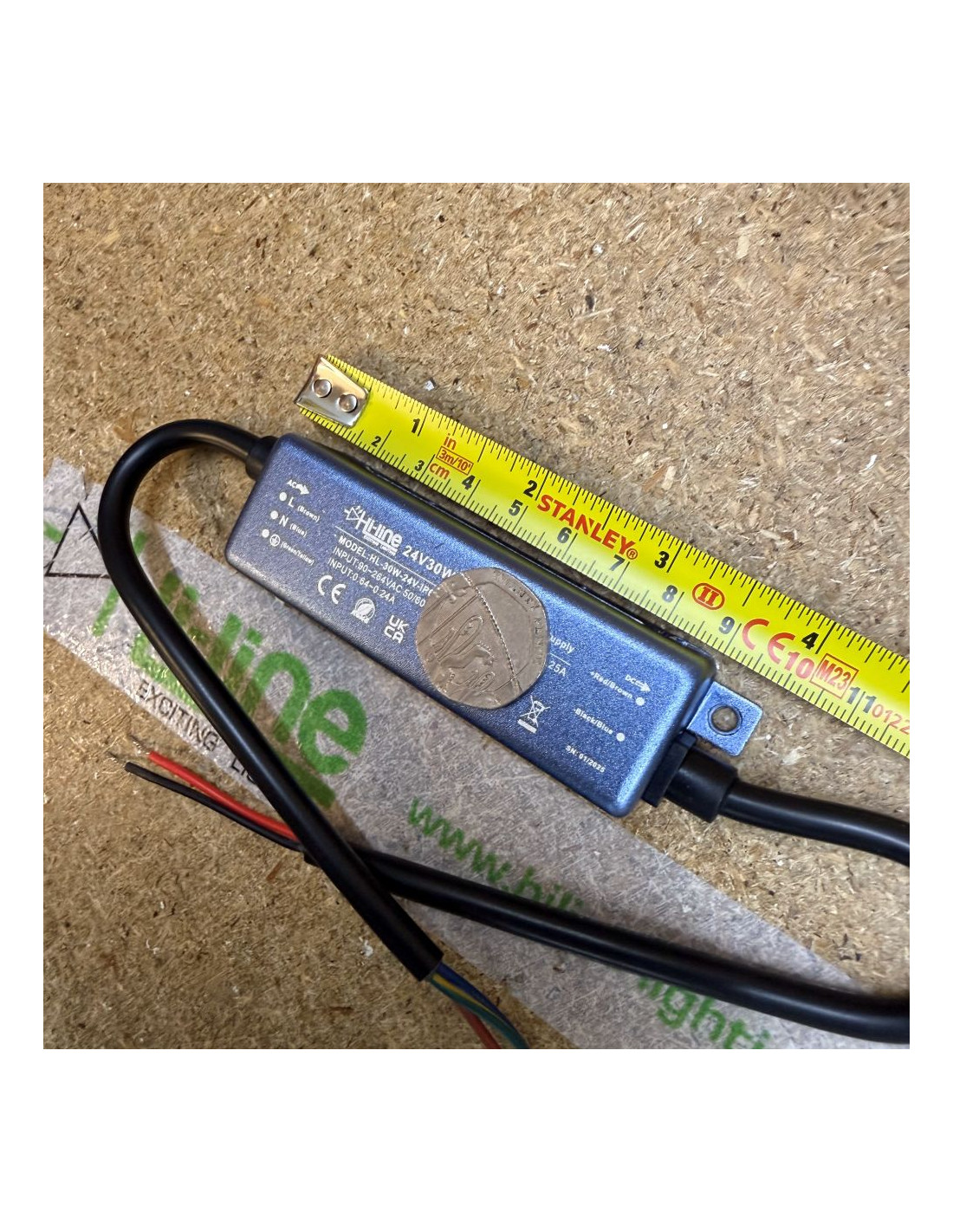

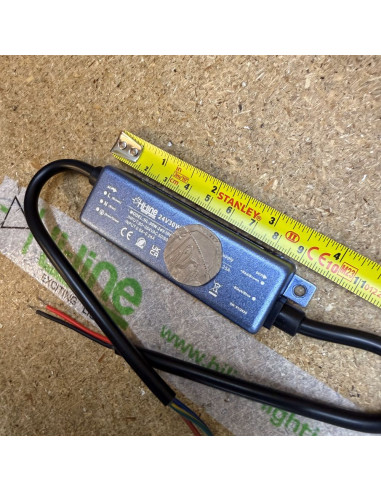

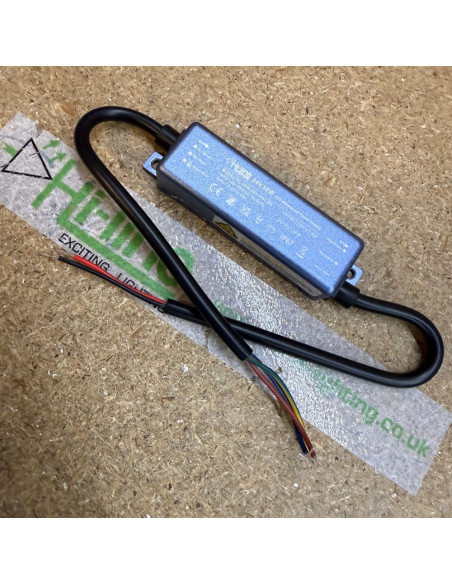

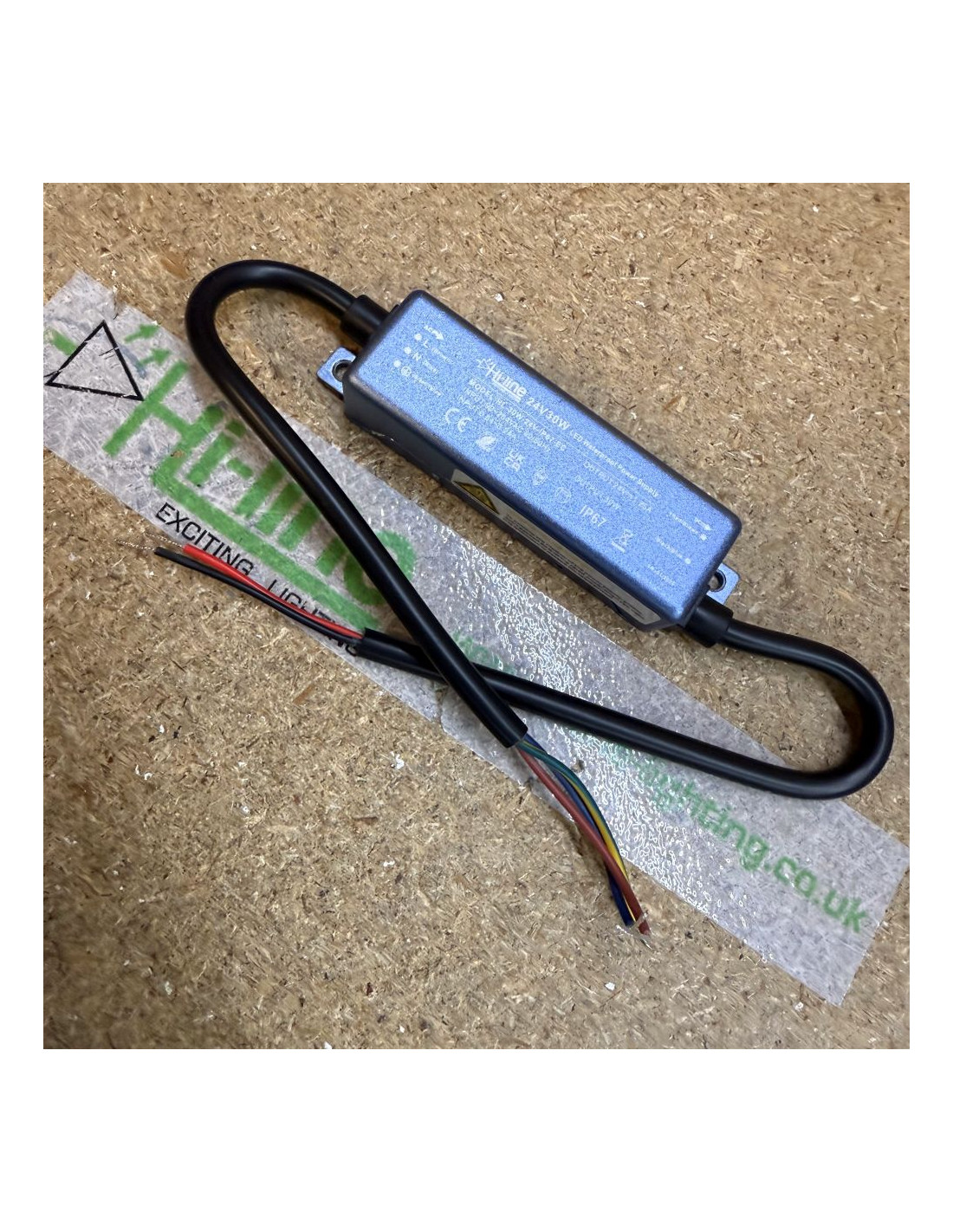

LED Driver 30W/24V

Input: 175~264V AC (50 Hz)

Output: 24V / 1.25 Amps

Rating: IP67 (Waterproof)

Efficiency: > 88%

Dimensions: L220 x W30 x H21mm

Weight: 192g

Warranty offered for the LED driver is 3 years

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

IMPORTANT NOTICE!
