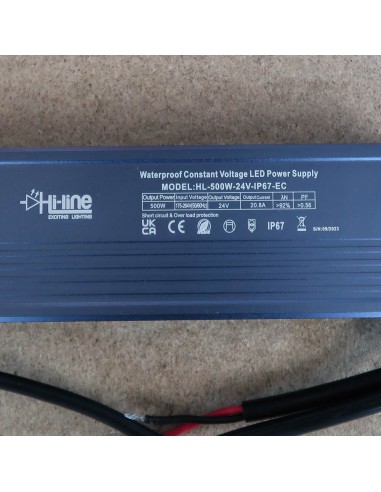

High efficiency Series LED Driver 500W / 24V

Input: 175-264V AC

Output: 24V/21A

Rating: IP67

Constant Voltage Type

Suitable for LED Strips

3 years Warranty

HL-500W-24V-IP67-EC
46 Items In stock
Same Day Dispatch
£95.00



24 Volts High Efficiency Series constant voltage LED driver 500 Watt IP67

This is a highly specified switch mode power supply using the best electronic components in the market.

Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 500W.

It is recommended to calculate 20% more than the tape power consumption.

Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.

To learn more about In-rush current, visit out support page HERE

LED Driver 500W/24V Suitable for LED Strips

Input: 175~264V AC (50Hz)

Output: 24V/21 Amps

Rating: IP67 (Waterproof)

Power factor: >0.56

Efficiency: >94%

Dimensions: L290*W100*H38 mm

Weight: 2.15 Kg

SELV, CE & RoHS certified

Warranty offered for the LED driver is 3 years



___________________________

Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller (sold separately).

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller (sold separately).

___________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.

Voltage
24V DC
Power
500 Watt
Rating
IP67 (Waterproof)
Type
non-dimmable
Voltage Type
Constant Voltage
Warranty
3 Years
Brand
Hi-Line
