500W 24V LED Driver IP67 - High Efficiency Constant Voltage EC Series
EC Series High Efficiency LED Driver - 500W 24V, IP67 Constant Voltage

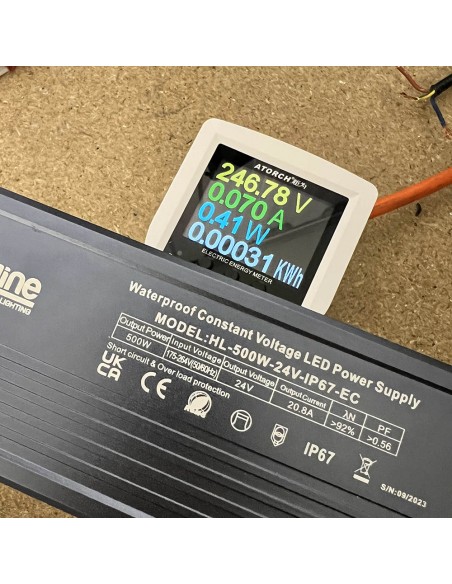

500 Watt Hi-Line Lighting Power supply idle power consumption
500W 24V LED Driver IP67 - High Efficiency Constant Voltage EC Series
EC Series High Efficiency LED Driver - 500W 24V, IP67 Constant Voltage
500 Watt Hi-Line Lighting Power supply idle power consumption

LED Driver | 24V | 500W | IP67 | high efficiency | constant voltage (EC3Y Series)

  • High-efficiency Series LED Driver
  • Power: 500W
  • Voltage: 24V DC
  • Input: 175-264V AC
  • Output: 24V / 21A
  • IP Rating: IP67
  • Constant Voltage Type
  • Suitable for LED Strips and signage
  • Incorporates cutting-edge chip technology

Important Product Details

  • optional 250 char. max
HL-500W-24V-IP67-EC
48 Items In stock
Next working day delivery
£108.00
129.60
with VAT)
VAT excluded



24 Volts High Efficiency Series constant voltage LED driver 500 Watt IP67

This newly redesigned switch mode power supply, now featuring more compact dimensions and reduced weight, incorporates cutting-edge chip technology and utilises the finest electronic components available in the market.

Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 500W.

It is recommended to calculate 20% more than the tape power consumption.

Note: This driver is part of our Economy Series, offering reliable efficiency and performance for standard needs. It's a practical choice for those not seeking the advanced features of our Premium Series, which includes lower inrush currents and sophisticated IC chips for enhanced functionality. For such high-end specifications, consider our Premium Series, keeping in mind the in-rush current and MCB requirements.

To learn more about In-rush current, visit out support page HERE

LED Driver 500W/24V Suitable for LED Strips and signage / lightboxes

Input: 175~264V AC (50Hz)

Output: 24V/21 Amps

Rating: IP67 (Waterproof)

Power factor: >0.56

Efficiency: >94%

Dimensions: L260xW68xH32 mm

Weight: 1.058 Kg

UKCA, SELV, CE & RoHS certified

Warranty offered for the LED driver is 3 years


Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller (sold separately).

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller (sold separately).


IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.


Find the Perfect Match for Your Product!

Exploring accessories or related products for what you’re viewing? Tap on our “Related Products” tab for a selection of complementary items.

Got too many results? Use our “Refine By” filter to narrow down your choices with ease.

Don’t forget to check out the “Attachments” and “Product Specification” tabs for detailed information and additional options.

Brand
Hi-Line
Power
500 W
IP Rating
IP67 (Waterproof)
Type
non-dimmable
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
