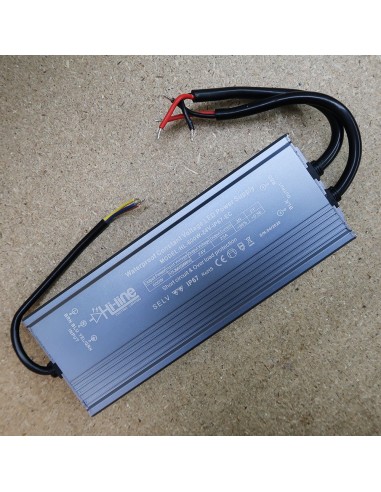

LED Driver 600W 24V IP67 high efficiency constant voltage

HL-600W-24V-IP67-EC

New product

High efficiency Series LED Driver 600W / 24V

Input: 175-264V AC

Output: 24V/21A

Rating: IP67

Constant Voltage Type

Suitable for LED Strips

3 years Warranty

More details

44 Items

Same Day Dispatch

£ 105,00

Add to wishlist

Data sheet

Voltage 24V DC
Power 600 W
Rating IP67 (Waterproof)
Type non-dimmable
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

600 Watt 24 Volts High Efficiency Series constant voltage LED driver IP67

This is a highly specified switch mode power supply using the best electronic components in the market.

Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 500W.

It is recommended to calculate 20% more than the tape power consumption.

LED Driver 600W/24V Suitable for LED Strips

Input: 175~264V AC (50Hz)

Output: 24V/25 Amps

Rating: IP67 (Waterproof)

Power factor: >0.56

Efficiency: >94%

Dimensions: L290*W100*H38 mm

Weight: 2.5 Kg

SELV, CE & RoHS certified

Warranty offered for the LED driver is 3 years



___________________________

Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller (sold separately).

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller (sold separately).

___________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
