Wall mount RGBW PWM LED controller single zone

RGBW-1Z-PWM

New product

Single Zone, touch controller

RGBW PWM output

Wall Mount

12-24V Input

More details

30 Items

£ 45,00 excl. VAT

Add to wishlist

Data sheet

Type of control All In One
Warranty 5 Years
Brand Hi-Line

More info

Touch sensitive wall mount RGBW PWM LED controller single zone, Glass interface(White colour)

This is a PWM dimmable wall mounting RGBW LED controller that can be used directly with any RGBW LED strip (12 or 24V) or other constant voltage LED product.

LED strip lighting can be driven directly by the wall mount PWM touch controller, the output of the controller is 4 channels (RGBW) using constant voltage common anode connection with a maximum of 4A per channel. Suggested to be used with a load of no more than 3A per CH. If used with RGBW 14.4W LED strip can drive up to 20 meters. Using 7.2W/m RGBW LED strip this touch controller can drive directly up to 40m length.

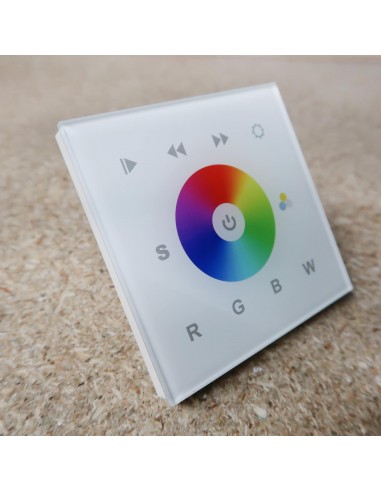

It is a touch controller with a glass interface in white colour and can be mounted on a standard UK back box, dimensions of the controller are 86x86mm and the depth is 29.1mm

At the wall back box it is necessary to supply 24V DC from a switch mode power supply (LED driver). Power consumption of the LED driver should be at least 20% more than the LED strips total power consumption. For up to 20m of 14.4W/m RGBW LED strip 400W 24V LED driver will be ideal (14.4W x 20m x 1.2=345.6 Watt)

A 5 year guarantee is included with every purchase of this product.

Please download user manual located at the end of this page for more details.

Wall mount RGBW controller connection diagram
