Designed for modern interiors, this black glass touch controller brings seamless RGBW LED strip control to your wall. It includes a built-in constant voltage controller, allowing direct connection to RGBW LED strips with a 12V or 24V input. No external receiver is needed.
The panel fits standard UK 86mm back boxes. Please ensure the back box has a minimum internal depth of 25mm. A 35mm box is recommended for easier wire management and improved airflow.

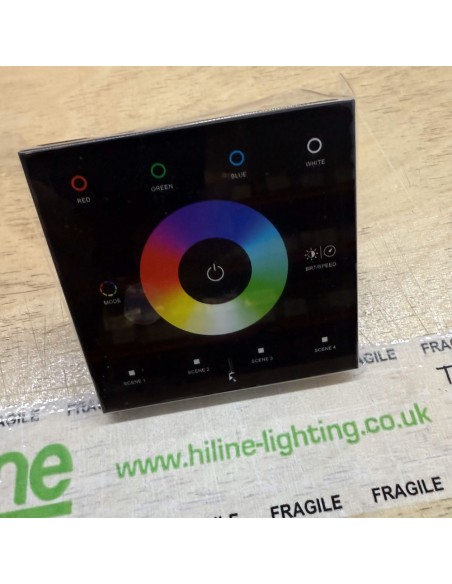

Its sleek touch interface includes a central colour wheel and four programmable scene buttons for storing preferred lighting settings. Smooth on/off control and brightness adjustment are included as standard. For added flexibility, it can be paired with 2.4GHz RF remotes (optional), compatible with both single-zone and multi-zone models.
Rated at 3A per channel, this controller is suitable for up to 20 metres of RGBW LED strip at 14.4W/m. However, for long-term stability and reduced internal heat, a maximum of 15 metres is recommended. Install only in locations that allow natural airflow within the wall box and avoid direct exposure to sunlight or high ambient temperatures.
The PWM frequency is fixed at 1KHz, offering smooth dimming suitable for general-purpose use.
Technical Specifications
Model No: T4
Input Voltage: 12–24VDC
Input Current: Max 10.5A
Output Voltage: 12–24VDC
Output Type: Constant voltage
Channels: 4CH
Output Current: 3A per channel
Output Power: 144W at 12V / 288W at 24V
PWM Frequency: 1KHz (fixed)
Light Type: RGBW
Operating Temp: –30°C to +55°C
Case Temp (Max): +85°C
Panel Size: 112 x 112 x 50mm
Wall Recess Depth Required: Min. 25mm
Gross Weight: 0.230kg
Installation Box Compatibility: 86mm UK back box
Certifications: UKCA, CE, RED, RoHS
Standards: EN 62479:2010, EN 61347-1:2015+A1:2021, EN 61347-2-13:2014+A1:2017, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, ETSI EN 300 328 V2.2.2
Installation Notes
To ensure proper performance and minimise heat build-up, use no more than 15 metres of 14.4W/m RGBW LED strip. Do not install in areas exposed to excessive heat or direct sunlight.
