Availability date: 06/11/15
|LED Chip||Quad colour SMD 5050|
|CIE Colour Space||3 SDCM|
|Number of LEDs per meter||30|
|Colour Temperature (CCT)||RGB+2700K|
|Colour rendering (CRI in ra)||80|
|Width of strip||10mm|
|FCP copper content||2 ounce double layer|
|Cutting length||Every 5 LEDs (168mm)|
|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|

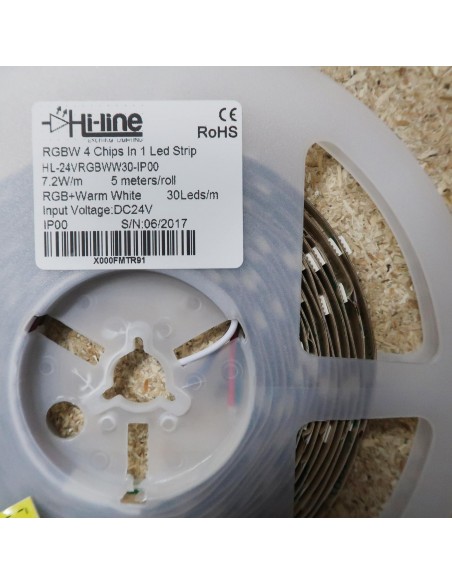

7.2W/m – 24V DC – 5m roll – 30 LEDs/m – IP00 (Non-Waterproof) – 5-wire cable (15cm on each side of the strip roll)

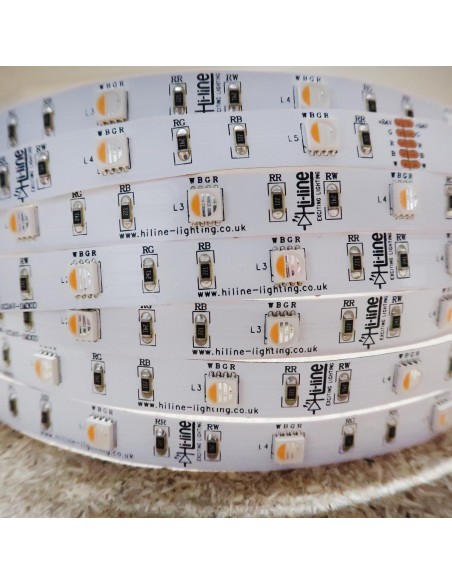

This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single chip. Due to this innovative design (4 in 1 chip), the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.
The RGBW LED strips are powered by high-quality quad SMD5050 LED chips. The brightness of each chip is 20 lumens.
The power consumption is 7.2W per meter, which means an average of 1.8W per colour per meter.
Excellent colour rendering index (CRI) – all chips reach a value of Ra >80.

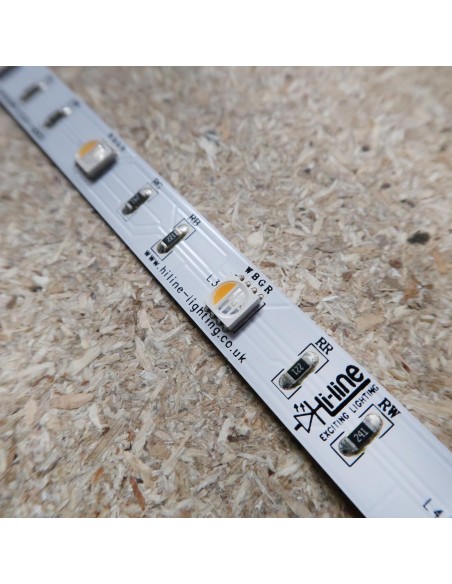

The strip can be cut every 5 LEDs (168mm). The width of the LED strip is 10mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of the LED strip is exceeded, it is suggested to connect both ends of the strip directly to the LED controller, using a 5-core cable.
Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

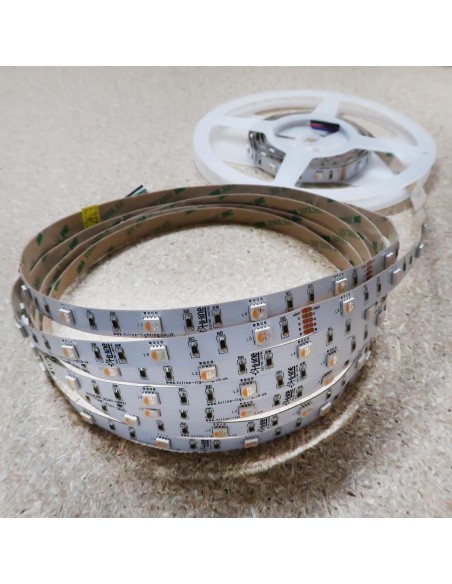

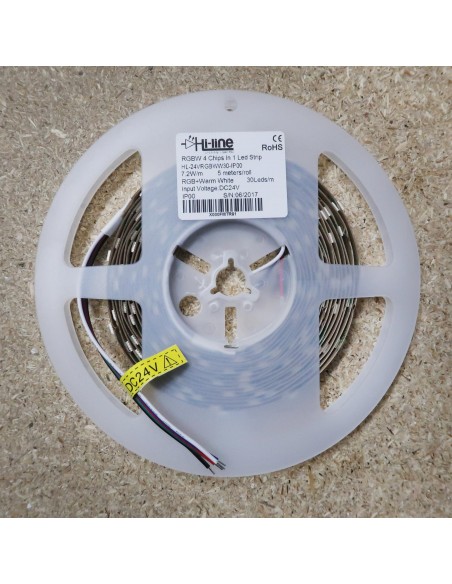

The RGBW LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.

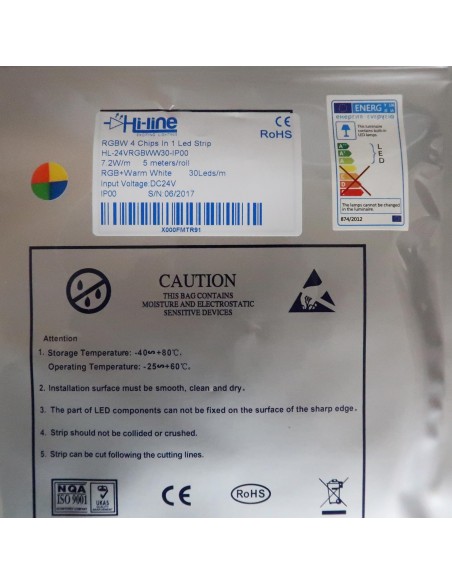

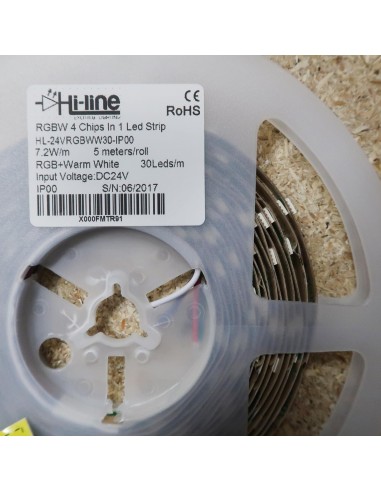

The stated price is for 1 x 5-meter roll RGBW LED strip (Warm White) with 150 SMD5050 RGBW LEDs – IP00 (Non-Waterproof), 24V DC.
Note: A higher brightness RGBW LED strip with 60 LEDs and 1200Lm per meter is available in the Hi-Line online shop.
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider best power supply performance 20% was deducted from the maximum strip length in the table below.
Note that, for driving RGBW LED Strips, you will have to combine the LED-Driver with an RGB/RGBW LED Controller.
In such case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
