HL-24VRGBWW-IP00
New product
47 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 18/09/15
RGBW LED Strip (RGB+WW) 24V 14.4W/m IP00
Recipient :
* Required fields
or Cancel
LED Chip | Quad colour SMD 5050 |
CIE Colour Space | 3 SDCM |
Voltage | 24V DC |
Colour | RGBW (RGB+WW) |
Power | 14.4 W/m |
Brightness | 1200 Lm/m |
Number of LEDs per meter | 60 |
Rating | IP00 (Non-waterproof) |

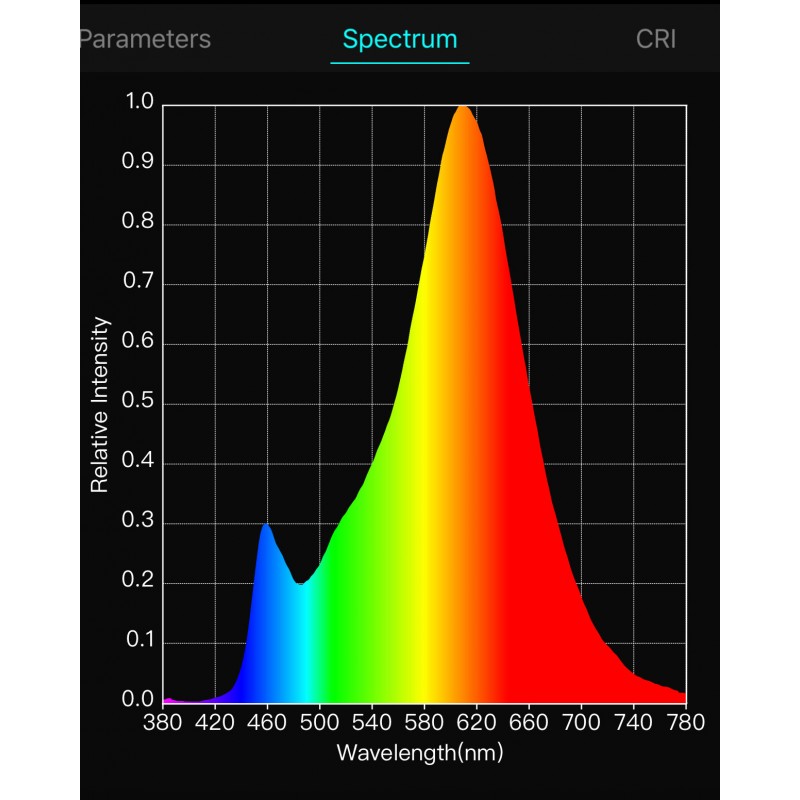

Colour Temperature (CCT) | RGB+2700K |
Colour rendering (CRI in ra) | 80 |
Width of strip | 10mm |
FCP copper content | 2 ounce double layer |
Cutting length | Every 6 LEDs (100mm) |
LED Strip Packing | 5-meter roll |
Voltage Type | Constant Voltage |
Warranty | 5 Years |
Brand | Hi-Line |

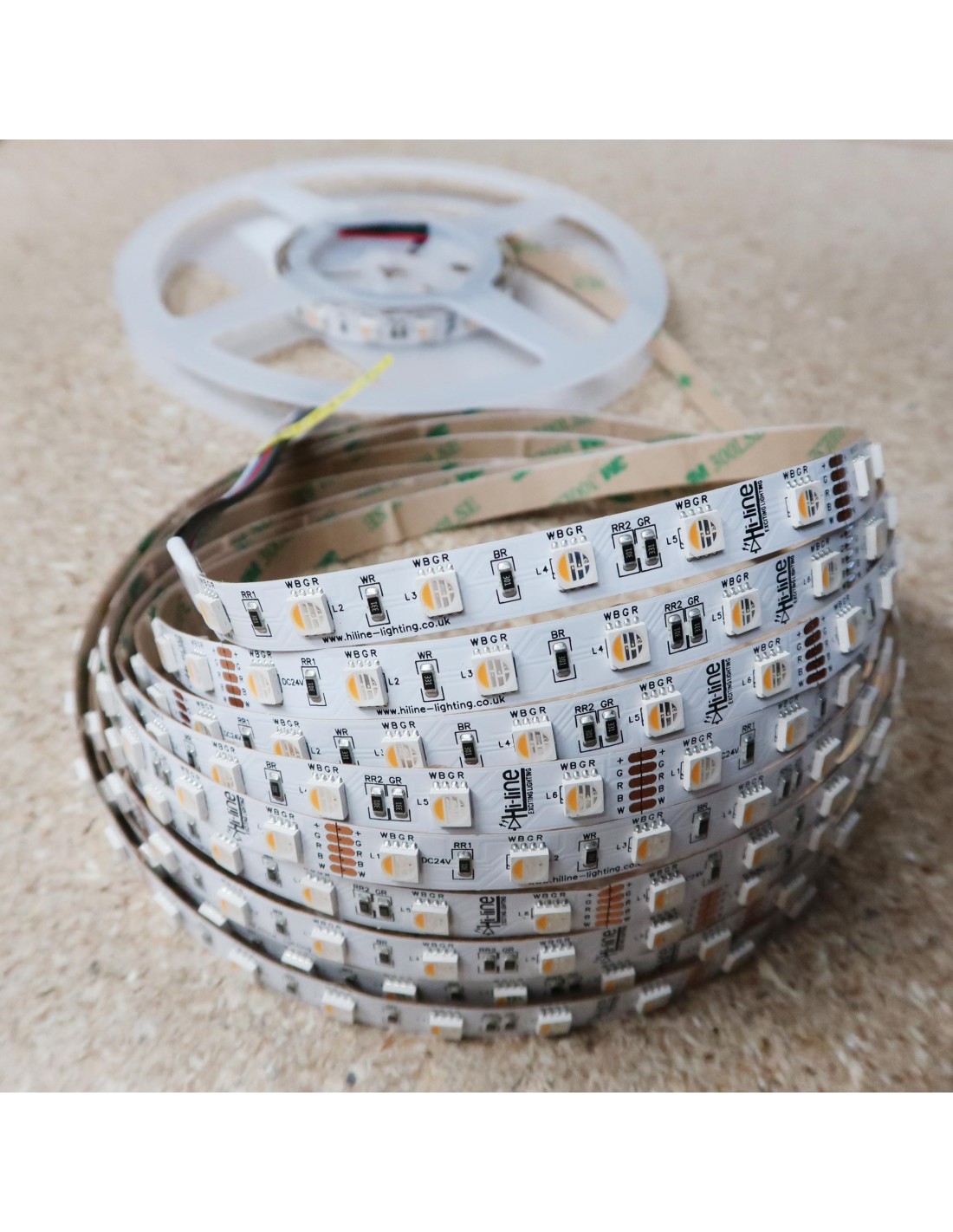

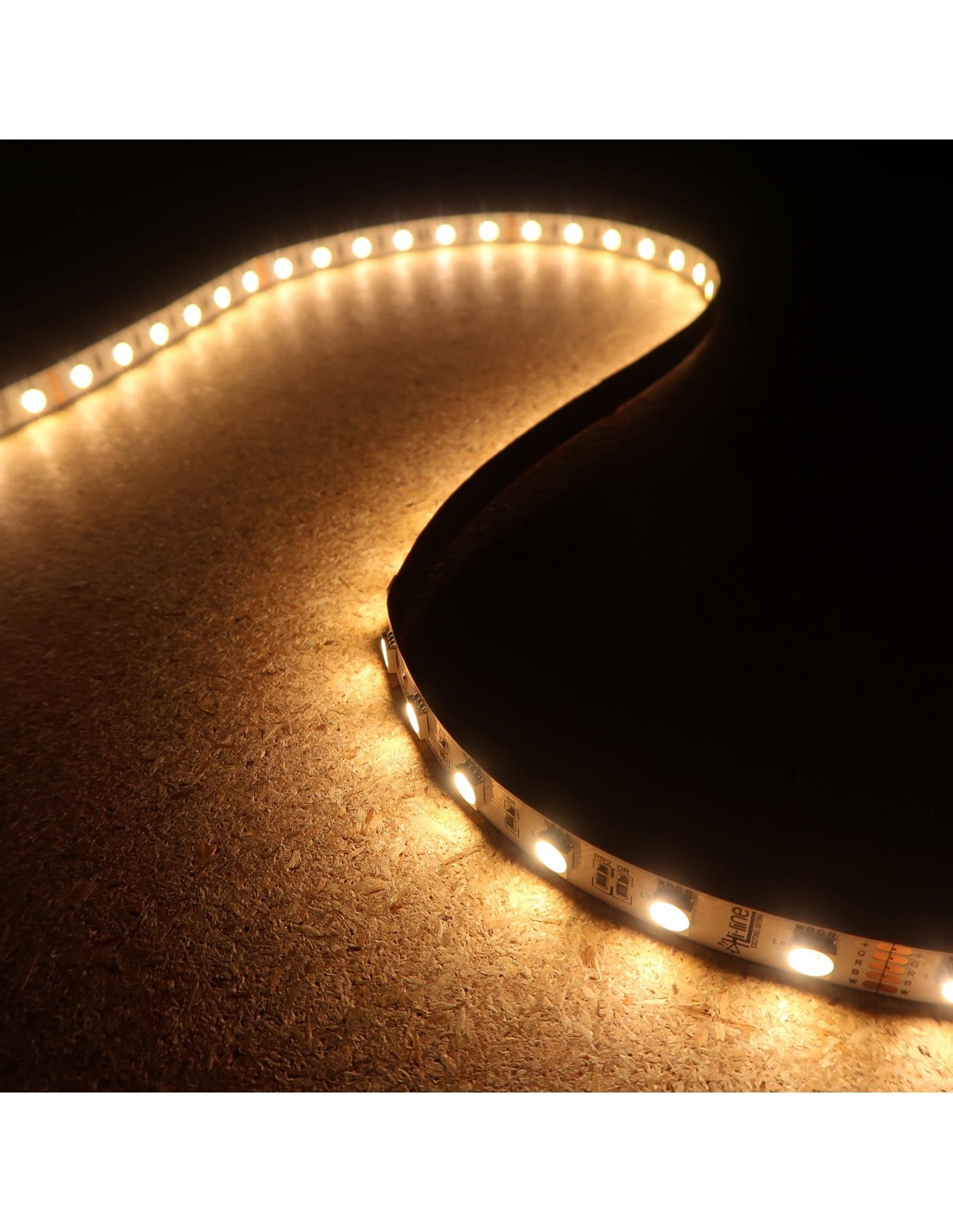

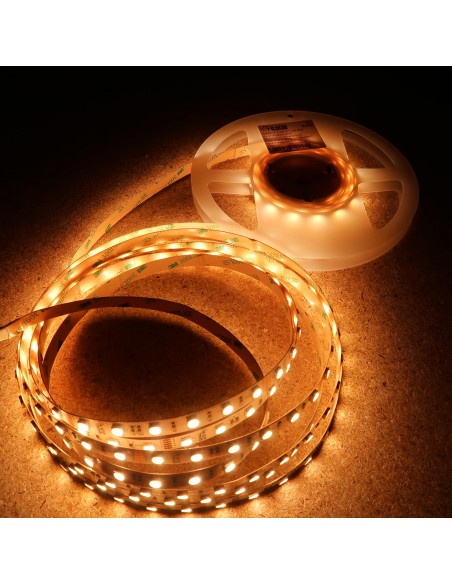

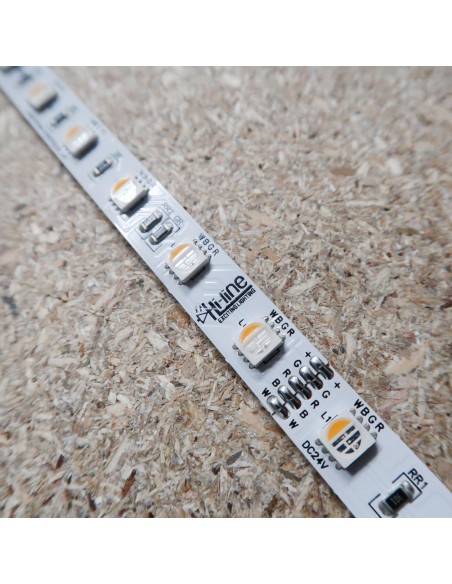

Commercial high grade RGBW LED strip with quad chip, 4 colours in 1 chip (RGB+warm white).
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 5-wire cable (15cm on each side of the strip roll)
This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single chip. Due to this innovative design (4 in 1 chip) the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.

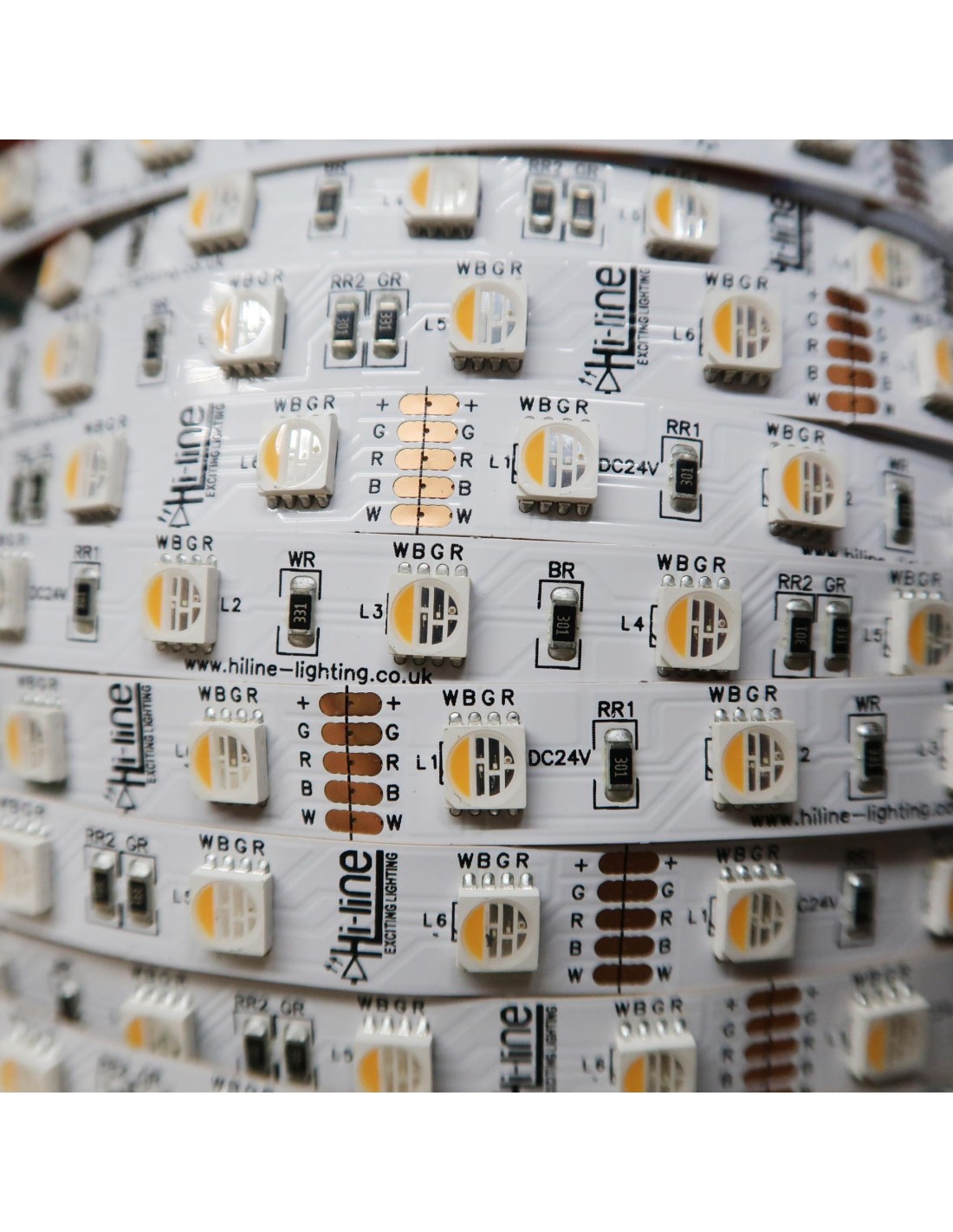

The RGBW LED strips are powered by high quality quad SMD 5050 LED chips. The brightness of each chip is 20 lumens.
The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.
Excellent colour rendering index (CRI) – all RGBW LED chips reach a value of Ra >80.

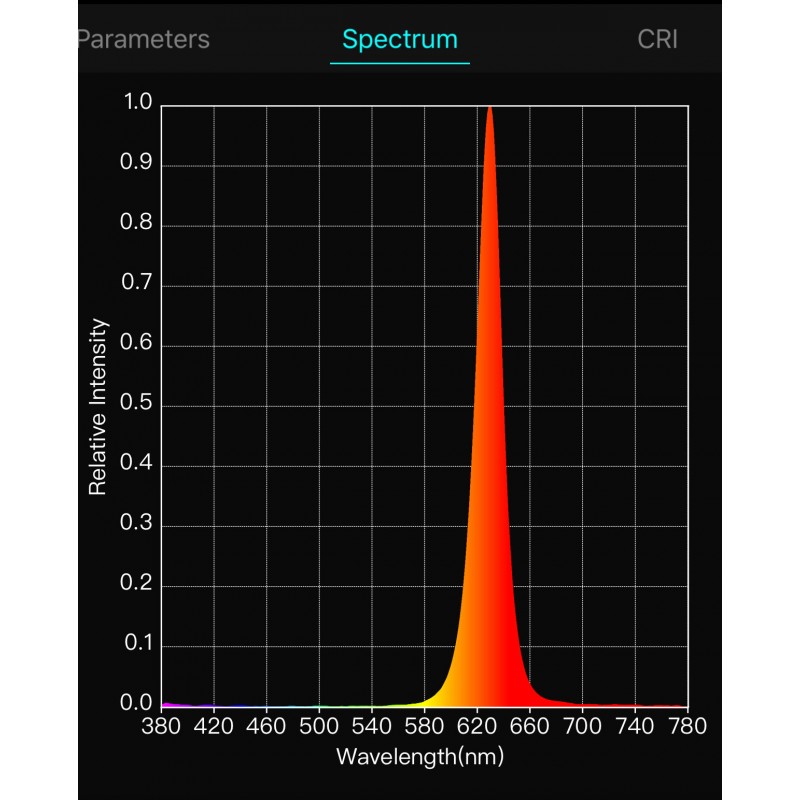

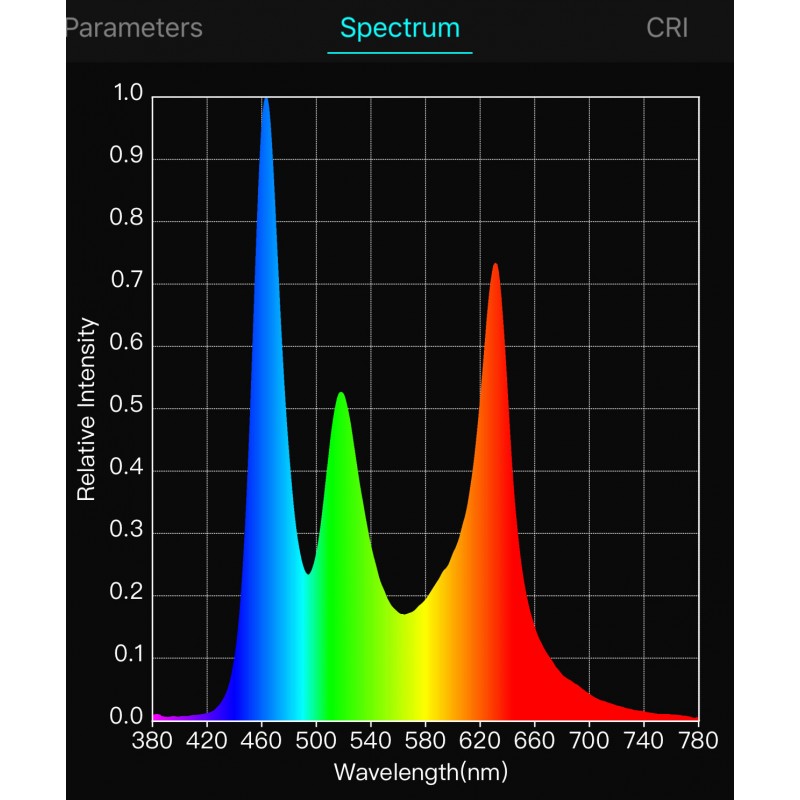

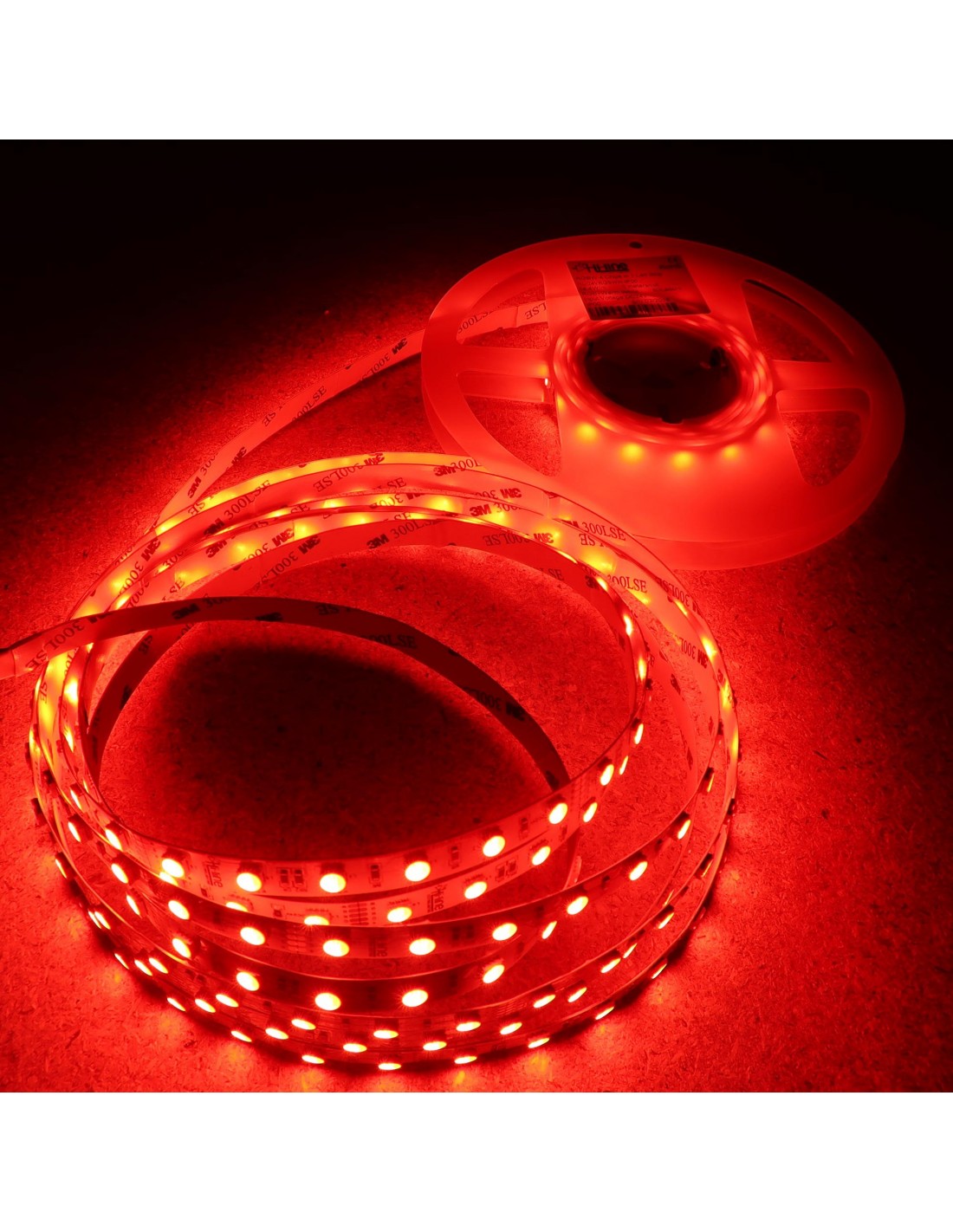

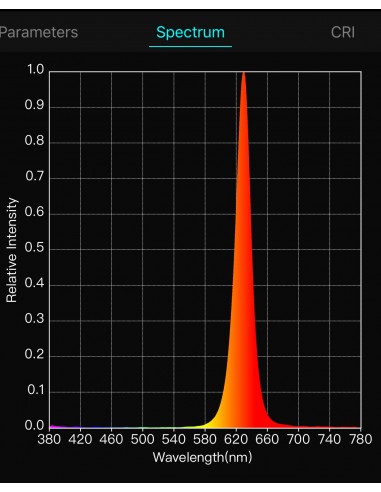

Red LED channel: wavelength 625nm
Green LED channel: wavelength 525nm

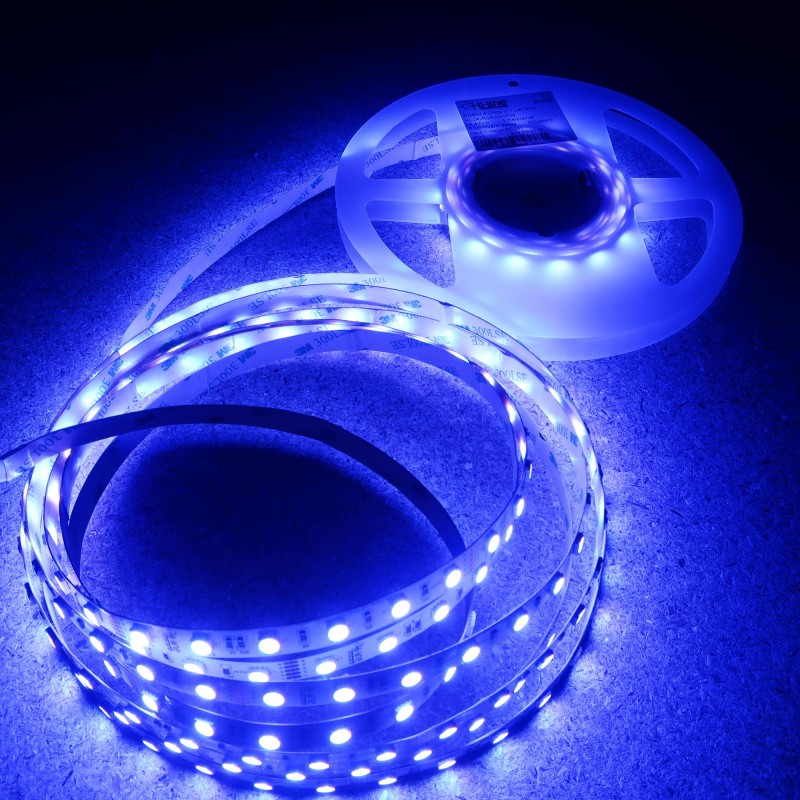

Blue LED channel: wavelength 470nm
For more information on RGB readings, please see our Wavelength Article.

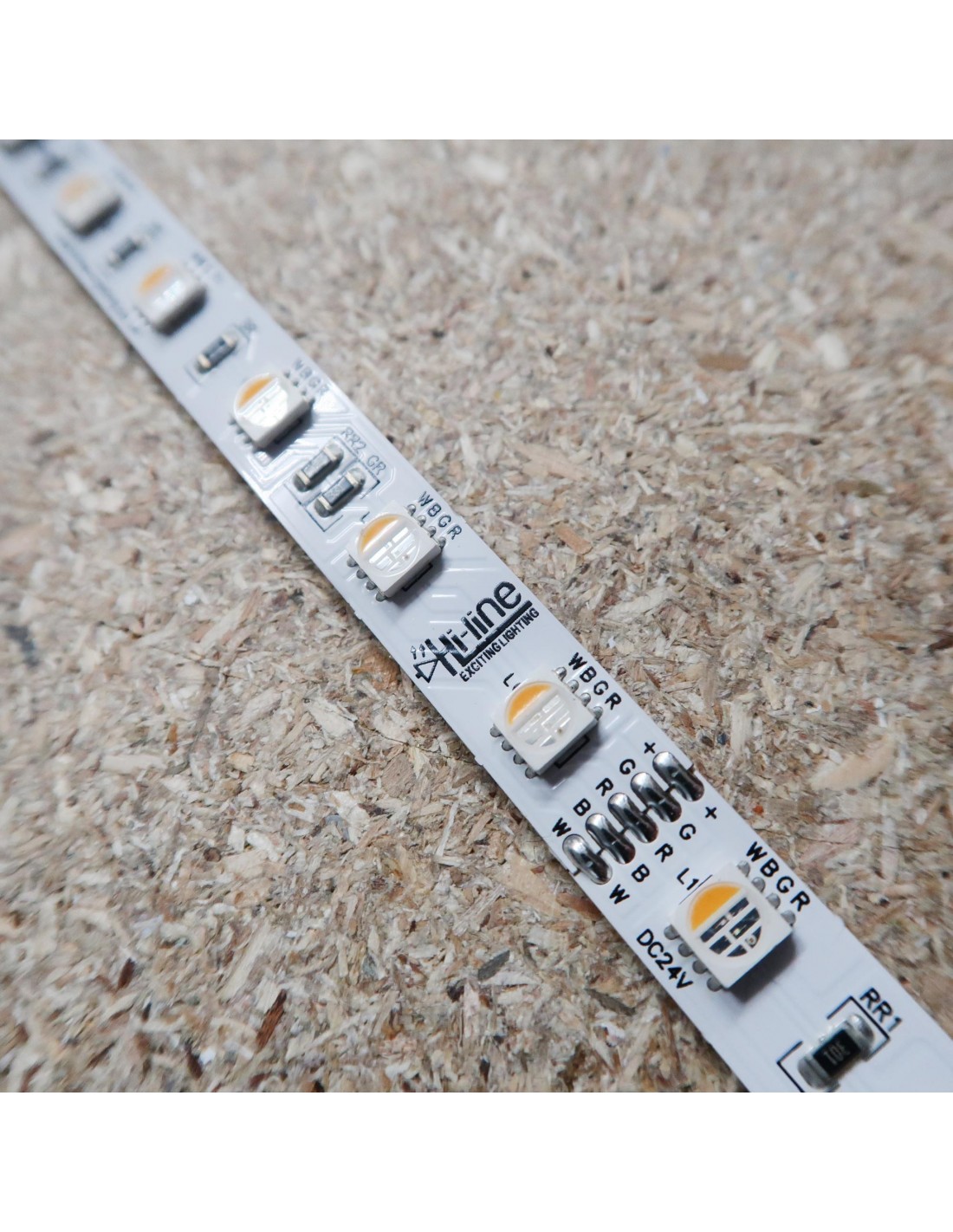

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 10mm.
If 10mm width isn’t essential for your installation (unless perhaps profiles are involved), we would recommend our 12mm version. This is due to them having 2oz fcp, which has a greater choice of compatible connectors and is capable of handling voltage drop better.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
5 years warranty
______________________________
The high quality of Hi-Line RGBW LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller using a 5-core cable.
Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
______________________________
The RGBW LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
______________________________
All Hi-Line LED RGBW LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
Hi-Line RGBW LED tape is fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.
______________________________

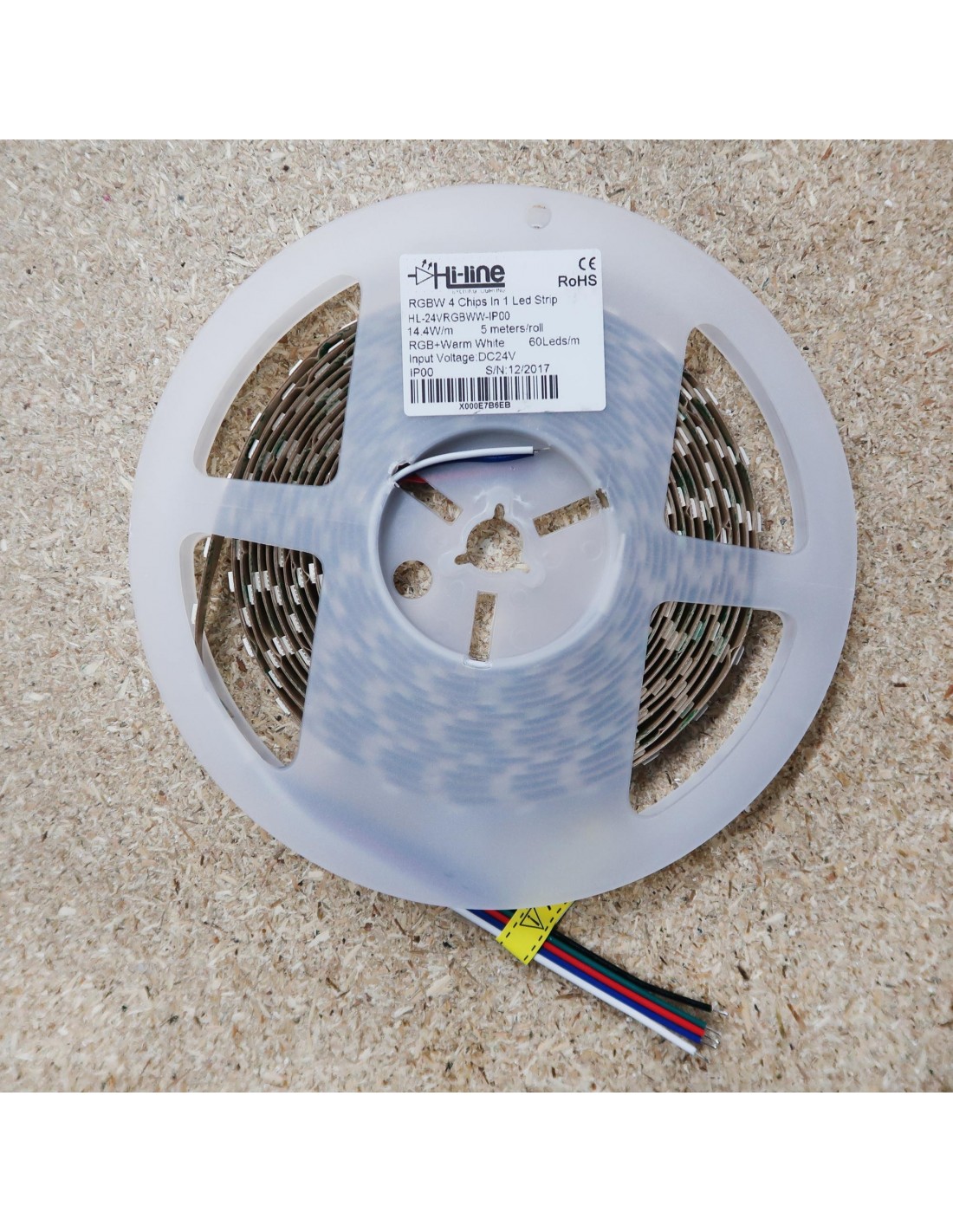

The stated price is for 1 x 5-meter roll RGBW LED strip (RGBW+Warm White) with 300 SMD5050 RGBW LEDs – IP00 (Non-Waterproof), 24V DC.
______________________________
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.
Note that, for driving RGBW LED tape, you will have to combine the LED Driver with a RGBW LED Controller.
In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
