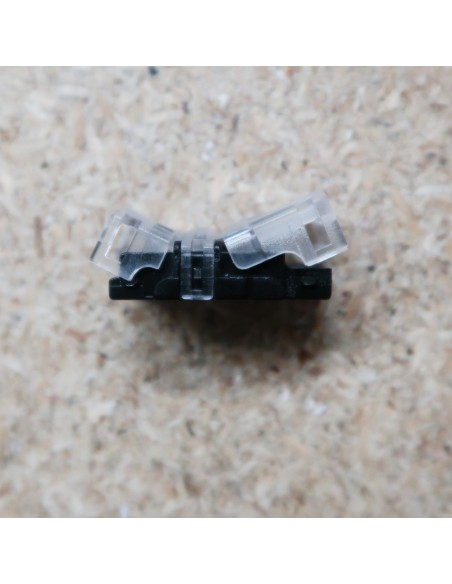

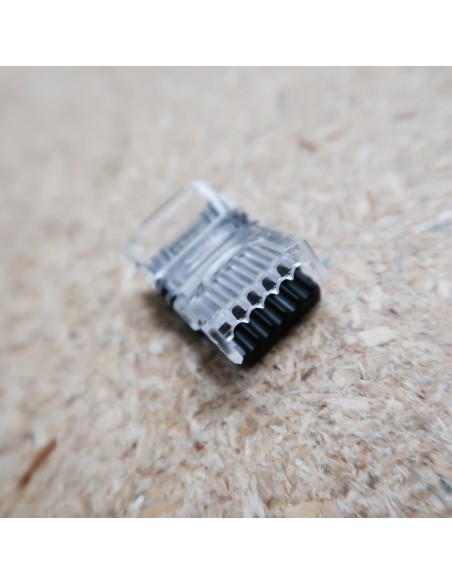

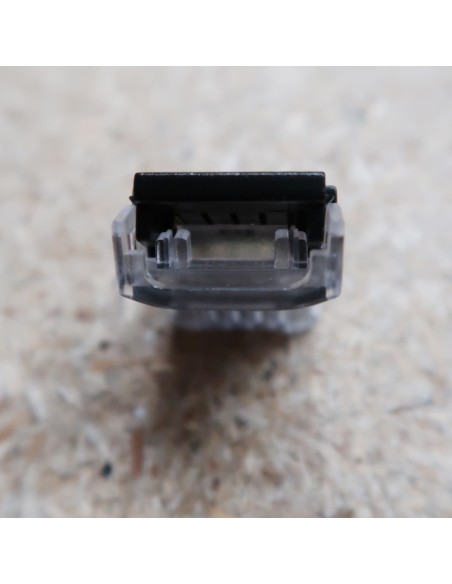

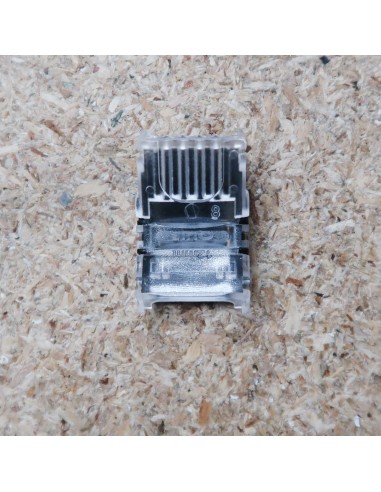

Strip to wire connector for high density 12mm IP00 single colour LED strips

HL-SC-B12HD-IP00

New product

2 pin LED strip to power (wire) connector

To be used with high density LED strips only

Supports high current LED strips

For 12mm IP00/IP20 single colour LED strips 700 LEDs/m

Workable Wire Gauge: 22-20 AWG

More details

181 Items

Same Day Dispatch

£ 2,00

£ 2,00 per each

Add to wishlist

Data sheet

Voltage 12-24V DC
Rating IP00 (Non-waterproof)
Connector type strip to power connector
Connector width For 12mm High Density LED strips
Number of terminals 2 pin (for single colour strips)
Brand Hi-Line

More info

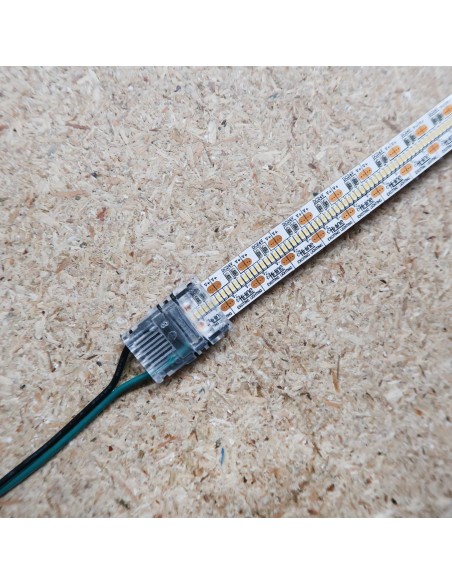

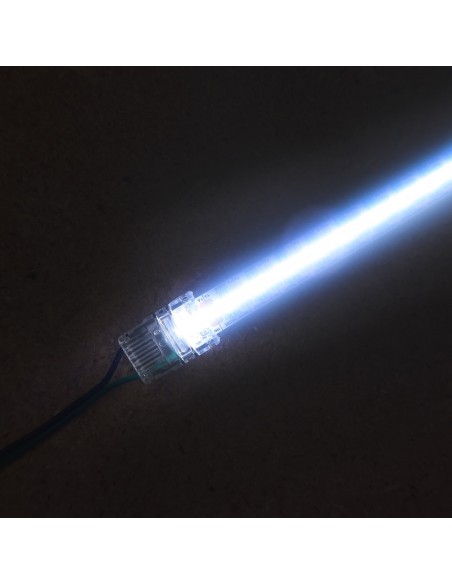

A LED strip connector (strip to power) designed for 12mm wide IP00/IP20 non-waterproof high density single colour LED strips

Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!

With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.

This is a very high quality strip to wire (power) connector suitable only for IP00/IP20 single colour 12mm wide high density LED strips.

Compatible with 700 LEDs/m LED strips (12mm single colour). This connector is made of flame retardant material.

Supports high current high density LED strips!

Please note that this connector is not compatible with the gel coated (PU) IP65 LED strips.

­­­______________________________

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L25mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Workable Wire Gauge: 22-20 AWG

Pin Pitch: 9.6 mm

Min.LED Strip Thickness: >0.2mm

Cross Sectional Area for wire (not included): 0.34~0.52 mm²

Applicable wire type: Solid wire / Stranded wire

Connection hardware: High precision brass(Cu)

Voltage range: DC3V~24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1pcs
