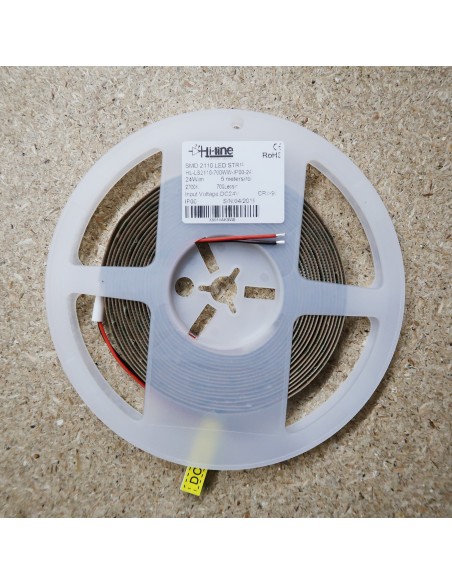

700 LEDs/m 2700K Warm White LED Strip 24V 24 W/m IP00 SMD 2110 CRI90 5m roll
2700K Warm White 24V IP00
700 LEDs/m 24 W/m 2160 lm/m
5m roll | 12mm width
High CRI - Ra>90
5 year warranty
2700K Warm White LED Strip 24V - 24 W/m IP00 CRI90 powered by 700 SMD2110 LED chips per meter
24 W/m – 24V DC – 5m roll – 700 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

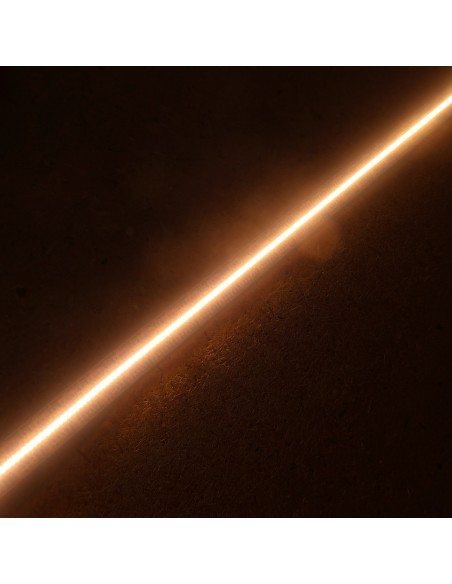

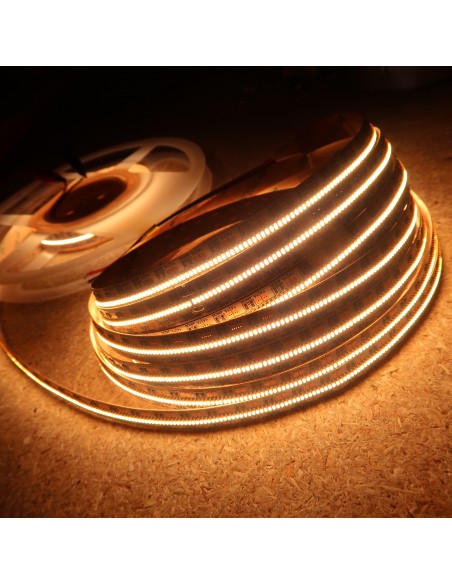

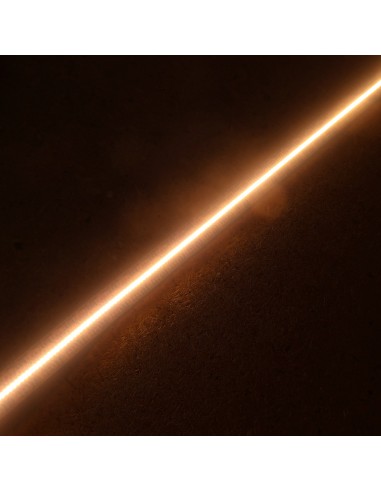

This high density, high bright LED strip powered by high-quality SMD2110 LED chips which generate a brightness of 2160 lumens per meter. This strip features an almost seamless, continuous light.
Note: The product photos are taken under certain light conditions with a high quality camera. While this picks up the LEDs easier, to the naked eye these strips are practically spotless!
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

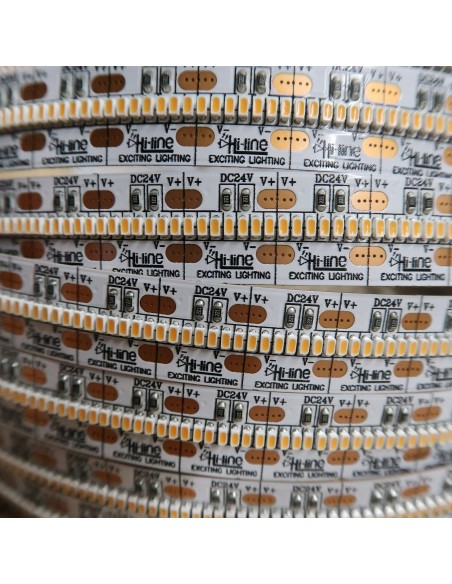

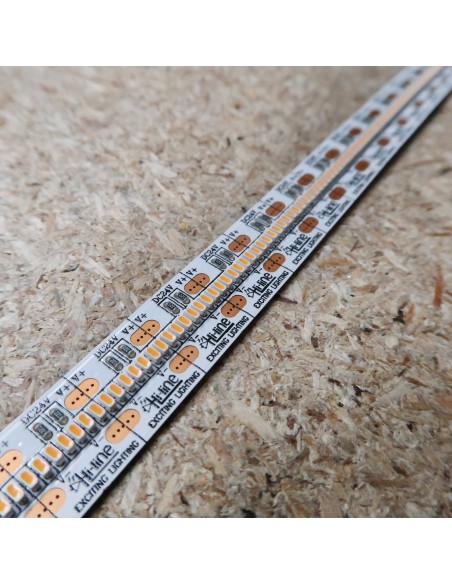

The strip can be cut every 7 LEDs (1 cm). The width of the LED strip is 12mm and uses 3 ounces double layer fcp (copper content).
Caution: Care must be taken when cutting along this high-density tape’s cutting points. Due to the tiny spaces between LEDs, installers must ensure that the tape is carefully bent along the cutting point; once you’ve accurately lined up the cutting line, you can then slice the strip from underneath upward with a blade to achieve a clean result.
Please see the following guide on how to efficiently cut this strip:
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2110 chips running warm at 24 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
For handling this strip, please see the following support page.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
NOTE: If cutting the strip into smaller pieces is required, then soldering is the only recommendation for reconnecting the 700 LED series.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (Warm White CCT: 2700K) with 3500 SMD 2110 high cri LEDs – IP00 (Non-Waterproof), 24V DC.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- 24V DC
- Warm White
- 24 watt per meter
- 2160 lm/m
- Number of LEDs per meter
- LED Strip Efficiency
- 90 lm/w
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- more than 90
- Width of strip
- FCP copper content
- 3 ounce double layer
- Cutting length
- Every 7 LEDs (1cm - 10mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 5 Years
- LED Chip
- SMD 2110
