2 pin strip to power cable connector for IP68 10mm LED Strips

Supports high current LED strips

For 10mm width IP68 single colour LED strips

8mm (inner pcb) - 10mm (outer with sleeve)

HL-SC-B10-IP68-200
85 Items In stock
Same Day Dispatch
£2.60

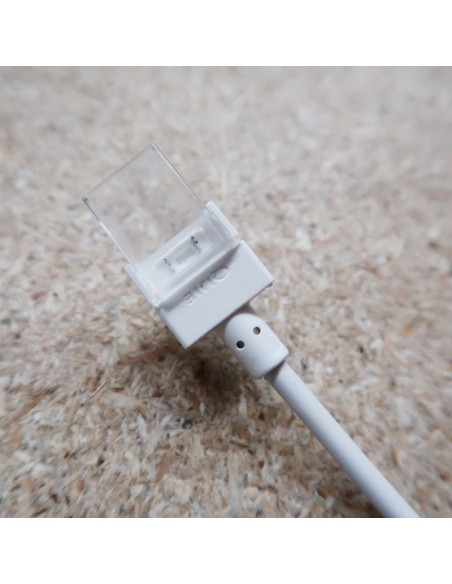

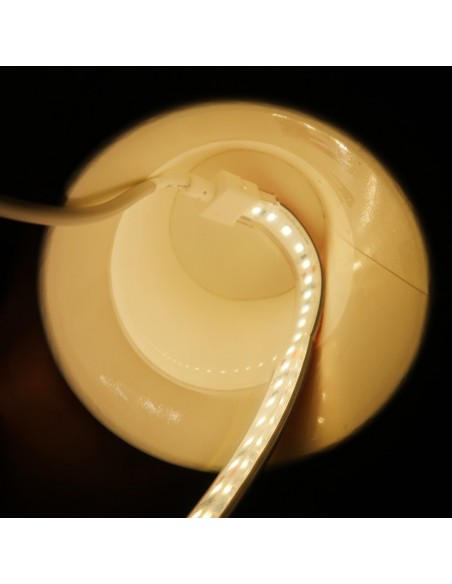

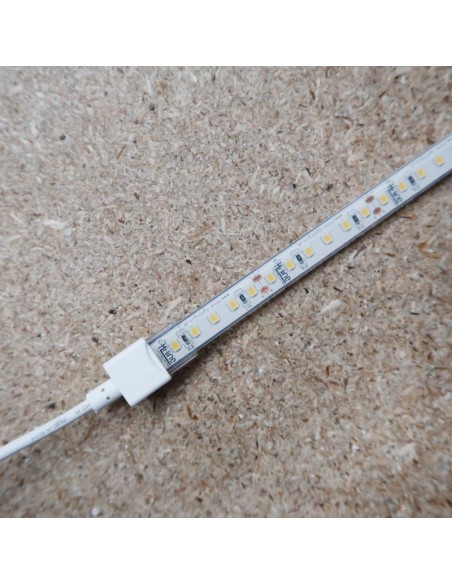

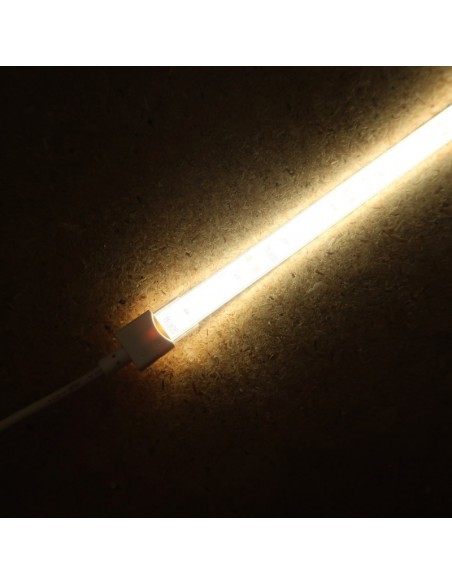

A strip to power connector with 200mm cable designed for 10mm wide IP68 single colour LED strips

Cut and power up IP68 waterproof LED strip without removing surface coating gel in seconds

This is a very high quality strip to 200mm wire connector suitable only for IP68 single colour 10mm wide LED strips.

Compatible with 30-120 LEDs/m IP68 single colour LED strips (8mm pcb strip width / 10mm total width with sleeve).

This connector is made of flame retardant material and supports high current LED strips!

The IP68 connectors are suitable for use with the gel coated (PU) 10mm IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).

Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.

To find out more, please see our article HERE and refer to the video also included on this page.

___________________________

Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!

______________________________



Technical Data

Size: L16mm X W16mm X H8mm

Wire lead: 200mm (2*20AWG/0.52mm2)

Colour: Transparent with white base

Number of Pin: 2

Suitable for Hi-Line's IP68 10mm single colour strips

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Package: 1pcs

Voltage
12-24V DC
Rating
IP68 (Underwater waterproof)
Width of PCB
8mm
Connector type
strip to power connector
Connector width
For 10mm LED strips
Number of terminals
2 pin (for single colour strips)
Brand
Hi-Line
