IP68 L-shape corner housing for 10mm single-colour LED tape

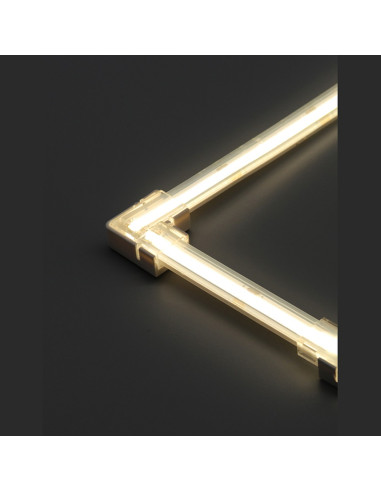

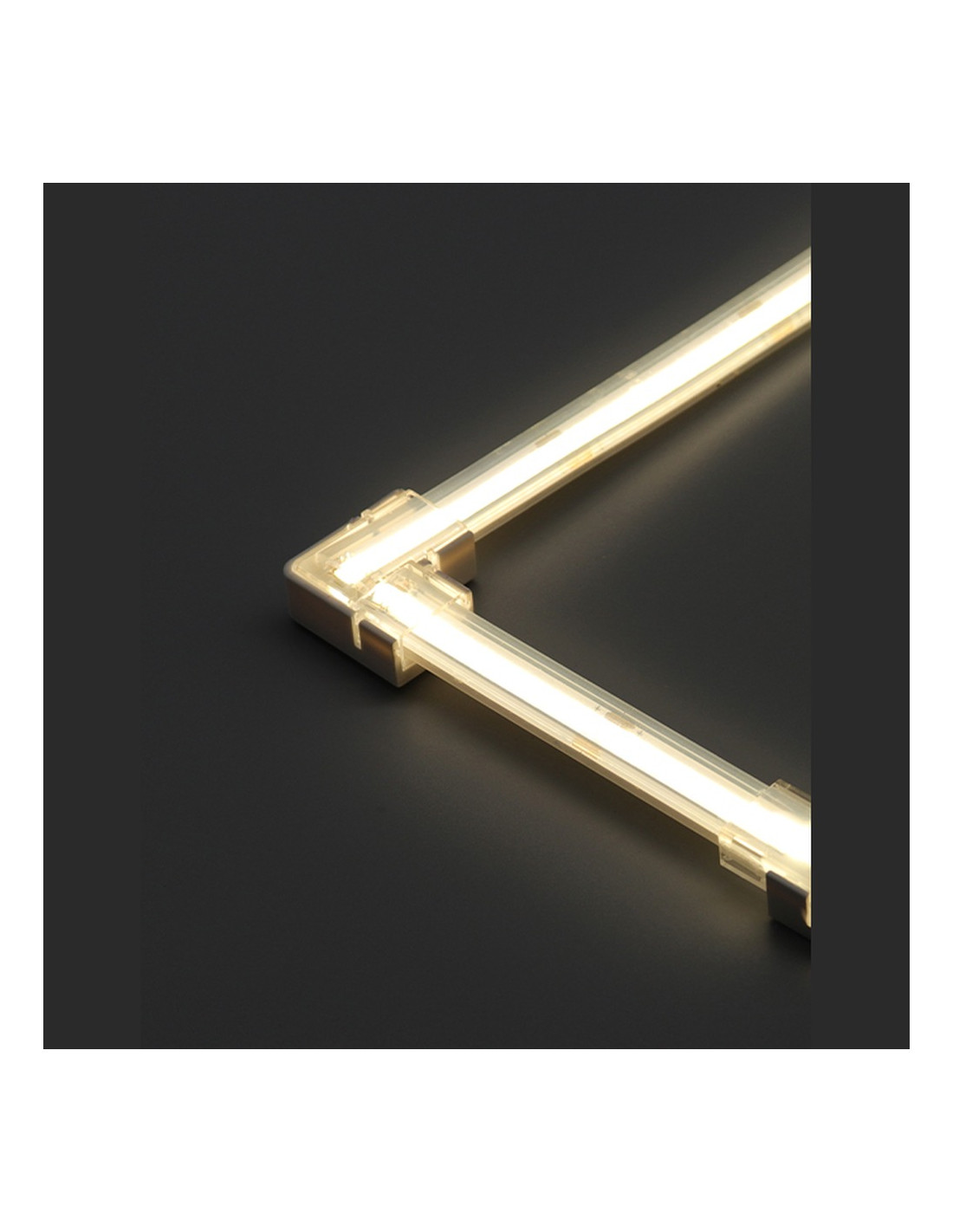

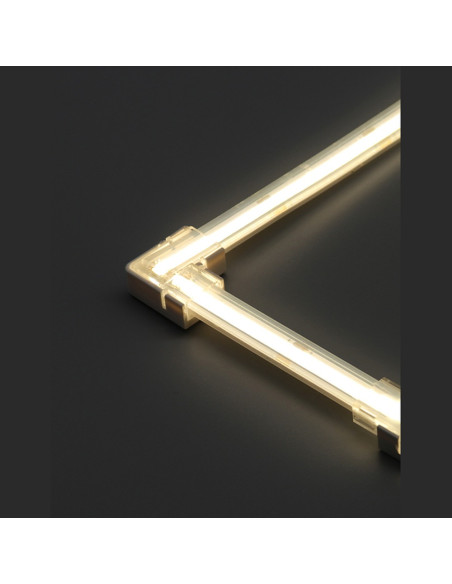

10mm IP68 single-colour LED tape turned through an L corner
  • New

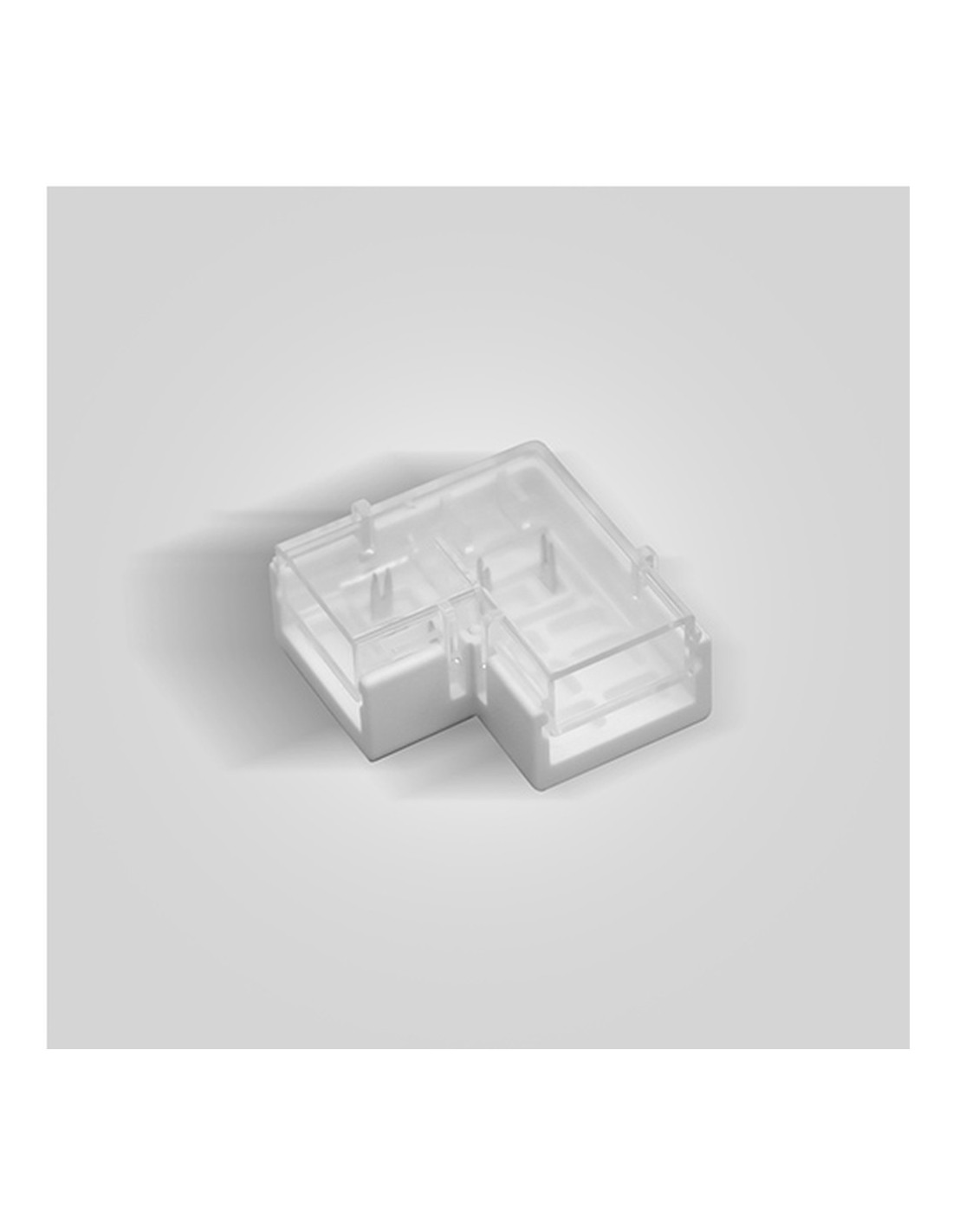

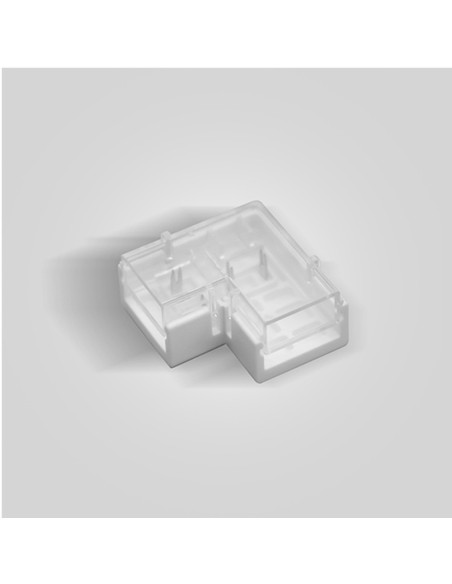

IP68 L-shape corner housing for 10mm single-colour LED tape
10mm IP68 single-colour LED tape turned through an L corner

IP68 L-shape corner connector for 10mm LED tape single colour

One 2-pin L connector for a 10 mm IP68 single-colour LED strip. It joins two cut ends at a right angle. The board inside the sleeve is 8 mm. Sold as one piece.

HL-SC-L10-IP68

Available to pre-order

This item is not in the warehouse at the moment. Add it to the basket and order as normal. We will use incoming stock if any is still free; otherwise delivery is typically 30–45 days.
BACKORDER
£3.00
(£
3.60
with VAT)
VAT excluded



This L connector joins two cut ends of a 10 mm IP68 single-colour LED strip at a right angle.

It is IP68. It fits the same gel-coated strips as the 200 mm power lead HL-SC-B10-IP68-200. The board inside the sleeve is 8 mm. The outside of the sleeve is 10 mm. It also fits Hi-Line's 10 mm IP68 COB strips of that size.

It has two pins, for a single-colour strip. It follows the strip supply, from 3 V to 24 V DC. There is no lead on this part. The two ends of the strip push into the clear housing.

It is for gel-coated IP68 strip. It does not fit IP00, IP20, IP54, IP65 or IP67 strip.

Sold as one piece. Five-year warranty.

Brand
Hi-Line
Connector type
L Shape - Corner
Connector width
For 10mm COB Strips
For 10mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP68 (Waterproof)
Voltage
3-24V DC
Warranty
5 Years
Width of PCB
8mm
Width of strip
10mm
