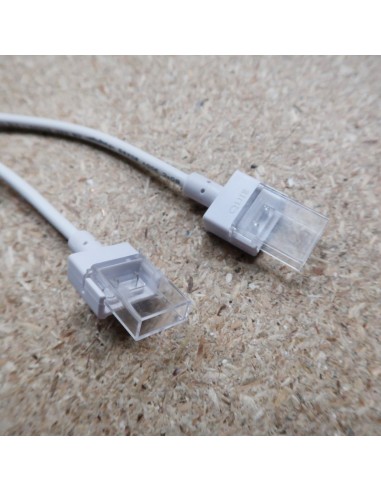

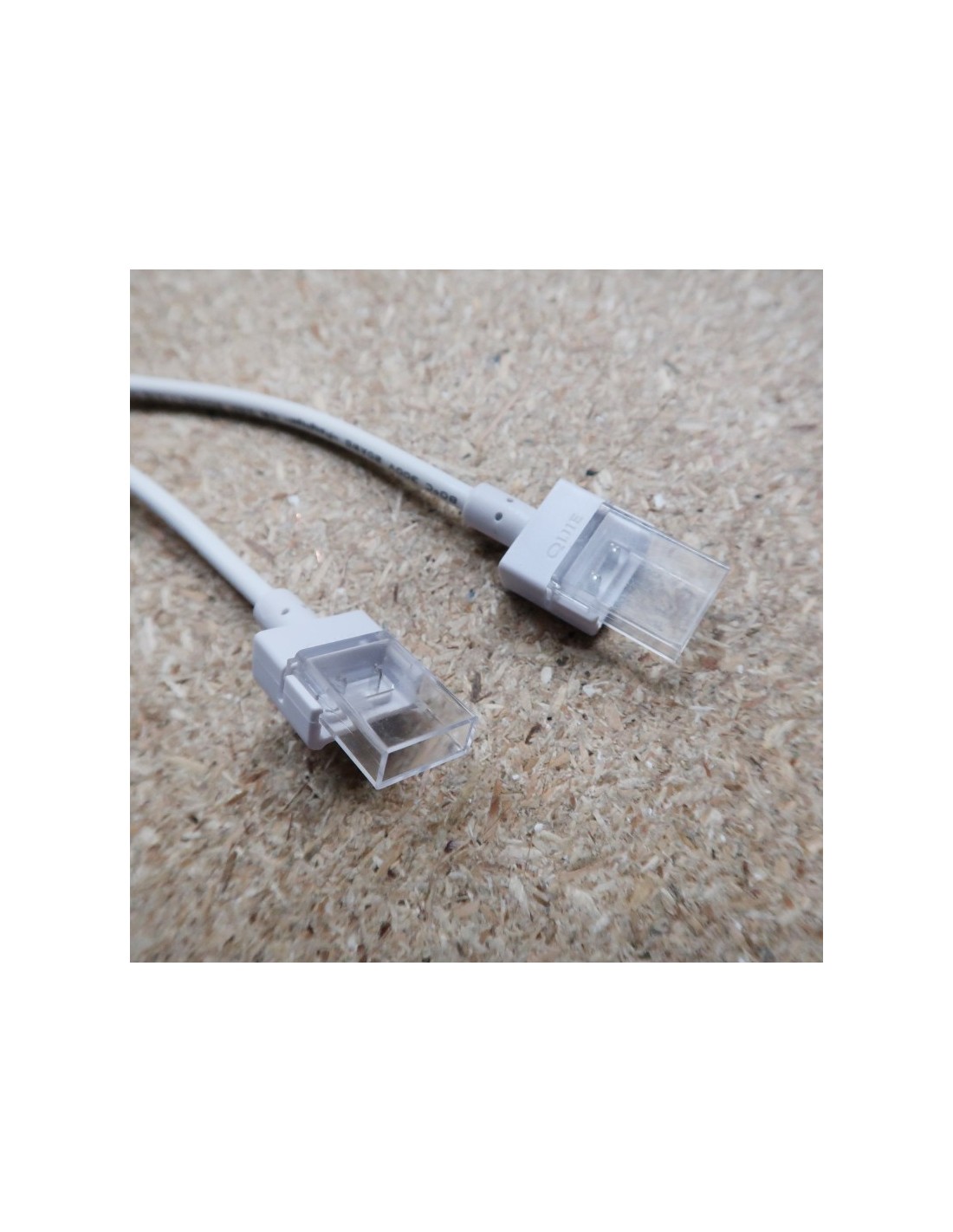

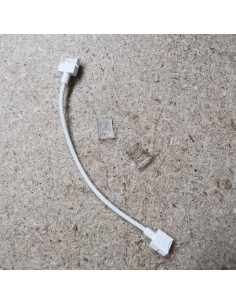

2 pin strip to strip 1000mm extension for IP68 10mm LED tape
Supports high current LED strips
For 10mm IP68 single colour LED strips
49 Item Items
Same Day Dispatch
Warning: Last items in stock!
|Rating||IP68 (Underwater waterproof)|
|Width of PCB||8mm|
|Connector type||strip to strip extension|
|Connector width||For 10mm LED strips|
|Number of terminals||2 pin (for single colour strips)|

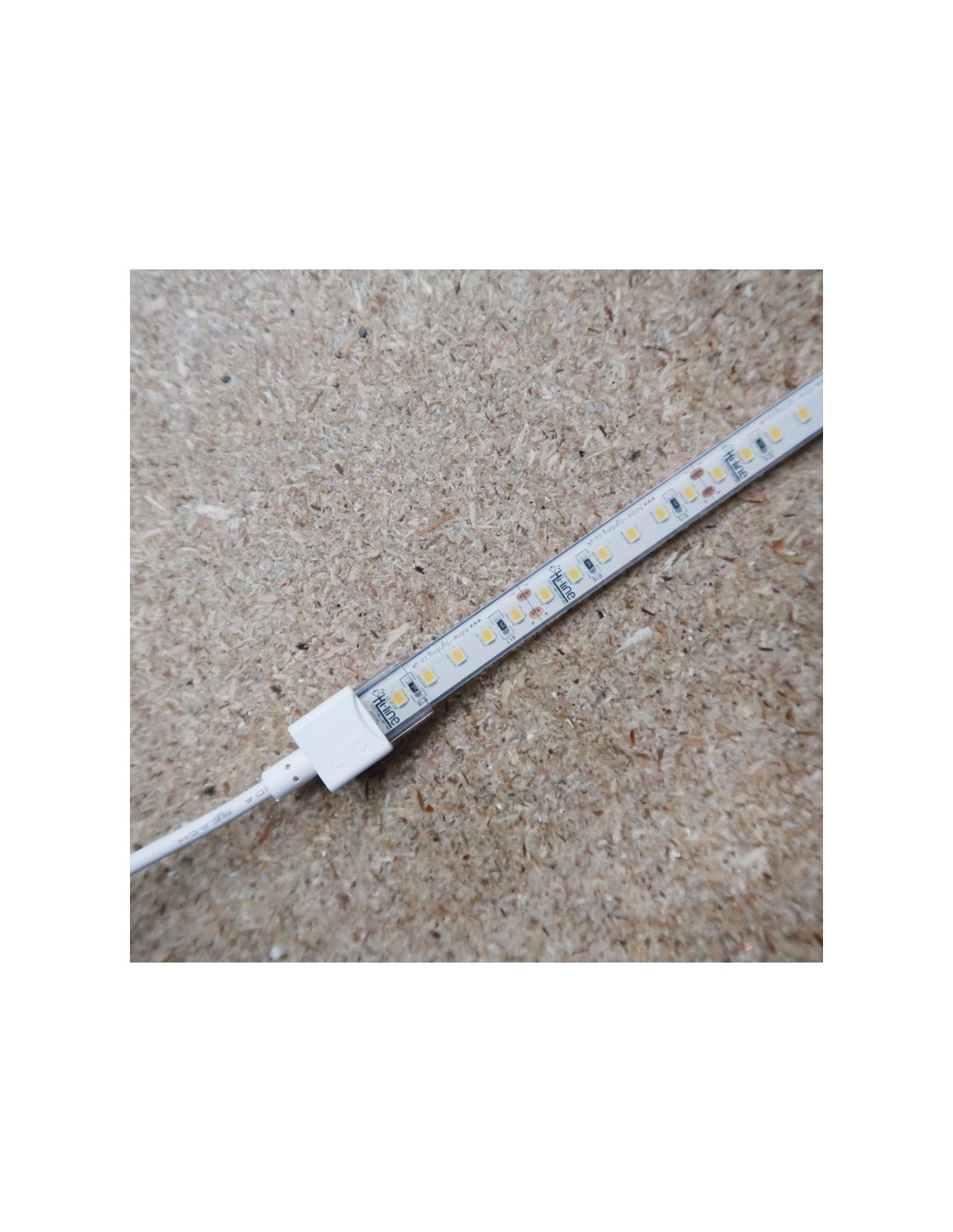

Cut and bridge IP68 waterproof LED strip without removing surface coating gel in seconds

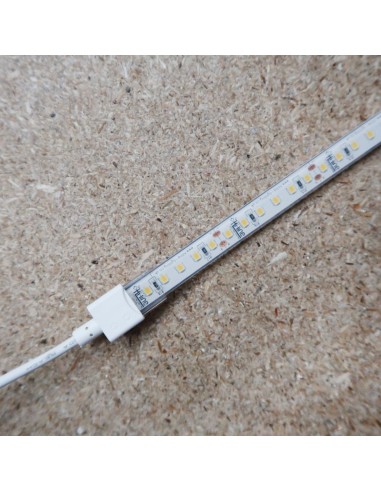

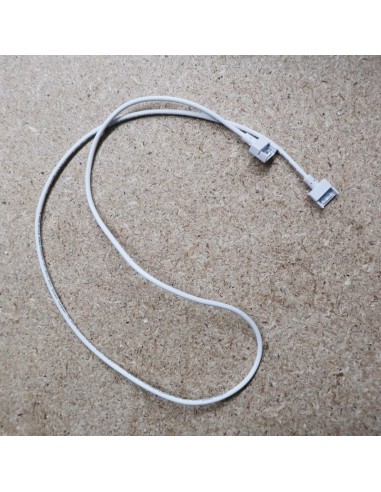

This is a very high quality strip to strip 1000mm wire bridge suitable only for IP68 single colour 10mm LED strips.
Compatible with 30-120 LEDs/m IP68 single colour LED strips (8mm pcb strip width / 10mm total width).
Connectors made of flame retardant material and supports high current LED strips!
The IP68 connectors are suitable for use with the gel coated (PU) 10mm IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).
Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.
To find out more, please see our article HERE and refer to the video also included on this page.
Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!

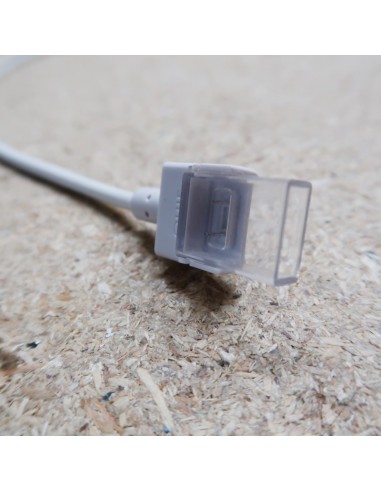

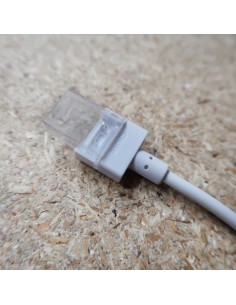

Size: L16mm X W18mm X H6mm

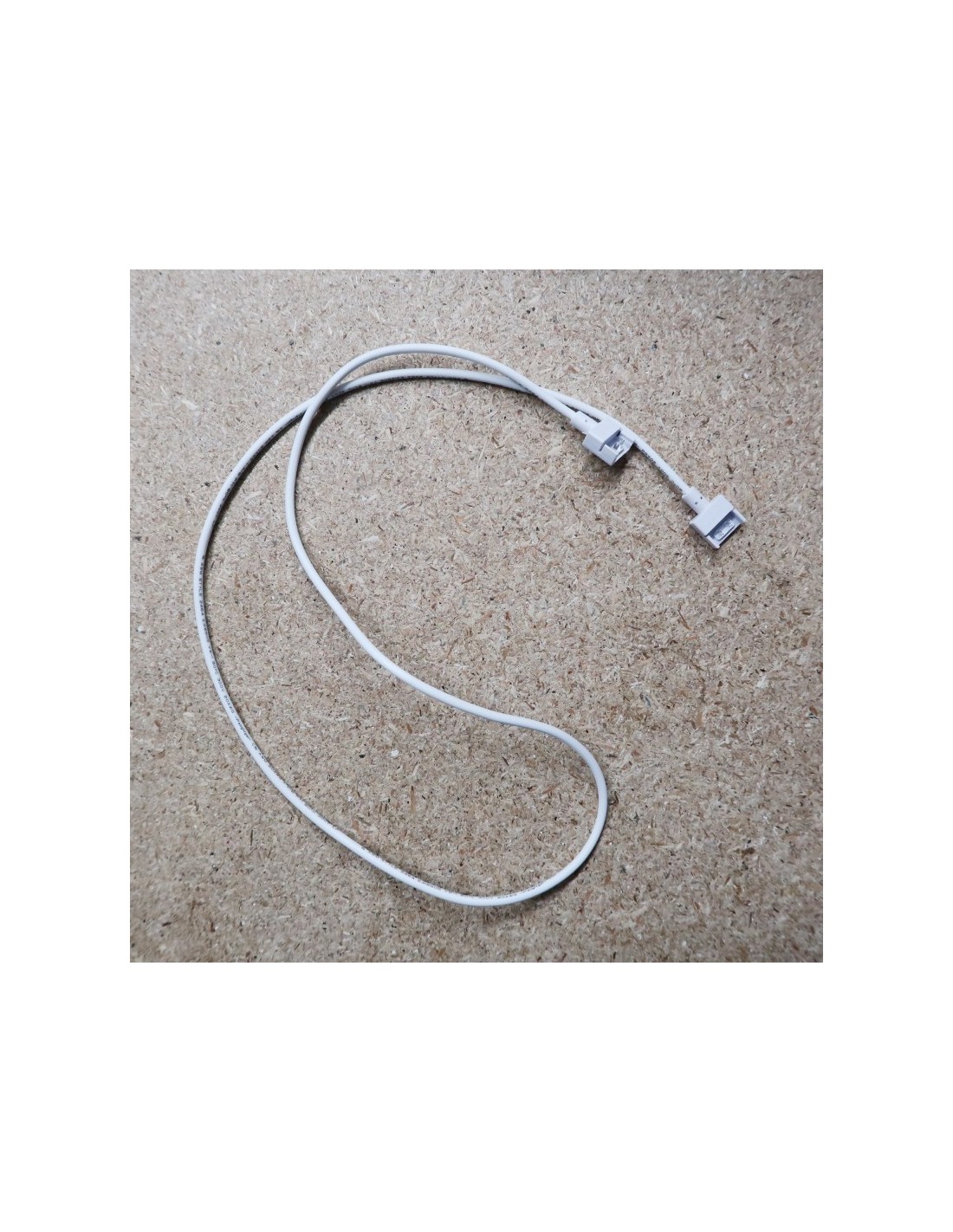

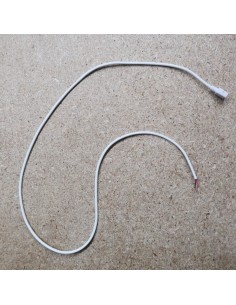

Extension wire lead length: 1000mm bridge (2*20AWG/0.52mm2)
Colour: Transparent with white base
Number of Pin: 2
Suitable for Hi-Line's IP68 10mm single colour strips
Connection hardware: High precision brass(Cu)
Voltage range: 12-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating
