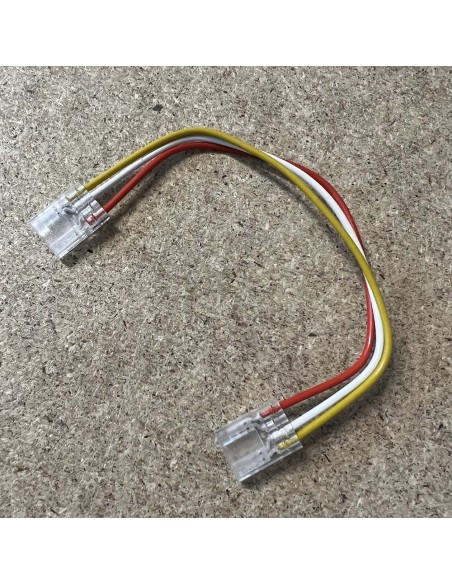

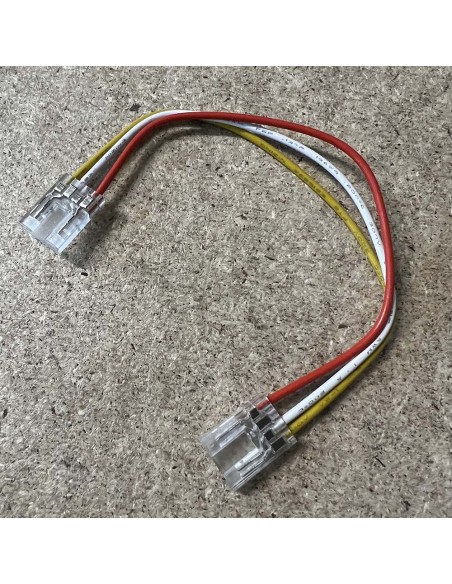

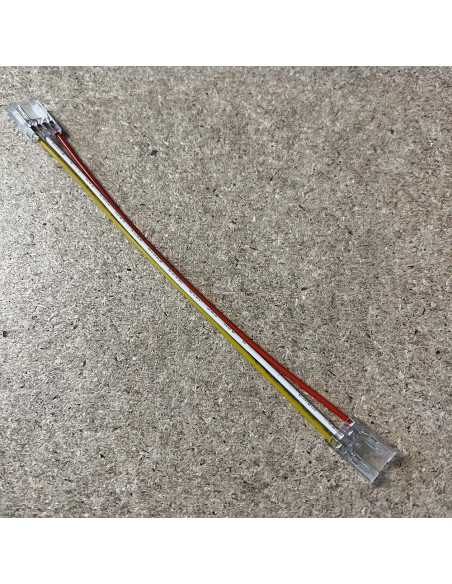

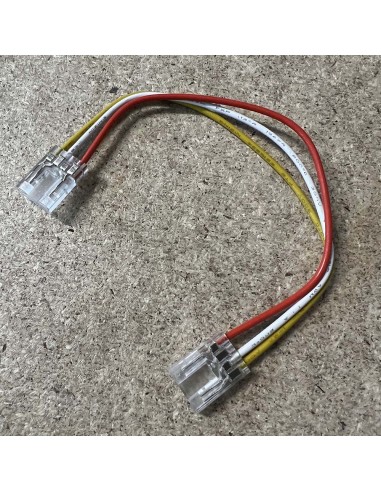

COB 3-Pin LED Strip-to-Strip connector
15cm Extension Kit for 10mm Adjustable Strips
COB LED Strip to strip 15cm Extension set for 10mm tunable white led strips
COB 3-Pin LED Strip-to-Strip connector
15cm Extension Kit for 10mm Adjustable Strips
COB LED Strip to strip 15cm Extension set for 10mm tunable white led strips

COB 3-Pin LED Strip-to-Strip 15cm Extension Kit for 10mm Adjustable Strips

  • 3 pin LED strip to strip connector set with 3 core wire bridge 150mm
  • 3-24V / 4.5A (Teflon 18 AWG (Red/White/Yellow cable)
  • To be used with adjustable white COB strips
  • Supports high current COB LED tape 10mm

Important Product Details

  • optional 250 char. max
HL-COB10-SSW-CCT-IP00
58 Items In stock
Next working day delivery
£3.50
4.20
with VAT)

Quantity Unit price You Save
25 £3.33 £4.38
50 £3.15 £17.50
100 £2.98 £52.50
200 £2.80 £140.00


Introducing the COB 3-Pin 4.5A Teflon 18 AWG (Red/White/Yellow) LED Strip-to-Strip 15cm Extension Kit, a must-have accessory for those looking to customize and enhance their LED lighting projects. This extension kit has been specifically designed for 10mm tunable LED strips, offering a seamless and secure connection between strip segments.

Key Features:

3-Pin Design: The COB 3-Pin connector ensures a reliable and stable connection between your LED strip segments.

15cm Extension Length: The 15cm extension cable provides ample length to bridge gaps, route around corners, or create custom configurations in your lighting design.

10mm Strip Compatibility: Designed to work with 10mm tunable LED strips, this extension set ensures a perfect fit for your strip lighting projects.

Easy Installation: The plug-and-play design makes installation a breeze; simply connect the extension between your LED strip segments and enjoy your customized lighting.

Versatile Applications: This extension kit is ideal for various lighting projects, including accent lighting, cove lighting, under cabinet lighting, and more.

Upgrade your LED lighting projects with the COB 3-Pin LED Strip-to-Strip 15cm Extension Kit for 10mm adjustable strips. With its user-friendly design and compatibility with 10mm tunable LED strips, this extension kit is the perfect addition to your lighting solutions. Transform your space with the flexibility and convenience this extension set has to offer.


Technical Data

Size: L11mm X W16mm X H4mm

Colour: Transparent

Number of Pin: 3

Connection hardware: High precision brass(Cu)

Voltage range: DC 3-24V

Maximum current: 4.5A

Min. LED Strip Thickness: >0.2mm

Wire gauge: 18 AWG / 0.75 mm² (200 °C)

Working temperature: ≦60°C

Normal Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1set

Looking for Related Products or Accessories?

Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Brand
Hi-Line
Connector type
strip to strip extension
Connector width
For 10mm COB Strips
Number of terminals
3 pin (tunable white or pixel strips)
IP Rating
IP00 (Non-waterproof)
Voltage
3-24V DC
