The watts per metre on this page are the total for every channel together. The common positive, usually the black wire, carries that whole current. Each colour return carries only its own share. Connector length, and the cross-section of any long feed, are set by the common wire. The calculation for RGB, RGBW, tunable white and RGB+CCT is in our guide to common anode current on colour-changing LED strip.

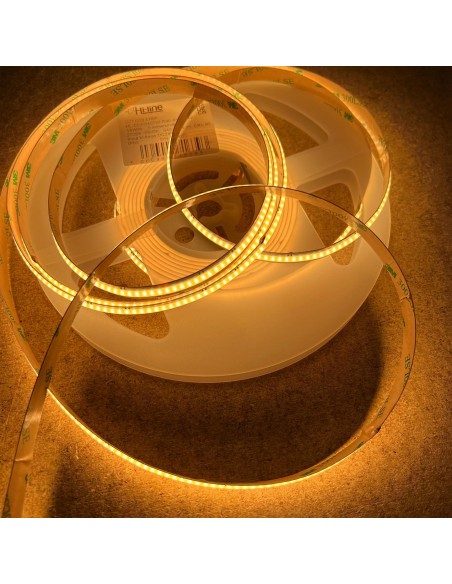

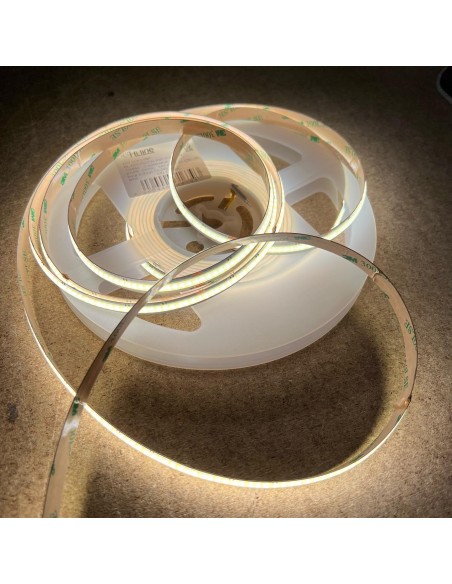

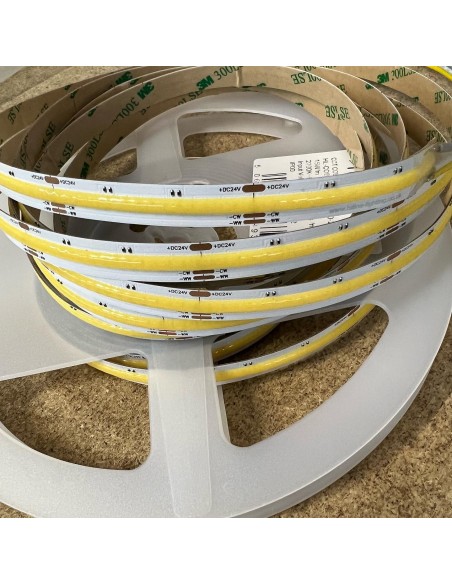

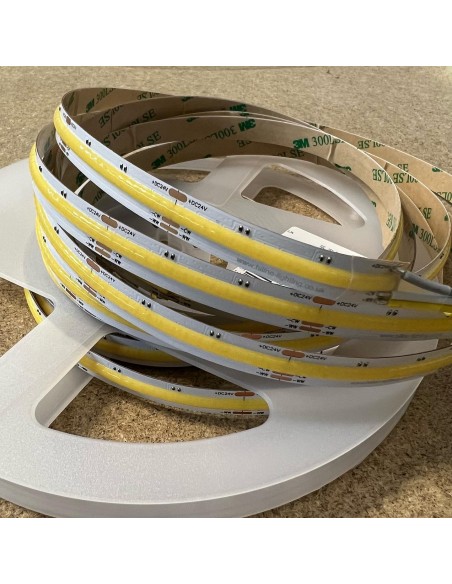

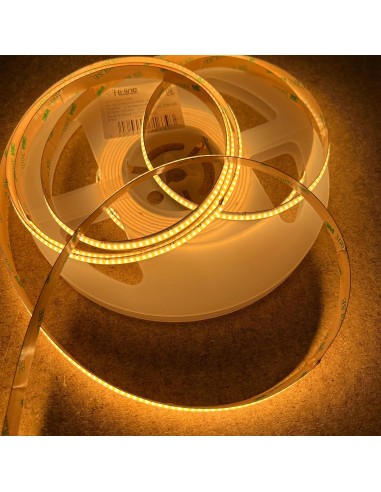

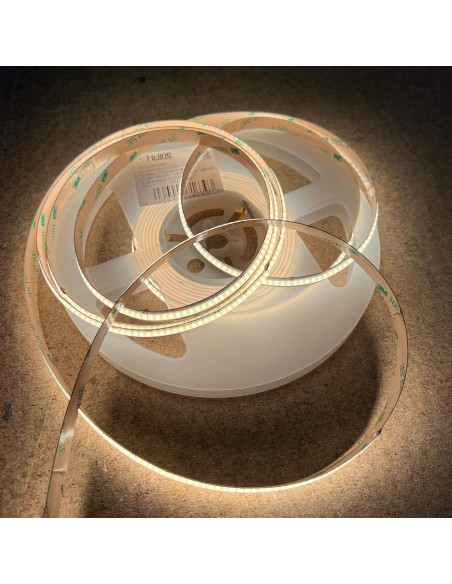

Experience superior illumination with Hi-Line Lighting's COB Dotless Tunable White LED Strip. Our 5m roll sets the standard in LED technology, featuring a unique single chip per LED design. Unlike cheaper, lower-quality alternatives that use double chips - requiring both warm and cold white powders, leading to inconsistent colour - our single-chip approach guarantees superior colour consistency and quality.
We further enhance product longevity by positioning resistors externally, a feature absent in lower-cost alternatives. This strategic placement enhances cooling and ensures a longer lifespan for our LED strip.
Our product boasts 640 COB LEDs per metre and an adjustable colour temperature that ranges from a warm 2700K to a cool 6500K. Each warm and cool white channel emits a robust luminous flux of 800 lumens per metre while consuming 7.5W per 340 LEDs per metre, bringing the total power output to an impressive 15W/m.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Key Specifications:
Length: 5m roll
LED Density: 640 COB LEDs/m
Adjustable Colour Temperature: 2700K to 6500K
Luminous Flux: 800 lumens/m per channel, Total - 100 lm/w
Power Output: 7.5W per 340 warm white LEDs/m + 7.5W per 340 cool white LEDs/m, Total - 15W/m
Voltage: 24V
Cuttable: Every 50mm
Mounting: 3M self-adhesive tape at the back
Wires: Pre-soldered 15cm wires at both ends (Grey = +, Yellow = Warm White, White = Cool White)
CRI: Ra >90
Width: 10mm wide FPC
IP Rating: IP00
Warranty: Standard 3 Years. Any coverage beyond 3 years is offered only as Extended Warranty and is valid exclusively with an official Hi-Line certificate. Extended cover requires a full review of the project including technical design, installation details, environment and installer credentials, and may reach up to 7 Years in carefully approved cases.
Given the high-power output, we strongly recommend installing this LED strip on an aluminium bar to ensure optimal cooling and longevity. The strip comes pre-soldered with wires (Grey = +, Yellow = Warm White, White = Cool White) at both ends, is cuttable every 50mm and features a 3M self-adhesive tape for easy mounting.
Hi-Line Lighting's philosophy revolves around uncompromising commitment to quality. Unlike other manufacturers that might use cheaper double-chip LEDs and internal resistors, we invest in single-chip LEDs and external resistors. This attention to detail and refusal to compromise on quality manifests in our COB Dotless Tunable White LED Strip, backed by a 3-year warranty. Choose Hi-Line Lighting for outstanding, long-lasting lighting solutions.
