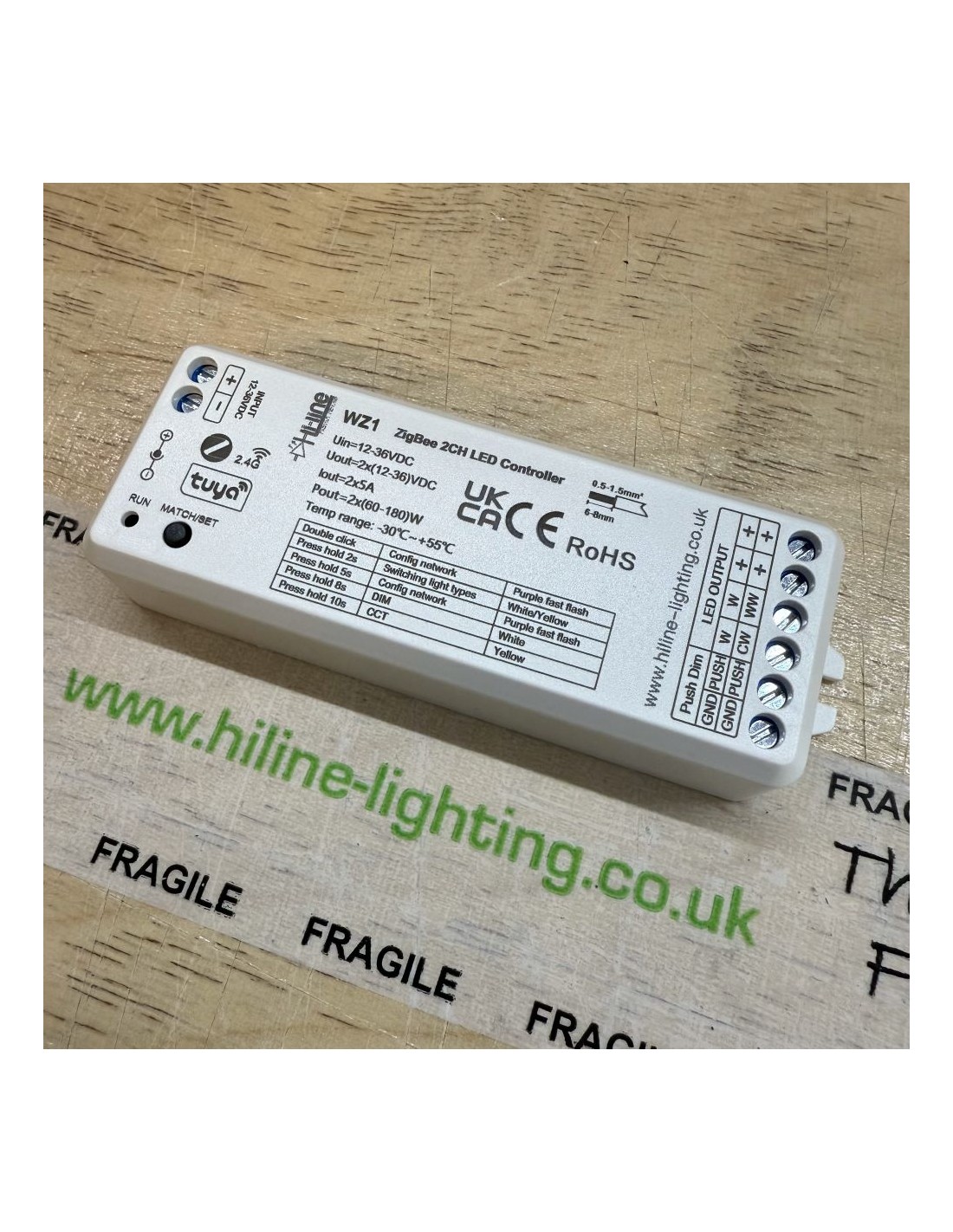

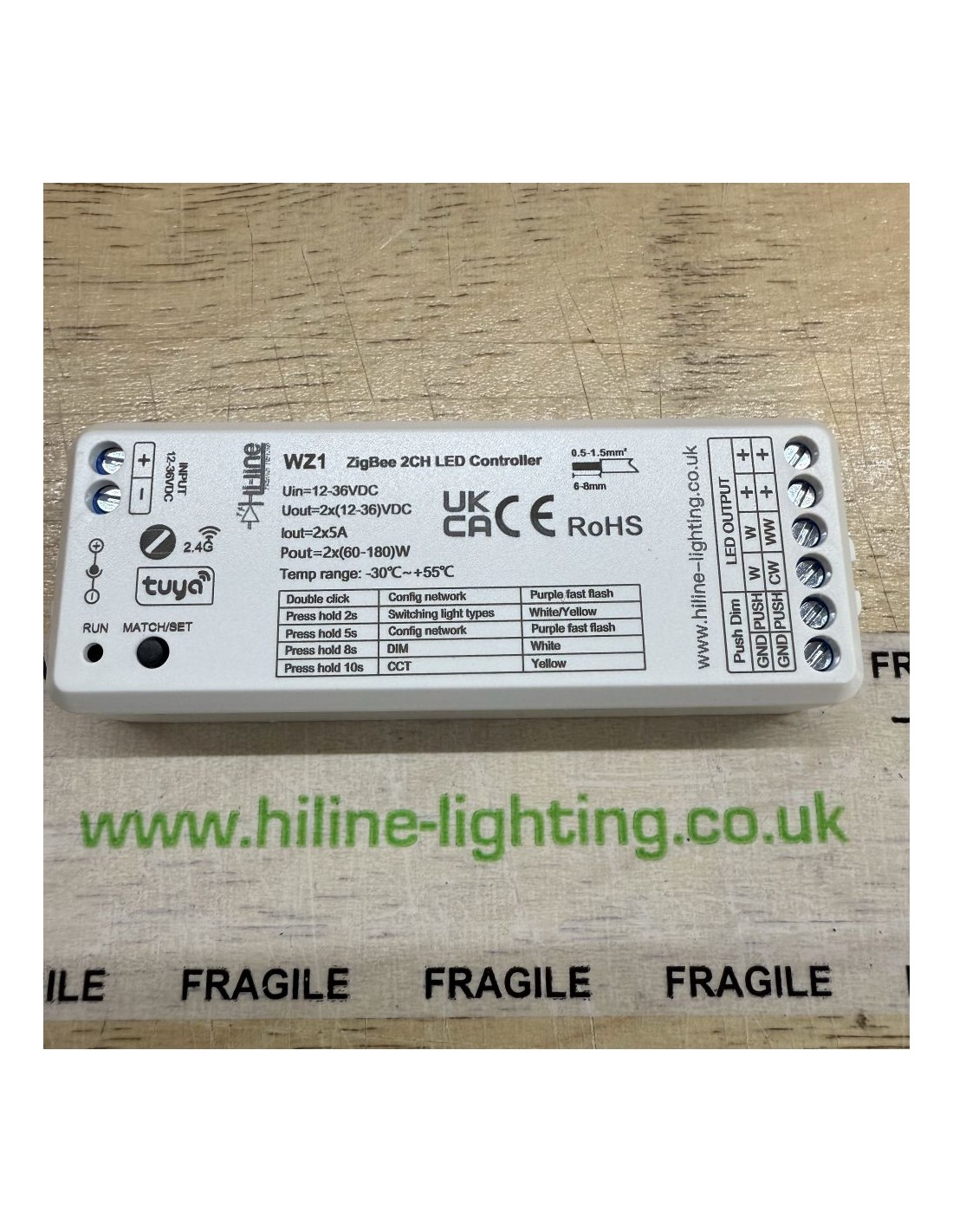

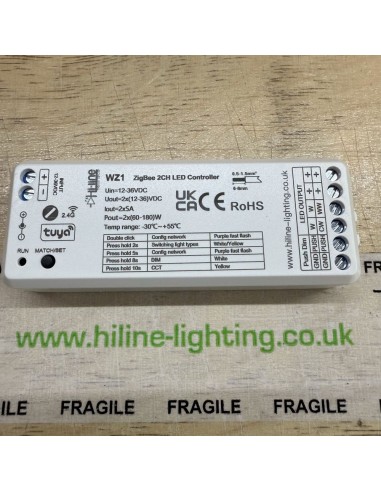

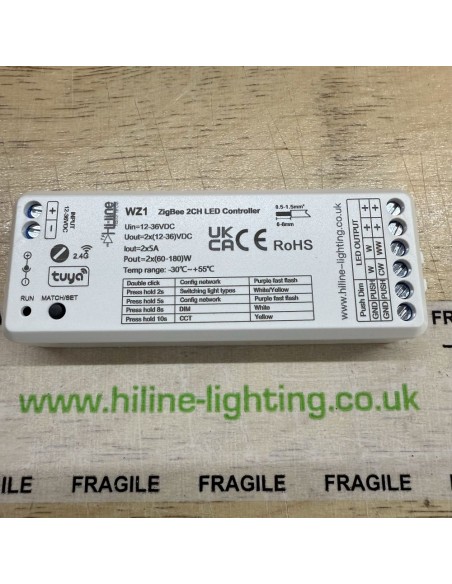

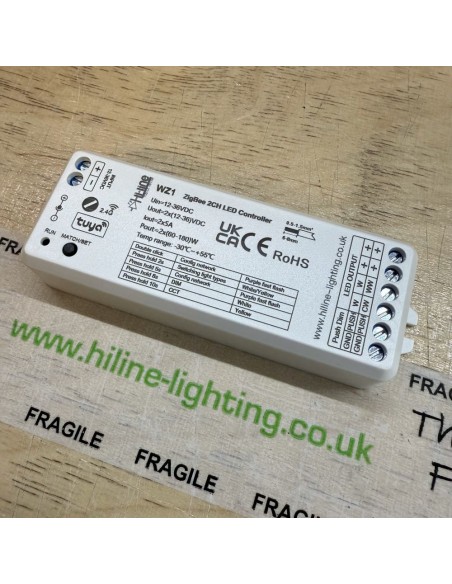

ZigBee & RF LED Controller – WZ1
Smart dual-channel controller for both single colour and tunable white (CCT) LED strips – fully compatible with ZigBee, RF remotes, push switches, and the Tuya Smart app. Use it as a smart device or just a classic wall dimmer.
ZigBee is optional – if you don’t need app or voice control, WZ1 works perfectly with a simple RF remote or standard wall switch for dimming and on/off. No gateway or smart setup is required.
Push switch ready – connect a standard push-button wall switch to control power and dimming directly (0–100%) with smooth fade on/off. Long press adjusts brightness or colour temperature depending on mode.
Not sure whether to choose WZ1 or WZ5?
WZ1 delivers 2 channels at 5A each, ideal for high-output single colour or tunable white LED strips.
If you don’t need RGB/RGBW/RGB+CCT control, this is the smarter choice – WZ1 handles more power per channel than WZ5 (which offers 5 channels at 3A each).
Quick Overview
For: Single Colour or Tunable White (CCT) LED strips
Control: Tuya Smart App, Philips Hue, ZigBee, RF remote, push switch, or voice control
Best for: Powerful 2-channel setups where simplicity or high output is preferred over multicolour control
Product Description
Versatile Control Compatibility
Supports ZigBee 3.0 and RF 2.4GHz technologies. Works with the Tuya Smart app, Philips Hue (via Hue Bridge), and optional RF remote controls. Also supports Amazon Alexa, Google Assistant, Tmall Genie, and Xiaodu.
Dual Mode Configuration
Controls either single-colour or tunable white (CCT) LED strips. Light type can be switched using the Match/Set button before setup. The device will operate in either 'DIM' mode (for single colour) or 'CCT' mode (for tunable white), automatically adapting to the selected type.
Smart App & Voice Integration
Tuya Smart App gives full access to brightness, colour temperature, scenes, timers, and music sync lighting. With a Tuya ZigBee Gateway, you can enable voice control and remote access.
ZigBee to RF Bridge Capability
WZ1 can act as a ZigBee-RF signal converter, enabling you to control additional RF dimmers or RF LED drivers through the Tuya Smart App – ideal for expanding into multi-zone lighting setups.

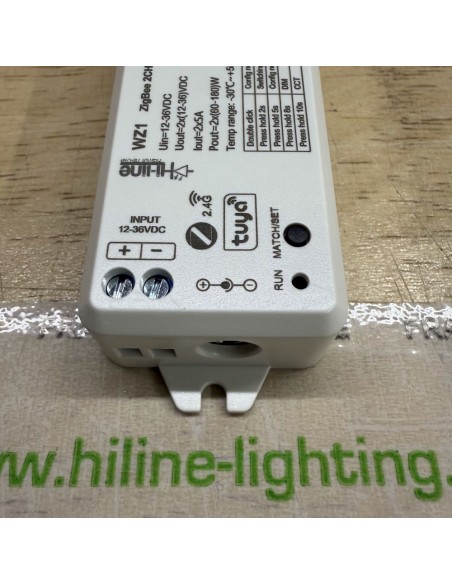

Push Switch Support

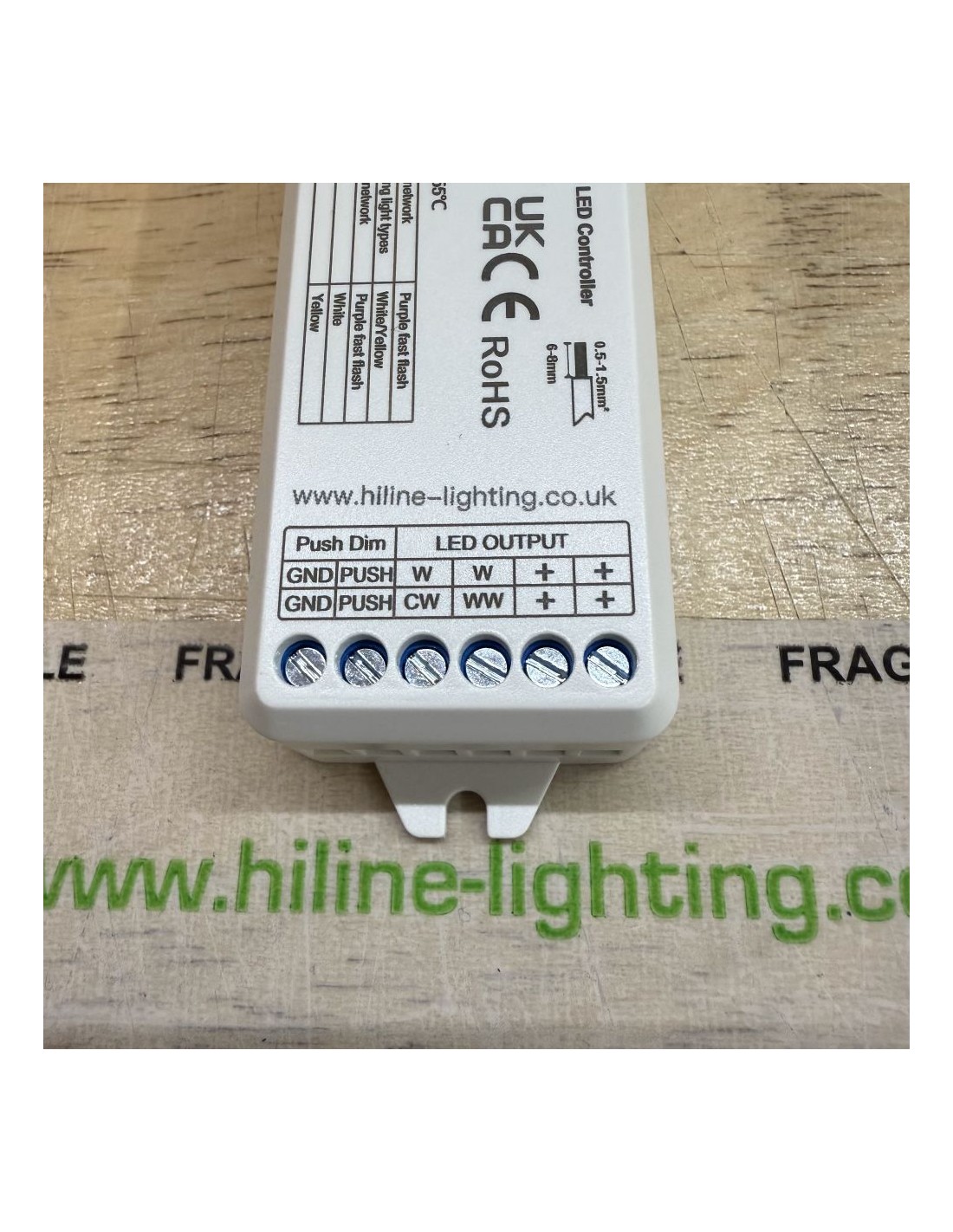

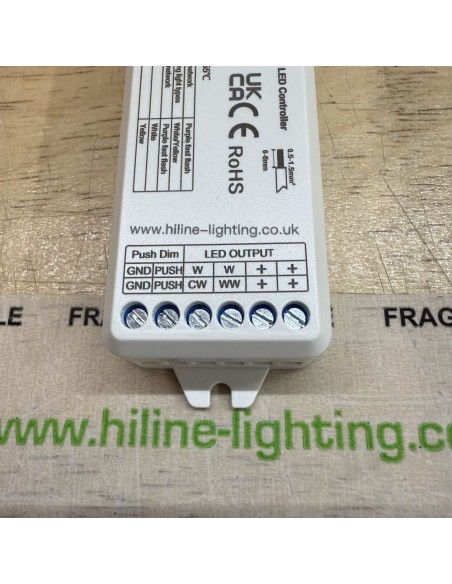

Push-dim input terminals support wall-mounted switches for local dimming and on/off control, including fade-in/out transitions and toggle between full brightness and night mode.
Smooth Dimming & Scene Control
Supports 4096-level dimming, flicker-free output at 2000Hz PWM frequency, and soft on/off fading (0.5s or 3s configurable). Suitable for both residential and commercial installations.

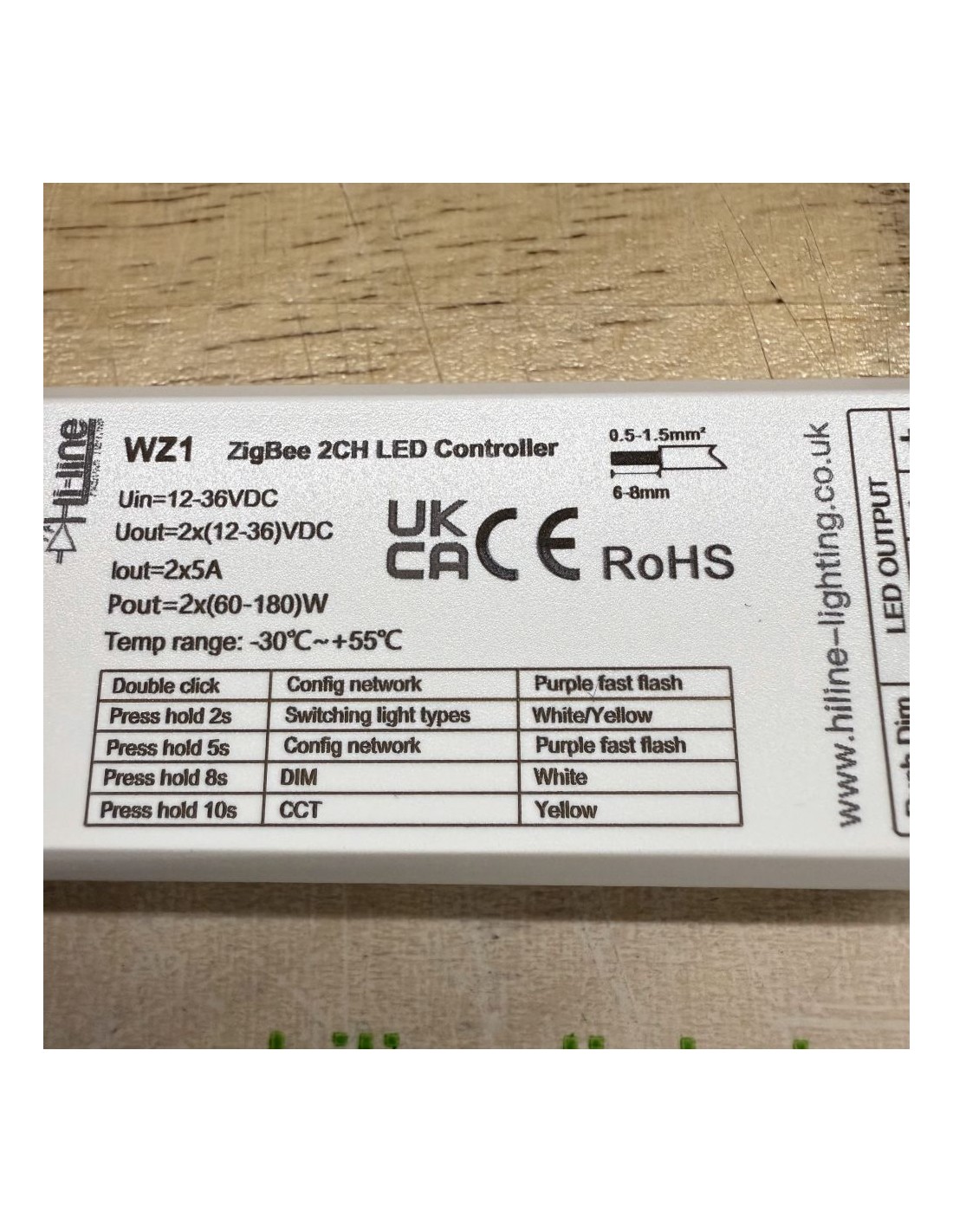

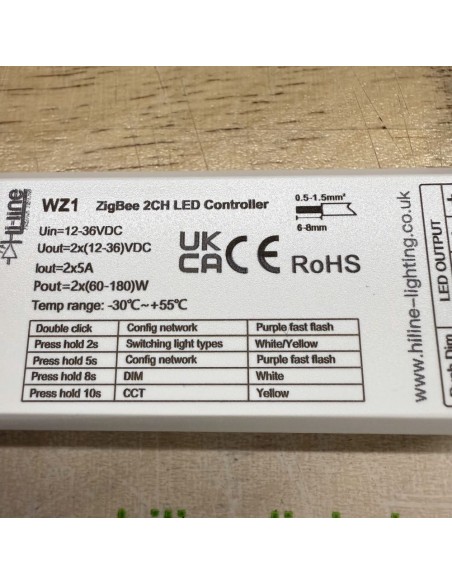

Technical Specifications

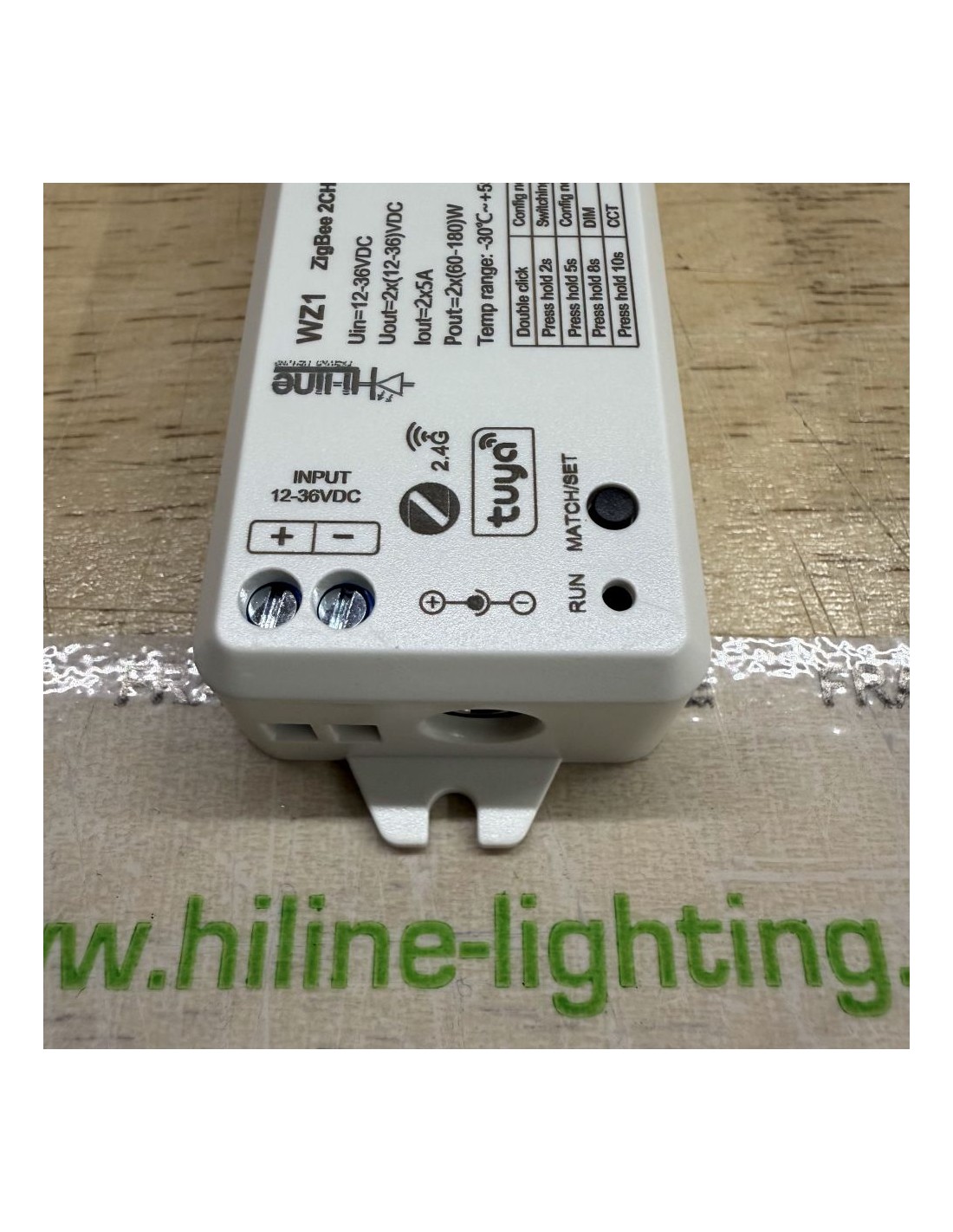

Input Voltage: 12–36V DC
Output Voltage: 2x (12–36)V DC
Max Output Power: 2x 180W
Output Current: 2 channels, 5A each
Dimming Range: 0–100%
Dimming Curve: Logarithmic
PWM Frequency: 2000Hz
Control Distance: Up to 30m (RF, open space)
Operating Temperature: -30°C to +55°C
Dimensions: L120 x W43 x H27mm
Weight: 0.055kg
Certifications: UKCA, CE, EMC, RED
Warranty: 3 years standard, extendable to 5 years with our extended warranty option.
Protections: Reverse polarity, overheat, short circuit
