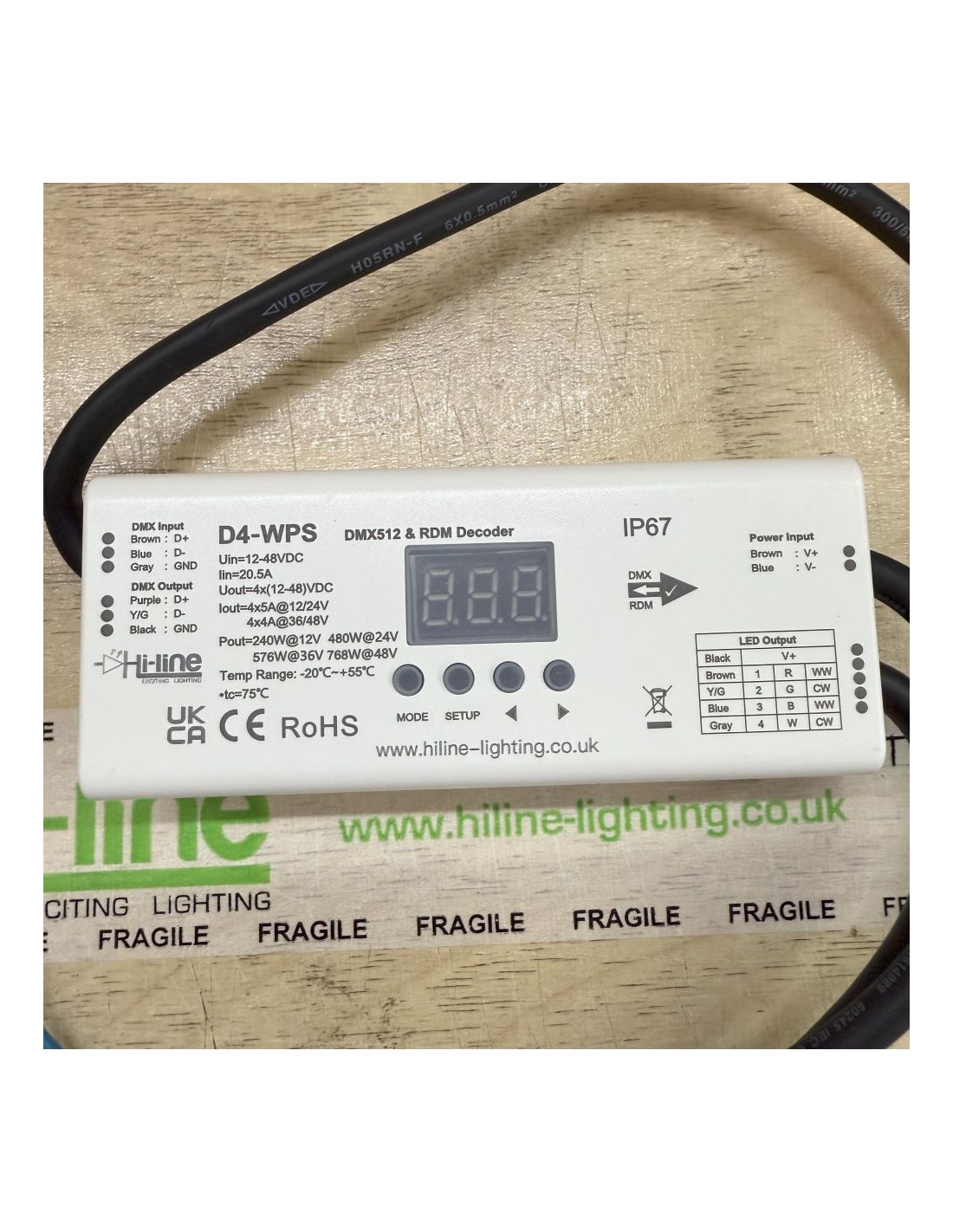

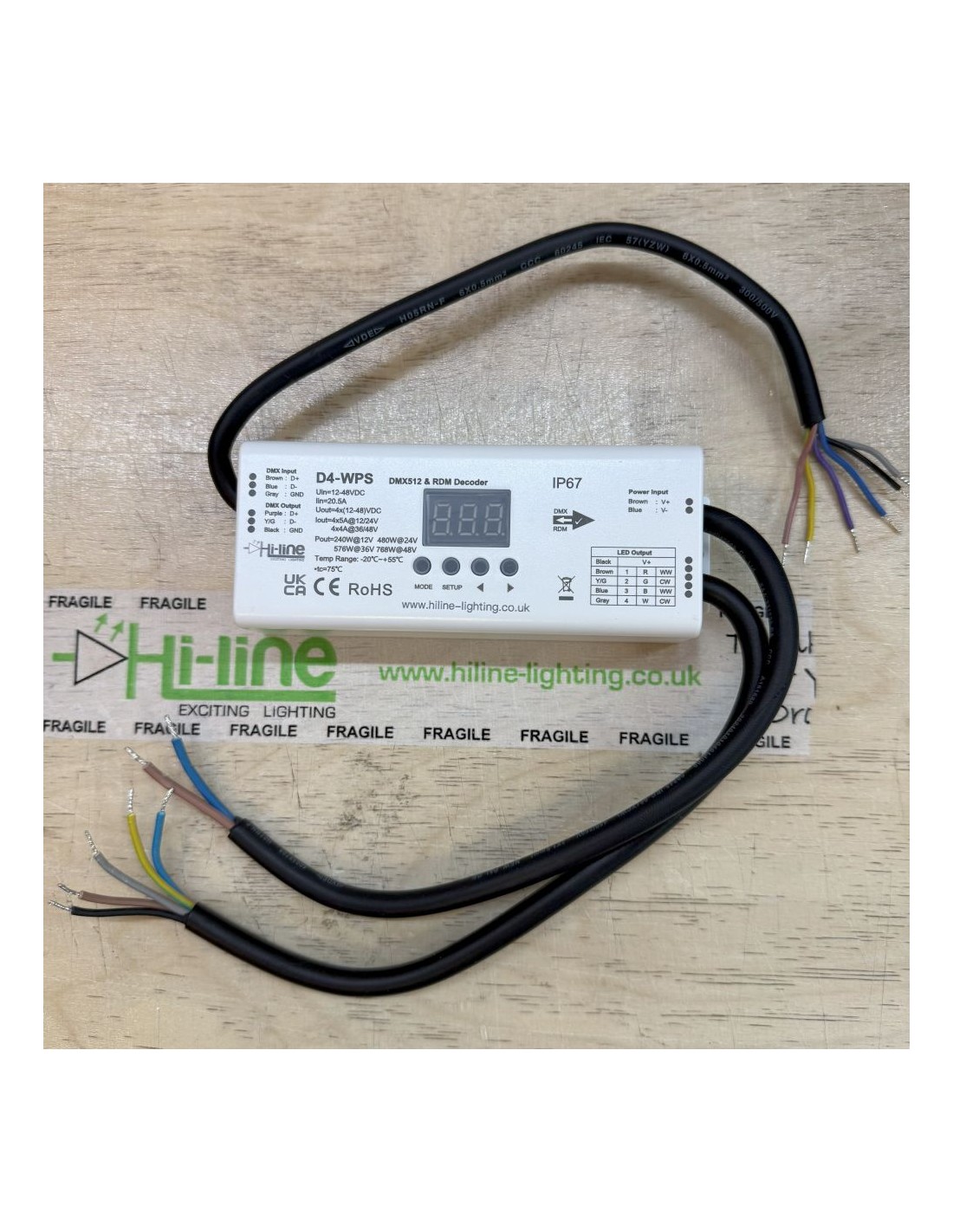

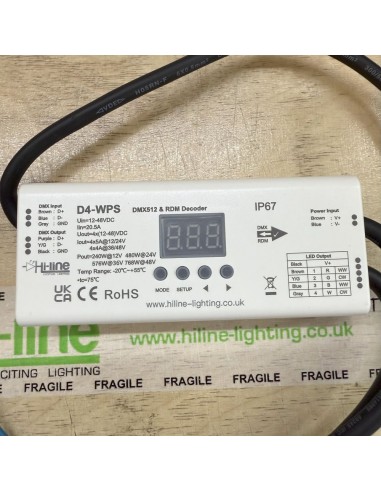

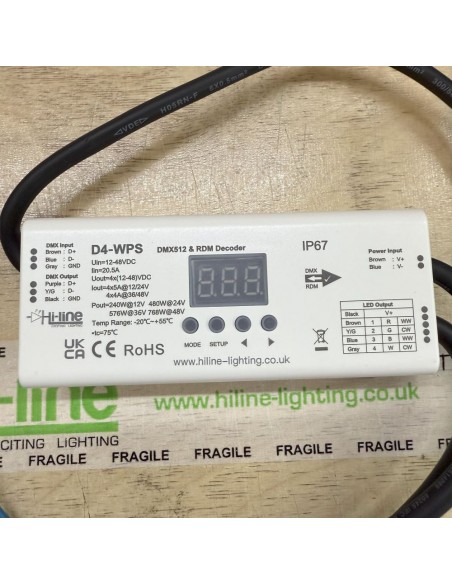

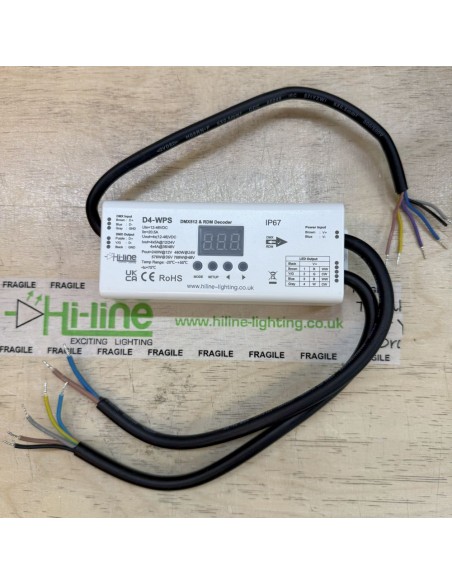

This DMX512 decoder features a fully waterproof IP67-rated design, making it suitable for outdoor and demanding environments. Compatible with both DMX512 and RDM protocols, it offers selectable output for 1, 2, or 4 channels and supports both 8-bit and 16-bit dimming levels depending on the DMX master. The unit allows PWM frequency adjustment from 250Hz up to 32,000Hz, offering flexibility for installations including those involving video applications that require flicker-free performance.
The device includes selectable dimming curves (linear or logarithmic), and built-in stand-alone modes for RGB, RGBW, or 4-channel dimmer control. These can operate without an external DMX signal using internal presets. Users can easily configure DMX address, grey level, PWM frequency, dimming curve, and other parameters via the integrated LED display and onboard control buttons.
Robust internal protections include reverse polarity, over-temperature, overload, and short circuit, with automatic recovery. A factory reset function allows rapid configuration restore. This model is suitable for RGBW LED strip applications requiring professional-grade constant voltage control and is fully certified for use in commercial environments.

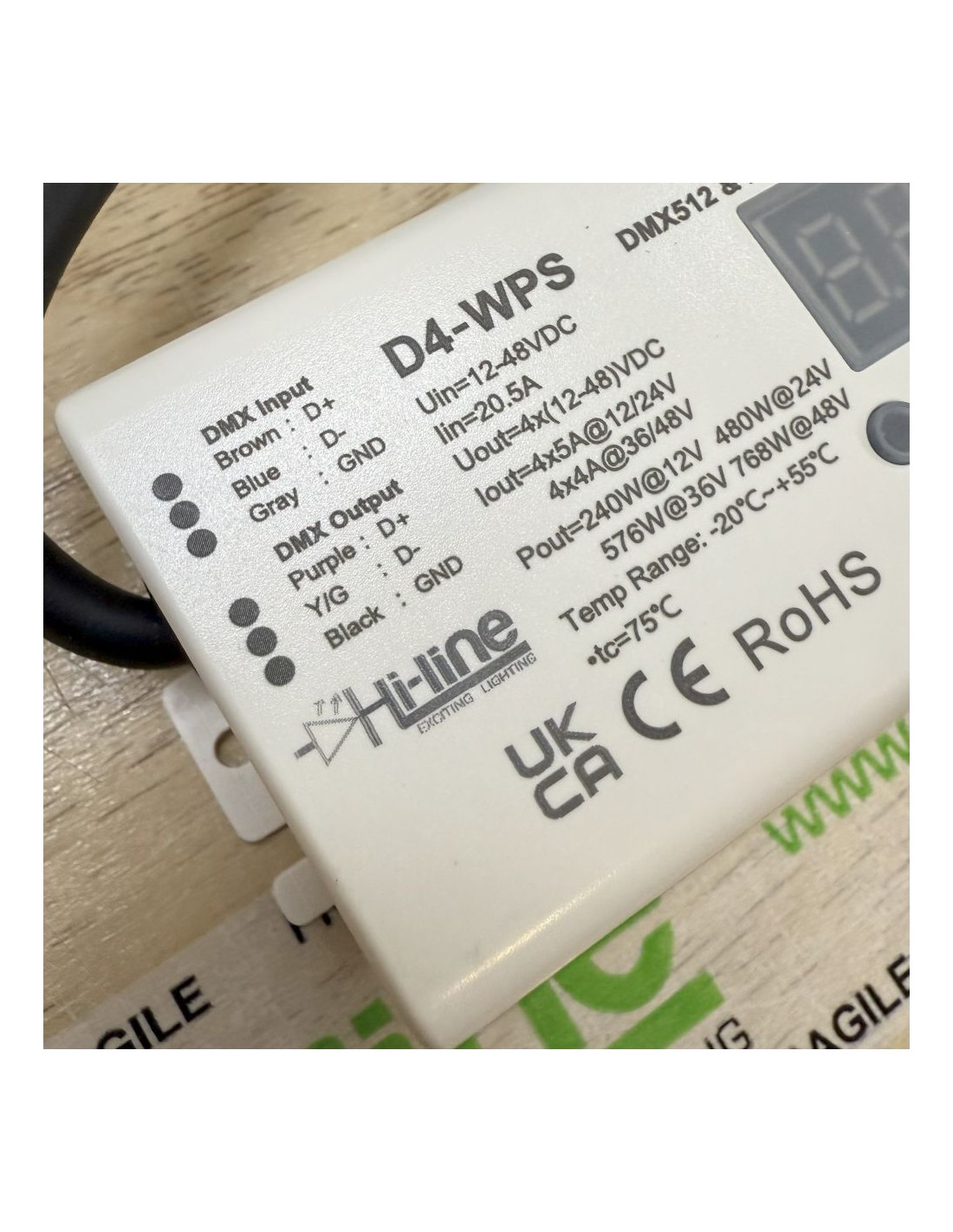

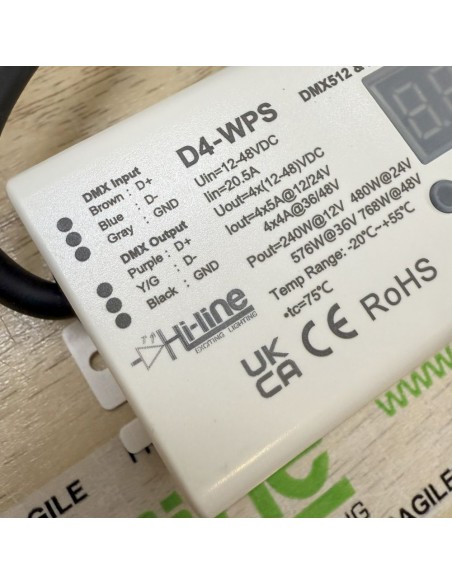

Input Voltage: 12–48VDC

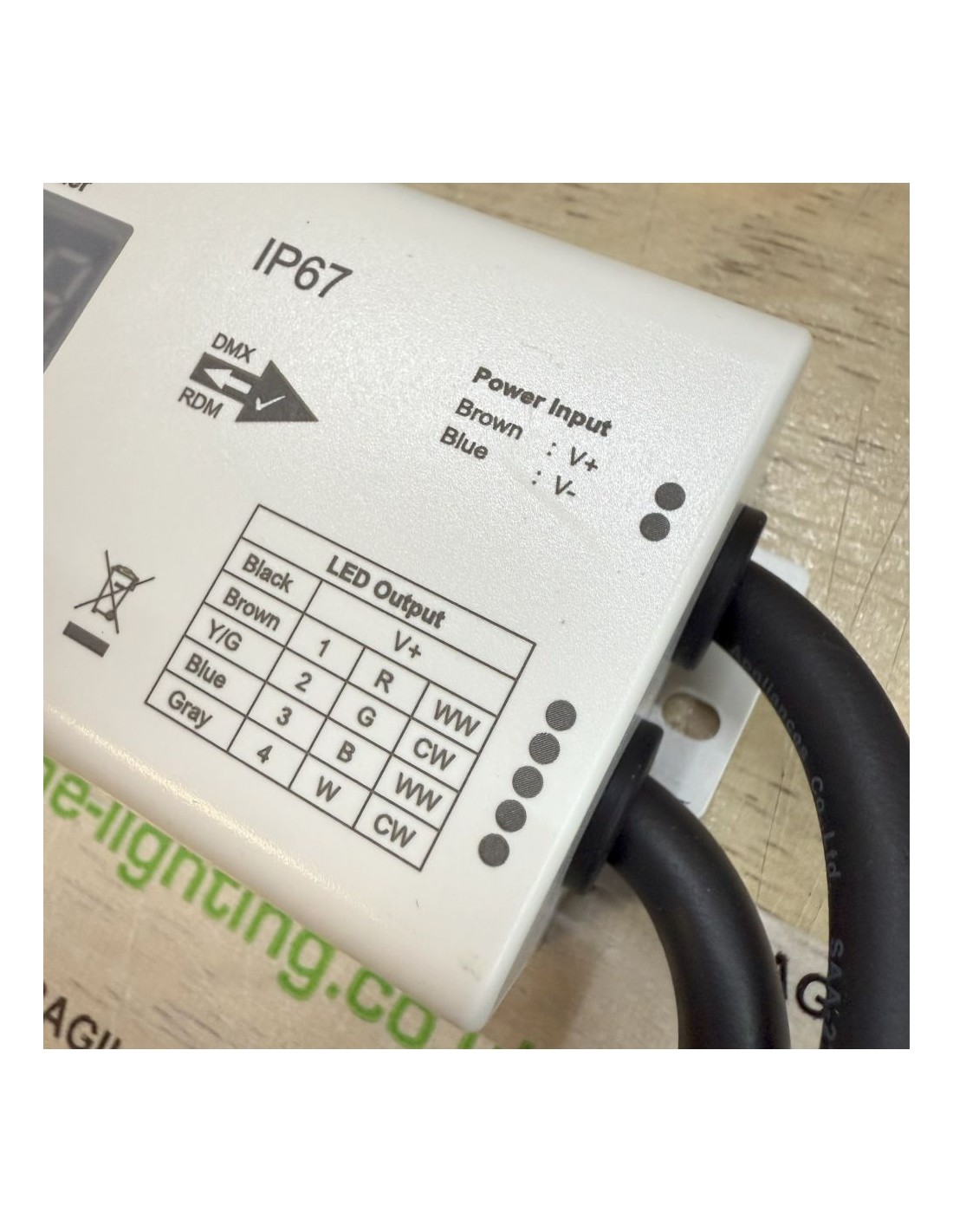

Output Channels: 4 × (12–48)VDC
Output Current: 4x5A @ 12/24V, 4x4A @ 36/48V
Output Power: Up to 768W @ 48V
Control Interface: DMX512 / RDM (wired)
PWM Frequency: Selectable – 250Hz to 32,000Hz
Dimming Resolution: 8-bit or 16-bit selectable (depending on DMX master)
Standalone Modes: 30 RGB/RGBW dynamic modes and 8 static dimmer programs
Adjustments: Onboard display with physical control keys
Dimensions: 165 × 98 × 72mm
Protection: Reverse polarity, overheat, overload, short circuit
Certifications: UKCA, CE, RoHS
Series Information: Premium Series
Warranty: 3 years standard, extendable to 5 years with our extended warranty option
