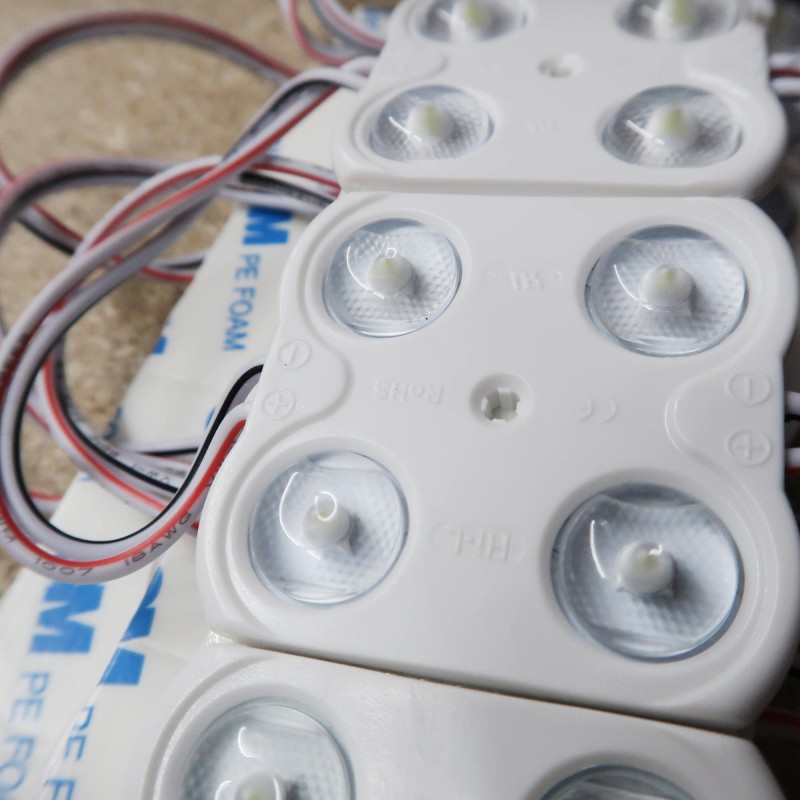

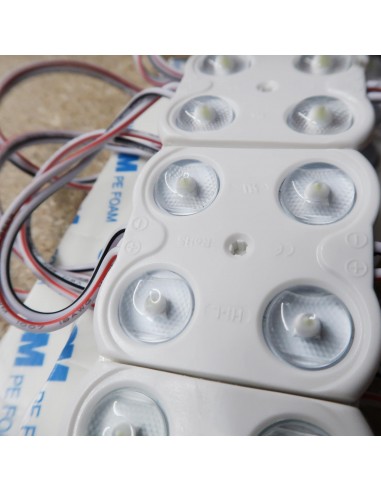

LED Channel letter module 12V 1.6W 180Lm white 7000K 170° IP68

HL-CL005

New product

Ideal for sign lighting applications 6-12cm depth

12V 1.6W 7000K
Beam angle 170°
Rating: IP68

More details

13 Items

Same Day Dispatch

£ 141,75 excl. VAT

£ 1,58 per module

Add to wishlist

Data sheet

LED Chip SMD 2835
Colour Pure White
Voltage 12V DC
Rating IP68 (Underwater waterproof)
Colour Temperature (CCT) 7000K
Colour rendering (CRI in ra) 80
Best for lightbox/letter Depth 6-12 cm
Module Power Consumption 1.6 Watt
Module Luminous Flux / Efficacy 180lm (112.5 Lm/W)
LED Module Beam Angle 170°
Module built-in driving method Constant Current
LED Module Controllability Constant Voltage driver
Max. No. of Modules in series 30 modules
Module Dimension (mm) 45*43*6.2
Modules in pack qty 90
Warranty 5 Years
Brand Hi-Line

More info

LED Channel Illuminated letter sign back lighting module 12V 1.6W 180Lm white 7000K 170° IP68

This LED module can be used for channel letters and light box back lighting, will be best performing for 6-12cm depth signs.

Maximum series connection is 30 pieces

The length of cable between modules is 100mm

30 modules chain measures approximately 4.5m

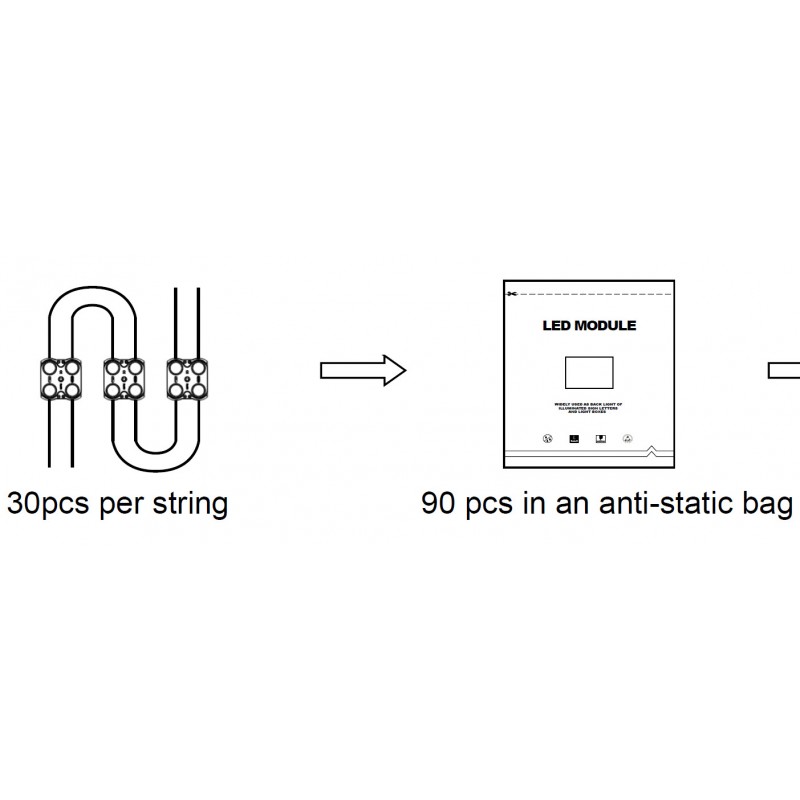

Packing: 30pcs per string, 90 pcs per bag

Price is for 90 modules (3 chains x 30 modules each)

Features:

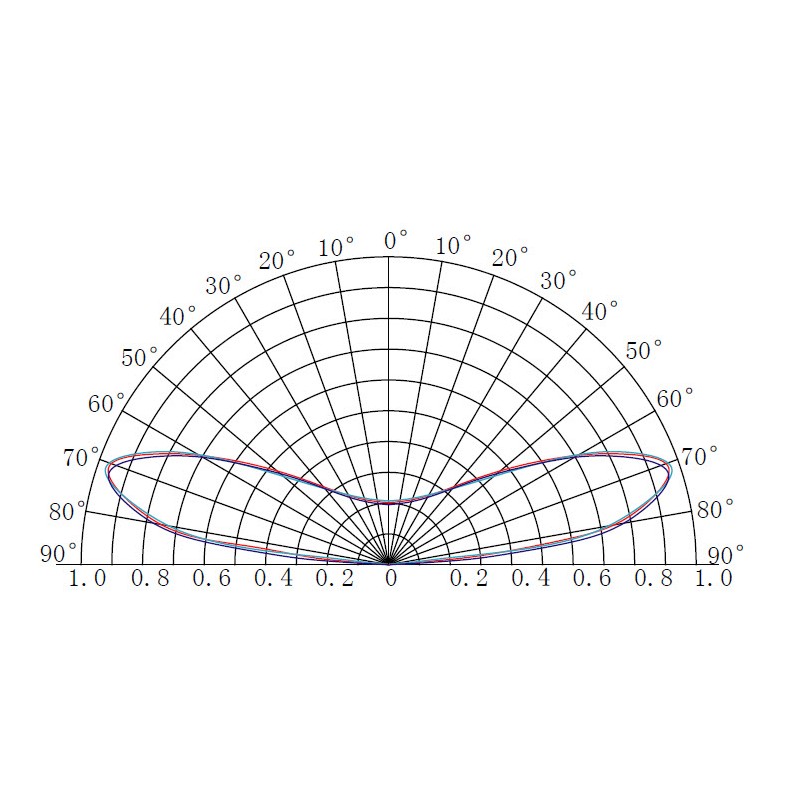

Special lens design for 170 degrees beam angle with even light distribution

Powered by high efficiency SMD2835 LED chip

Built-in constant current LED drive engine

Chips are 99.99% gold threaded, pure copper bracket coated with silver

SDCM less than 3 (BIN)

IP68 mould: anti-dust, anti-moisture, fully waterproof, anti-shock

Certification: CE, RoHS, UL

5 Years Warranty
