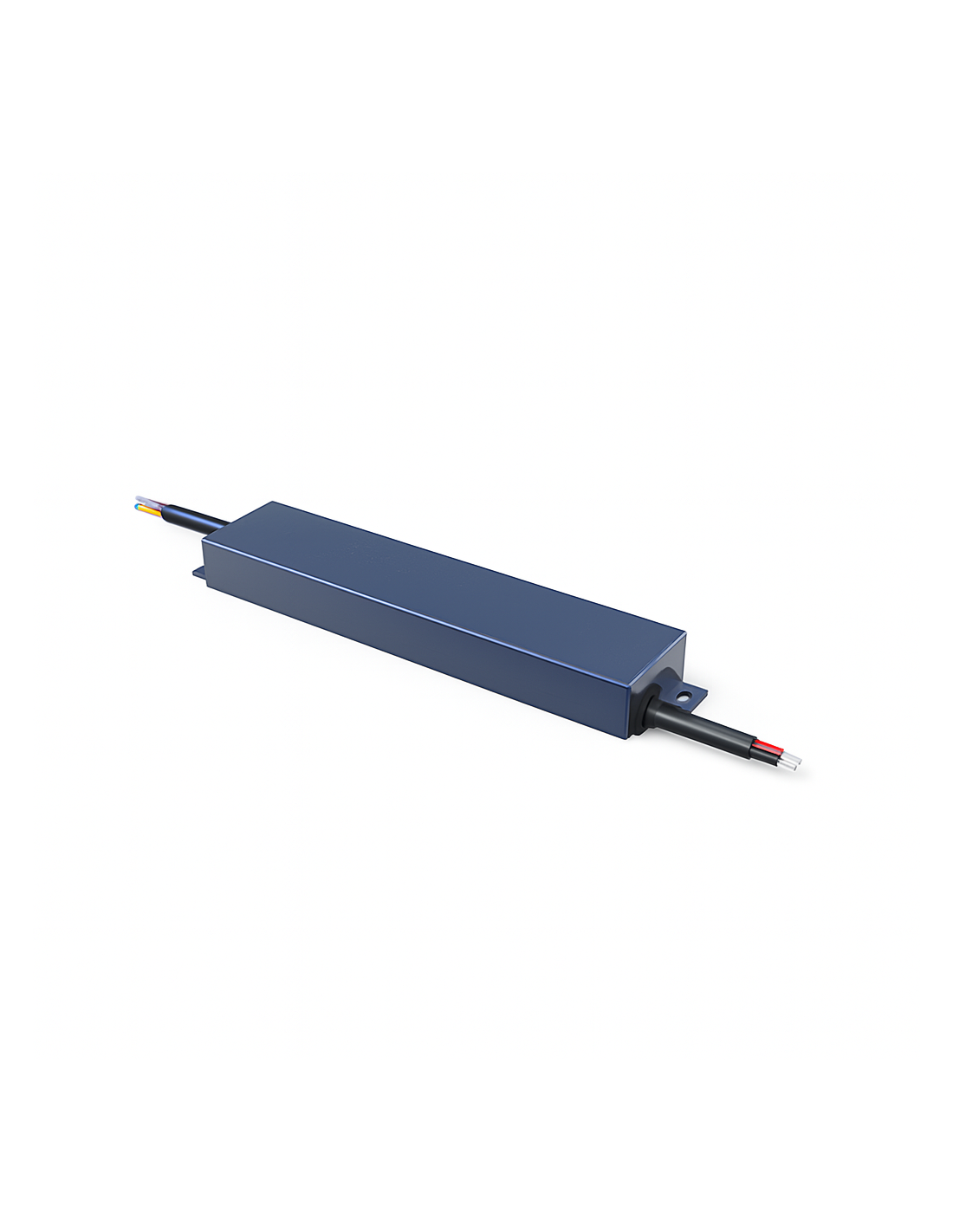

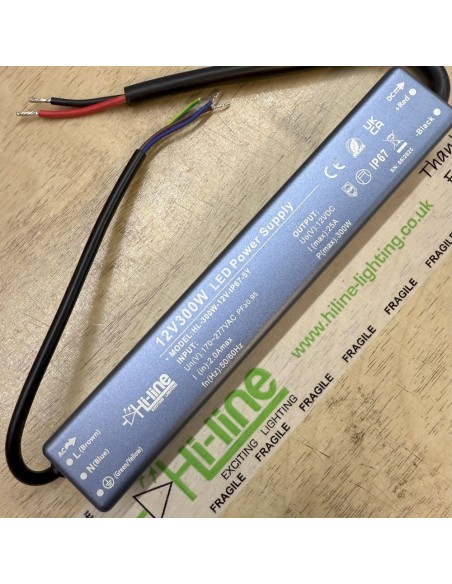

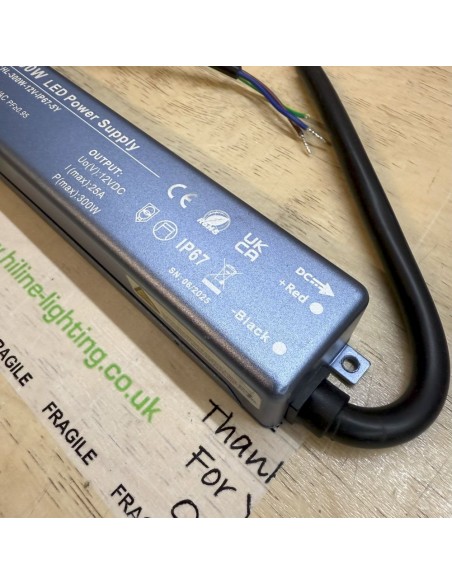

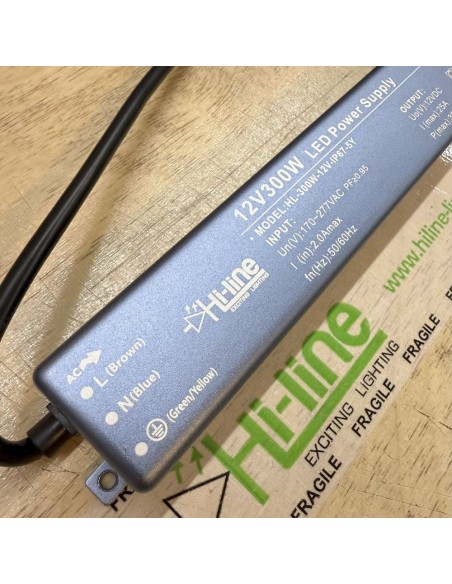

The 300W 12V Premium Series LED Driver is a high-efficiency, constant voltage power supply designed for LED strips with a total load up to 300W. It offers a high power factor (>0.95) and energy efficiency (>90%), combined with a robust IP67 waterproof rating. Built with high-grade electronic components, this non-dimmable unit ensures reliable and stable performance for demanding lighting installations. It is fully certified with SELV, UKCA, CE, and RoHS approvals and includes a 5-year warranty.
This is a highly specified switch mode power supply using the best electronic components in the market.
Non-Dimmable LED Driver suitable for LED strips of total power consumption up to 300W.
It is recommended to calculate 20% more than the tape’s actual power consumption for optimum performance and safety.

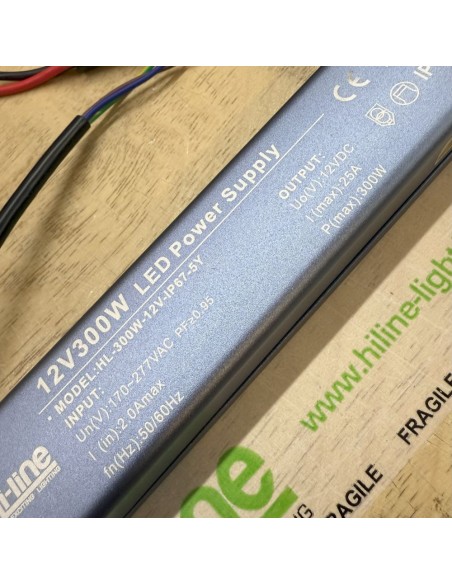

LED Driver 300W/12V Suitable for LED Strips
Input: 170~277V AC (50Hz)
Output: 12V / 25 Amps
Rating: IP67 (Waterproof)
Power factor: >0.95
Efficiency: >90%
Ripple: <2%

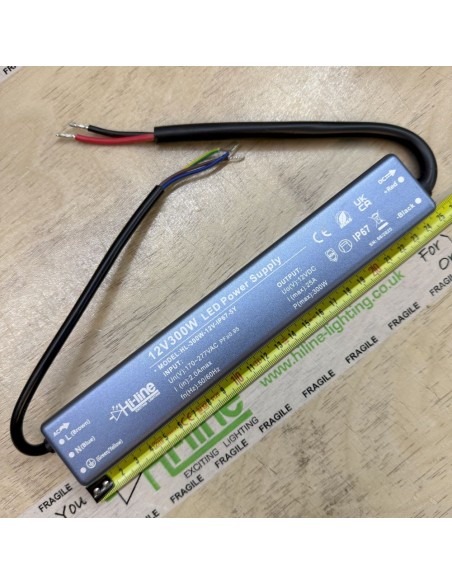

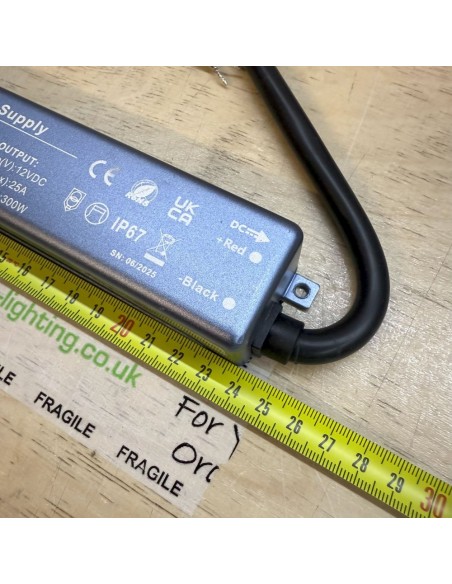

Dimensions: L250 × W40 × H30 mm
Weight: 640 g
Certifications: SELV, UKCA, CE & RoHS
Warranty: 5 Years (Premium Series)
Dimming is possible when used in combination with a compatible LED controller. In this case, the LED driver does not need to be dimmable itself, as brightness control will be managed via the controller.
For installations using RGB or RGBW LED strips, this driver must be combined with a suitable RGB/RGBW LED controller.
IMPORTANT NOTICE
This device must be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and applicable Building Regulations.
300W LED DRIVER
To ensure long-term reliability and optimal performance, it is advised to calculate 20% headroom above the actual LED strip load.
Live Stock Information
When viewing this product on our website, the live stock quantity is displayed in a green box just above the product price. This figure is updated in real time and reflects stock availability across all our sales channels. If you need more units than available, additional quantities can still be ordered — the remainder will automatically be placed on backorder and dispatched from the next incoming batch.
Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the "Related Products" tab at the top of this product description on desktop, or just after this section on mobile devices.
For this 12V 300W IP67 driver, we strongly recommend using the 3-Pin IP68 Connector & Protection Box (Reference: HL-3PMC-IP68-508) for secure and weatherproof connections. This accessory is especially useful for both input and output cable terminations in outdoor or damp environments.
