Product Overview

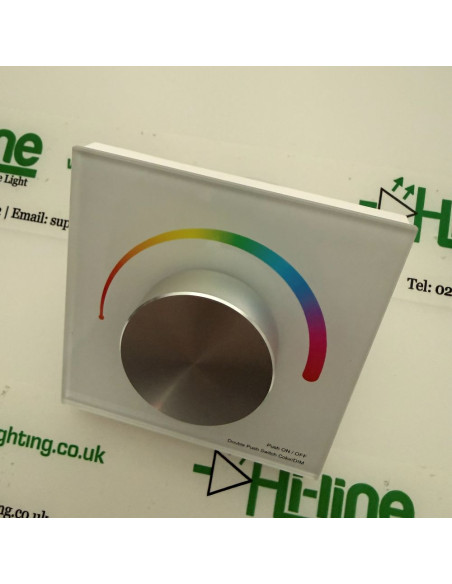

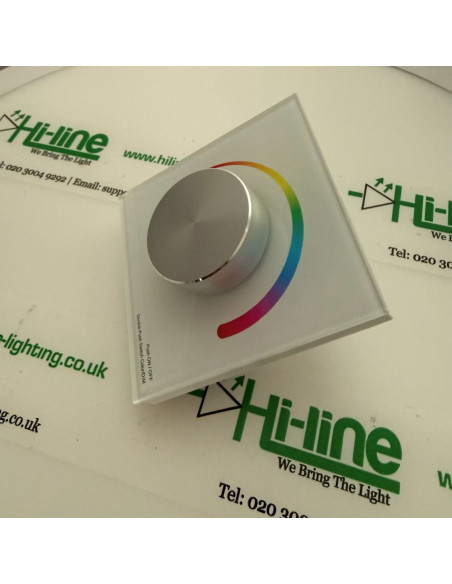

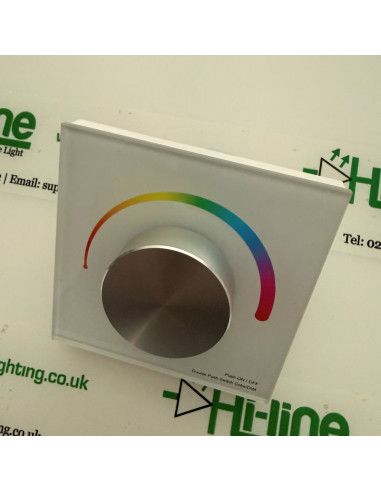

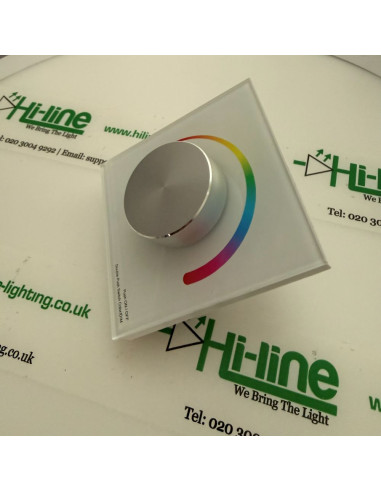

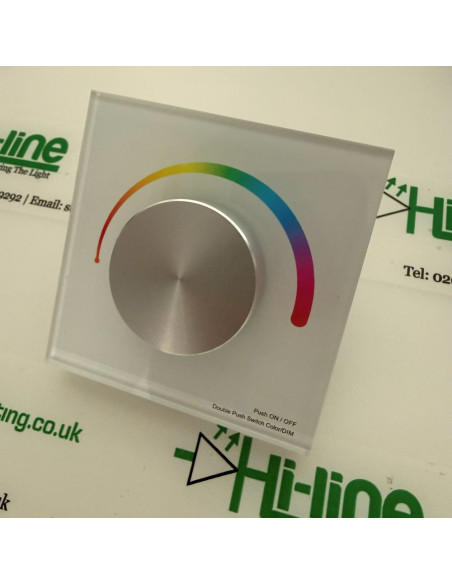

The HL-T3-K-W is a premium white glass RGB rotary wall controller designed for 12–48V DC constant voltage LED strip installations. It provides smooth RGB colour selection and dimming control using an elegant rotary glass touch panel suitable for residential, commercial and hospitality lighting projects.
The controller allows local wall-mounted operation while also supporting compatible RF 2.4G remote controls for additional wireless control flexibility.
The rotary knob allows fast and intuitive RGB colour adjustment, brightness control and smooth dimming without flicker.
Key Features
White glass wall-mounted RGB controller
Suitable for RGB constant voltage LED strips
12V, 24V, 36V and 48V DC compatible
Smooth 0–100% dimming
256-level dimming adjustment
Rotary RGB colour control
Modern white glass panel finish
RF 2.4G remote control compatible
Selectable PWM frequency: 2kHz or 8kHz
Push, rotate and long-push operation
Overheat, overload and short-circuit protection
UK and European standard wall box compatible
Operation Functions
Push: turns lighting on or off
Rotate: adjusts RGB colour or brightness
Double push: switches between colour adjustment and brightness mode
Long push: continuous saturation or brightness adjustment

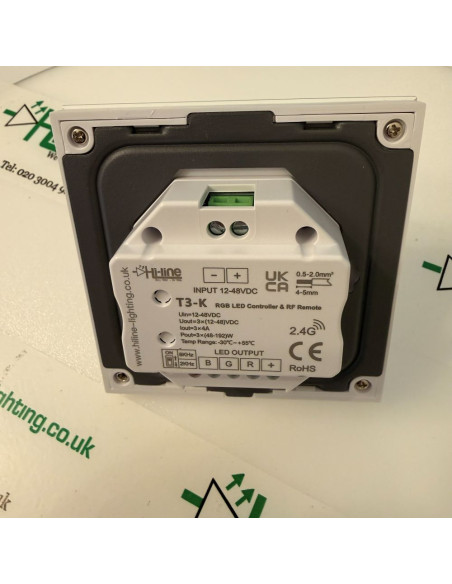

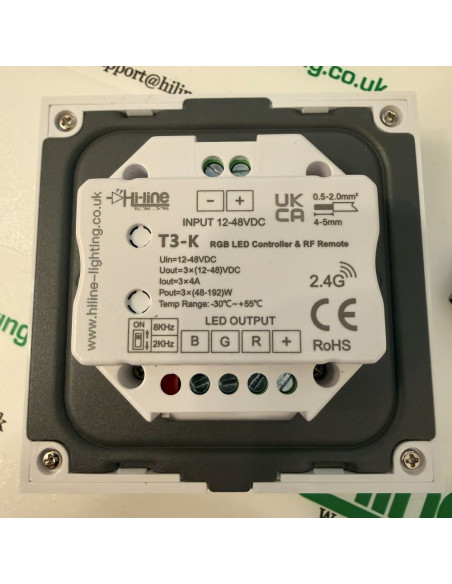

Technical Specifications
SKU: HL-T3-K-W
Control Type: RGB constant voltage PWM controller
Input Voltage: 12–48V DC
Input Current: 12.5A
Output Voltage: 3 x 12–48V DC
Output Current: 3 channels, 4A per channel
Output Power: 3 x 48–192W depending on voltage
PWM Frequency: 2kHz / 8kHz selectable
Dimming Levels: 256 levels
RF Compatibility: 2.4G RF remote controls
Panel Colour: White glass
Dimensions: 112 x 112 x 60mm
Operating Temperature: -30°C to +55°C
Maximum Case Temperature: +85°C
Weight: 0.220kg
Protection Features: Overheat, overload and short-circuit auto recovery
Certification: CE, UKCA, EMC, RED
Installation Notes
The HL-T3-K-W requires a suitable constant voltage DC LED driver between 12V and 48V DC depending on the connected LED strip voltage.
The total connected RGB LED strip load must remain within the controller’s maximum output rating.
For video recording environments or camera-sensitive installations, the 8kHz PWM setting may help reduce visible flicker. Higher PWM frequency may slightly reduce maximum output current.
Warranty
Standard Warranty: 3 Years
Extended Warranty: Any cover beyond 3 years is classed as Extended Warranty and is only valid with an official Hi-Line certificate. Extended cover is a paid upgrade and is granted only after Hi-Line engineers have reviewed the project design, installation details, environment and installer credentials. In selected approved cases, warranty cover may be extended up to 7 Years.
Important Notice
The above guidance is based strictly on our understanding of the intended application. Final system suitability, load verification and installation method must be confirmed by a qualified electrician or lighting professional. Hi-Line Lighting supplies equipment only and does not provide installation design or accept responsibility for system configuration or site works.
