RGB LED Strip 24V 14.4W/m IP00 SMD5050
RGB LED strip, 24V, IP00 (Non-Waterproof)
5m roll–10mm width
3 year warranty
Commercial high-grade 24V RGB LED strip
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 4-wire cable (15cm on each side of the strip roll)

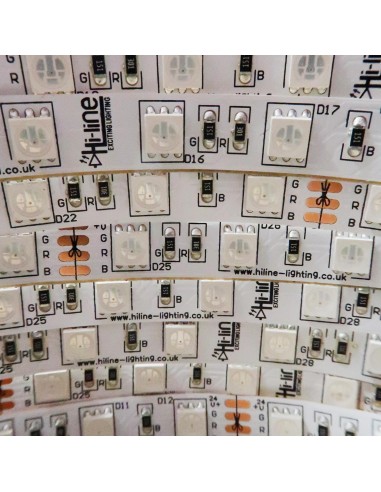

The RGB LED strips are powered by high-quality quad SMD5050 LED chips which generate a brightness of 1080Lm/m and vivid colours.

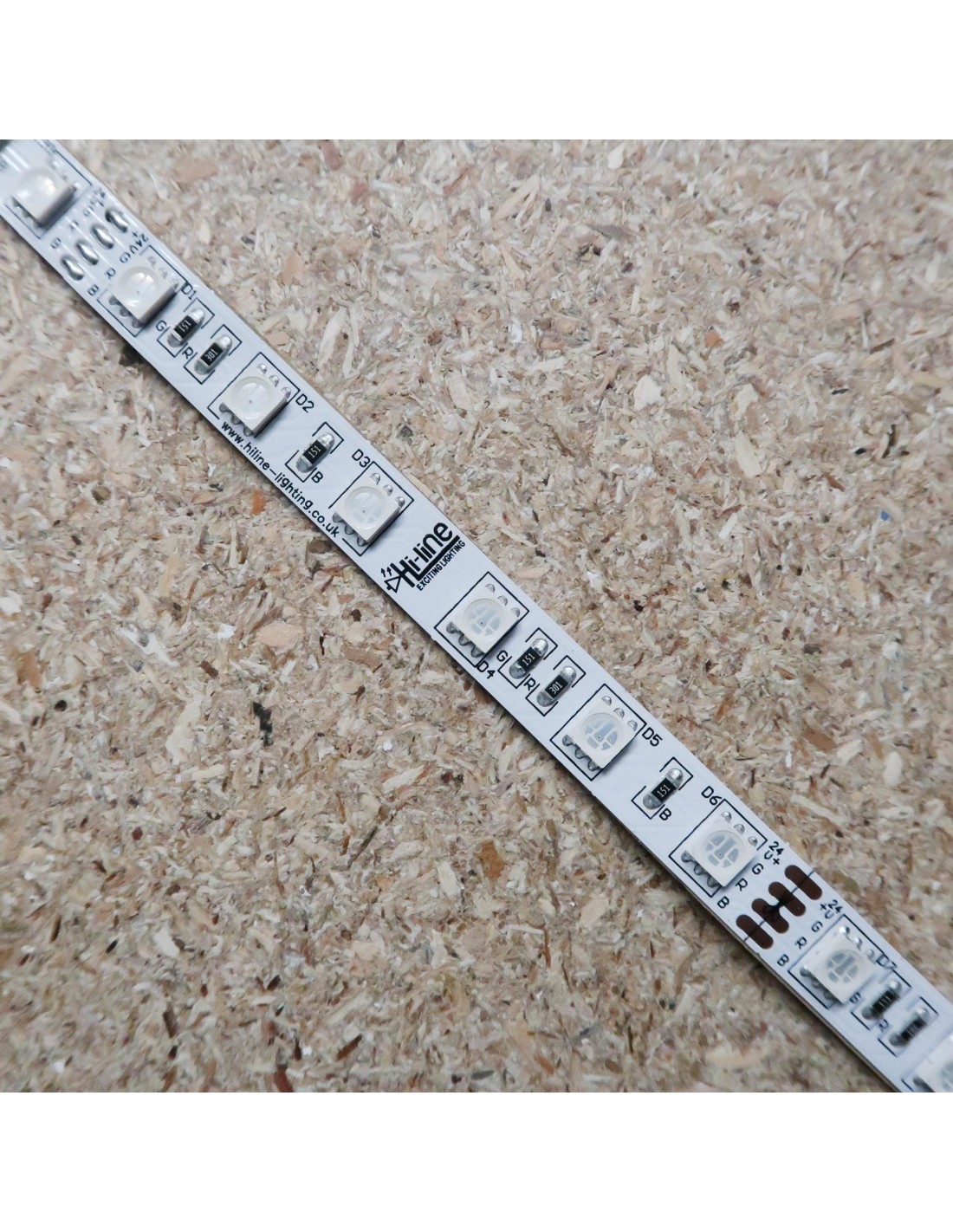

The strip can be cut every 6 LEDs (10mm). The width of the LED strip is 10mm.

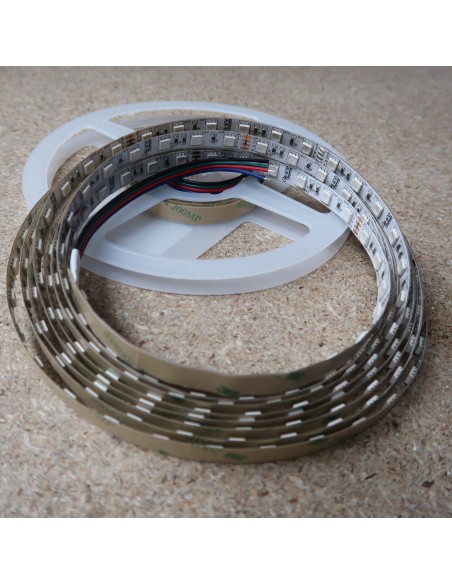

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 4-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

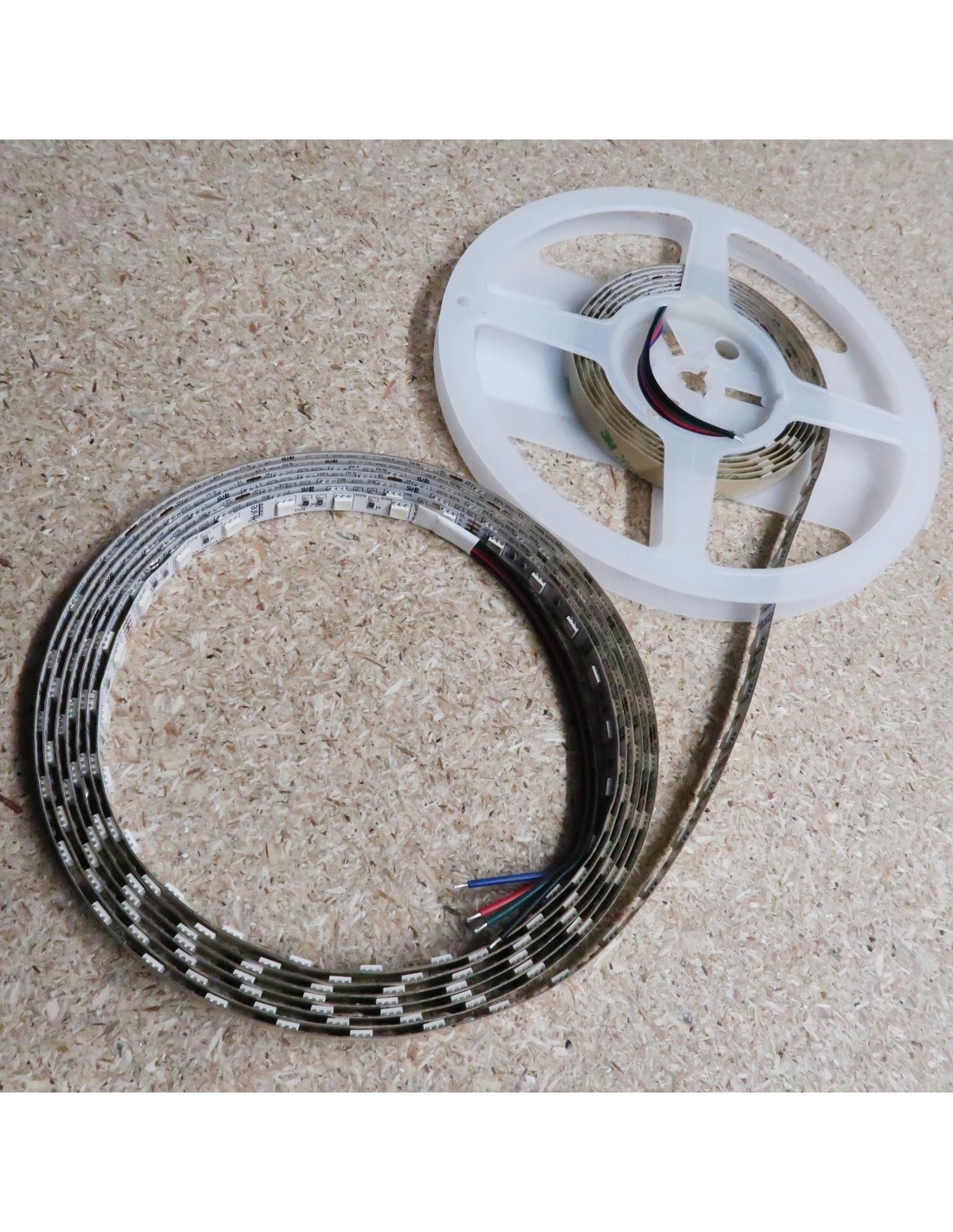

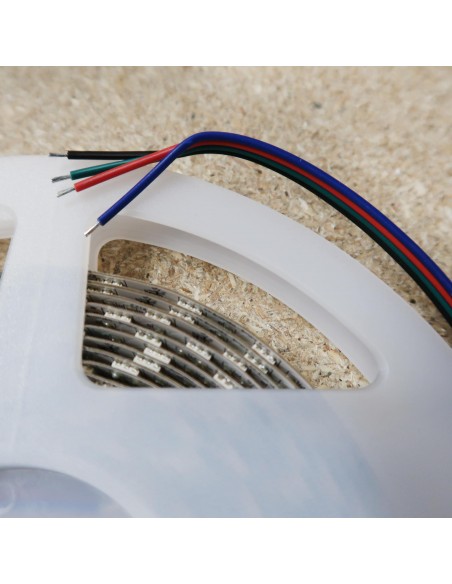

The RGB LED strip comes with a 15cm wire ending (4-core) on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.

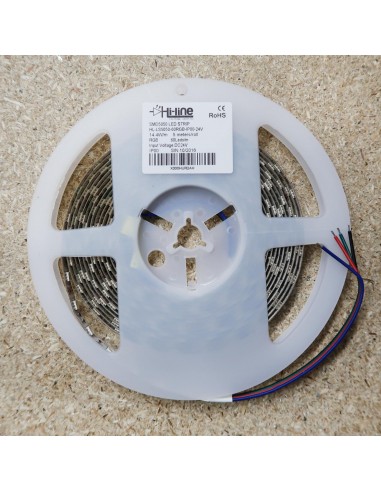

The stated price is for 1 x 5-meter roll RGB LED strip with 300 SMD5050 LEDs – IP00 (Non-Waterproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that, for driving RGB LED Strips, you will have to combine the LED Driver with an RGB/RGBW LED Controller.
In such case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- 24V DC
- 14.4 W/m
- 1080 Lm/m
- Number of LEDs per meter
- IP00 (Non-waterproof)
- Width of strip
- Cutting length
- Every 6 LEDs (100mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 3 Years
- LED Chip
- SMD 5050
